Diesel Power Telescopic Boom Lift
(12m to 56m)
Email us to get more parameters:
| Model Type No. | SPTBL-12 | SPTBL-16 | SPTBL-20 | SPTBL-22JIB | SPTBL-26 | SPTBL-28JIB | SPTBL-30 | SPTBL-32JIB | SPTBL-36 | SPTBL-38JIB | SPTBL-42JIB | SPTBL-56JIB |
| Max Working Height | 14.3m | 18.2m | 22.3m | 24.1 m | 28m | 30m | 32.4 m | 34 m | 38.64 m | 40.4 m | 44 m | 58m |
| Max Platform Height | 12.3m | 16.2m | 20.3m | 22.1 m | 26m | 28m | 30.4m | 32 m | 36.64 m | 38.4 m | 42 m | 56m |
| Max Working Radius | 10.5m | 15m | 18m | 18 m | 22m | 22m | 21.4 m | 21.4 m | 21.4 m | 21.4 m | 23 m | 26m |
| Lift Capacity(restricted) | 480kg | 480kg | 480 kg | 480 kg | 480 kg | 480 kg | 480 kg | 480kg | 480 kg | 480 kg | 480 kg | 480kg |
| Lift Capacity(non-restricted) | 230kg | 230kg | 230kg | 230 kg | 230kg | 230kg | 340 kg | 230 kg | 340 kg | 230 kg | 230 kg | 230kg |
| Length( stowed) | 7.54m | 7.9m | 9.3m | 10.97 m | 11.55m | 13.5m | 13 m | 14.1 m | 13 m | 14.1 m | 17m /13.3 m | 14.9m |
| Width (stowed) | 2.29m | 2.39m | 2.49m | 2.49m | 2.5m | 2.5m | 2.5 m / 3.43 m | 2.5 m / 3.43 m | 2.5m / 4.17m | 2.5 m / 4.17 m | 2.49 m / 3.9 m | 2.49m |
| Height(stowed) | 2.39m | 2.69m | 2.75m | 2.75 m | 2.83m | 2.83m | 3.08m | 3.08m | 3.08m | 3.08m | 3.28m | 3.15m |
| Wheel Base | 2.45m | 2.45m | 3m | 3m | 3m | 3m | 3.66m | 3.66m | 3.96m | 3.96m | 3.96m | 5.6m |
| Ground Clearance | 0.43m | 0.43m | 0.43m | 0.43 m | 0.43m | 0.43m | 0.43m | 0.43 m | 0.43m | 0.43m | 0.43 m | 0.38m |
| Platform Measurement | 1.83*0.76m | 1.83*0.76m | 1.83*0.76m | 1.83*0.76m | 2.44*0.91m | 2.44*0.91m | 2.44*0.91m | 2.44*0.91m | 2.44*0.91m | 2.44*0.91m | 2.44*0.91m | 2.44*0.91m |
| Turning radius( inside) | 2.2 m | 2.66m | 3m | 3m | 3.59 m | 3.59 m | 2.74 m | 2.74 m | 3.13 m | 3.13 m | 3.13 m | 2.69m |
| Turning Radius(outside) | 5.2 m | 5.66m | 3m | 3 m | 5.59 m | 5.59 m | 4.14 m | 4.14 m | 4.14 m | 4.14 m | 4.14 m | 7.6m |
| Travel Speed(stowed) | 4.4 km/h | 4.4km/h | 4.4km/h | 4.4 km/h | 4.4 km/h | 4.4 km/h | 4.4 km/h | 4.4 km/h | 4.4 km/h | 4.4 km/h | 4.4 km/h | 4.4 km/h |
| Travel Speed(raised ) | 1.1 km/h | 1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h | 1.1 km/h | 1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h |
| Grade Ability | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Solid Tire | 36×12-20 | 33×12-20 | 36×14-20 | 36×14-20 | 385/65-24 | 385/65-24 | 385/65-24 | 385/65-24 | 385/65-24 | 385/65-22.5 | 445/65-22.5 | 445/65-22.5 |
| Platform Leveling | Automatic leveling | |||||||||||
| Swing Speed | 0~1/3rpm | 0~1/3rpm | 0~1/3rpm | 0~1/3rpm | 0~1/3rpm | 0~1/3rpm | 0~1/3rpm | 0~1/3rpm | 0~1/3rpm | 0~1/3rpm | 0~1/3rpm | 0~1/3rpm |
| Turn Table Swing | 360° Continuous | 360° Continuous | 360° Continuous | 360° Continuous | 360° Continuous | 360° Continuous | 360° Continuous | 360° Continuous | 360° Continuous | 360° Continuous | 360° Continuous | 360° Continuous |
| Platform Leveling | Automatic leveling | Automatic leveling | Automatic leveling | Automatic leveling | Automatic leveling | Automatic leveling | Automatic leveling | Automatic leveling | Automatic leveling | Automatic leveling | Automatic leveling | Automatic leveling |
| Platform Rotation | ±80° | ±80° | ±80° | ±80° | ±80° | ±80° | ±80° | ±80° | ±80° | ±80° | ±80° | ±80° |
| Fuel tank Capacity | 151L | 150L | 150L | 151 L | 151L | 151L | 151 L | 151 L | 151 L | 151L | 200L | 300L |
| Total Weight | 7000kg | 10000kg | 12500kg | 13000 kg | 16500kg | 17000kg | 18500kg | 18650kg | 20120kg | 23000 kg | 23600kg | 27500kg |
| Control Voltage | 12v DC | 12v DC | 12v DC | 12V DC | 12v DC | 12V DC | 12 V DC | 12v DC | 12v DC | 12v | 24V DC | 24v |
| Drive&Steering mode | 4*4*2 | 4*4*2 | 4*4*2 | 4*4*2 | 4*4*2 | 4*4*2 | 4*4*4 | 4*4*4 | 4*4*4 | 4*4*4 | 4*4*4 | 4*4*4 |
| Engine | Yanmar | Yanmar | Yanmar | Yanmar | Cummins | Cummins | Cummins | Cummins | Cummins | Cummins | Cummins | Cummins |

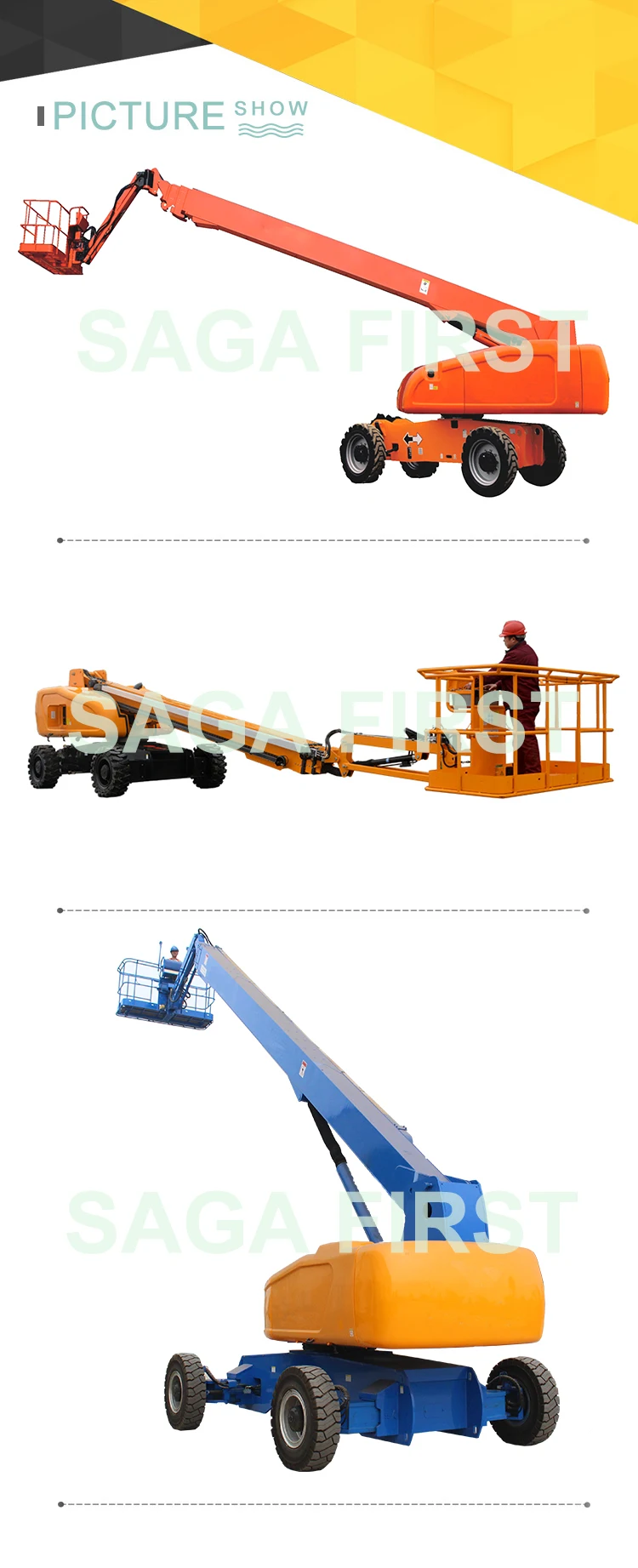

Detailed Pictures

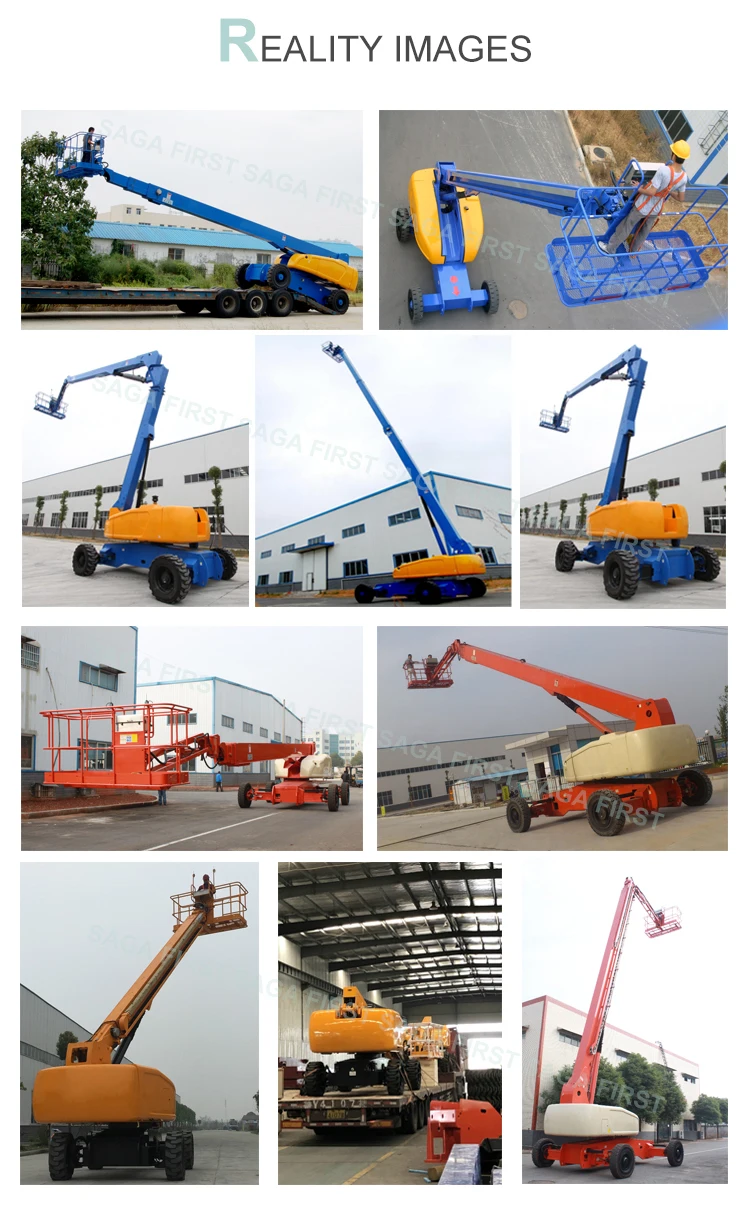

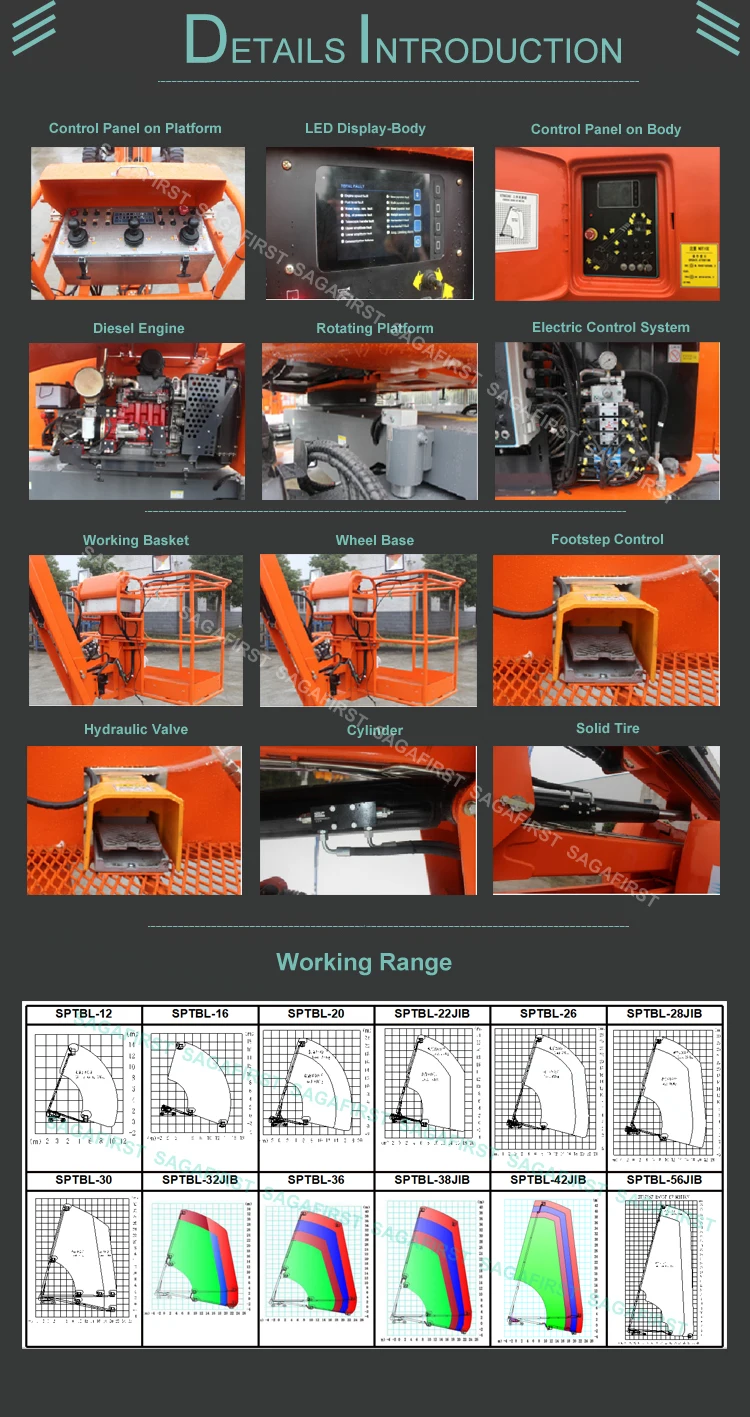

Detailed Images
Safety Precautions:
1. Explosion-proof valves 2. Spillover valve 3. Emergency decline valve
4. Check Valve 5. Adjustment Valve 6. Gradienter

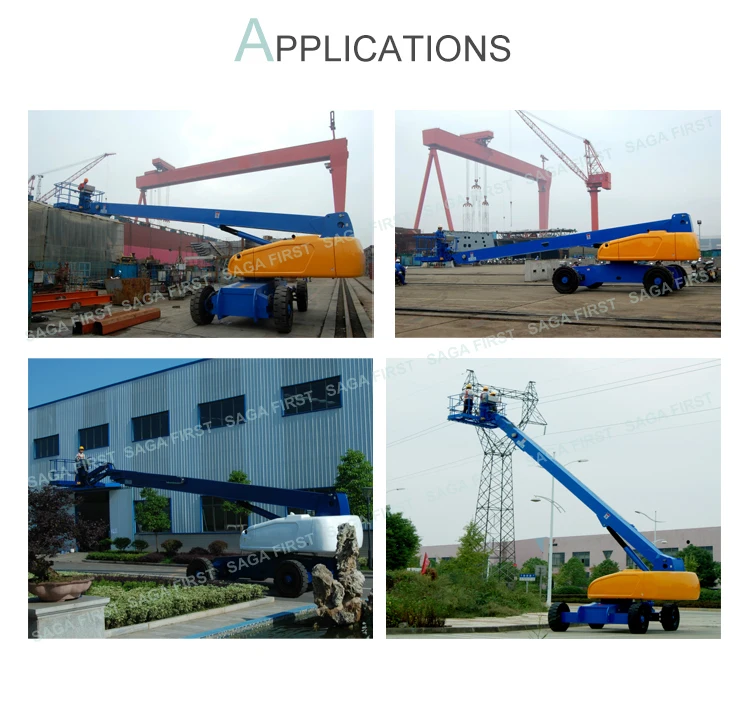

Applications
SAGA FIRST Telescopic boom lift is widely used in construction site, building maintenance, factory daily aerial work maintenance and various kinds of aerial work.
Certifications
SAGA FIRST BOOM LIFT are approved by European certificates and meet the international standards.
Contact Us
Alison Zhou (Sales Manager)
Tel/Whatsapp/Wechat:+86-13668863425
Skype:alison6442 Email:alison(at)liftawp.com
Qingdao Sinofirst Machinery Co., Ltd
Add: Danshan Industrial Park,Qingdao,China
Tel:+86-532-68076300 Fax: +86-532-66851125
Website: www.liftawp.com
