Product Description

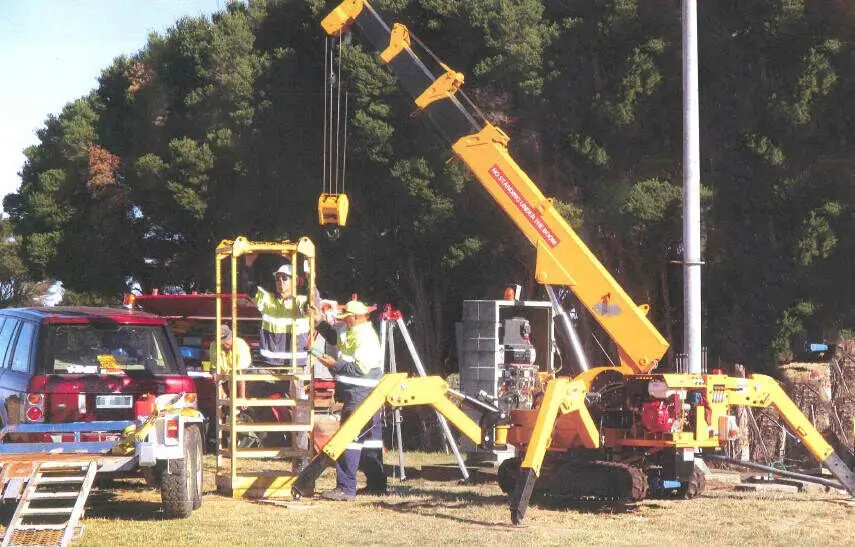

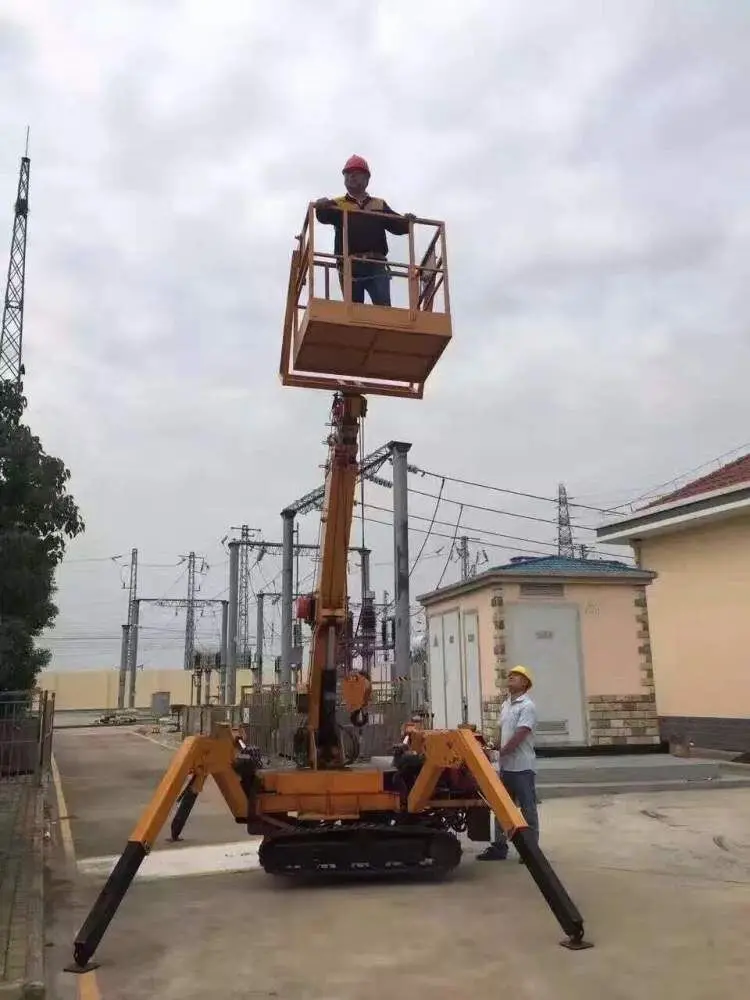

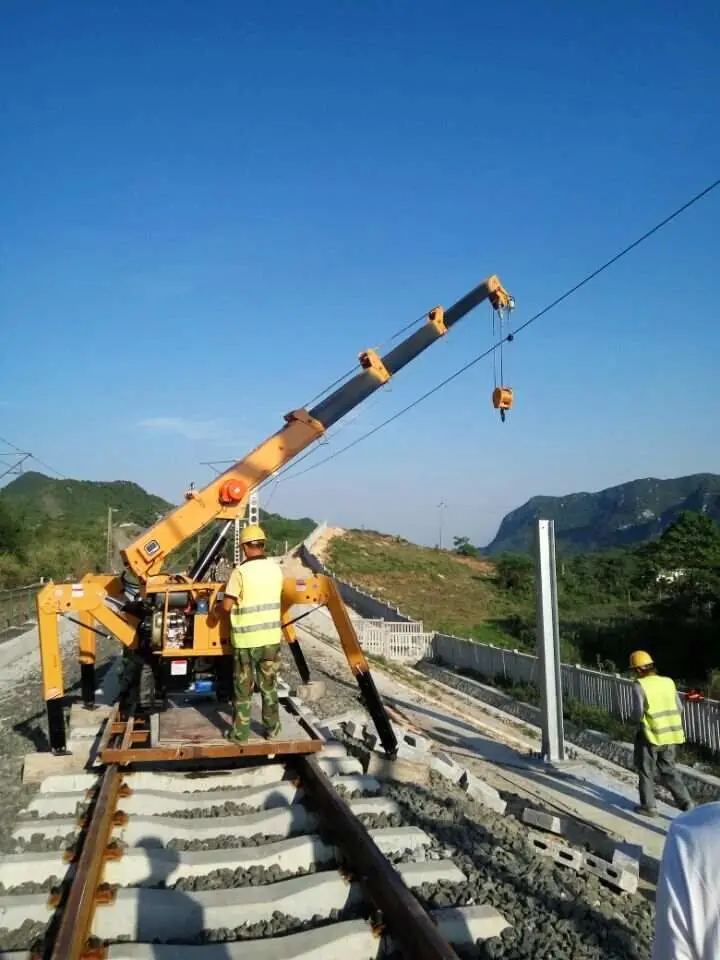

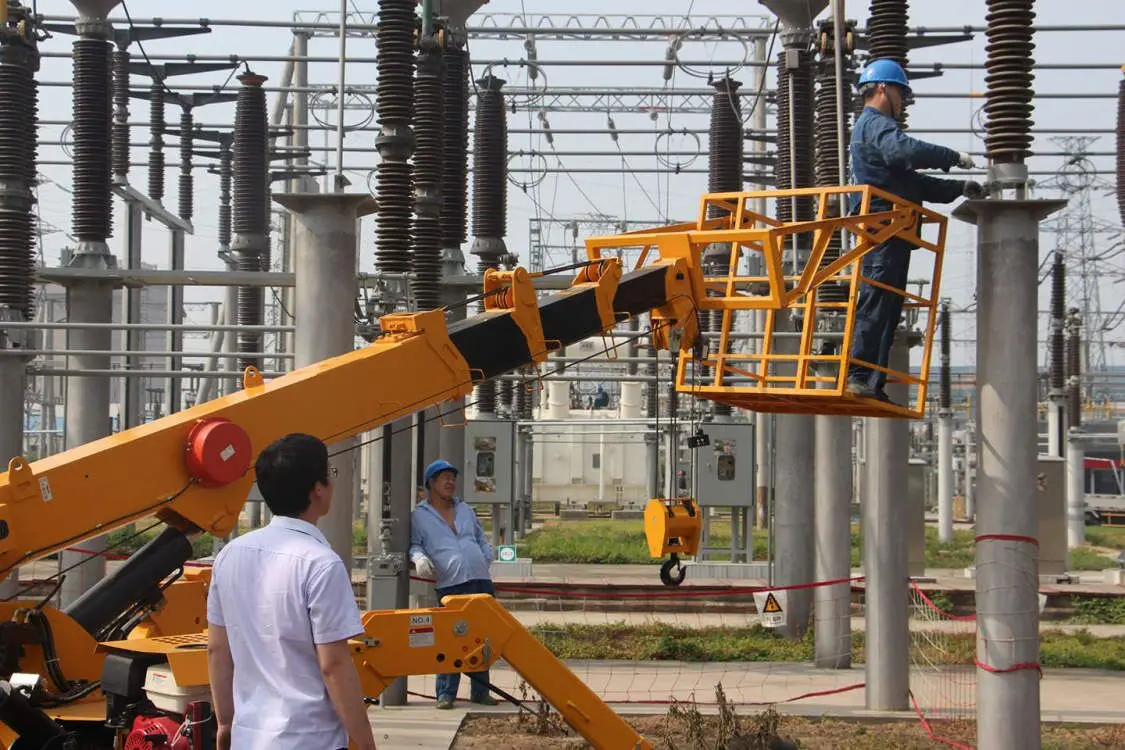

Belift Brand Crawler Spider Crane combines the space-saving qualities of a spider crane with the powerful lifting capabilities of a pick-and-carry crane inside one practical machine. This compact equipment offers an alternate solution to the difficulties associated with lifting in areas with restricted access.
Features & Advantages:
1. The Crawler Spider Crane for moving loads quickly, easily, and safely.
2. Spider crane, suitable for occasions with limited space.
3. The spider crane is a full-slewing, boom-type, full-hydraulic transmission crane.
4. The main arm is 4-5 sections. The main arm section adopts a U-shaped structure. The single-stage telescopic oil cylinder and the wire rope telescopic mechanism can realize the synchronous expansion and contraction of the main arm.
5. The telescoping limit of the boom uses the double insurance of the marking line and the alarm.
Specification
Model Type | BL2.0C | BL3.0C | BL5.0C | BL8.0C | BL12.0C | |||||
Load capacity | 2 ton | 3 ton | 5 ton | 8 ton | 12 ton | |||||
Lifting Height | 5.98m | 9.9m | 16.8m | 18.5m | 23.5m | |||||
Max operating radius | 4.7m×0.4t | 8.6m×0.4t | 15.3m×0.5t | 16.8m×0.35t | 21.3m×0.5t | |||||
Walking device | Walking mode | Hydraulic motor drive, two speed | ||||||||
Walking speed | 0-2.0km/h | 0-2.5km/h | 0-2.5km/h | 0-2.5km/h | 0-3km/h | |||||
Climbing ability | 20°(36%) | |||||||||
Engine | Start mode | Electric start | ||||||||
Startup Tempt. | -5°C~40°C | |||||||||
Engine | AC Electric + Diesel Dual Power | |||||||||
Battery capacity | 12v 45AH | 12v 45AH | 12v 45AH | 12v 45AH | 24v 45AH | |||||
Weight(KG) | 2000kg | 2500kg | 6500kg | 7800kg | 11500kg | |||||
Vehicle Size(e( L*W*H)(m) | 2.2 * 0.95 *1.65 | 2.95*0.98*1.56 | 4.75 *1.5 * 2.2 | 5 *1.6 * 2.2 | 5.7*1.8* 2.4 | |||||
Packing Size (m) | 2.4*1.2*1.9 | 3.1*1.2*1.9 | 1*20ft GP | 1*20ft GP | 1*20ft GP | |||||
20ft container loading Qty | 3 sets | 2 sets | 1 set | 1 set | 1 set | |||||

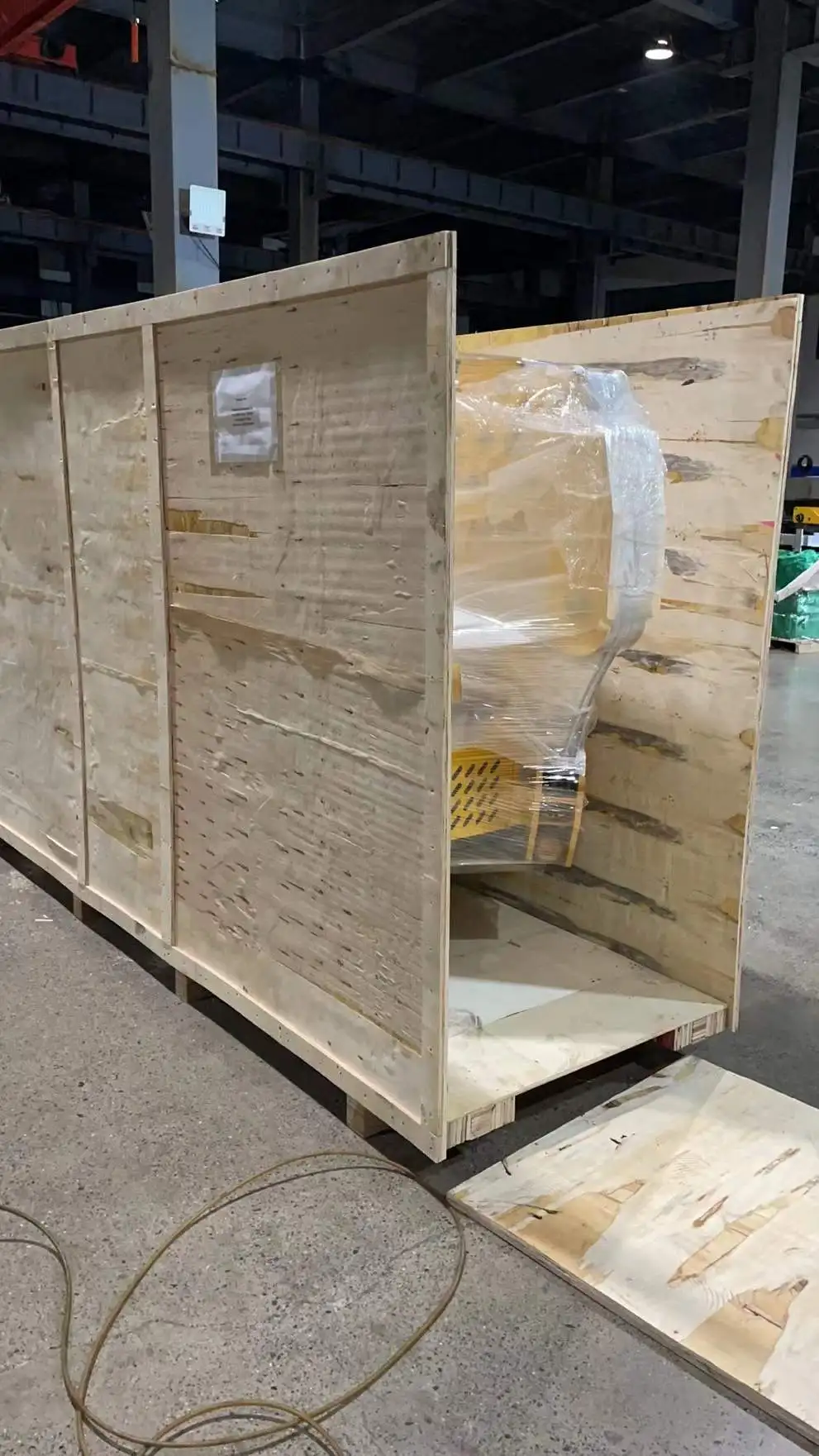

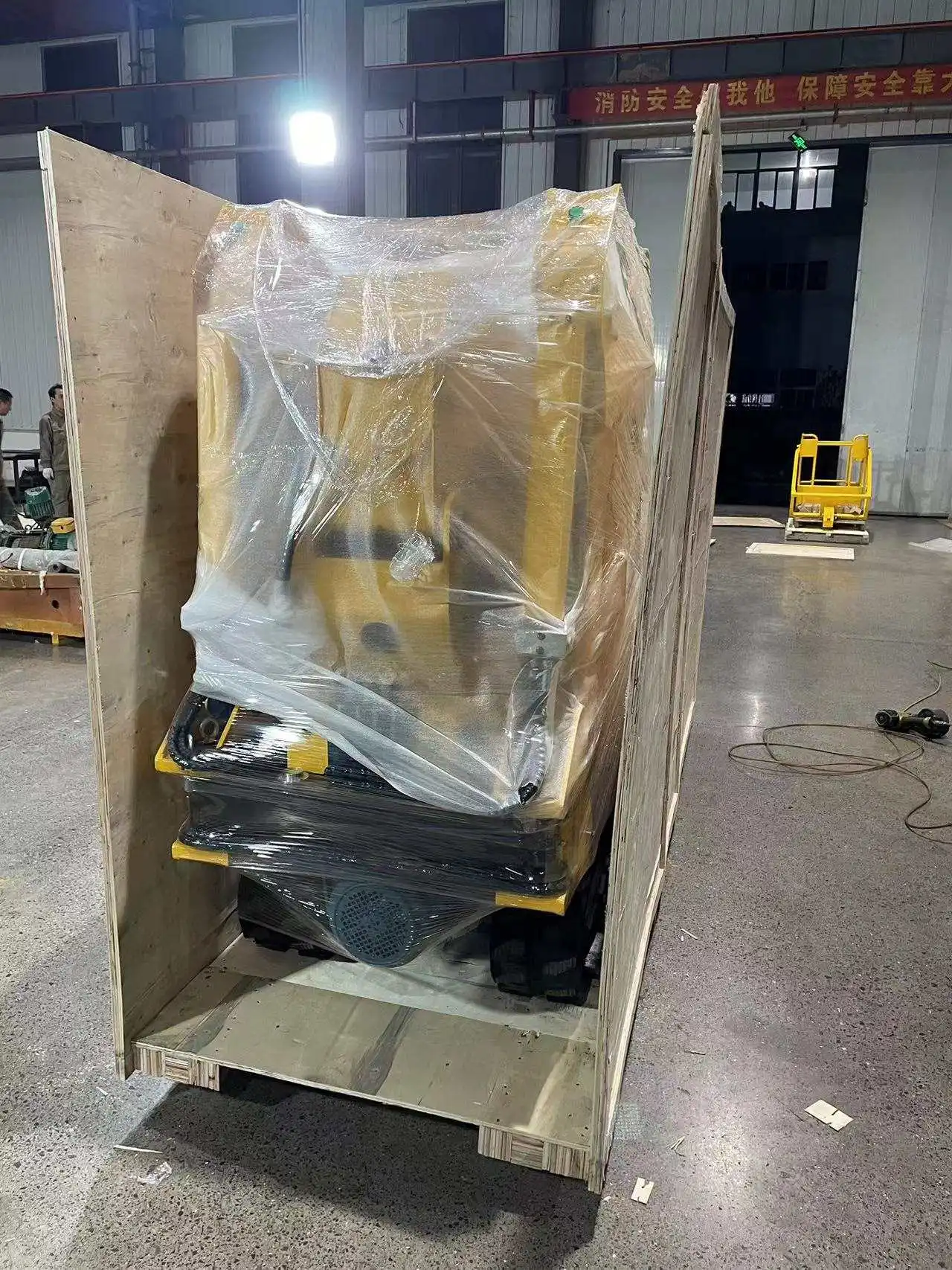

Packing & Delivery
Recommend Products

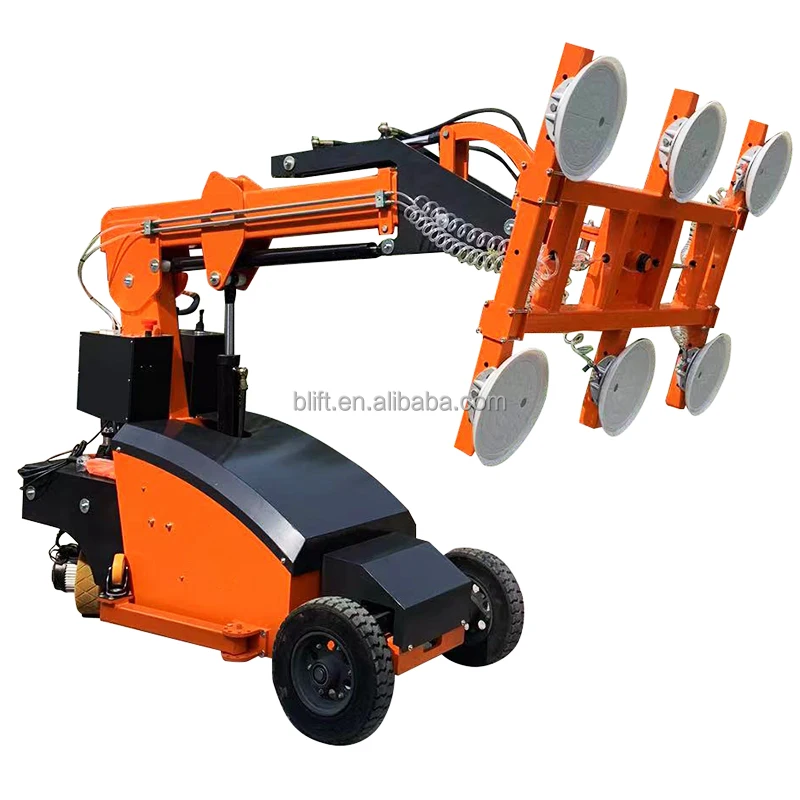

Aerial Mast lift Scissor lift Vacuum lifter Boom lift

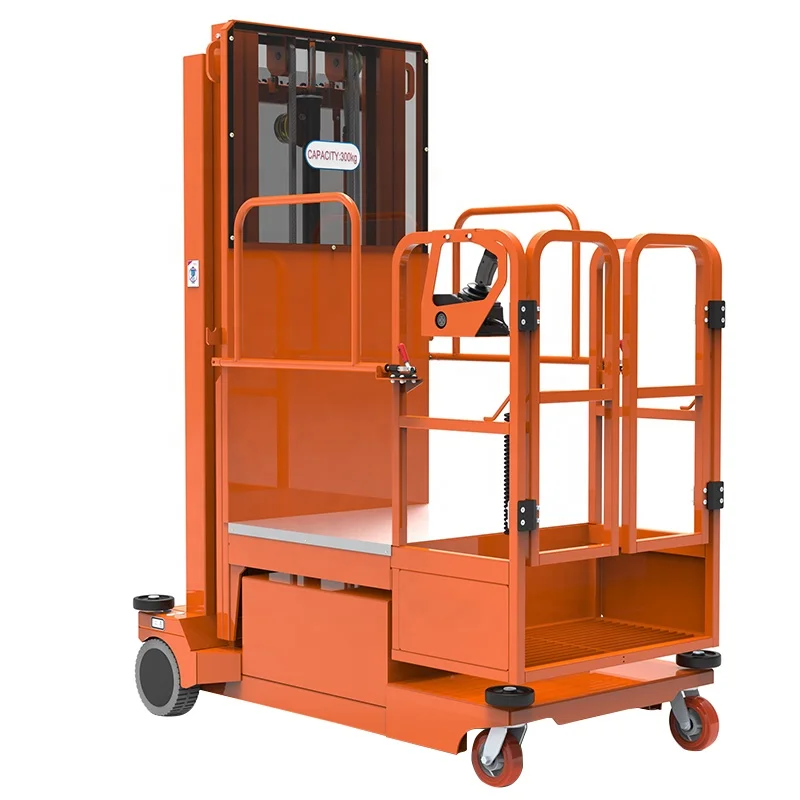

Electric order picker Lifting tables Material lift Small home lift
Company Profile
Since 2015, Shandong Belift Machinery Co.,Ltd has grown into the leading manufacturer specialised in providing the efficient, reliable and safe indoor aerial wok plat-forms in global business.
Based on our knowledge of construction worksites and the multiple applications of the access equipment, we have designed six different ranges: Single mast lift AWP Series, Dual masts lift DPL Series, Self propelled mast lift AMWP Series, Self propelled telescopic mast series ASWP Series, Mini Mobile scissor lift MMS Series and Mini self propelled scissor lift MSS Series.
As a specialist of indoor aerial work equipment, we continue where others stop.From the selection of each component, the design of utility and beauty, to the perfect after-sales service,Belift guarantees the customers to obtain the best quality service.
Now Belift takes“Promote the development of global indoor aerial work, ensure indoor work safety, and improve indoor work efficiency”for the mission，“To be the global leader in indoor aerial work equipment”for the vision, Starting from the perspective of customers, and keeping innovating and improving.
Welcome to visit us and negotiate business. We will pick up you and arrange the accommodation.
Dealers and Wholesalers are especially welcomed and we will give special discounts.
Based on our knowledge of construction worksites and the multiple applications of the access equipment, we have designed six different ranges: Single mast lift AWP Series, Dual masts lift DPL Series, Self propelled mast lift AMWP Series, Self propelled telescopic mast series ASWP Series, Mini Mobile scissor lift MMS Series and Mini self propelled scissor lift MSS Series.
As a specialist of indoor aerial work equipment, we continue where others stop.From the selection of each component, the design of utility and beauty, to the perfect after-sales service,Belift guarantees the customers to obtain the best quality service.
Now Belift takes“Promote the development of global indoor aerial work, ensure indoor work safety, and improve indoor work efficiency”for the mission，“To be the global leader in indoor aerial work equipment”for the vision, Starting from the perspective of customers, and keeping innovating and improving.
Certificate: CE, ROHS, SGS, ISO etc.
Welcome to visit us and negotiate business. We will pick up you and arrange the accommodation.
Dealers and Wholesalers are especially welcomed and we will give special discounts.
Certifications
FAQ
1. Are you a factory or trading company?
Yes, we're factory with over 10 years exporting experience.
2. What's the MOQ?
1 UNIT
3. Do you offer OEM&ODM service?
Yes, like lifting capacity, lifting height, size of platform, painting color, logo, manual etc.
4. What's the quality warranty?
24 months. Spare parts provided freely within quality warranty.
5. How can I get the after-sales service?
We offer Videos, Pictures, User Manual, Technical guidance and 24 hours online service
6. What's your QA&QC policy?
100% Test before shipping.
Yes, we're factory with over 10 years exporting experience.
2. What's the MOQ?
1 UNIT
3. Do you offer OEM&ODM service?
Yes, like lifting capacity, lifting height, size of platform, painting color, logo, manual etc.
4. What's the quality warranty?
24 months. Spare parts provided freely within quality warranty.
5. How can I get the after-sales service?
We offer Videos, Pictures, User Manual, Technical guidance and 24 hours online service
6. What's your QA&QC policy?
100% Test before shipping.
