2020 New Heli Forklift CPCD30 3Ton Diesel Forklift With Lift Forks



Contact Person: Ms. Phyllis

whatsApp/Tel/wechat:+86 15737137170

skype: wang.phyllis01

QQ:530090438



Features -- HELI Forklift CPCD30



1.longer time warranty: one year,
2.package:sea protecting package with film not nude wether by container or not.
3.quality is strong with good steel body frame, brand component, technology is mature.
4.suitable design that the length size of forklift is longer because of the suitable driving space
5.lower price compare the same machines
6.service is satisfied with our after-sales team and engineering team





Parameter -- HELI Forklift CPCD30



SPECIFICATION
Model			CPCD30
Power type			Diesel
Rated capacity		kg	3000
Load center		mm	500
Lift height		mm	4500
Free lift height		mm	145
Fork size		mm	1220×125×45
Mast tilt angle		deg	6/12
Front overhang		mm	482
Overall	Length to face of forklift	mm	2695
	Overall width	mm	1225
	Mast lowerd height	mm	2070
	Mast extended height	mm	4250
	Overhead guard height	mm	2090
Turning radius		mm	2420
Min.right angle aisle width		mm	2885
Speeds	Drive speeds	km/h	18/19.5
	Lifting speeds	mm/s	470/520
	Lowering speeds	mm/s	≤600
Max.grade ability		%	15
Total weight		kg	4350
Tires	Frot		28*9-12PR
	Rear		6.5-10-10PR
Wheeslbase		mm	1700
Tread	Front	mm	1000
	Rear	mm	970
Hold under mast		mm	110
Engine	Model		Xinchang 490BPG
	Rated output	kw/rpm	37/2650
	Rated torque	N.m/rpm	148/2000
	No.of cylinder		4
	Displacement	L	2.54
Fuel tank capacity		L	52

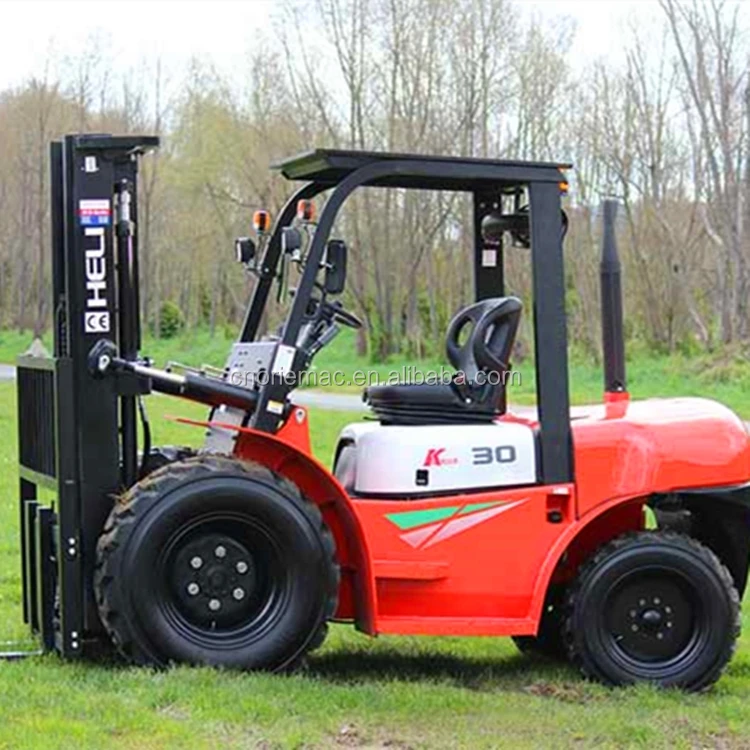

Photos -- HELI Forklift CPCD30
