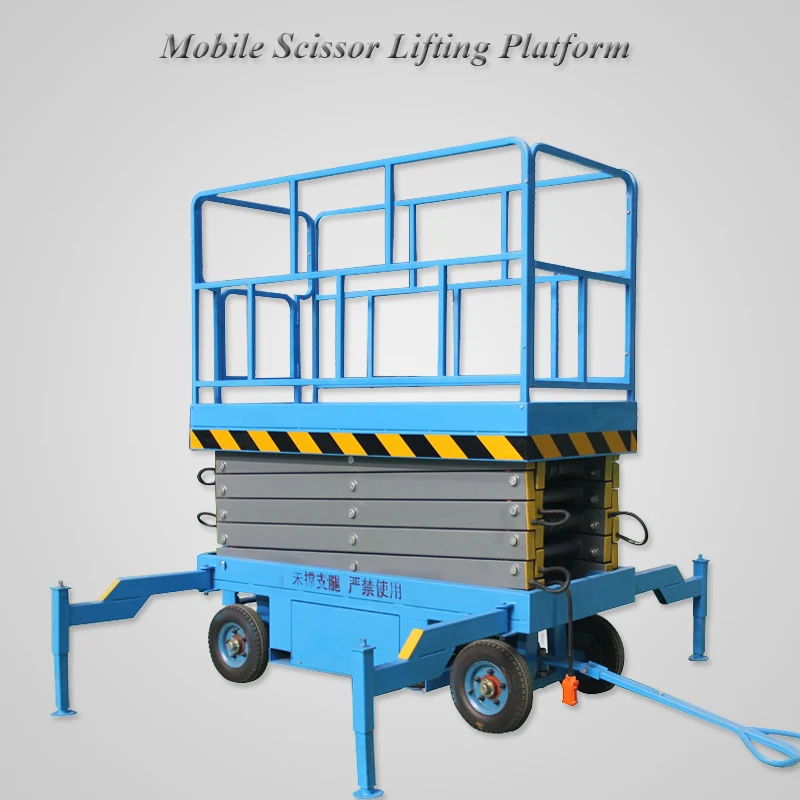

PRODUCT OVERVIEW
Auxiliary self-propelled lifting platform has the function of automatic walking. It can walk quickly and moderately at different working conditions. It can perform all actions of up and down, forward, backward, steering, etc. by one person. It is suitable for airport terminals, stations, wharves, shopping malls, gymnasium, residential property and other large scope of operation.
DETAILS IMAGES

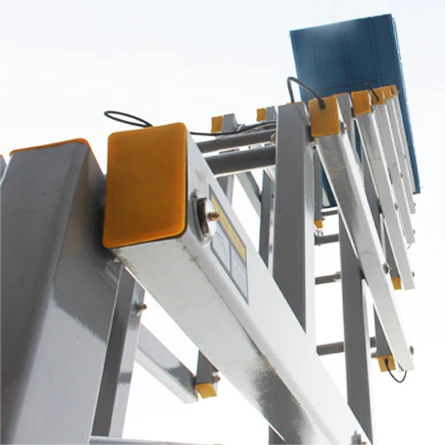

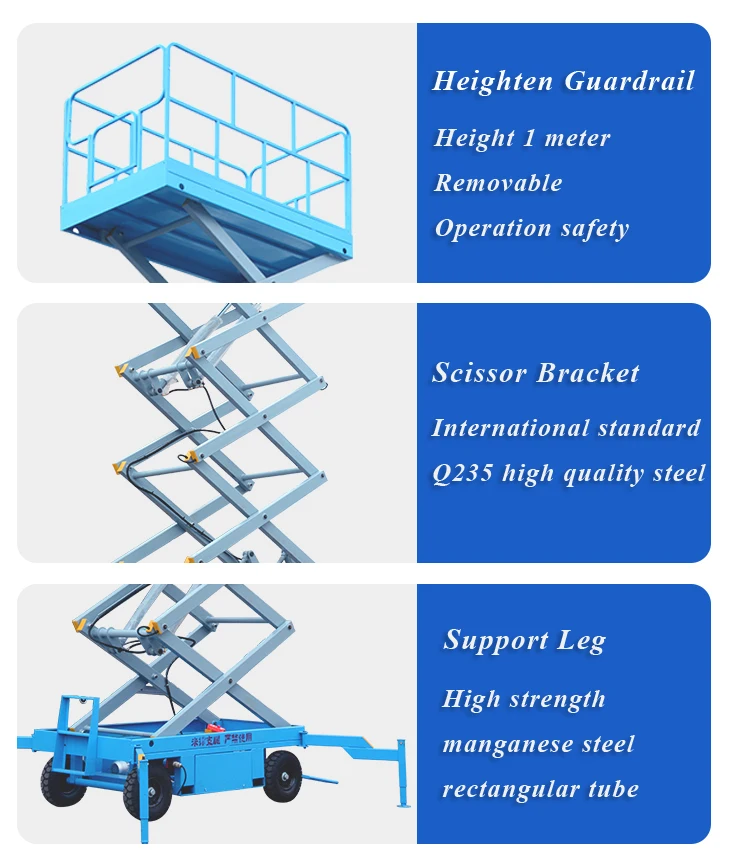

The pin shaft at the hinge joint of the scissor arm is quenched with 45# steel, and the automatic assembly line is used for boring and drilling, so as to ensure that the connection of the arm frame is firm, anti-wear, precise, vertical and stable, without inclination and distortion.

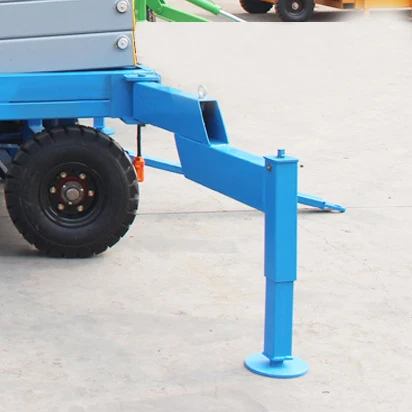

The outrigger has solid materials and wide support range. Open the outrigger before work to ensure stable and safe lifting. Easy to collect and use.

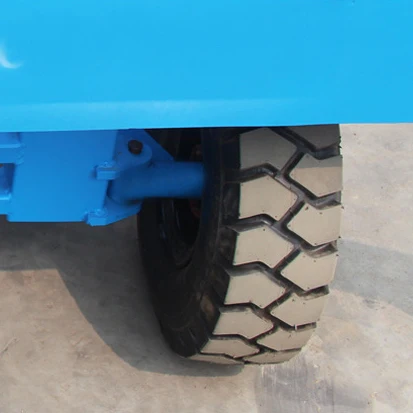

The high quality brand wear-resistant tire is selected to ensure the safety and stability of operation, convenient to move and long service life.

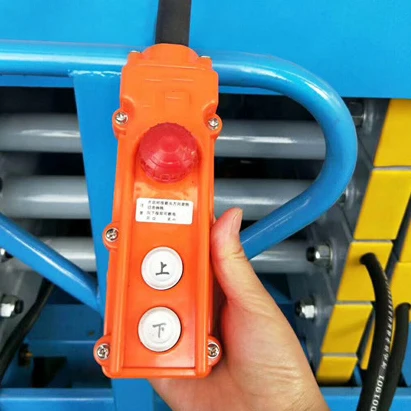

There are buttons at the bottom and table to control the lifting, inching mode, press and hold the lifting, release and stop, so the work is more flexible. It is equipped with emergency stop button to ensure safe operation.

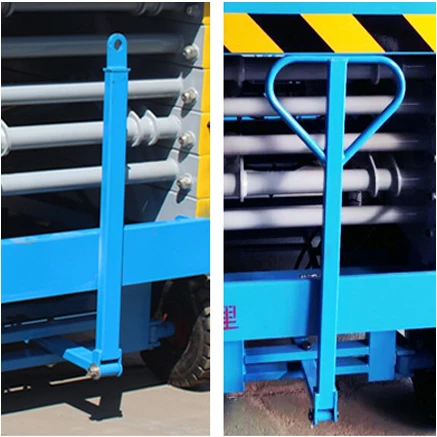

The drawbar is equipped with a rotating shaft, which can turn and control the direction when dragging the machine. Trailer type drawbar can be used in mechanical traction walking mode. The electric auxiliary walking mode can use the hand-held tow bar.
SPECIFICATION
Model | Lifting height（m） | Capacity(kg) | Table size(mm) | Power |
SJY03-4 | 4 | 300 | 2100*820 | 380V/1.1KW |
SJY-03-6 | 6 | 300 | 2100*820 | 380V/1.1KW |
SJY-05-6 | 6 | 500 | 2100*820 | 380V/1.1KW |
SJY-03-8 | 8 | 300 | 2100*900 | 380V/1.5KW |
SJY-05-8 | 8 | 500 | 2100*900 | 380V/1.5KW |
SJY1-8 | 8 | 1000 | 2100*1200 | 380V/3KW |
SJY03-10 | 10 | 300 | 2100*1200 | 380V/2.2KW |
SJY05-10 | 10 | 500 | 2100*1200 | 380V/2.2KW |
SJY1-10 | 10 | 1000 | 2100*1500 | 380V/3KW |
SJY03-12 | 12 | 300 | 2550*1500 | 380V/3KW |
SJY05-12 | 12 | 500 | 2550*1500 | 380V/3KW |
SJY1-12 | 12 | 1000 | 2550*1500 | 380V/4KW |
SJY03-14 | 14 | 300 | 2900*1500 | 380V/3KW |
SJY05-14 | 14 | 500 | 2900*1500 | 380V/3KW |
SJY01-14 | 14 | 1000 | 2900*1500 | 380V/4KW |
SJY03-16 | 16 | 300 | 3000*1600 | 380V/4KW |
SJY05-16 | 16 | 500 | 3000*1600 | 380V/4KW |
SJY03-18 | 18 | 300 | 3200*1600 | 380V/4KW |
SJY05-18 | 18 | 500 | 3200*1600 | 380V/4KW |
SJY03-20 | 20 | 300 | 3200*1600 | 380V/4KW |
POWER SUPPLY OPTIONAL
380V AC
220V AC
24V DC
PRODUCT ADVANTAGES
This series of artificial mobile lifting platform with the advantages of heavy load capacity, lift stability, mobile and flexible, easy to operate. It is suitable for high-altitude building equipment installation, maintenance and cleaning is to ensure job safety and improve work efficiency of the ideal equipment.

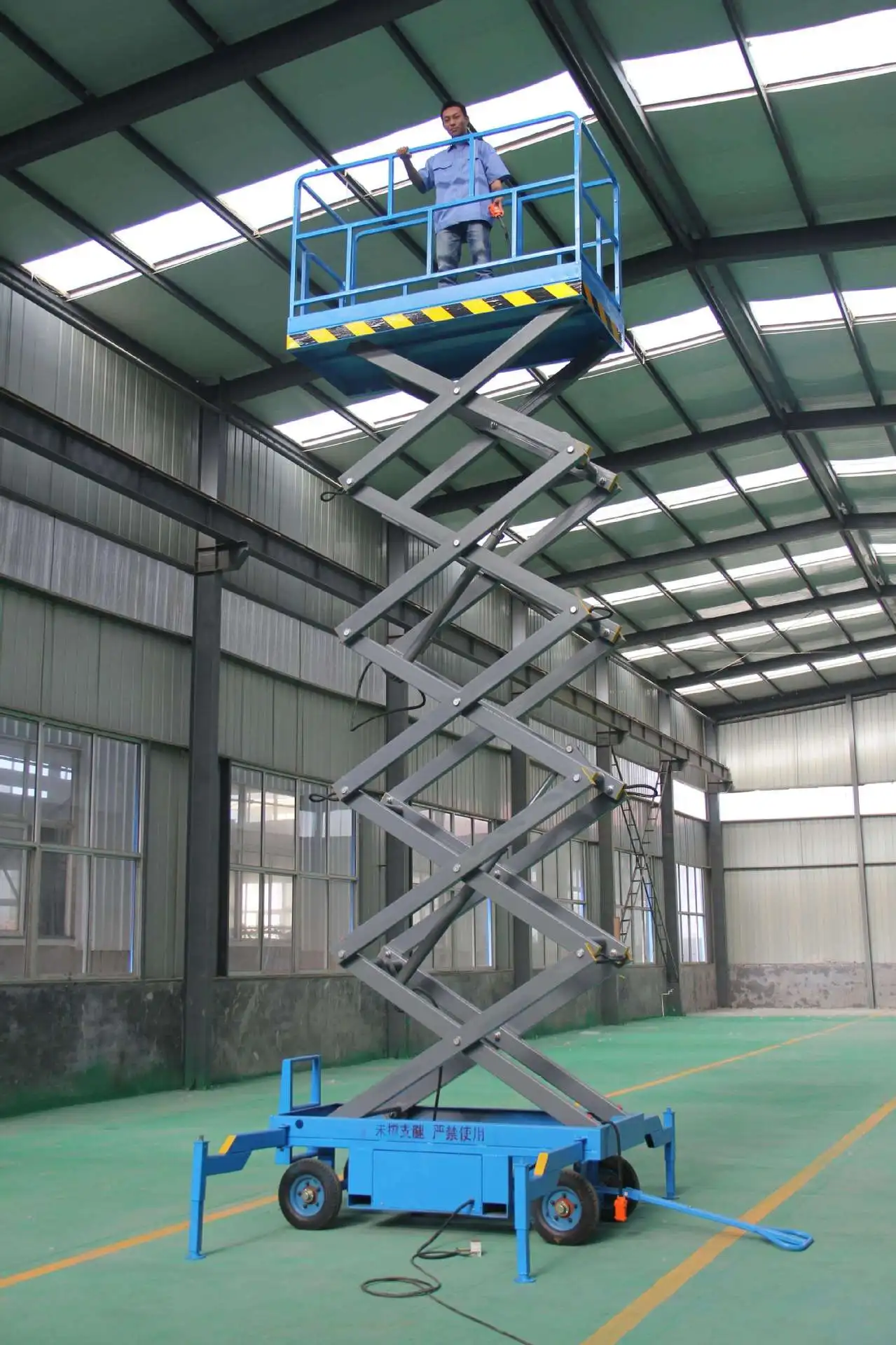

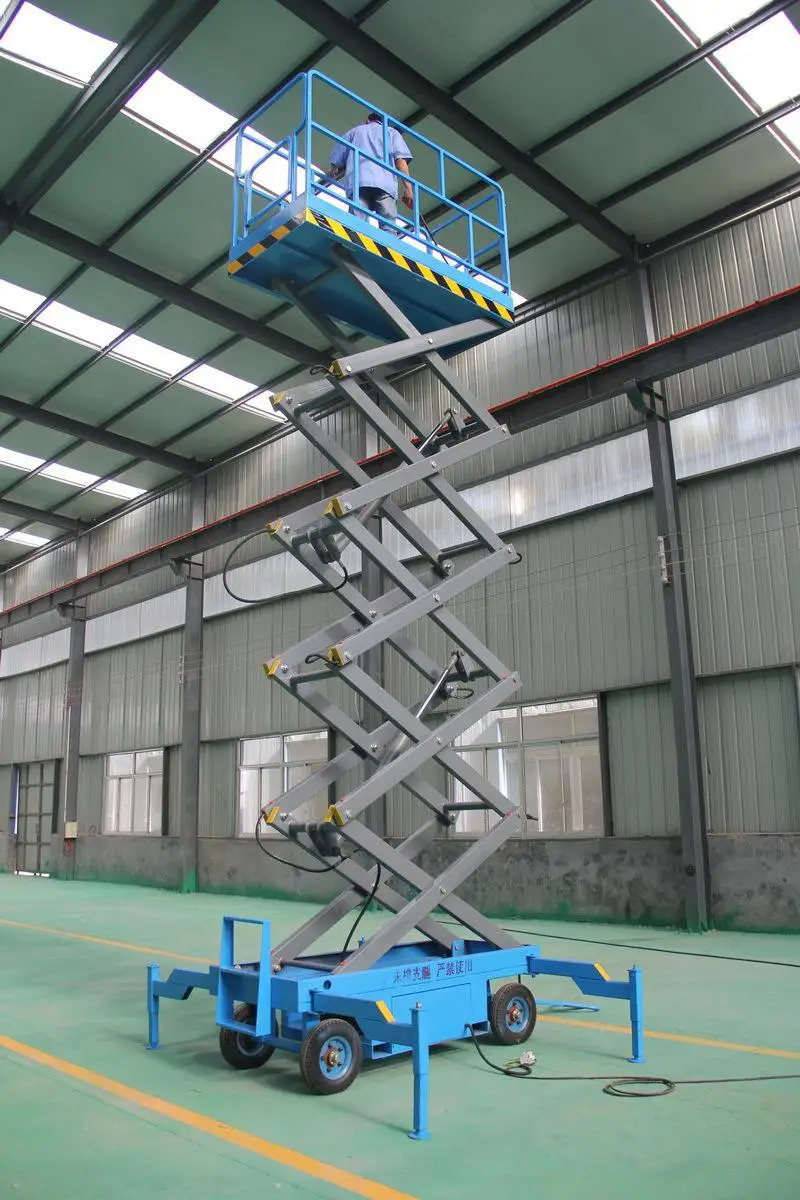

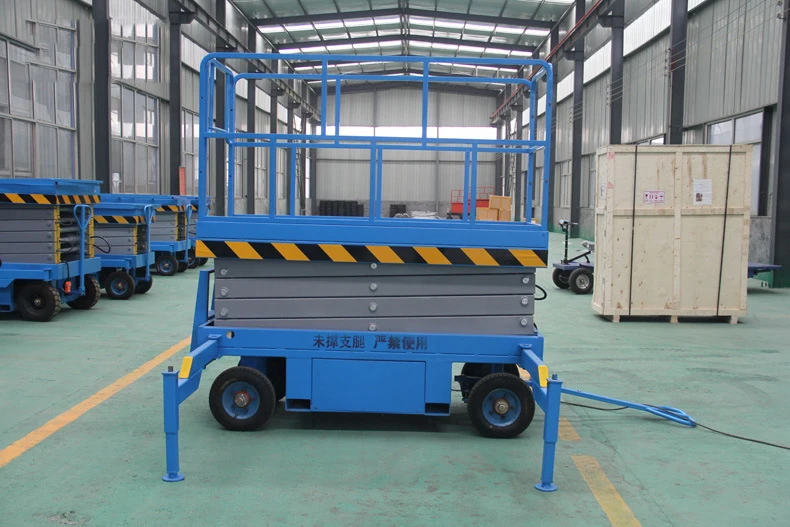

PRODUCTS SHOW

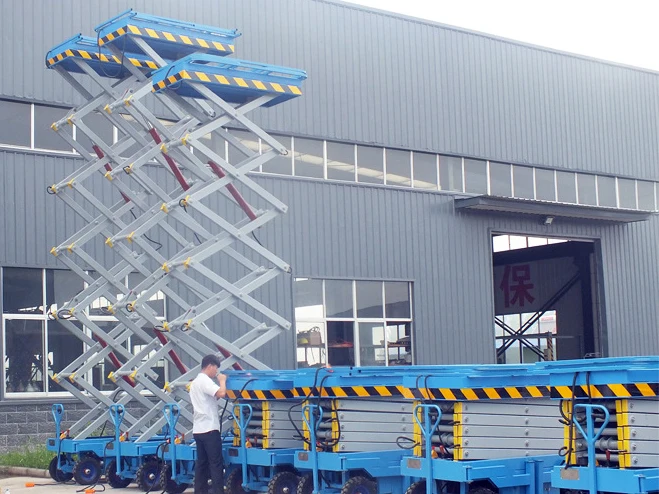

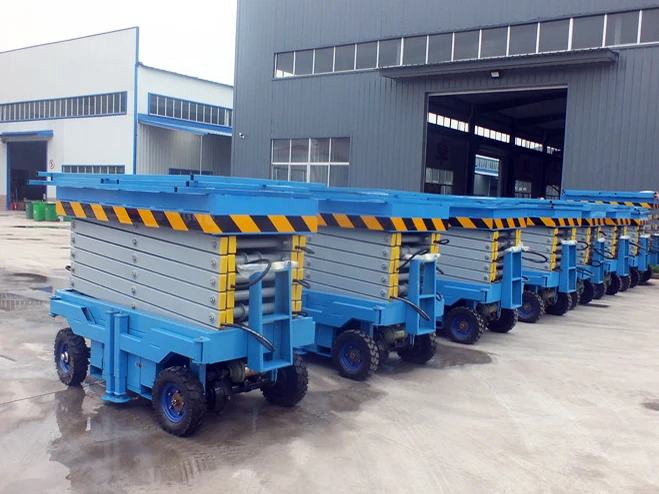

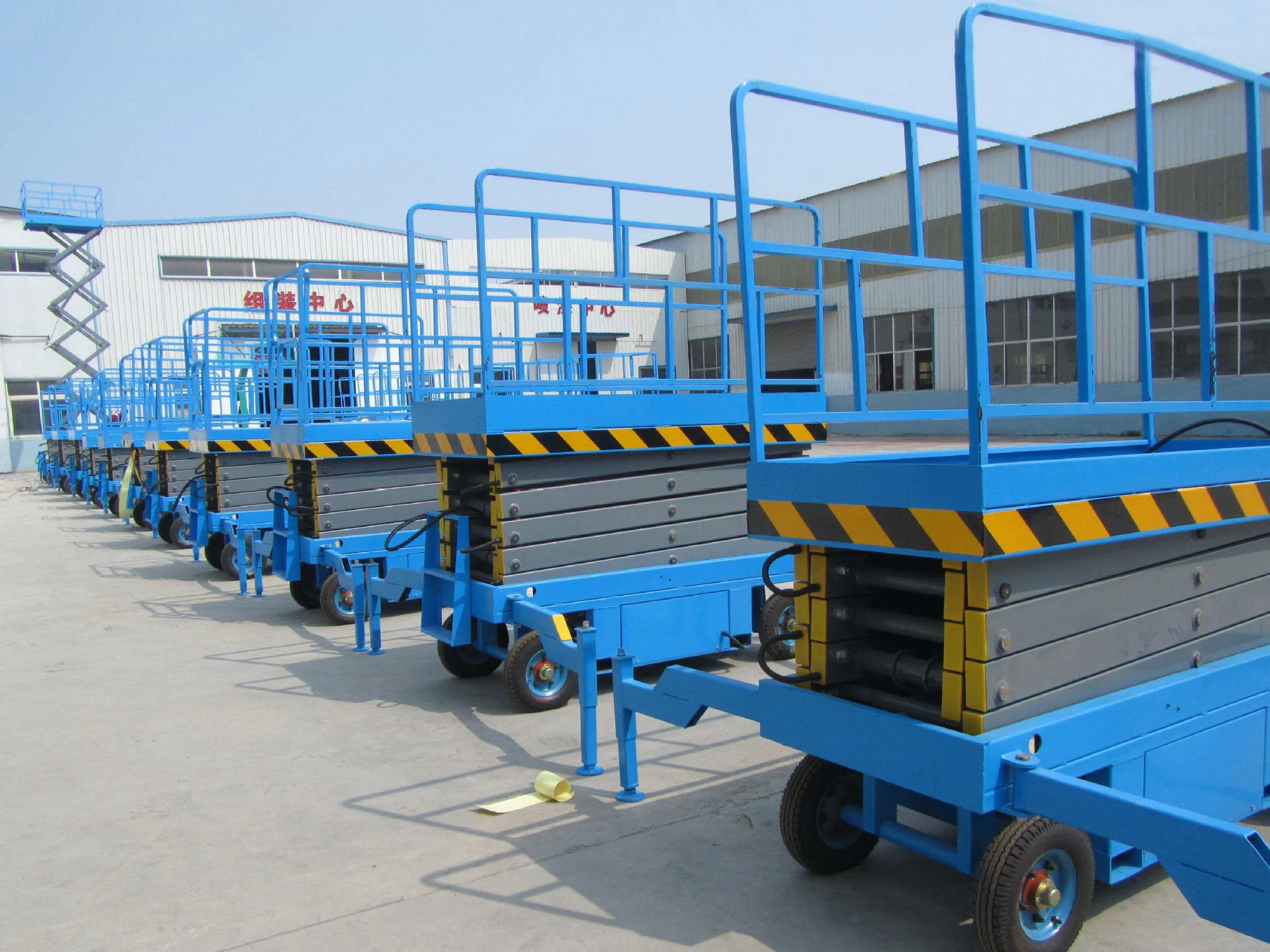

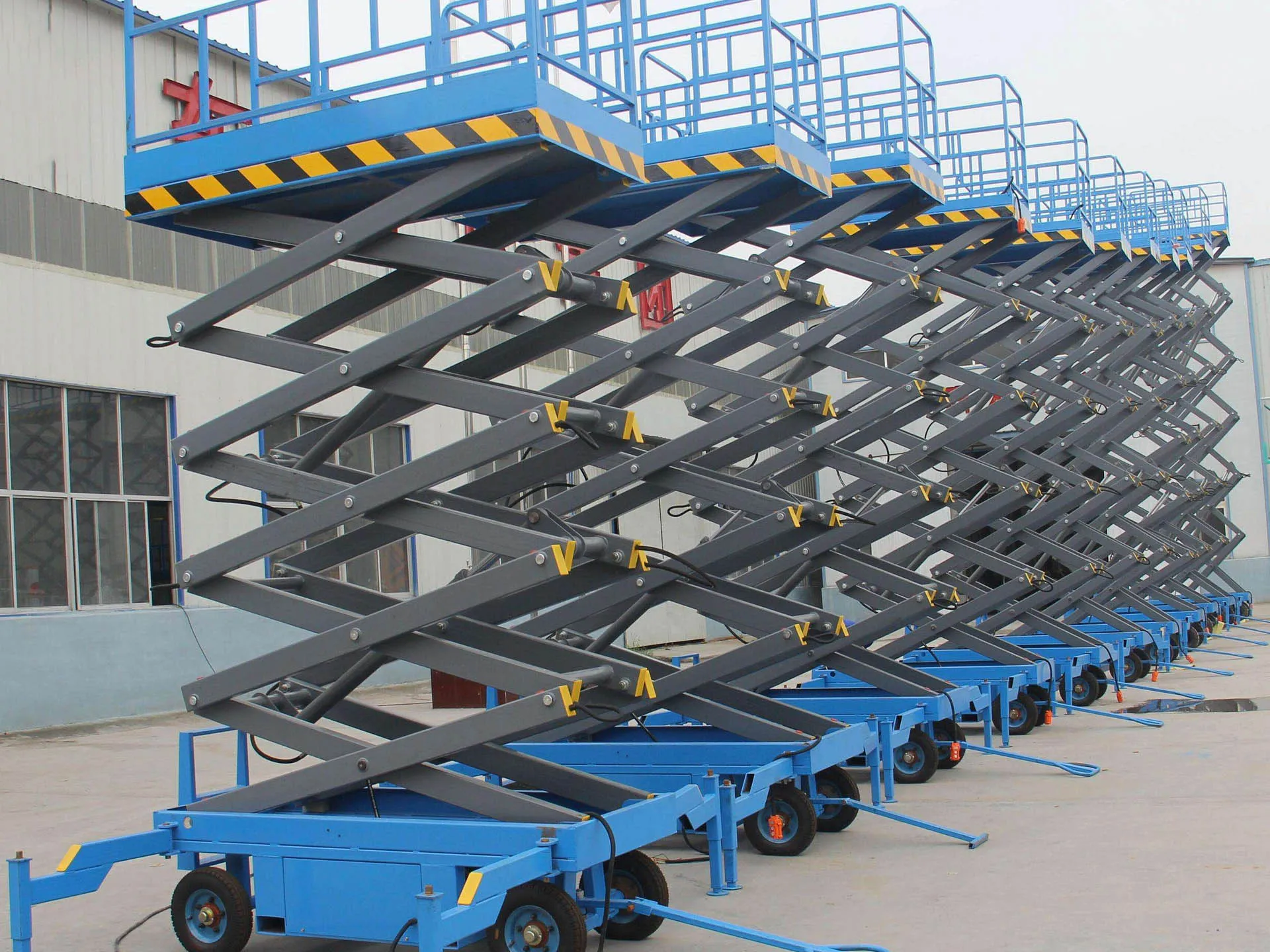

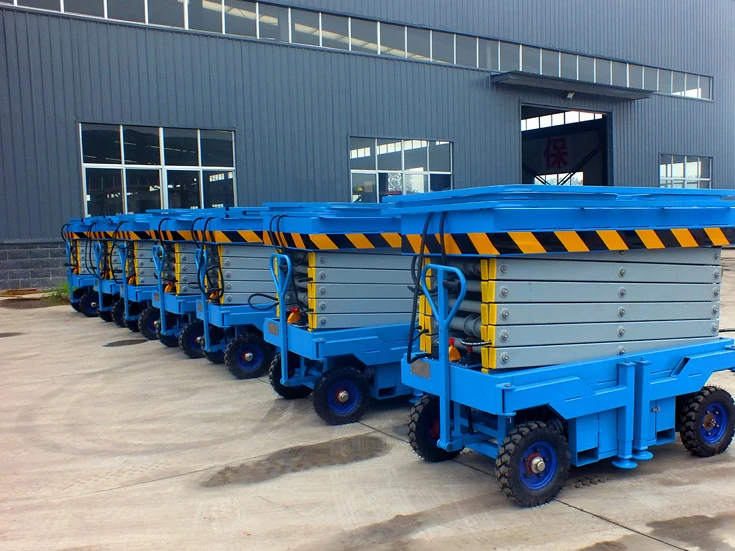

PRODUCTS STOCK

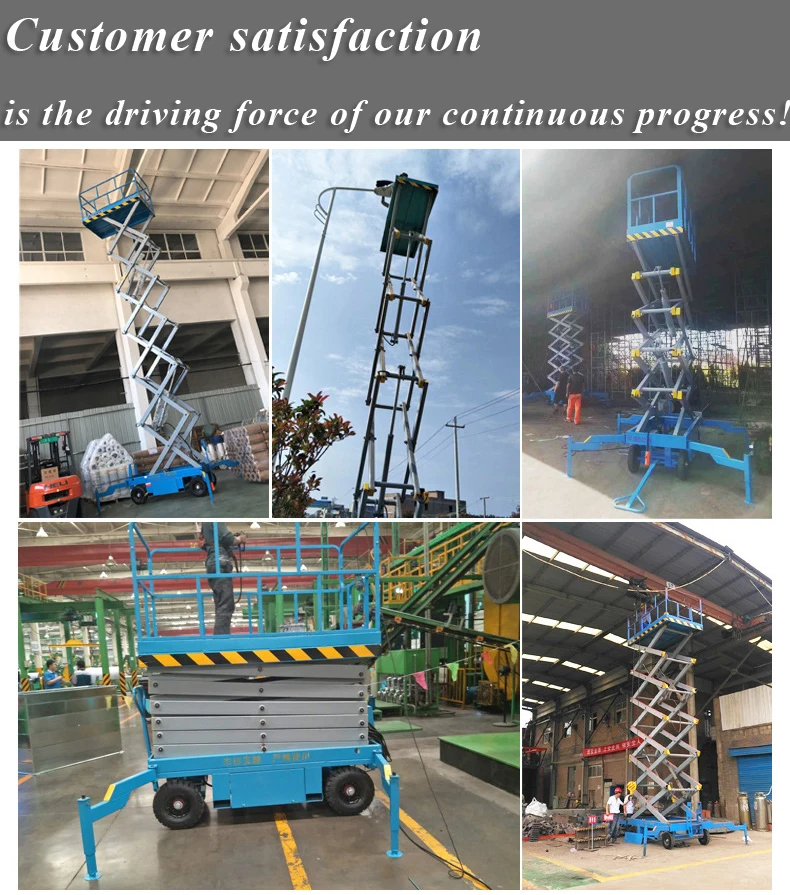

CUSTOMER FEEDBACK
COMPANY PROFILE
Xinxiang Kehao Machinery Equipment Co., Ltd. is the design, manufacture, sales, shipping, customs, service as one of the major integrated enterprises crane. The company has advanced machining equipment, with a variety of physical, electrical, hydraulic, chemical and other testing, testing methods, the establishment of a sound quality system. Supplying Services Content as below: R & D & Design & OEM, Overhead Crane, Gantry Crane, Port & Shipyard Crane, Electric Hoist, Jib crane, Erecting bridge crane, Electric flat car & Turntable, Winch, Crane Accessories.
