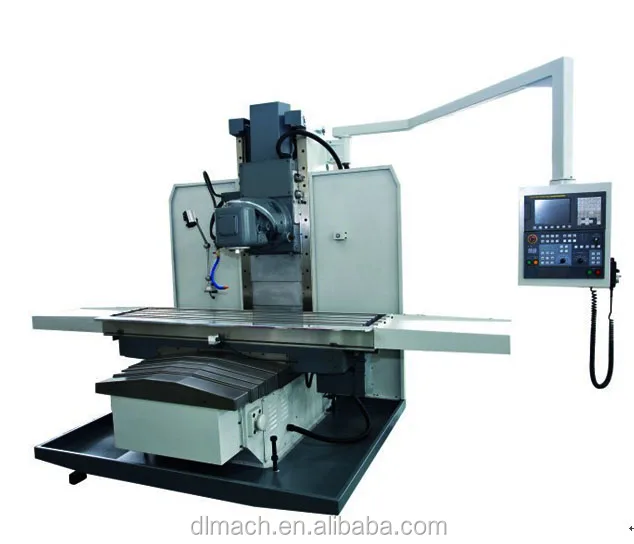

XKW715 3 оси ЧПУ продольно-фрезерный станок

Описание и отзывы

Характеристики

XKW715 3 axis CNC Bed-Type Milling Machine price





Main Specification of CNC Milling Machine



MODEL			Unit		Specification
Table size(L×W)			mm		2100×500
T-slot (WIDTH×NO.)			mm		20×4
Max. travel	Longitudinal		mm		1500
	Cross		mm		600
Feed speed of Longitudinal and cross	Speed range		mm/min		2.5~3000
Rapid feed speed			mm/min		6000
Max load of table			Kg		2000
HEAD
Distance from spindle nose to table surface	Vertical spindle		mm			0~650
Distance from spindle axis to table surface	Horizontal spindle		mm			8~660
Feed speed of Z axis	Speed range		mm/min			2.5~2500
Rapid feed speed of Z			mm/min			3000
SPINDLE
Distance from spindle axis to column guideway			mm			610
Spindle speed	step					12
	Speed range		rpm			35~1345
Spindle taper			ISO50			7:24
MOTOR
Spindle drive motor		kw		7.5
Feed motor		kw (AC)		2.5(Y,Z) 1.4(X)
Coolant pump motor		w		550
Lubricant pump motor		w		120
Overall size		mm		3650×2380×2750
Machine weight		kg		7300



Standard configuration





Optional configuration

The 4th axis ( Universal Dividing Head or Rotary Working Table )



About our company

With stable capability & reliable quality, Our milling machines sell well at home and abroad. The machines are widely exported to more than 70 countries & regions,including U.S.A., Canada, Germany, Italy, Spain, France, Turkey, Australia, Korea and so on,especially Europe & America cover the main part of the market. We have got ISO9001:2000 certification of CQC,and got the certificate of CE in 2006.
