LX-A-1

Single Pointer Type Shore Hardness Tester



Application:

Shore Hardness Tester is an apparatus to measure vulcanized rubber and plastic products.
It has three models of Type A (LX-A), Type C (LX-C) and Type D (LX-D), and each model is

subdivided into two types of single pointer and double pointer.
Type A (LX-A): applicable to general rubber, synthetic rubber, vulcanized rubber, soft rubber,

leather, wax, etc.
Type C (LX-C): applicable to the hardness test of rubber microporous material.
Type D (LX-D): applicable to hard rubber, hard resin, acrylic, glass, cushiony plastic cement,

printing plates, fiber, etc.



Technical Parameter:

Types	Type A		Type C		Type D
Model	LX-A-1	LX-A-2	LX-C-1	LX-C-2	LX-D-1	LX-D-2
Display Way	Pointer Type
Calibration Value	0-100 HA		0-100 HC		0-100 HD
Resolution	1 HA		1 HC		1 HD
Pressure Head Size	Φ1.25 mm		R2.5 mm		Φ1.25 mm
End pressure of Pressure Head	0.55N-8.06N		0.55N-8.06N		0-44.5N
Pressure Needle Range	0-2.5 mm
Apparatus Weight	0.3 KG

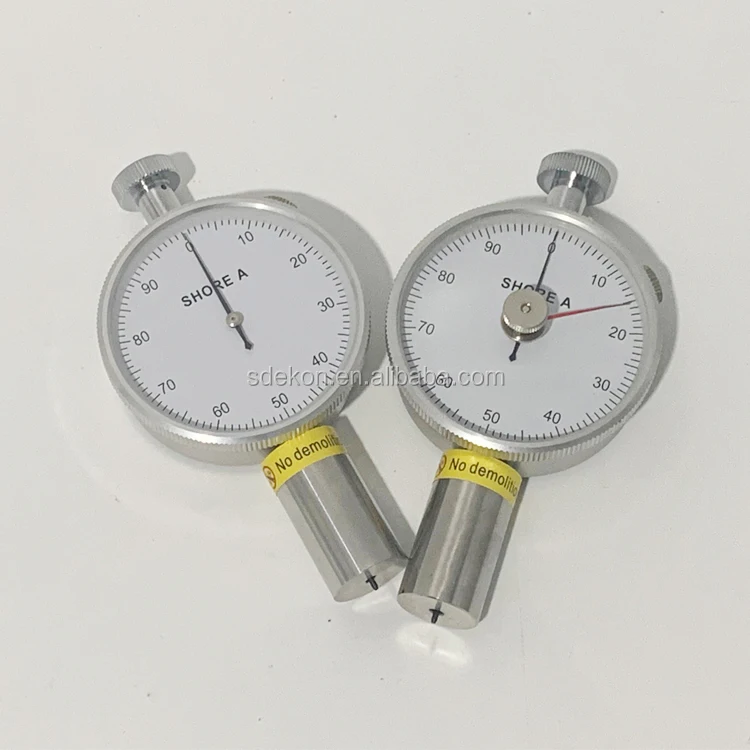

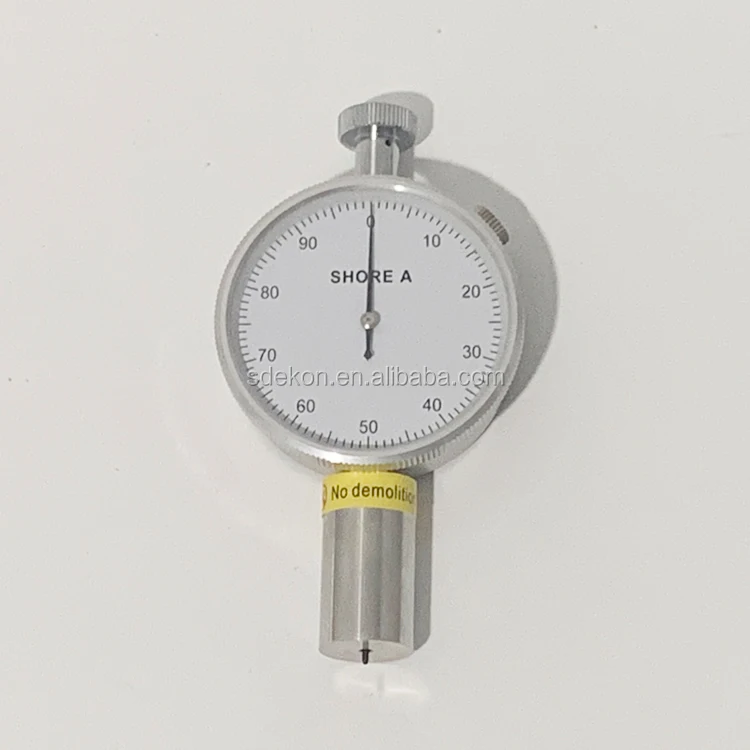

Product Physical Pictures:
