Хобби быстроходный деревообрабатывающий фрезерный станок 6090/маленький ЧПУ 4
- Категории: Станок по дереву >>>
- Поставщик: Jinan,Yidiao,Cnc,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

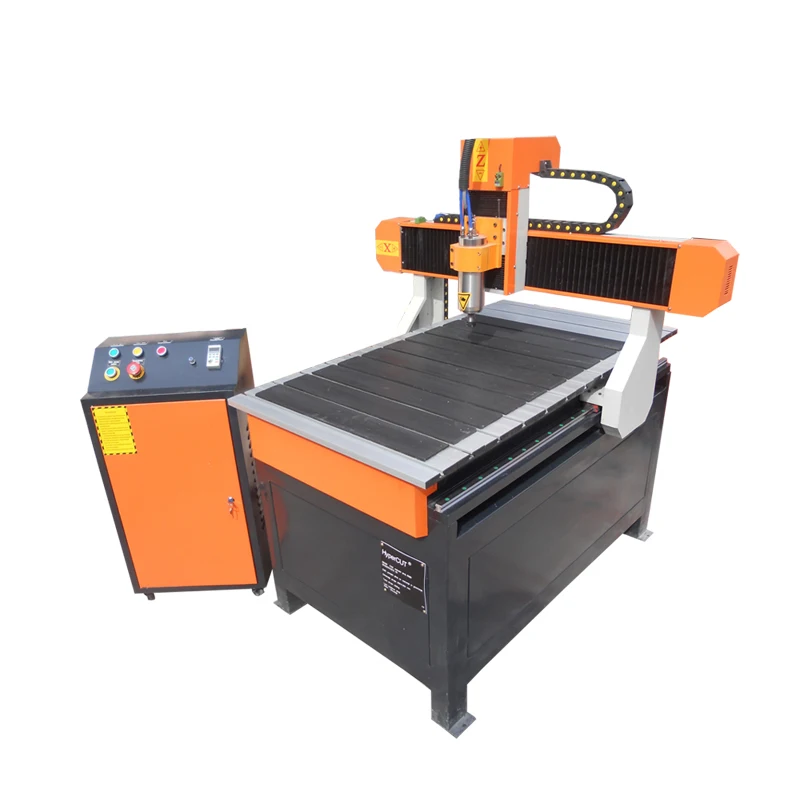

Hobby wood router 6090/ small 4 axis cnc router
CE standard, 600*900*150mm effective working area.
1) Rotary Attachment with 100mm diameter, for 3D engraving/carving
2) 2.2 KW Water Cooling Spindle
3) X Y Z use Germany imported Ball Screws
4) Stable NCSTUDIO Operation System
Optional Parts:
1. X Y Z use TAIWAN HIWIN Linear Rail
2. DSP ,Match 3, NC studio for choose.
3. 2.2KW/3.0KW water cooling spindles
4. Rotary device.
Parameters & Sample
| Description | Parameter |
| X,Y Working Area | 600*900mm |
| Z Working Area | 110mm |
| Resolution | +0.01mm |
| Lathe Structure | Cast-iron structure |
| X,Y Structure | Ballscrew transmission |
| Z Structure | TBI ball screw, |
| Hiwin square guide rail | |
| Max. Idling Speed | 8m/min |
| Spindle | 2.2KW |
| Spindle Rotate Speed | 0-24000r/min, variable speed |
| Inverter | Fuling |
| Working Voltage | AC220V/50Hz,Single Phase |
| Working Mode | Sub-division Stepper motor |
| Driver | Leadshine860 |
| Command | G code,HPGL,U00,mmg,plt |
| Operating System | Ncstudio or DSP with USB interface |
| Diameter of cutter | φ3.175-φ12.7mm |
| Cooling Mode | Water-cooling |
| Work-holding | By Clamp |
| Net Weight | 300KGS |
| Gross Weight | 350KGS |

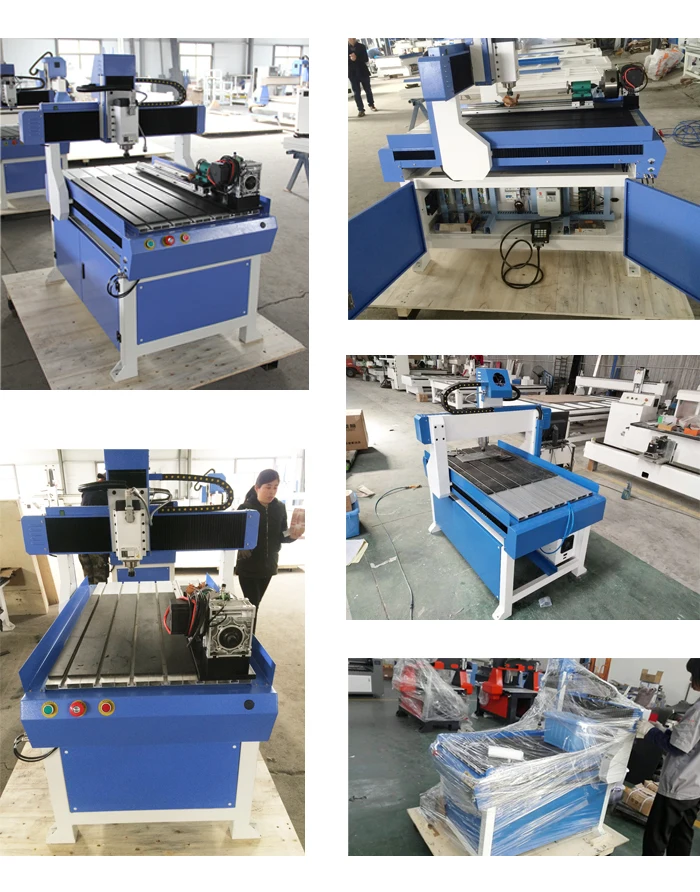

Detail Pictures
Our Services
Q1.What control system it use ?
A:DSP control system
Q2.Which kind of machine is more suit for me?
A:It is according the material and processing thickness and the working area .
Q3.How to support me if i don't know how to use it?
A:Free training within the warranty by WhatsApp, Skype, Fax, Mail, Wechat, QQ. We also can dispatch our
technician to customer’s company to provide training and support if customer agree the air ticket and hotel.
Q4.How transport?
A:By sea or by air
Company Information
FAQ
Q:If some problems happened during warranty period ?
A: We will supply free parts for this machine during the warranty period if machine have any problems without man-made reasons, We also supply free afterservice forever.
Q:How long is the delivery time?
A: For standard machines, it would be 7-10 days; For non-standard machines & customized machine according to client s specific requirements, it would be 15 to 30 days.
Q:The payment terms?
A: T/T, L/C, West Union, Paypal etc.
Q:How about the packaging ?

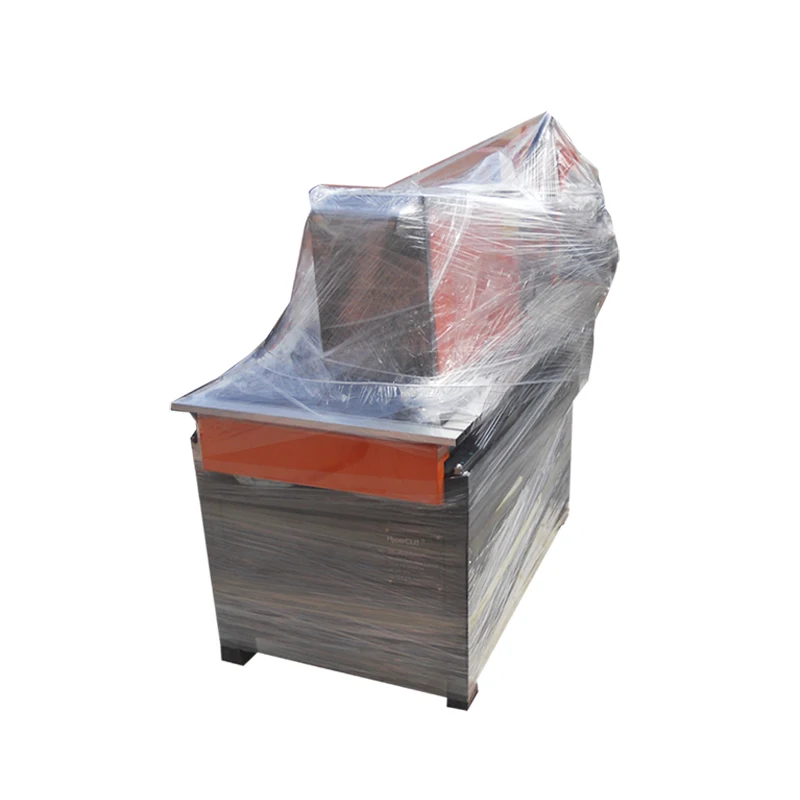

A:All of our machine packed with water proof thin plastic inside and plywood box, free from fumigation, outside the machine, and wrapped with stainless steel belt on the packages.
