Heavy high speed wood broom handle machine/wood round rod milling machine

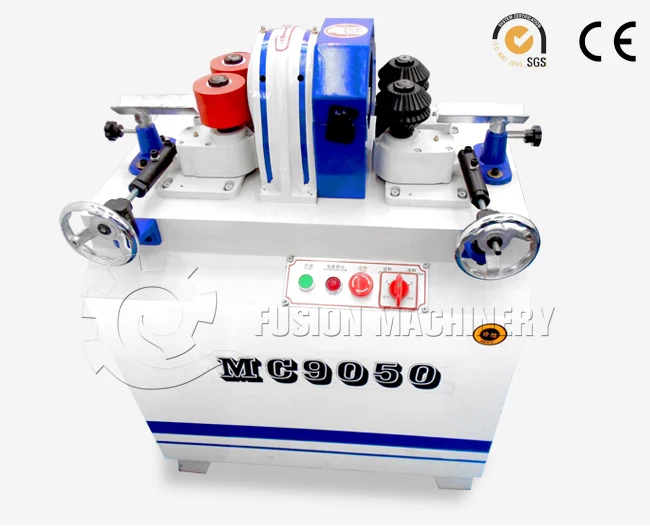

Description of wood broom handle machine

This wood broom handle machine is belong to wood round stick processing equipment,

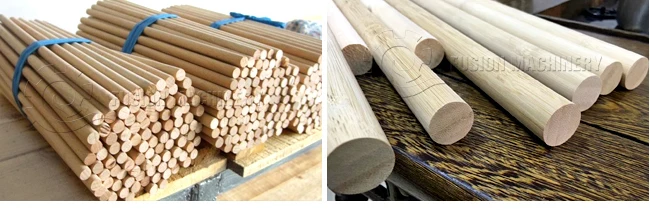

Mainly make long strips bamboo or wood material and square wood into round sticks and smooth round sticks.The final produce most used to make broom handle,mop handle,shovel handle ect.The machine can be customized according to your wood rod diameter from 15-120mm



Features of wood broom handle machine

1.materials widely, can process square stock and round stock embryo.

2.smooth surface, the output round stick close to sanding effect, saves sanding process by changing speed.

3.high productivity, the fastest feed can reach 18m/min, we can also design output more round sticks at one time according to customer's need



working of wood broom handle machine

1.The proper material is widely,such as elongated wood and round stock embryo,to change the disadvantage of raw material limited.

2.Smooth surface,the stick which processed approach to the one through sanding,to leave the sanding process by changing the speed of the machine .

3.High efficiency, the highest speed of the machine can reach 25 pcs/min,and can be customed the machine which can process more sticks for one time



Data of wood broom handle machine

Model	MC9050	MC9050A	MC9050B	MC9050C
Main motor power	3kw	3kw	3kw	4/3kw
Feeding motor power	0.55kw	0.75kw	0.75kw	0.75kw
Spindle velocity	4000r/min	4000r/min	4000r/min	4000r/min
Feeding speed	3/5m/min	3/5m/min	3/5m/min	3/5m/min
Cutting diameter	15-50mm	15-50mm	15-50mm	15-50mm
Overall dimension	860*650*980mm	970*650*980mm	1100*650*980mm	1470*590*1000mm
Machine weight	250kg	310kg	350kg	520kg

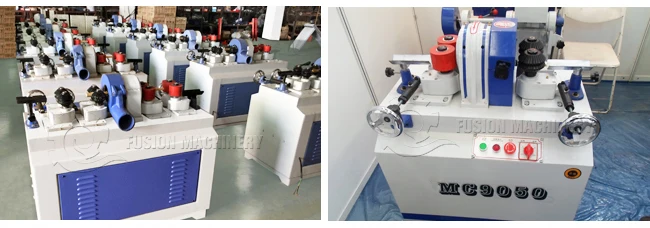

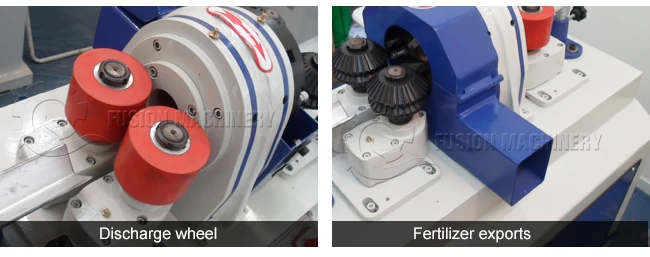

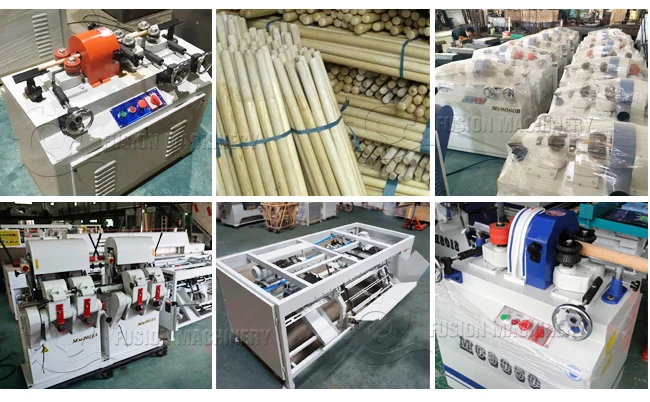

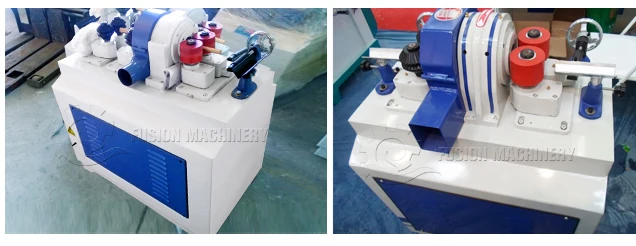

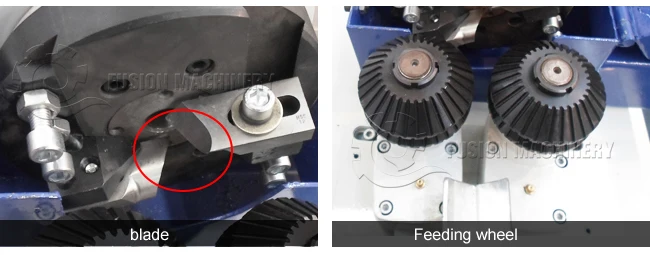

More pictures of wood broom handle machine



More details if you need pls contact with me by email or cellphone !

Looking forward to hearing from you !
