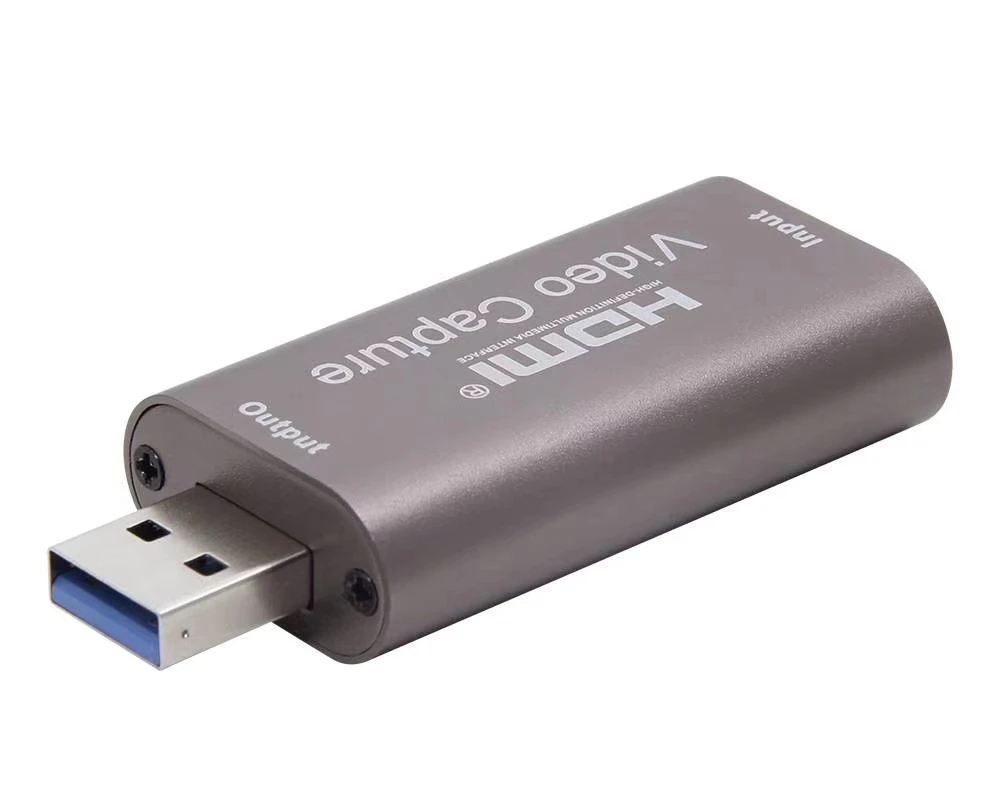

New HDMI to USB 2.0 1080P 60hz cheap video capture card support game vloger blogger live streaming
New HDMI to USB 2.0 1080P 60hz cheap video capture card support game vloger blogger live streaming
The video capture can capture both HDMI video and HDMI audio, sending audio and
video signals to computers and smart phones for preview and storage. Suitable for high definition
acquisition, teaching recording, medical imaging, etc.
video signals to computers and smart phones for preview and storage. Suitable for high definition
acquisition, teaching recording, medical imaging, etc.
Product Description
Product Name | New HDMI to USB 2.0 1080P 60hz cheap video capture card support game vloger blogger live streaming |
HDMI resolution | Max input can be 4K 30hz |
Support video format | 8/10/12bit Deep color |
Video output format | YUV、JPEG |
Video output resolution | Max output can be 1080P 60hz(this is updated one, old type is 1080P 30hz) |
Support audio format | L-PCM |
Input cable distance | ≤15m,AWG26 HDMI standard cable |
Max working current | 0.4A/5VDC |
HDMI video capture
* Support input max resolution 4K;
* Support output max resolution 1080P 60hz( updating version) not the same as normal hdmi to usb 2.0;
* Support 8/10/12bit deep color;
* Support AWG26 HDMI standard cable: input up to 15 meters,
(1080P and below resolution);
* Support most acquisition software, such as VLC、OBS 、Amcap, etc;
* Conform to USB Video and UVC standard;
* Conform to USB Audio UAC standard;
* Without external power supply, compact and portable.
* Support output max resolution 1080P 60hz( updating version) not the same as normal hdmi to usb 2.0;
* Support 8/10/12bit deep color;
* Support AWG26 HDMI standard cable: input up to 15 meters,
(1080P and below resolution);
* Support most acquisition software, such as VLC、OBS 、Amcap, etc;
* Conform to USB Video and UVC standard;
* Conform to USB Audio UAC standard;
* Without external power supply, compact and portable.
Connection and Operation
1: Connect the signal source to the HDMI input of the video capture with
one HDMI cable.
2: Connect the computer to the usb port of the video capture with usb cable.
3: Operation steps for USB video capture(OBS): Open the software→Choose sources of
“Video capture Device”→Set the size of image→Choose “Studio Mode”(double window)
→Choose “Start Recording”.
Note:
Computer hardware configuration requirements
CPU: PC i5-3400 or above ；NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above；NC NVIDIA GT735M or above
Run memory: 4G RAM
Computer hardware configuration requirements
CPU: PC i5-3400 or above ；NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above；NC NVIDIA GT735M or above
Run memory: 4G RAM
