Карта видеозахвата simr hd устройство для захвата видео в реальном времени с USB-кабелем

Mini 4K 1080P To USB 2.0 Video Capture Card Game Recording Box for PS4 Game For Youtube OBS Live Streaming Broadcast

The video capture can capture both video and  audio, sending audio and

video signals to computers and smart phones for preview and storage. Suitable for high definition

acquisition, teaching recording, medical imaging, etc.

Features:

The video capture can capture , sending audio and

video signals to computers and smart phones for preview and storage. Suitable for high definition

acquisition, teaching recording, medical imaging, etc.

* Support input max resolution 3840×2160@30Hz;

* Support output max resolution 1920×1080@30Hz;

* Support 8/10/12bit deep color;

* Support AWG26 standard cable: input up to 15 meters,

(1080P and below resolution);

* Support most acquisition software, such as VLC,OBS ,Amcap, etc;

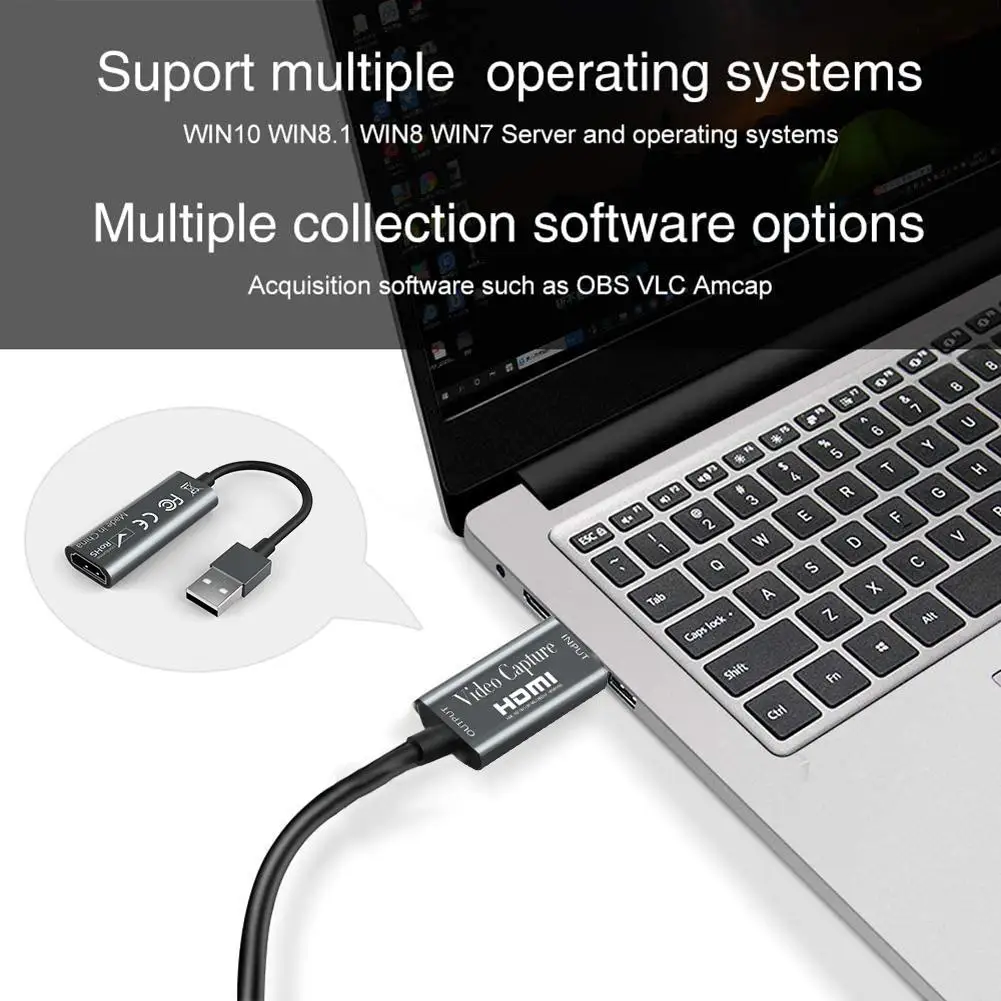

* Support For Windows,For Android and For MacOS;

* Conform to USB Video and UVC standard;

* Conform to USB Audio UAC standard;

* Without external power supply, compact and portable.

Specifications:

resolution : Max input can be 3840×2160@30Hz

Support video format: 8/10/12bit Deep color

Video output format : YUV,JPEG

Video output resolution : Max output can be 1920×1080@30Hz

Support audio format : L-PCM

Input cable distance .: ≤15m,AWG26 standard cable

Max working current : 0.4A/5VDC

Operating Temperature range : (-10 to +55℃)

Dimension (L x W x H) : 64x28x13 (mm)

Weight : 21.4g

Note:

Computer hardware configuration requirements

CPU: for PC i5-3400 or above ;NB i7-3537U 2.0GHZ or above

Graphics card: PC NVIDIA GT630 or above;NC NVIDIA GT735M or above

Run memory: 4G RAM

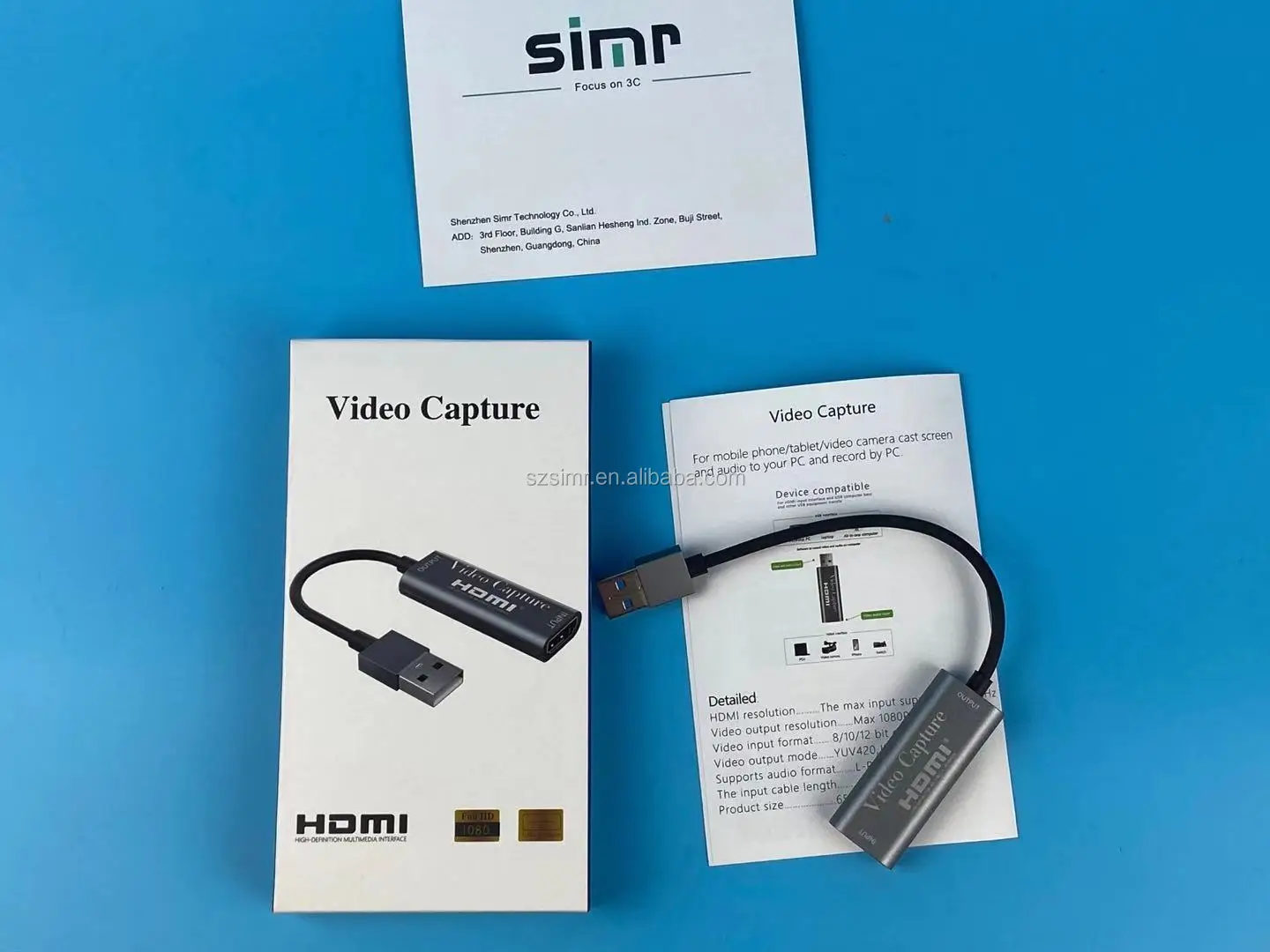

Package included

1* Video capture

1* user manual

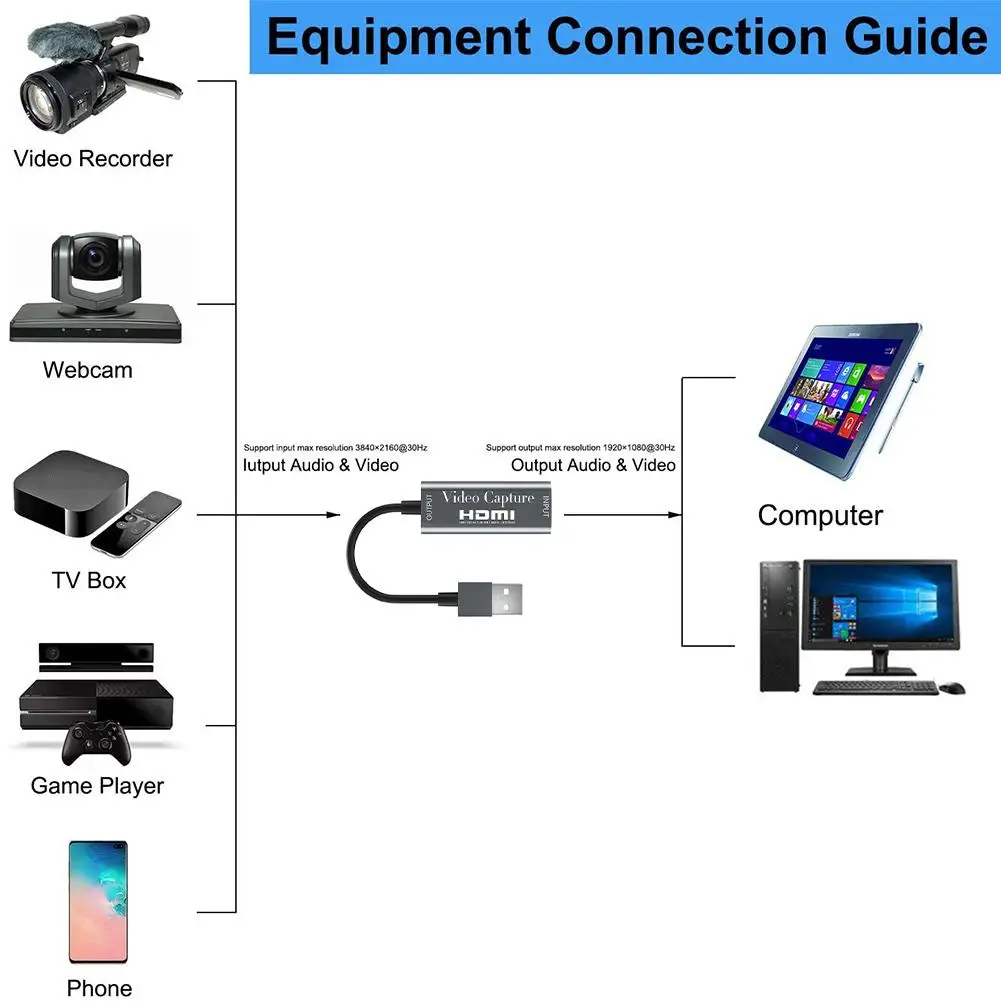

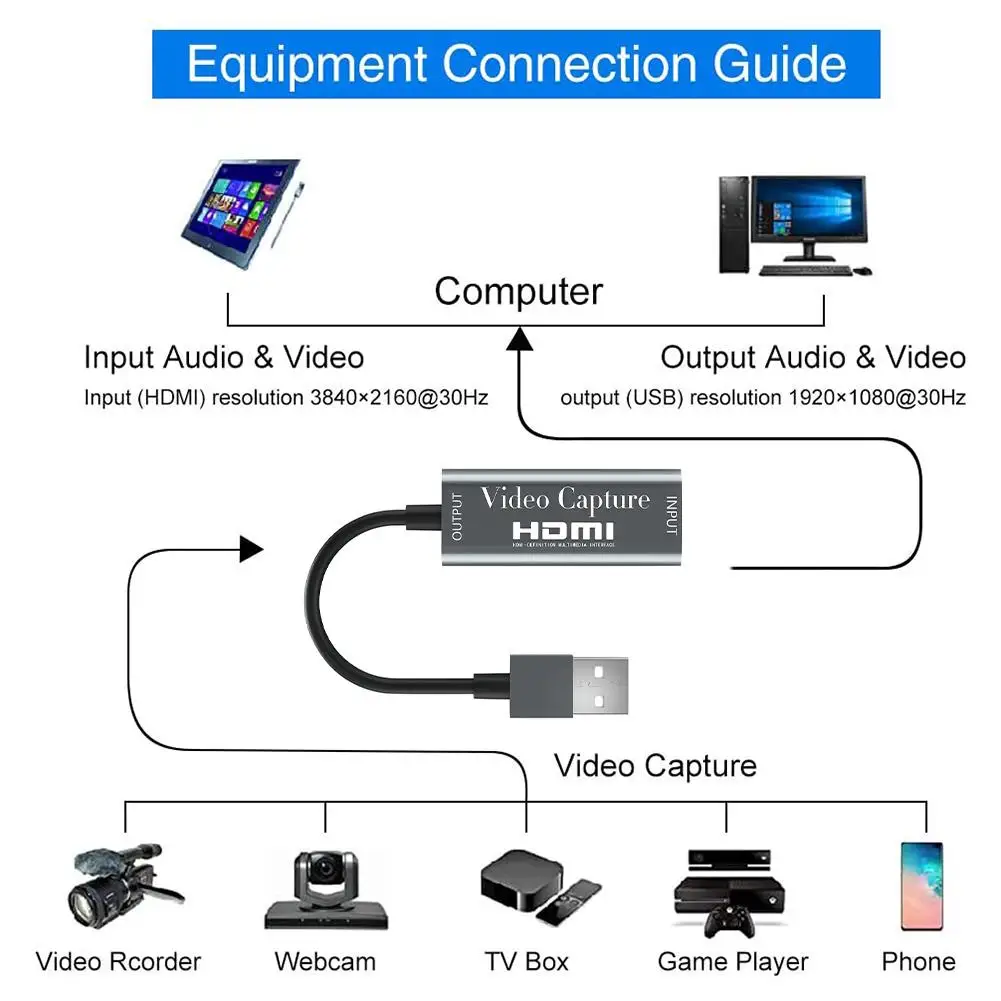

Connection and Operation

1: Connect the UHD signal source to the input of the video capture with

one cable.

2: Connect the computer to the usb port of the video capture with usb cable.

3: Operation steps for USB video capture(OBS): Open the software→Choose sources of

“Video capture Device”→Set the size of image→Choose “Studio Mode”(double window)

Choose “Start Recording”.

Operation Example as below

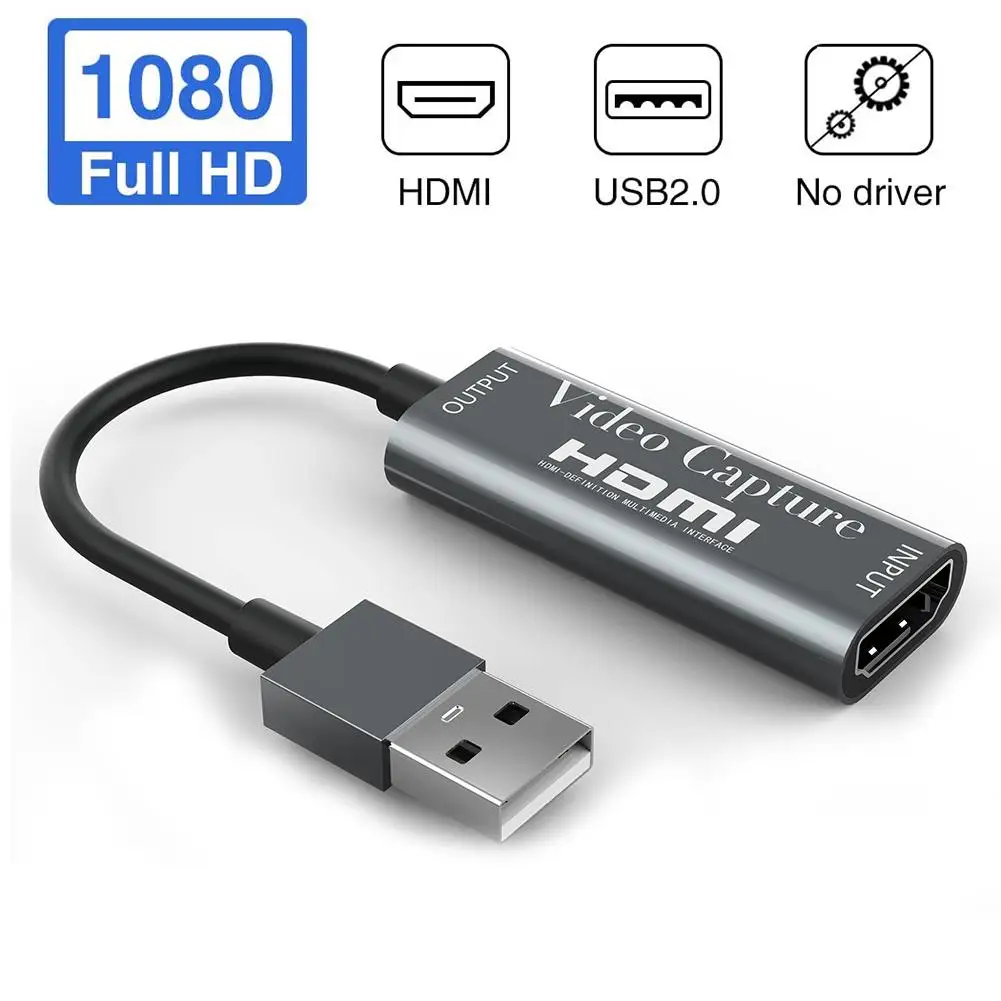

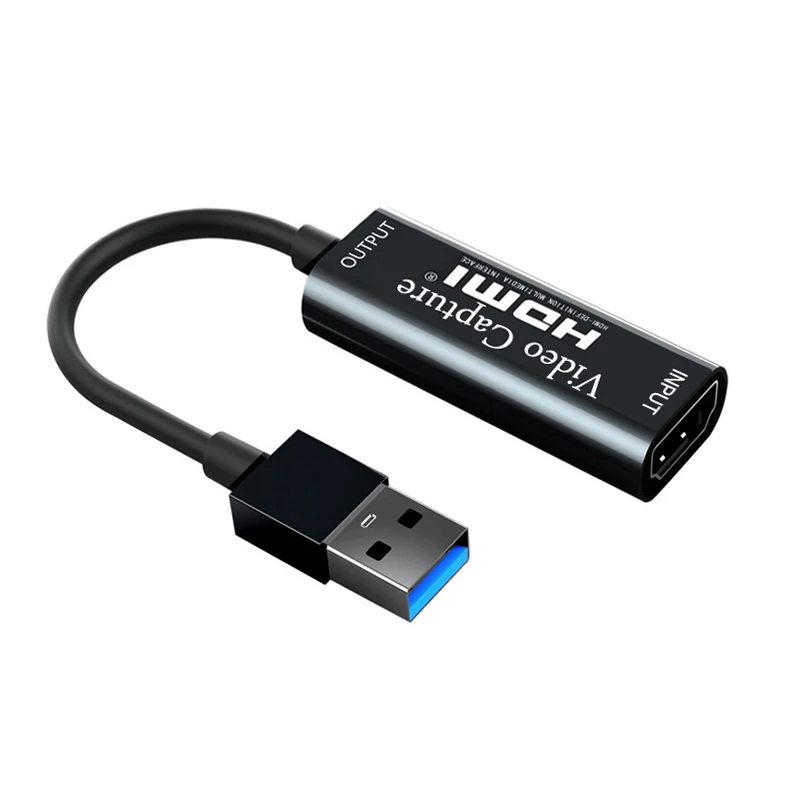

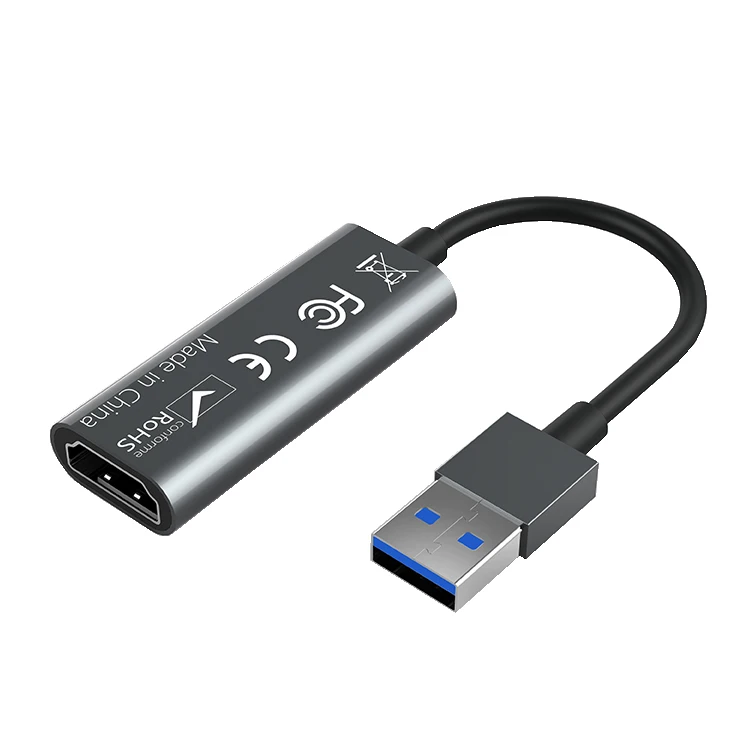

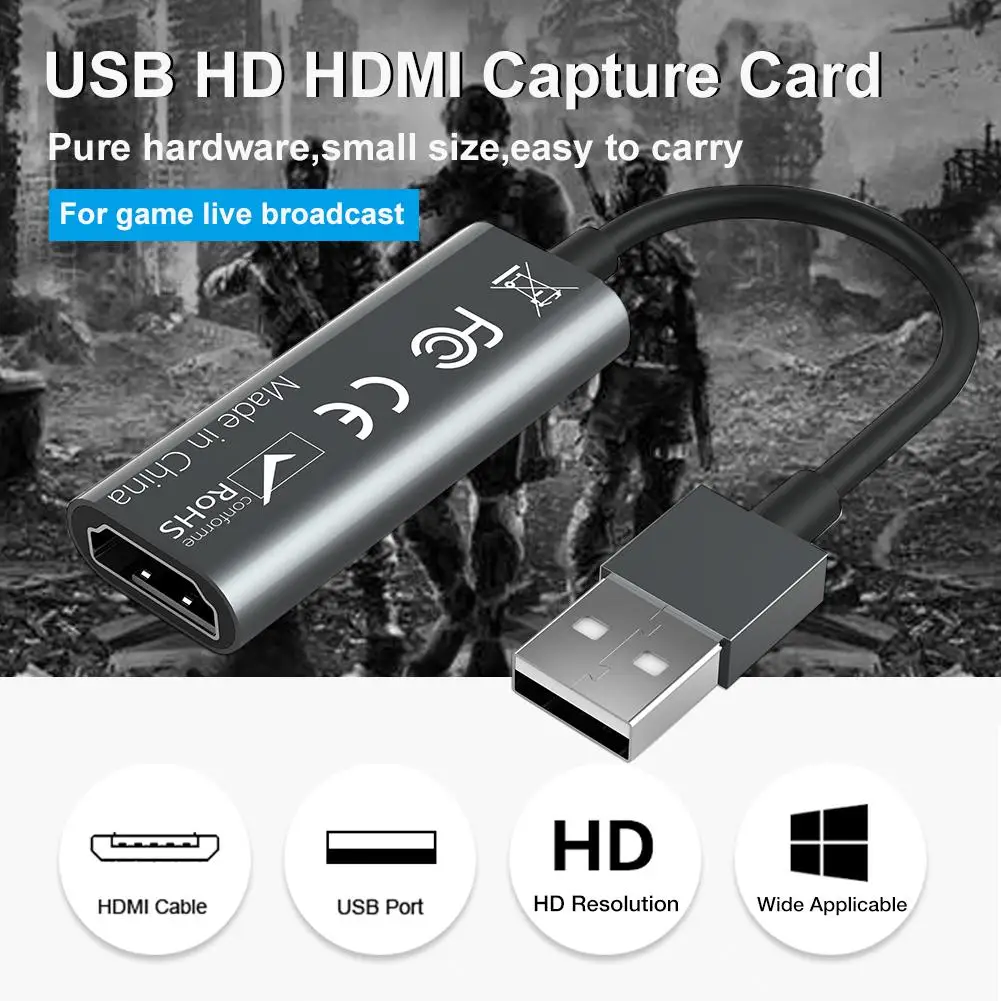

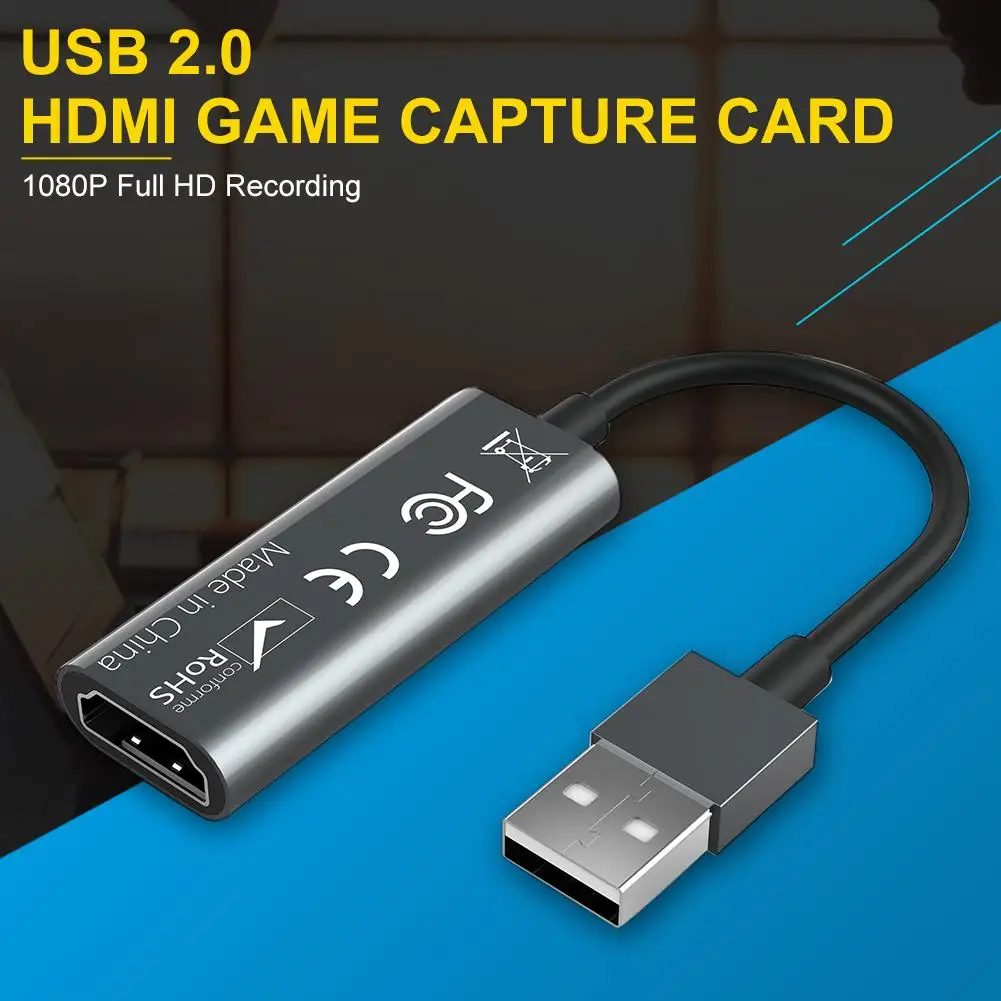

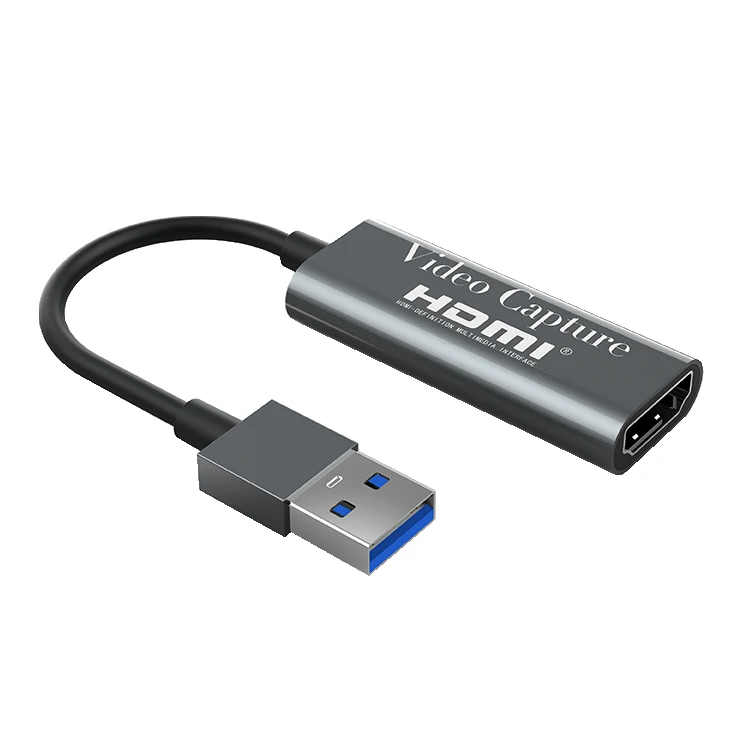

Following is the real shot of the product
