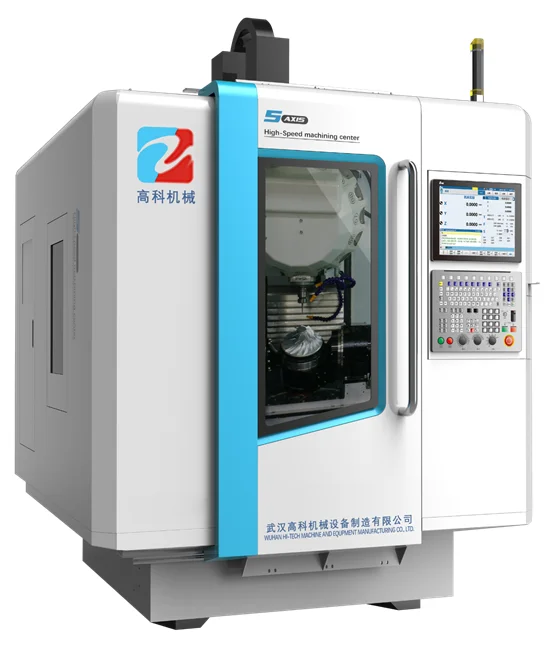

Small 5 axis cnc milling machine introduction
small 5 axis cnc milling machine is a machine tool with high technology and high precision, which is specially used for processing complex curved surfaces. At present, the five-axis linkage CNC machine tool system is the only way to solve the processing of impellers, blades, marine propellers, heavy generator rotors, steam turbine rotors, crankshafts of large diesel engines, etc.
Specification
Items
| Standard/Parameter
| Unit
|
Max. workpiece diameter
| 250
| mm
|
C axis rotary table diameter
| 200
| mm
|
Distance from spindle nose to rotary table surface at 0°
| 90-310(the distance from rotary table surface at 0°to rotary table is 257.2)
| /
|
Load weight
| Horizontal: 40; tilt: 20
| KG
|
T-slot width
| 12H7
| mm
|
Spindle speed
| 20000
| rpm
|
Spindle taper
| BT30
| /
|
X-axis travel
| 500
| mm
|
Y-axis travel
| 360
| mm
|
Z-axis travel
| 300
| mm
|
A-axis tilt angle
| -30°to +110°
| deg
|
C-axis rotation angle
| 360 (any)
| deg
|
Feedrate of linear axis
| 1 to 16000
| mm/min
|
Rapid traverse speed of linear axis
| 48000/48000/48000
| Mm/min
|
Positioning precision
| 0.03
| mm
|
Repeated positioning precision
| 0.016
| mm
|
Spindle rated power
| 3.7
| Kw
|
Spindle rated torque
| 5.9
| Nm
|
Magazine type
| Umbrella type magazine—BT30
| /
|
Magazine capability
| 16
| T
|
Tool change time
| 2.5”
| sec
|
Max. tool radius
| 80-130
| mm
|
Rotary Table
| ||
Min. resolution of C axis
| 0.001
| deg
|
Positioning precision
| A:30\\C:20 (tilt axis/rotary axis)
| sec
|
Repeated positioning precision
| A: 8\\C:8 (tilt axis/rotary axis)
| sec
|
Max. speed of A/C axis
| 250/400
| rpm
|
Others
| ||
Power supply requirements
| 3
| /
|
Air pressure
| 0.6
| Mpa
|
Gross weight of machine
| 3600
| Kg
|
Overall dimension
| 2000*2150*2400
| mm
|

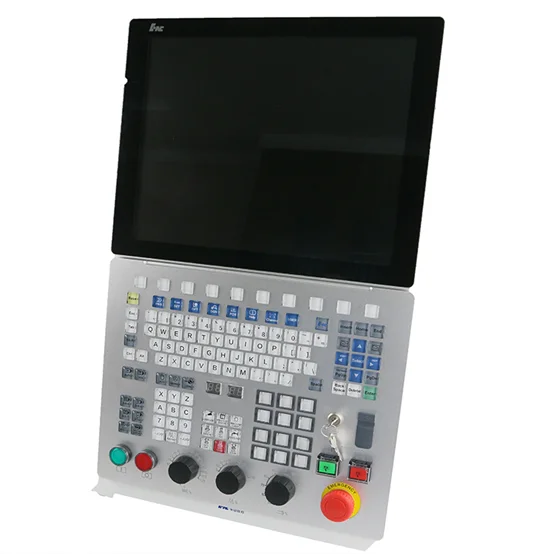

CNC controller
| ||
CNC controller
| HNC-848D
| /
|
CNC controller
Features of HNC848 series
5-32 axis control;
15” color LCD screen
Direct drive
Intelligent control
Lathe-mill combination
Multi-channel control
Seamless integration of CAM software
Touch screen
Backlash elimination for multiple motors
Five-axis machine, heavy-duty machine, lathe mill combo
Smart function:
Big data of CNC machine tool
Broken tool inspection
Machine health protection
Technological process optimization
Mobile terminal NC
Cloud service
Temperature compensation
Advantages:
Faster cutting efficiency
Wider trial range
Higher positioning accuracy
Better processing quality
Good rigidity
Symmetrical structure
Fast dynamic response
High precision
Good stability
The machine tool has various processes such as milling, drilling, reaming, tapping, countersinking and so on. One-time clamping of parts can automatically, efficiently and accurately complete multiple processes of multiple surfaces of parts, including processing of complex processes such as bevels and curved surfaces
Production details

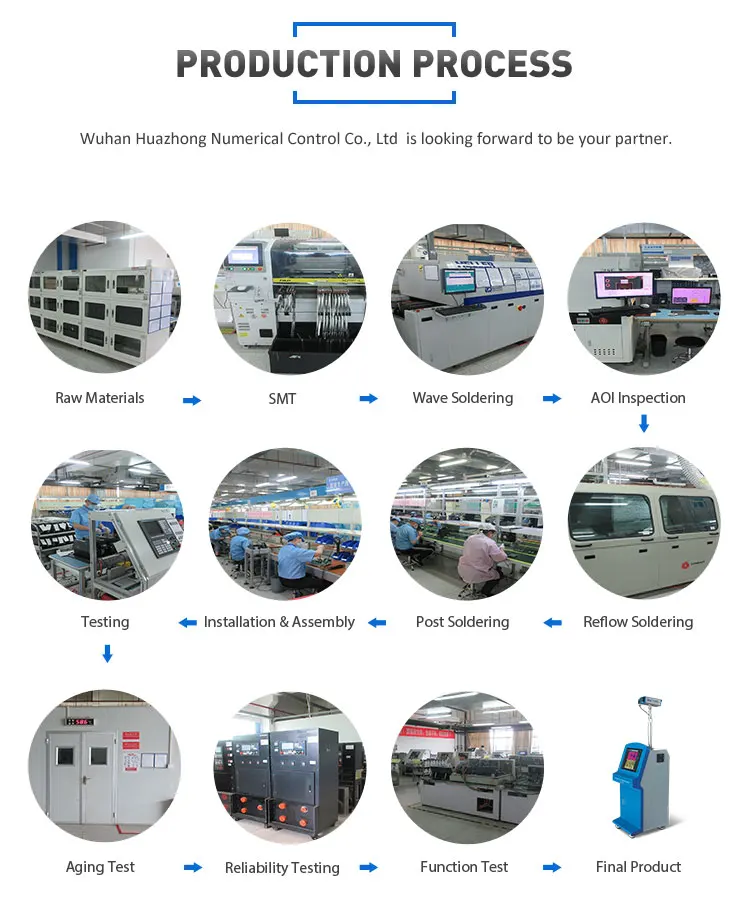

Our factory
