Вертикальный обрабатывающий центр с ЧПУ VMC 3 или 4 оси 850 855 VMC1160
- Категории: CNC Milling Machines >>>
- Поставщик: Wuhan,Huazhong,Numerical,Control,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product introduction
3 axis or 4 axis cnc vertical machining center VMC 850 VMC 855 VMC1160
3 axis or 4 axis cnc vertical machining center VMC 850 VMC 855 VMC1160

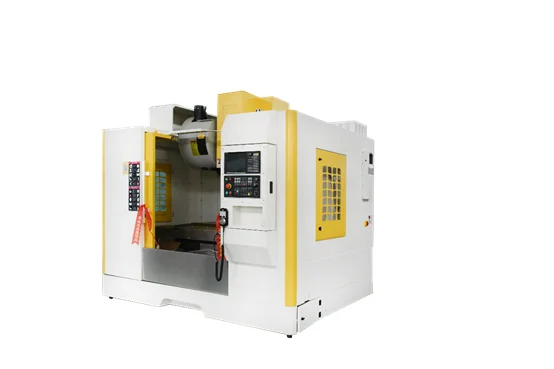

1. VMC850P 3-axis linear guide vertical machining center
Table size 1000*500 mm
Travel of X/Y/Z axis 800*500*600 mm
φ40*16 screw lead,HIWIN/PMI 45 ball linear guide,spindle BT40-150-8000,disc type magazine of 24 tools
2. VMC850A 3 linear guides vertical machining center
Table size 1000*500 mm
Travel of X/Y/Z axis 800*500*500 mm
φ36*16 screw lead,HIWIN/PMI 35 ball linear guide,spindle BT40-140-10000,disc type magazine of 24 tools
3. VMC850B 3 hard guideways vertical machining center
Table size 1000*500 mm
Travel of X/Y/Z axis 800*500*500 mm
φ40*10 screw lead,spindle BT40-150-8000, disc type magazine of 24 tools
Specification
VMC850 technical parameter | |||
worktable | Worktable size | mm | 1000*500 |
Worktable max.load | kg | 600 | |
T-slot (number*width*distance) |
| 5-18*108 | |
Travel | X-aixs travel | mm | 800 |
Y-aixs travel | mm | 500 | |
Z-aixs travel | mm | 500 | |
Distance from spindle nose to table surface | mm | 120-620 | |
Distance from spindle center to column guideway | mm | 581 | |
Spindle | Spindle transmission type |
| Belt type |
Spindle taper |
| BT 40 φ140 | |
Spindle speed | rpm | 8000 | |
Spindle motor | kw | 7.5 | |
Feed Speed | X/Y/Z-aixs rapid feed | m/min | 36\\36\\32 |
Cutting feed speed | mm/min | 1-10000 | |
Tool magazine | Tool number | pcs | 24 |
Tools change way |
| Disc type ATC | |
Tool change time | s | 2-3 | |
Precision | Positioning precision | mm | ±0.008 |
Reported positioning precision | mm | ±0.005 | |
other | controller |
| KND |
Overall size | mm | 2700*2300*2300 | |
Machine weight | kg | 5000 | |
VMC840(3axis hard rail) technical parameter | |||
worktable | Worktable size | mm | 1000*360 |
Worktable max.load | kg | 300 | |
T-slot (number*width*distance) |
| 3-18*100 | |
Travel | X-aixs travel | mm | 800 |
Y-aixs travel | mm | 400 | |
Z-aixs travel | mm | 550 | |
Distance from spindle nose to table surface | mm | 100-650 | |
Distance from spindle center to column guideway | mm | 445 | |
Spindle | Spindle transmission type |
| Belt type |
Spindle taper |
| BT 40 φ120 | |
Spindle speed | rpm | 8000 | |
Spindle motor | kw | 5.5 | |
Feed Speed | X/Y/Z-aixs rapid feed | m/min | 15\\15\\8 |
Cutting feed speed | mm/min | 1-10000 | |
Tool magazine | Tool number | pcs | 16 |
Tools change way |
| Disc type ATC | |
Tool change time | s | 2-3 | |
Precision | Positioning precision | mm | ±0.01 |
Reported positioning precision | mm | ±0.008 | |
other | controller |
| KND |
Overall size | mm | 2500*2000*2100 | |
Machine weight | kg | 3200 | |
Configuration table
VMC 850 Standard accessories | ||
Item | Model and specification | Brand |
CNC control system | HCNC 808Di | HCNC |
Servo drive and motor | System matching | HCNC |
3-Axis bearing | Inner diameter 25, outer diameter 52, P4 | TPI-Taiwan-China NACHI-Japan |
3 axis ball screw (C3 level) | FD3616 | Hiwin-Taiwan,China |
Three axis ball linear guide | X/Y/Z:HGH35HA | Hiwin-Taiwan,China |
Automatic tool changer | 24T Disk type | OKADA-Taiwan China |
Spindle (Belt type) | BT40-140-8000r/min | Danquan/Haozhi-China |
Pneumatic supercharger | 3.5T | Haocheng-Taiwan,China |
Pneumatic control element | - | airtac -China |
automatic lubrication system | TZ-2202-110A | Herg/Shengxiang |
Coolant pump | CBK4-30/3 | Luokai-China |
heat exchanger | HPW-10AF | Sanhetongfei/Wenheng-China |
CNC controller
HNC8 high-performance CNC system, developed by Wuhan Huazhong Numerical Co., Ltd (HNC) through the innovation of key technologies, reaches the international advanced level. HNC8 is mainly used in medium and high-grade CNC machine tools such as CNC lathes, turning centers, CNC milling machines, vertical machining centers, horizontal machining centers, drilling tapping centers, and five-axis machines in the fields including aerospace, energy equipment, automobile manufacturing, shipbuilding, 3C, machine tool transformation, etc. It is the most widely used domestic high-grade CNC system
HNC8 is portable and tailorable across platforms, achieving further secondary development. It supports the processes such as laser processing, electroprocessing, and grinding, as well as the “first-generation-CNC” products such as plastic machine and printing machine. HNC8 is customizable.
Features of HNC808 series
1. 2-4 axis control

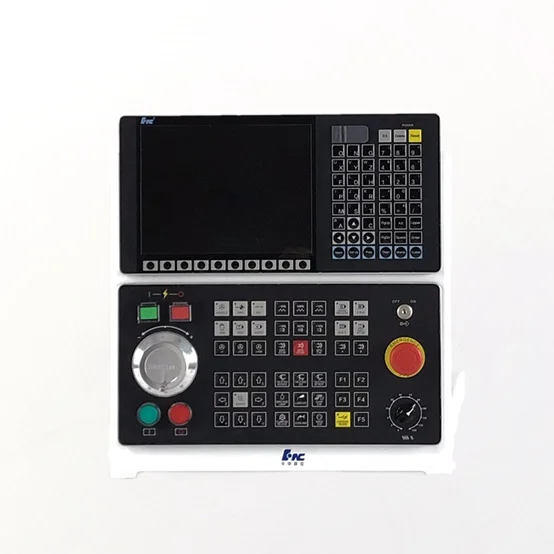

2. 10.4” color LCD screen
3. Supporting NCUC, etherCAT bus protocol
4. Supporting 16,000,000PPR high-precision encoder
5. Supporting high-speed asynchronous motor\\permanent magnet synchronous spindle motor
6. 8000rpm high-speed rigid tapping (permanent magnet synchronous spindle motor)
7. Supporting bidirectional 20000 points pitch error compensation (optional)
8. Customization (optional)
9. Supporting TCP\\IP, Ethernet communication protocols
10. Smart function:
11. Big data of CNC machine tool
12. Broken tool inspection
13. Temperature compensation

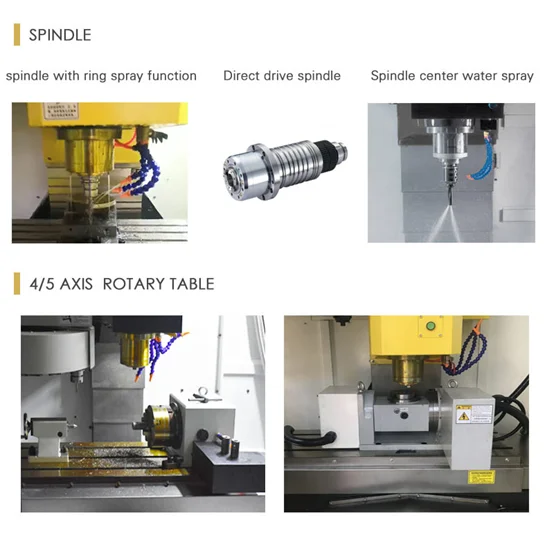

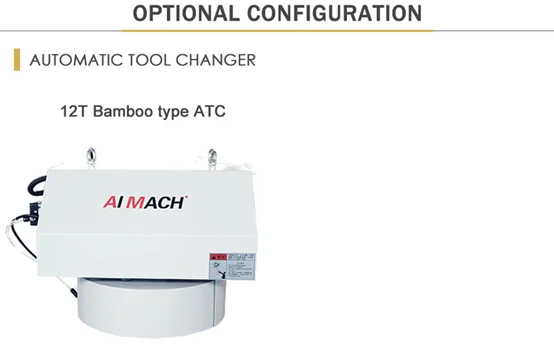

Production details
Application
Our factory
