Quality Guarantee Stylish environmental engineering project rubbish grapple

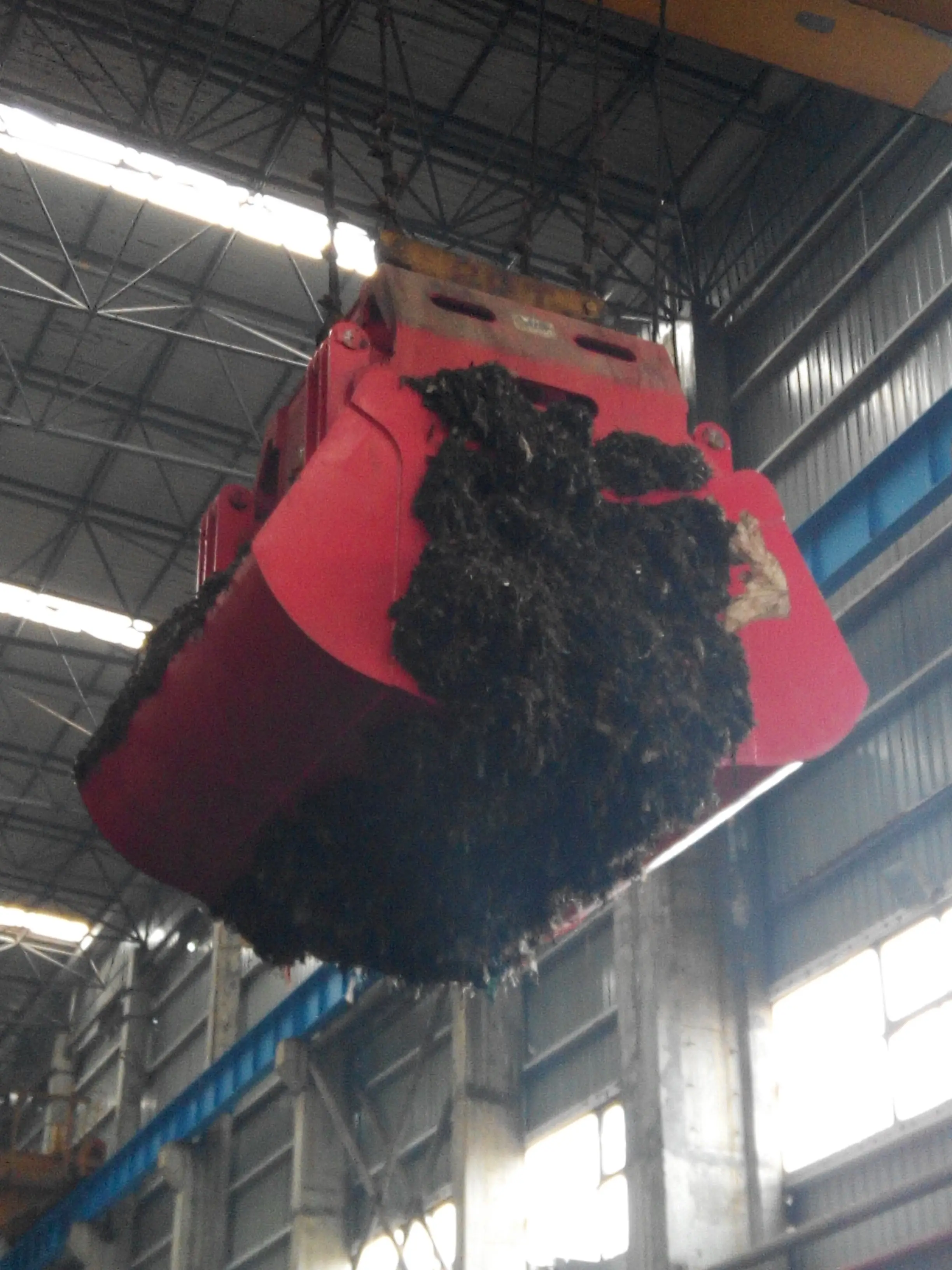

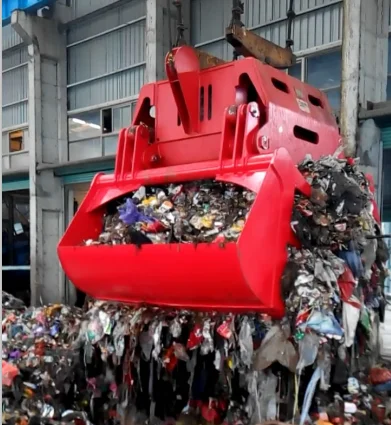

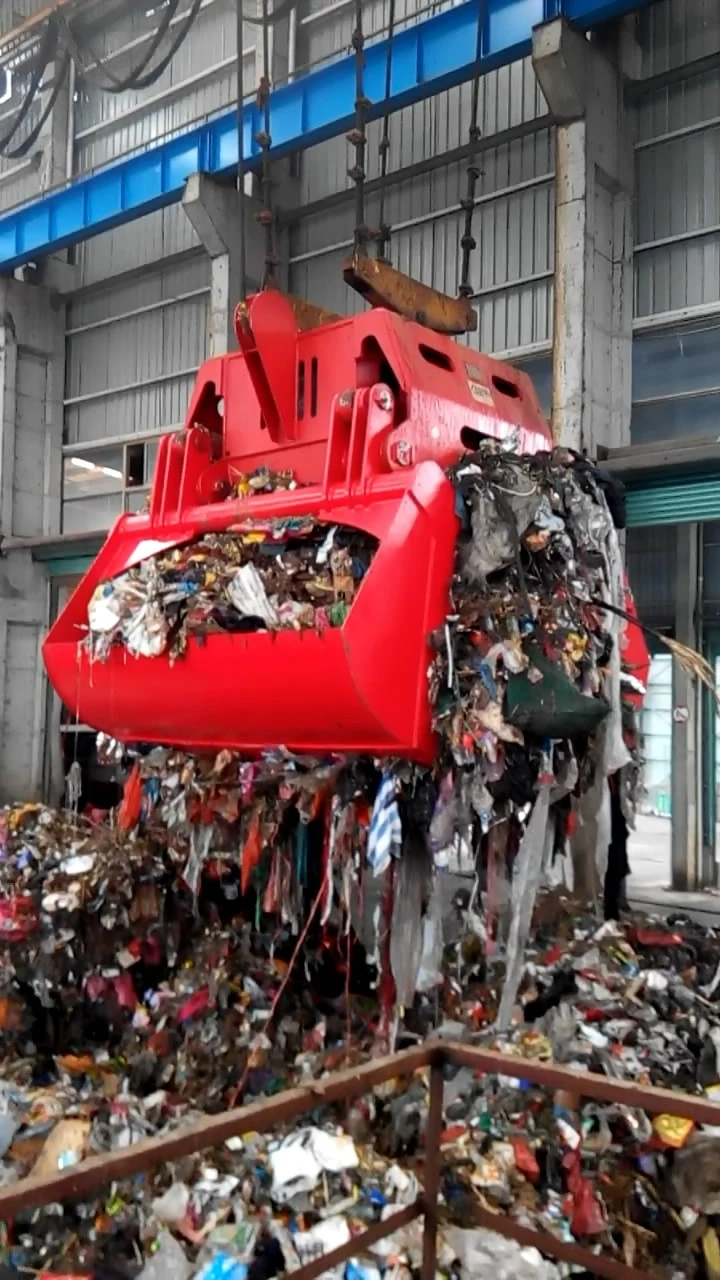

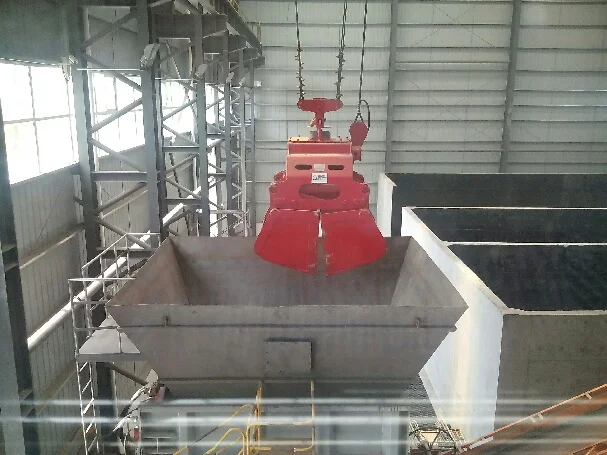

Our rubbish grapple are widly used in local environmental engineering project. We have enough experence to deal any problem.



Crane lifting capacity	T	25	32	40	50
Density	t/m3	1.0
Grab Volume (40°dome)	m³	16.5	19.8	25.0	32.0
Dead weight -3 fold	t	8.5	12.2	15.0	18.0

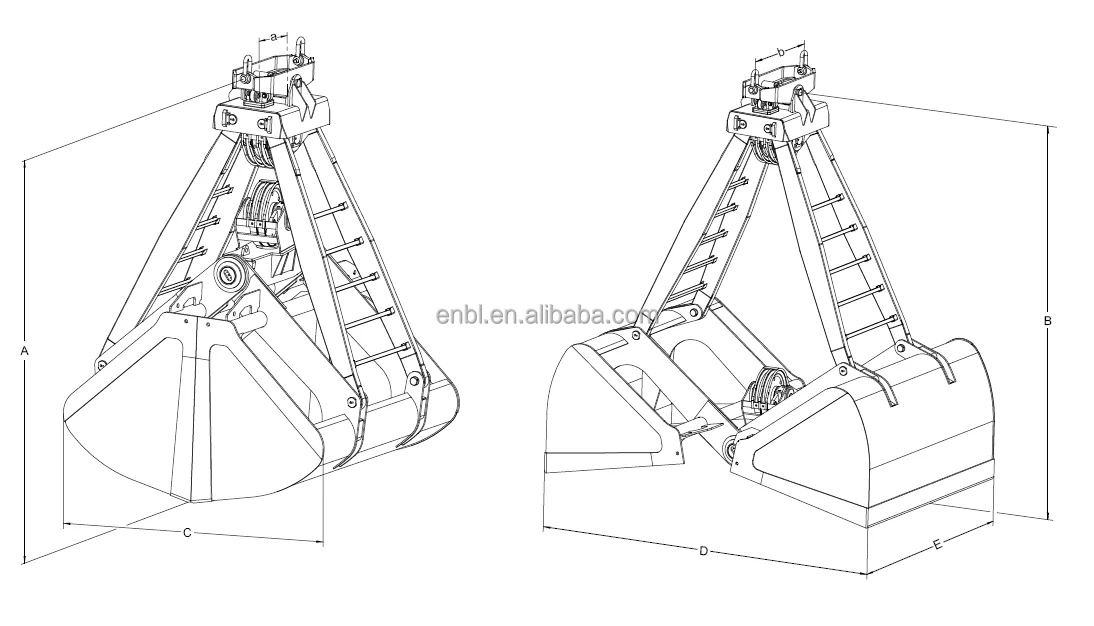

Dimensions	A(mm)	4820	5110	5620	5920
	B(mm)	5450	5770	6380	6650
	C(mm)	3590	3870	4180	4450
	D(mm)	5140	5150	5690	6230
	E(mm)	3400	3500	3900	4200
	a(mm)	670	755	850	950
	b(mm)	1300	1400	1400	1550
Closing rope stroke 3-fold	mm	8130	8240	9180	9720
Standard diameter of closing ropes	mm	32	36	40	42
Closing rope-total length to operate 3-fold	mm	15000	15700	17200	18700
Dianmeter of closing rope sheaves	mm	630	710	800	900

Above data will be for your reference. The exactly details need your special requirement.

3 (2).png

Company Information

About the grab we provide,we can promise


Technic support	1, customized design team communicate with customer
	2, customer's special need will take into account during design and produce
	3, communicate well and find the best suitable solution
Quality control (3tests before delivery)	1,Test the parts of the test-bed to test the reliability of components before installation
	2, hour no-load test of the grab, check the pressure and temperature holding performance of the hydraulic system and various performance data of the grab
	3,The grab shall be tested continuously for 8 hours with load to detect the temperature control of the grab and the stability under continuous load (three consecutive days if necessary)

Any further information, feel free to contact me
