Карманный портативный 1D беспроводной недорогой сканер штрих-кодов bt для склада android
- Категории: Scanners >>>
- Поставщик: Dongguan,Dyscan,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Product Description
DI9130-1D is a high-performance 1D bluetooth and wireless 2.4G barcode scanner with leading CCD image recognition technology.
It can easily read the paper, goods, screen and other media barcodes.
Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory, etc.
It can easily read the paper, goods, screen and other media barcodes.
Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory, etc.
Features
Features
☆ Wearable design, widely used in warehouse, express.
☆ Read all mainstream 1D barcodes in the market easily.(3mil)
☆ 100,000 data storage capacity.
☆ Bluetooth 4.2, intelligent automatic connection when it’s beyond range, not manual setting.
☆ Mode: Bluetooth(HID,SPP,BLE), wireless 2.4G, connected with PC, mobile phone easily.
☆ Read all mainstream 1D barcodes in the market easily.(3mil)
☆ 100,000 data storage capacity.
☆ Bluetooth 4.2, intelligent automatic connection when it’s beyond range, not manual setting.
☆ Mode: Bluetooth(HID,SPP,BLE), wireless 2.4G, connected with PC, mobile phone easily.
Details Images

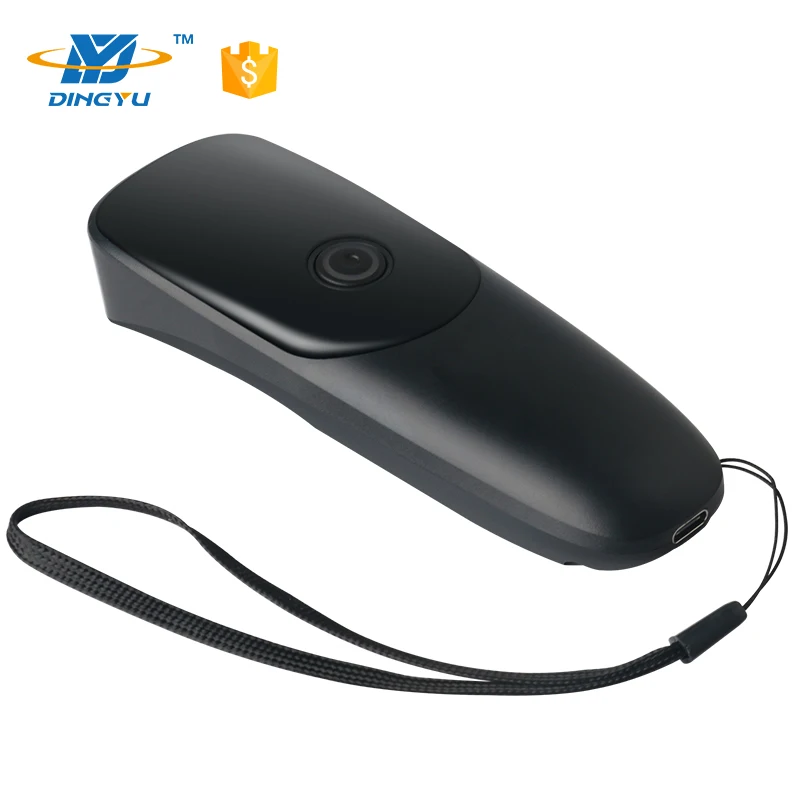

Wireless Bluetooth 2.4 G Barcode Scanner Portable Reader
Product Parameters
Performance
Scan Type | Linear CCD |
Light Source | Visible red light, 625±10nm |
CPU | 32-bit |
Resolution | 2500 |
Reading precision | ≥3mil/0.076mm(PCS90%,Code 39) |
Decoding speed | 300times/s |
Depth of field | 30mm-700mm |
Scan Mode | Manual ,Continuous, Auto Sense, Flashing |
Scan angle | Test Conditions：CODE39,10mil/0.25mm,PCS90% |
Pitch: | ±60° |
Roll: | ±30° |
Skew: | ±60° |
Print Contrast Signal | ≥20% |
Wireless standard | 2.4GHZ (ISM band); Bluetooth 4.2, compatible with Bluetooth 4.0 / 3.0 / 2.1. |
Ambient Light | Dark environment, indoor natural light |
Wireless communication mode | Synchronization , storage |
Wireless transmission distance | 2.4GHz,150m; Bluetooth 30m（Open distance） |
Storage | 16Mb（over 100,000 Product code） |
Battery capacity | 1200mAh |
Battery charging time | About 3.5 h |
Continuous working time | ≥12 h |
Symbologies | UPC-A，UPC-E，EAN-8，EAN-13，ISSN，ISBN，Code128， GS1-128，ISBT128， Code 39，Code 93，Code11， Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5 Standard 2 of 5（IATA），Codabar（NW-7），Plessey， MSI Plessey，RSS，China Post，etc. |
Physical Parameter
Weight | ≈70g（without cable） |
Dimension | L130mm * W46.5mm * H28.5mm |
Communication Mode | USB、Wireless 2.4G、Wireless Bluetooth 4.2 |
Interface Type | Type C |
Power Supply | DC 5V@80mA(work） |
Environmental
Operating temperature | -20℃ to 50℃ |
Storage temperature | -40℃ to 60℃ |
Humidity | 5% to 95%（non-condensing） |
Drop Height | 1.5m |
Temp. Test | 30 minutes for high Temp., 30 minutes for low Temp |
High Temp. 60℃ | |
Low Temp. -40℃ | |
Transport vibration Test | 10H@125RPM |
Accessories List
Cable | USB, connect the scanner to a host device and charging. |
Receiver | Used to receive and transmit scanner data. |
Charger | Optional |
Application
Company Profile
The factory shows as follows:
Company Certificate
Exhibition
Contact
FAQ
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
