Mini Size 1D 2D Barcode Engine QR Bar Code Scanner for Vending Machine
Product Description
Features
1. Small in size, easily embedded and fixed.
2. Supports manual/ auto-sensing scanning, 2 modes for option.
3. Supporting the RS232,USB,TTL,Micro USB interface.

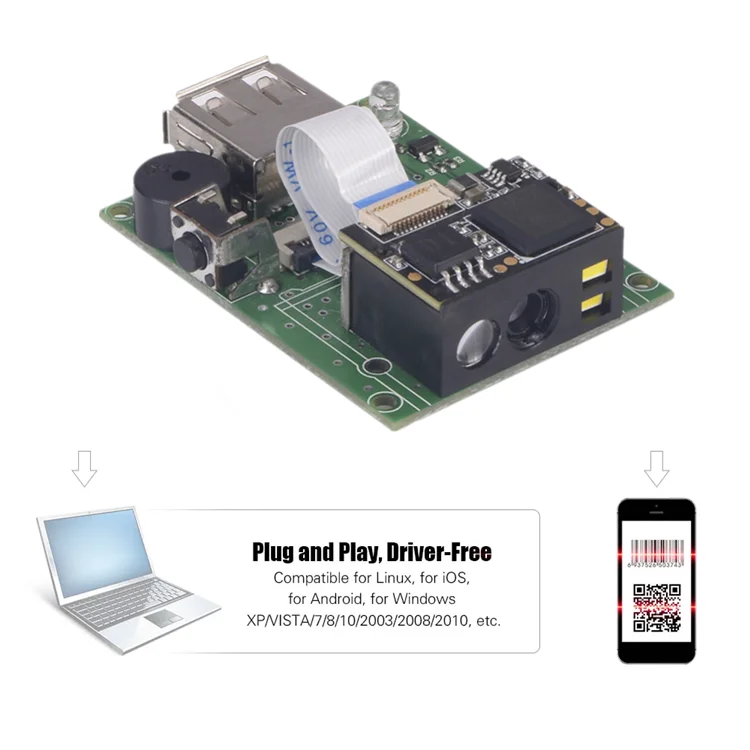

4. Plug and play, driver-free, convenient for usage.

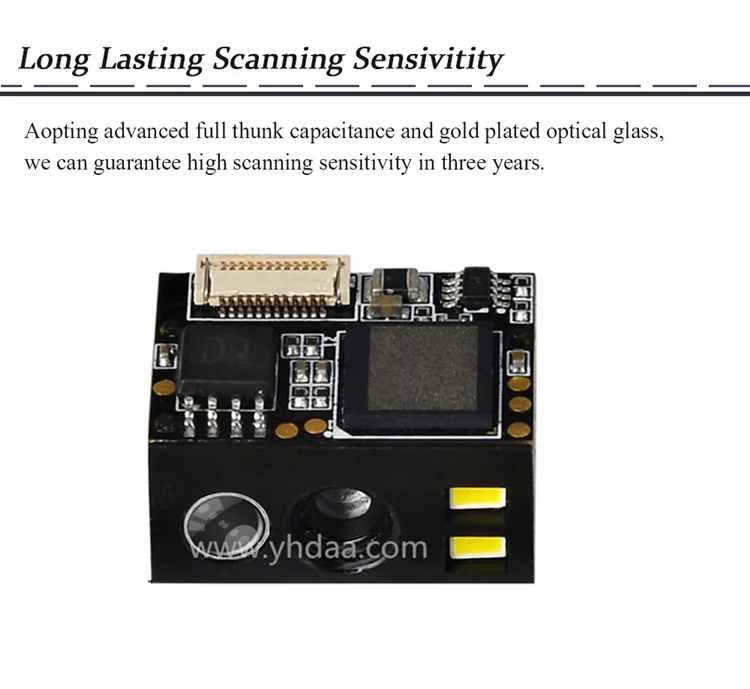

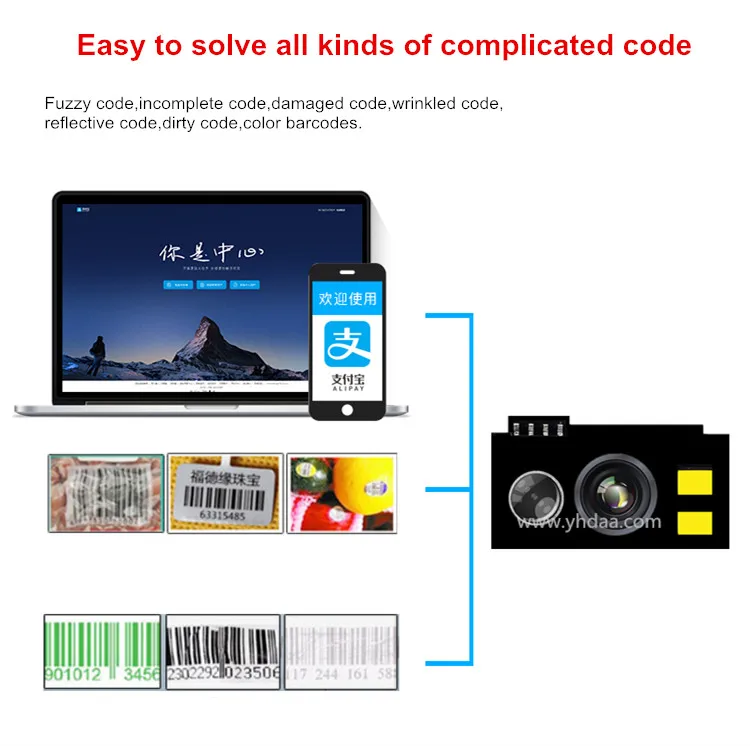

5. Super scanning and decoding ability, can read incomplete and fuzzy codes.
6. Scanner reads 2D & 1D barcodes printed on labels or displayed on device screens.
7. Mini size and lightweight easy to be integrated into various solutions such as kiosks, flow line,medical equipment, parcel locker, supermarket locker, ticket machine, logistics, hospital,vending machines, etc.
8. Can be customized according to customer demand.
Product Specification | YHD-M800 Mini CMOS Barcode Scanner Module |
Imaging Sensor | CMOS |
Optical Source | 620nm Visible red light diode |
Trigger Mode | Continuous,Auto-Induction |
Indication | Buzzer & LED |
Resolution Ratio | 30 million pixels |
Interface | RS232,USB,TTL,Micro USB |
Resolution | 4mil |
Minimum Contrast | ≥ 30% |
Decoding Capability | 1D: CODE128 EAN-8 EAN-13 UPC-E UPC-A Interleaved 2 of 5 ITF14 MATRIX 25 Code39 Codabar Code93 UCC/EAN-128 Code11 ISBN INDUSTRIAL25 STANDARD25 Plessey etc 2D: PDF417 QR Aztec DataMatrix Maxicode MicroPDF417,etc |
Max.Power | 1060mw |
Working Voltage | 5V |
Current | Max. : 212mA Working : 156mA~212mA Stand-by : 156mA |
Temperature | Storage: -40°C ~ 60°C Working: -20°C ~ 50°C |
Relative Humidity | 5 ~ 95% |
Weight | 3g (scanner without cable and development board) |
11g(scanner with cable and development board) | |

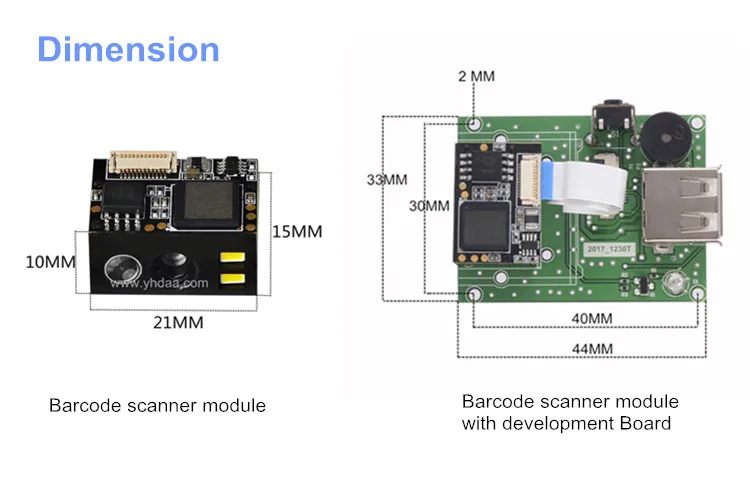

Dimensions | 21*15*10 mm (scanner without cable and development board) |
44*33*11 mm (scanner with cable and development board) | |
Drop test | 1.5m fall to concrete |
Certificate | CE,FCC,RoHS,IP54 |

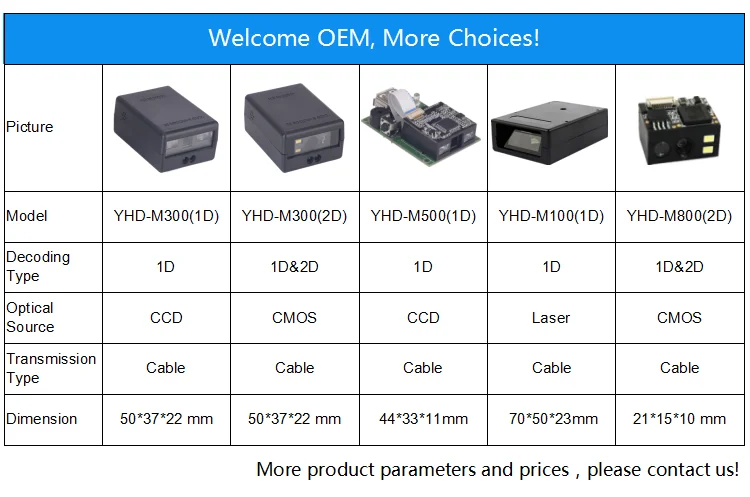

OEM Service
