ZX7040 фрезерный сверлильный станок


Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description




Specification


Model
ZX7040
Table Travel (X) (mm)
500mm
Number of Axes
2
Machining Capacity
40mm
Table Travel (Y) (mm)
175
Table Travel (Z) (mm)
110
Spindle Taper
MT4
Range of Spindle Speed(r.p.m)
95r.p.m - 1940r.p.m
Condition
New
Place of Origin
China
Zhejiang
Brand Name
CDK
Model Number
ZX7040
Table Travel (mm)
730*210mm
Year
2020
Type
Vertical
Spindle Motor Power(kW)
1.5
Voltage
380V
Dimension(L*W*H)
97*77*116cm
Certification
CE;ISO
Weight (KG)
420
Warranty
1 YEAR
After-sales Service Provided
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Key Selling Points
Easy to Operate
After Warranty Service
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Local Service Location
None
Showroom Location
None
Ordinary Product
Provided
Provided
1 YEAR
Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Gearbox
Max Drilling Capacity
40mm
Max milling width
80mm
Max milling diameter
28mm
Spindle travel
110mm
Spindle taper
MT4
Spindle speed
95-1940RPM
Working surface
730*210
Table travel
500*175
Motor
1.5kw


Company Profile

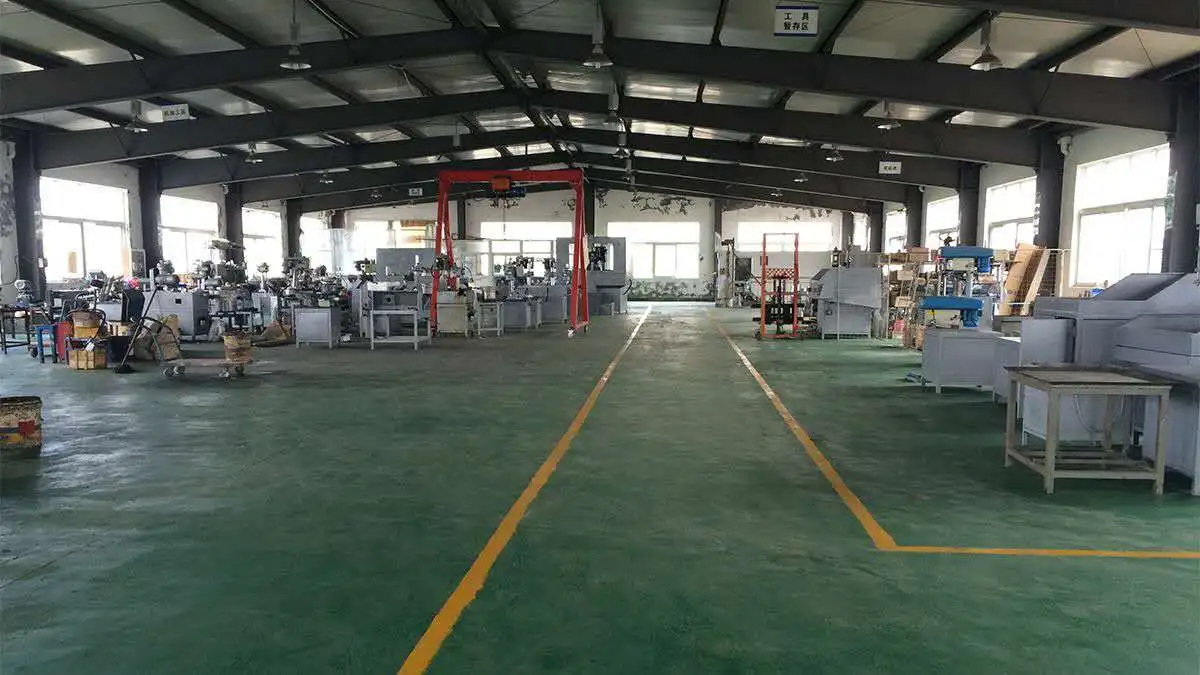

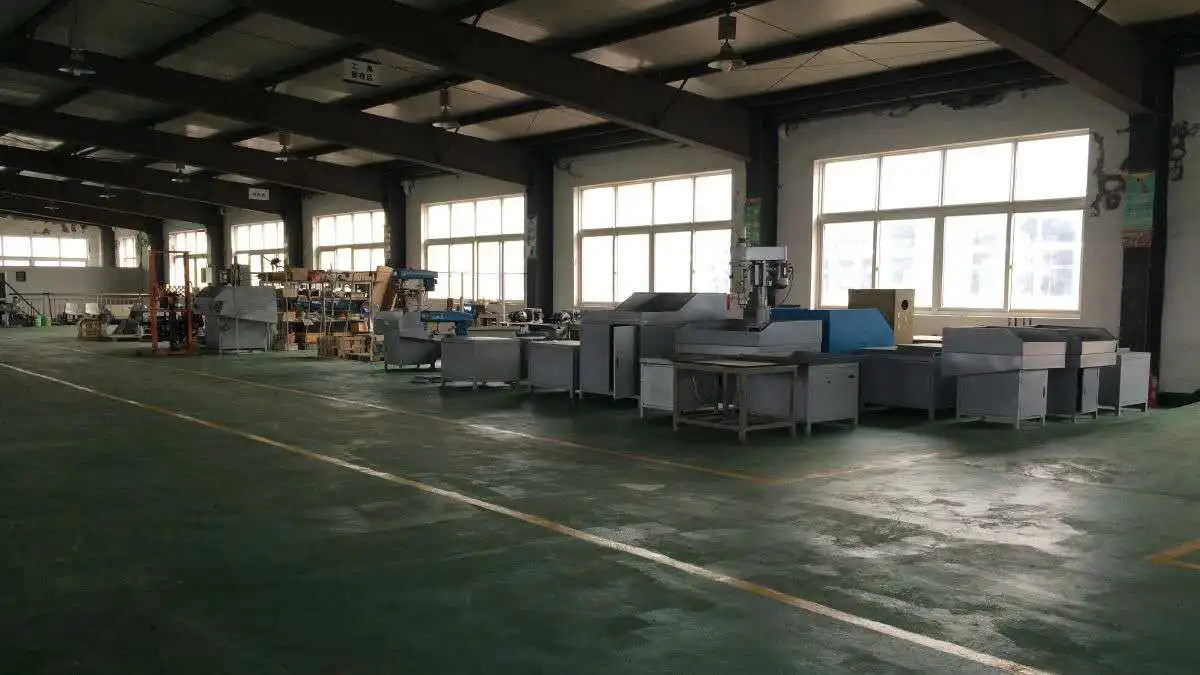

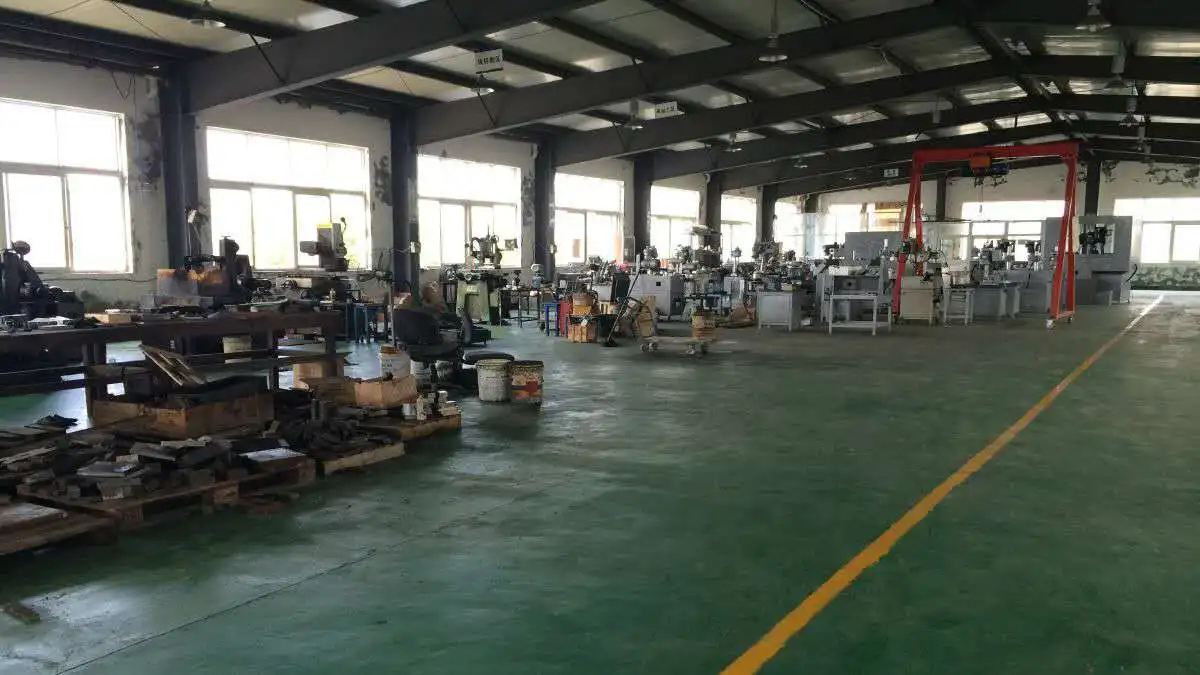

DingKe Machinery & Equipment Co.,Ltd. was established in 1996, the company manufacturing base is located in Ningbo City, Zhejiang Province,Is a professional engaged in CDK brand design and manufacture of precision automatic drilling machine, precision automatic tapping machine, precision multi axis drilling / tapping teeth, high precision power main shaft and nut tapping machine, all kinds of automatic drilling / attack teeth of various special machine and automatic assembly machine and other products R & D, design, production, manufacture and sales service in one of the well-known brand enterprises.
The company has the domestic first-class R & D and survival of technical personnel and management team, production and processing equipment and advanced testing equipment complete reliability.
Since 2008, in order to improve the company's management level and strengthen the protection of product knowledge, application and through the ISO9001 quality system certification and CE safety certification, apply "CDK" logo is a registered trademark of the company, and also apply for a dozen of utility model and appearance of the patent protection and number therein, English company domain name in order to improve the company's image and marketing category.
To better meet customer demand in supporting, operating at the same time, Japan YAMWA, OSG, YG brand silk attack, drills, die, CNC cutting tools, such as and well-known brands in Taiwan special drilling, tapping teeth, NC machining precision collet chuck, chuck and other series products. At the same time, according to customer demand for customized non-standard tools and ancillary equipment, welcome to inquire!


FAQ


1. who are we?
We are based in Zhejiang, China, start from 2011,sell to North America(10.00%),South America(10.00%),Eastern Europe(10.00%),Southeast Asia(10.00%),Africa(10.00%),Oceania(10.00%),Mid East(10.00%),Central America(10.00%),South Asia(10.00%),Domestic Market(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Automatic tapping machine,Automatic drilling machine,Multi spindle tool,multi-spindle lock screw machine,CNC drilling machine

4. why should you buy from us not from other suppliers?
1) More than 20 years experience on multi-spindle drilling and tapping machine manufacturing;
2) Professional technology and sales team for customized solution and ensure high quality;
3) Our main market is South-East Asia;

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU;
Accepted Payment Currency:USD,EUR,CAD;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Japanese
