Gps-антенна 1575,42 МГц для автомобиля
US $2.30-$2.70
GPS-A магнит автомобильная антенна комбинации ГЛОНАСС
- Категории: GNSS & GPS Antenna >>>
- Поставщик: Shenzhen,Hurryup,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Description
( 1 ) Waterproof Active GPS Antenna with RG174 RF Cable;
( 2 ) Magnetic or 3M Sticker Mounting;
( 3 ) Connector Supported: Fakra, SMA, SMB, BNC, TNC, MCX, MMCX, N-Type, ect.
( 2 ) Magnetic or 3M Sticker Mounting;
( 3 ) Connector Supported: Fakra, SMA, SMB, BNC, TNC, MCX, MMCX, N-Type, ect.

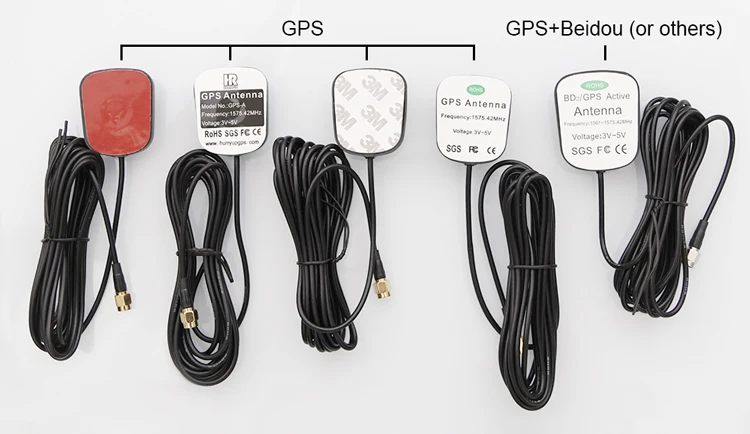

1575.42MHz Active Car GPS Antenna
with Magnetic Mounting, 3 Meters RG174 RF Cable, SMA Male Connector
Excellent signal reception with this waterproof GPS external antenna and built in low noise amplifier (LNA). This GPS antenna provides 28 dB of gain with its built in LNA. The industry standard SMA connector will work with most GPS systems and the magnetic base allows you to conveniently attach it to the roof of your car.
( 1 ) Waterproof active GPS antenna with SMA male connector;
( 2 ) Magnetic base allows you to conveniently attach it to to the roof of your car;
( 3 ) CE RoHS Compliant;
( 4 ) Cable length: 3 meters;
( 5 ) DC Voltage: 3V to 5V;
( 6 ) Lightweight in 45x38x15mm, 60g.
with Magnetic Mounting, 3 Meters RG174 RF Cable, SMA Male Connector
Excellent signal reception with this waterproof GPS external antenna and built in low noise amplifier (LNA). This GPS antenna provides 28 dB of gain with its built in LNA. The industry standard SMA connector will work with most GPS systems and the magnetic base allows you to conveniently attach it to the roof of your car.
( 1 ) Waterproof active GPS antenna with SMA male connector;
( 2 ) Magnetic base allows you to conveniently attach it to to the roof of your car;
( 3 ) CE RoHS Compliant;
( 4 ) Cable length: 3 meters;
( 5 ) DC Voltage: 3V to 5V;
( 6 ) Lightweight in 45x38x15mm, 60g.
Model No. | GPS-A | |
Cable | RG174, Length=3M or customized | |
Cable Gain | ±2dBi | |
Dielectric Antenna | ||
Center Frequency | 1575.42±3 MHz | |
V.S.W.R | 2:1 | |
Band Width | ±5 MHz | |
Impendence | 50Ω | |
Peak Gain | >3dBic Based on 7×7cm ground plane | |
Gain Coverage | >-4dBic at -90°<0<+90°(over 75% Volume) | |
Polarization | RHCP | |
LNA/Filter | ||
LNA Gain Without Cable | 28dB Typical | |
Noise Figure | 2.0dB | |
Filter Out Band Attenuation | (f0=1575.42MHz) 7dB Min f0+/-20MHz; 20dB Min f0+/-50MHz; 30dB Min f0+/-100MHz | |
V.S.W.R | <2.0 | |
DC Voltage | 3V to 5V | |
DC current | 7-10MA | |
General Features | ||
Weight | 60 gram | |
Size | 45x38x15mm | |
Cable Type | RG174 Cable, 3 Meters (customized) | |
Connector | SMA Male Connector (Fakra, MCX, MMCX, ect customized) | |
Mounting | Magnetic Mounting (Adhesive Mouting customized) | |
Housing | Black | |
Environmental | ||
Working Temp | -40℃~+105℃ | |
Vibration | Sine sweep 1g(0-p)10~50~10Hz each axis | |
Humidity | 95%~100% | |
Cable length, connector type, appearance, ect, can be customized.
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
