Long-range High Quality High-precision Measurement Outdoor Waterproof 40dBi Beidou GPS GLONASS Galileo Marine Antenna



Beidou GPS GLONASS Galileo antenna
Item NO.	TDA-1561
Communication Antenna
Patch Architecture	Dual Four-point-feed, Dual Stacked Patch

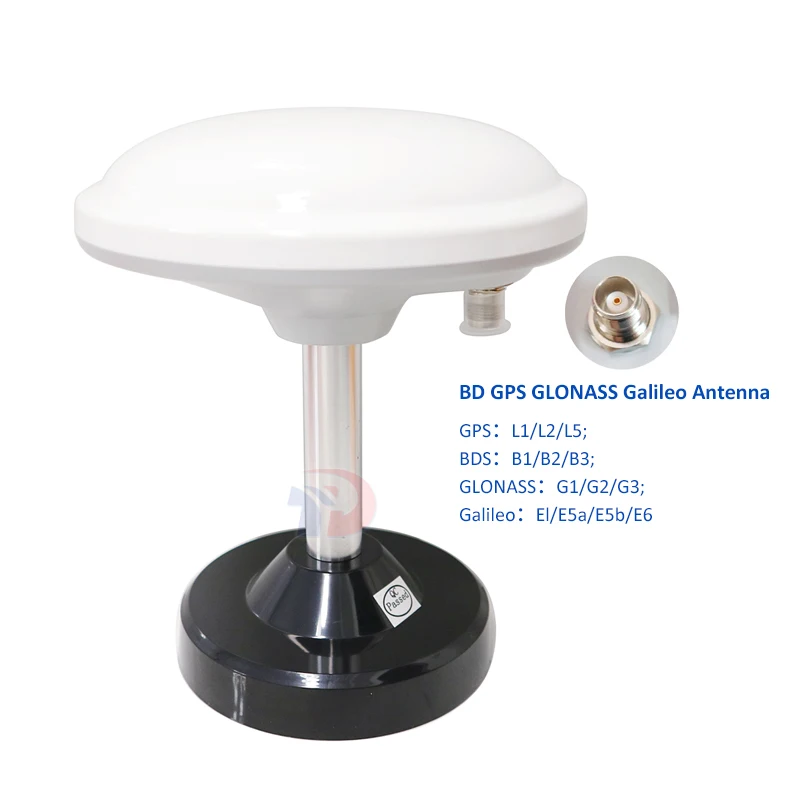

Supported positioning signal bands	GPS:L1/L2/L5;BDS:B1/B2/B3;GLONASS:G1/G2/G3;Galileo:El/E5a/E5b/E6
Peak Gain*	≥5.0dBi@Fc
Polarization	RHCP
Axial Ratio@zenith	≤1.5dB
Azimuth Coverage	360°
Impedance	50 ohm
Phase-center accuracy	≤2.0mm
Phase-center repeatability	≤1.0mm
LNA
Frequency Range	1170MHz~1290MHz
	1559MHz~1605MHz
LNA Gain*	40±2.0dB(Typ. @25°C)
Group Delay variation	≤5ns
Noise Figure*	≤2.0 dB@25°C , Typ.(Pre-filtered)
Output VSWR	≤1.8:1 typ. 2.0:1max
Operation Voltage	3.0~16V DC
Operation Current	≈45mA
Mechanicals & Environmental

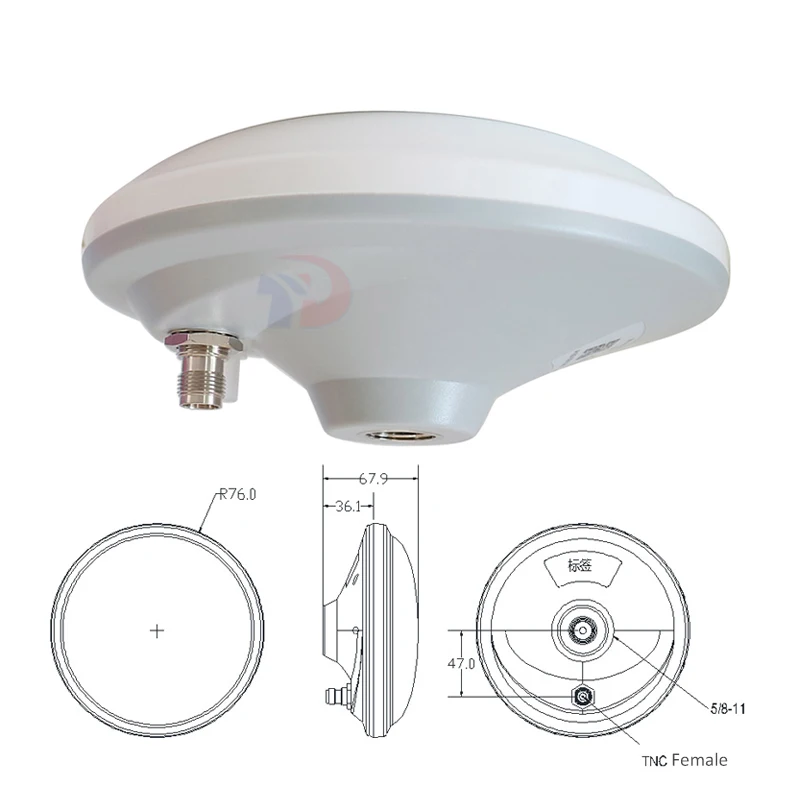

Dimension	Φ152mm*67.9mm

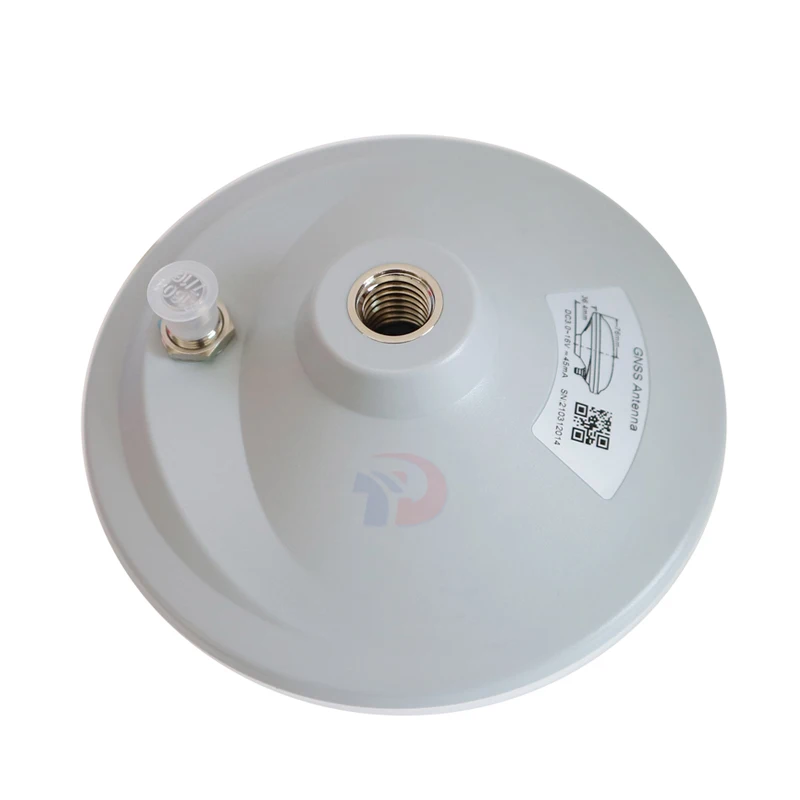

Connector	TNC ( Female)
Radome	PC+PBT
Weight	≈350g
Attachment Method	5/8-11

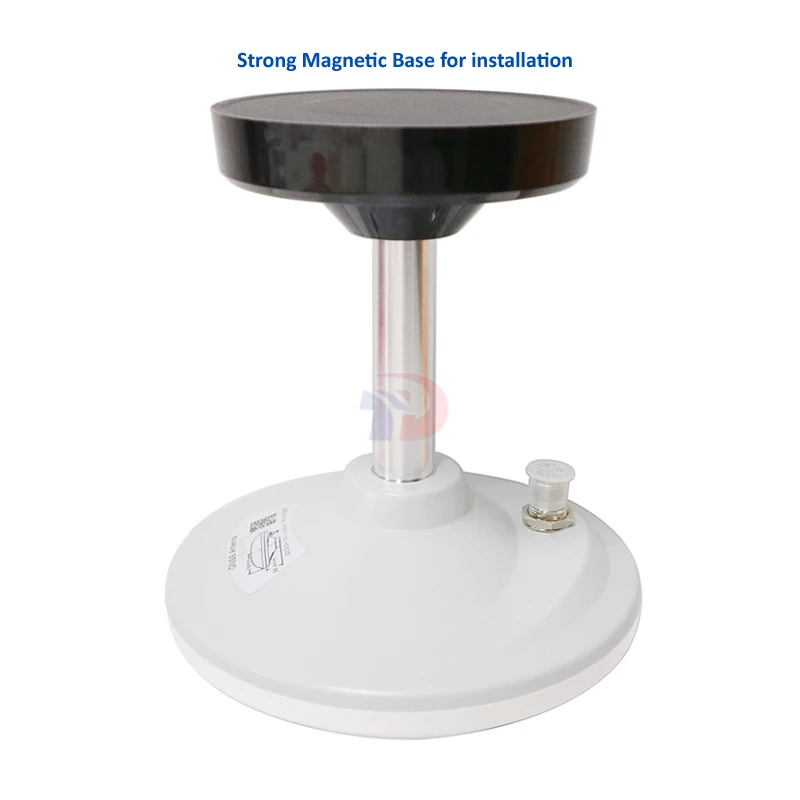

Installation	Strong magnetic base
Cable	TNC male to SMA-male RG58 Copper cable
Operating Temp	-40℃~+85℃
Storage Temp	-45℃~+85℃
Humidity	95% No-condensing
Waterproof	IP67

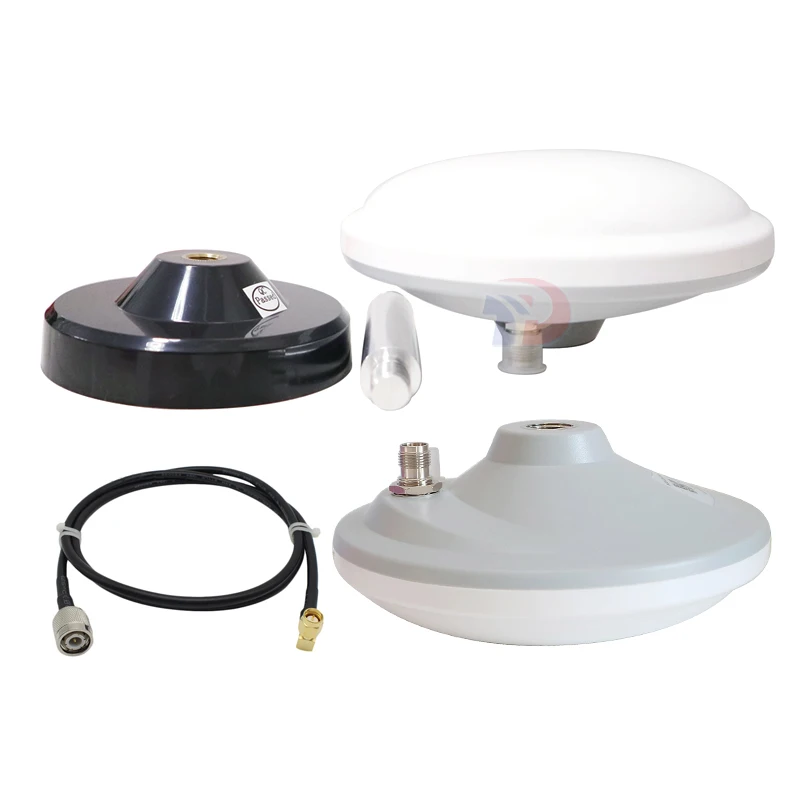

High Quality Outdoor waterproof Nautical Surveying and Mapping Full Band GPS BD GLONASS Antenna with TNC female connector,TNC male extension cable optional



This antenna is a full-band GNSS survey antenna that supports the reception of satellite navigation signals in the L1/L2 frequency band of Beidou II, GPS and GLONASS. It can be widely used in high-precision navigation and positioning occasions such as geodetic surveying and mapping, ocean surveying, precision agriculture, deformation monitoring and so on.

Technical characteristics

Ø Multi-feed point design is adopted to ensure right-hand circular polarization and phase center performance, and reduce the influence of measurement errors;
Ø The antenna unit has high gain, which has a good effect on low-elevation satellite signal reception, and ensures that the number of available satellites in the system is sufficient;
Ø The low-noise amplifier adopts pre-filtering technology to effectively suppress out-of-band interference signals and improve the reliability of the system;
Ø The enclosure is protected by IP67, which provides protection for the antenna to work in the field for a long time.

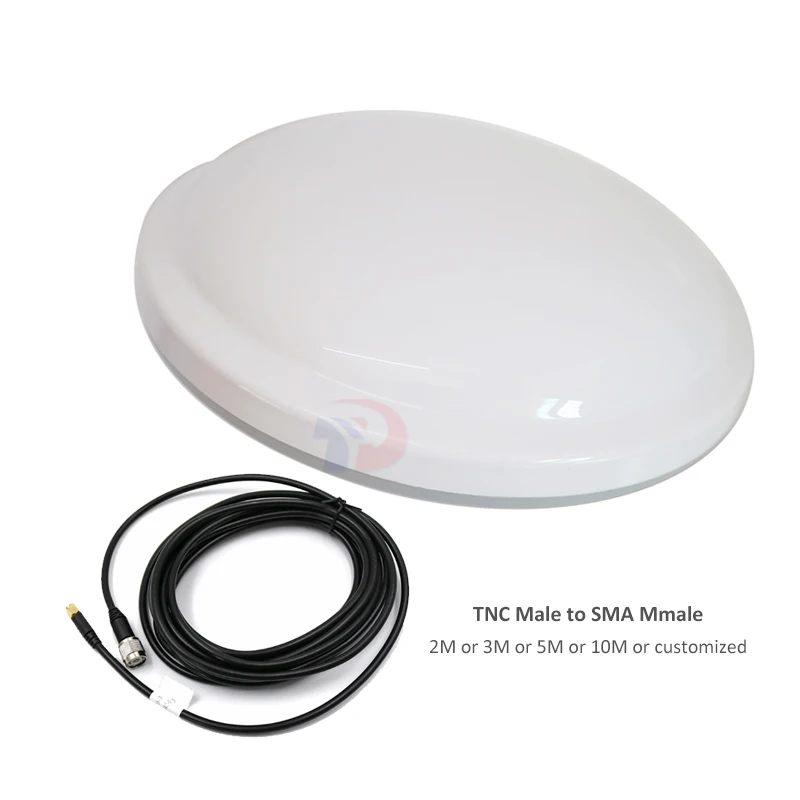

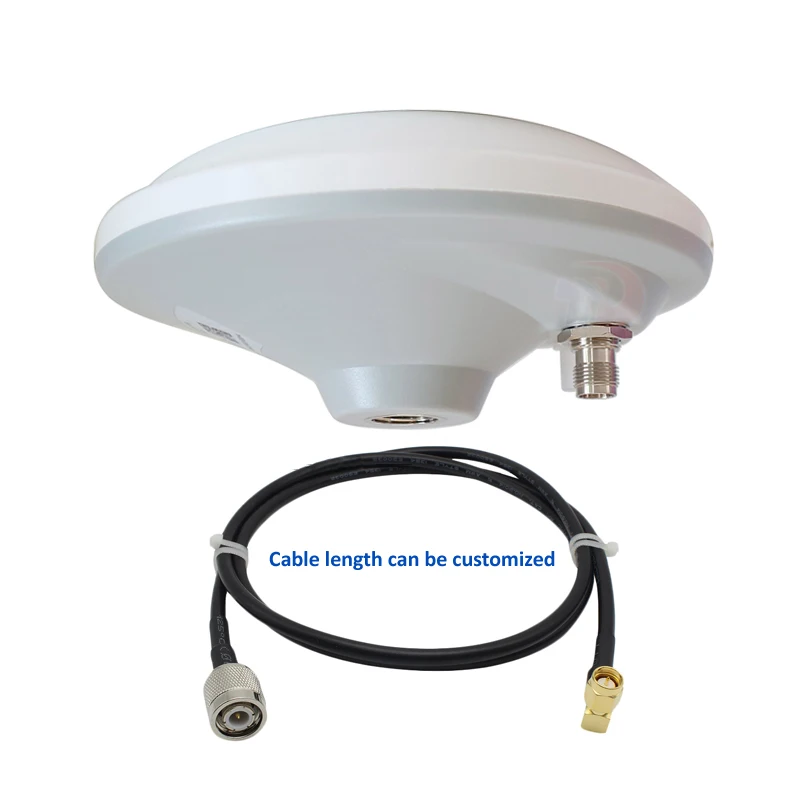

TNC Male to SMA Male Cable optional,cable length can be made as requirement.
