Высокоскоростная машина для резки и перемотки банкомата термобумаги
- Категории: Paper Processing Machinery >>>
- Поставщик: Jota,Machinery,Industrial,(Kunshan),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
High Speed ATM Cash Register Paper Thermal Paper Roll Slitting and Rewinding Machine
Application Material: |
Machine is used for slitting and rewinding all kinds of thermal paper, including fax paper, cash register paper, ATM paper, ECG paper, medical record paper, POS paper, self-adhesive trade marks, non-woven cloth, films etc. |
Specifications: |
1. Machine adopts Siemens PLC control system and touch screen, all the parameters are displayed on the monitor, and it will automatic work. |
2. The main motor adopts Siemens inverter motor, and frequency inverter control. |
3. Machine adopts automatic Chain link lift-up loading system. Using the separate cylinder control locking the shaft. |
4. All transmission rollers have been dynamic/static balance treated. |
5. Machine adopts red line marking system, printing red line at the end of paper rolls. |
6. Machine adopts round blades to slit, it equipped with automatic wasting materials edge trimming system. |
7. It adopts auto tucker, adjust the paper material loose or tight easily. |
8. It adopts 2 sets sensor & fully automatic tension control controller to keep constant tension. |
9. It adopts auto meter counter, when it reach the setup length, the machine stop and alarm automatically. |
10. It can adopts automatic cutter and gluer. |
11. It equipped with emergency switch. |
Parameters
Model | JT-SLT-900 |
Max. Parent Web Width | 900mm |
Max. Parent Web Diameter | 1000mm |
Max. Rewinding Diameter | 160mm |
Min. Slit Width | 25mm |
Max. Machine Speed | 150m/min |
Unwinding Shaft | 3” Air Expanding Shaft |
Rewinding Shaft | no shaft |
Detailed Images

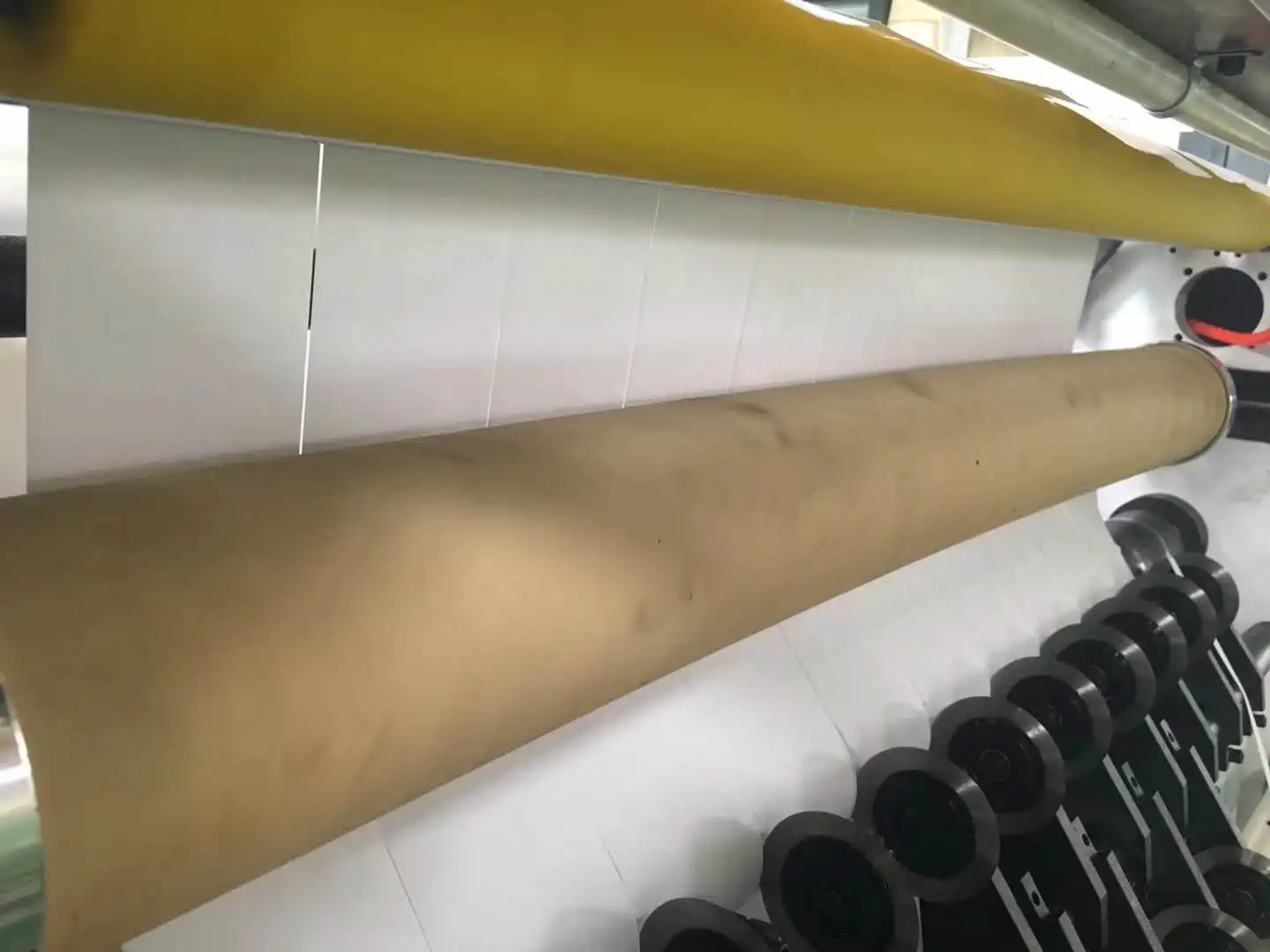

Overlap problem should be a very common
problem, especially for the coreless thermal
paper slitter rewinder. But we adopted Banan
Roll, can perfect aviod overlap, there will be
a gap between each piece of paper,
Unwinding Section
a. 3’’(76mm)air expanding shaft
b. Chain link automatic lift-up loading system
c. Cylinder locking the unwinding shaft
d. Guide & Slide AMT from Taiwan
d. Guide & Slide AMT from Taiwan
e. Magnetic Clutch
f. Wheel for adjust waste edge
Slitting Section
a. Disc Cutter Assembly adopt the cam self-locking
b. Cutter with adjustable and moveable blade base.
c. Meter counter
Rewinding Section
a. 0.5”, 1”, 1.5” 2” are available
b. Pressure roller
c. Auto Tucker
Controlling Section
a. Siemens PLC & HMI
b. All the parameters are displayed on the monitor
Tension Control Section
a. Automatic Tension Controller system to control constant tension
b. Two set Sensor
Red Line Mark System
a. Marking red line

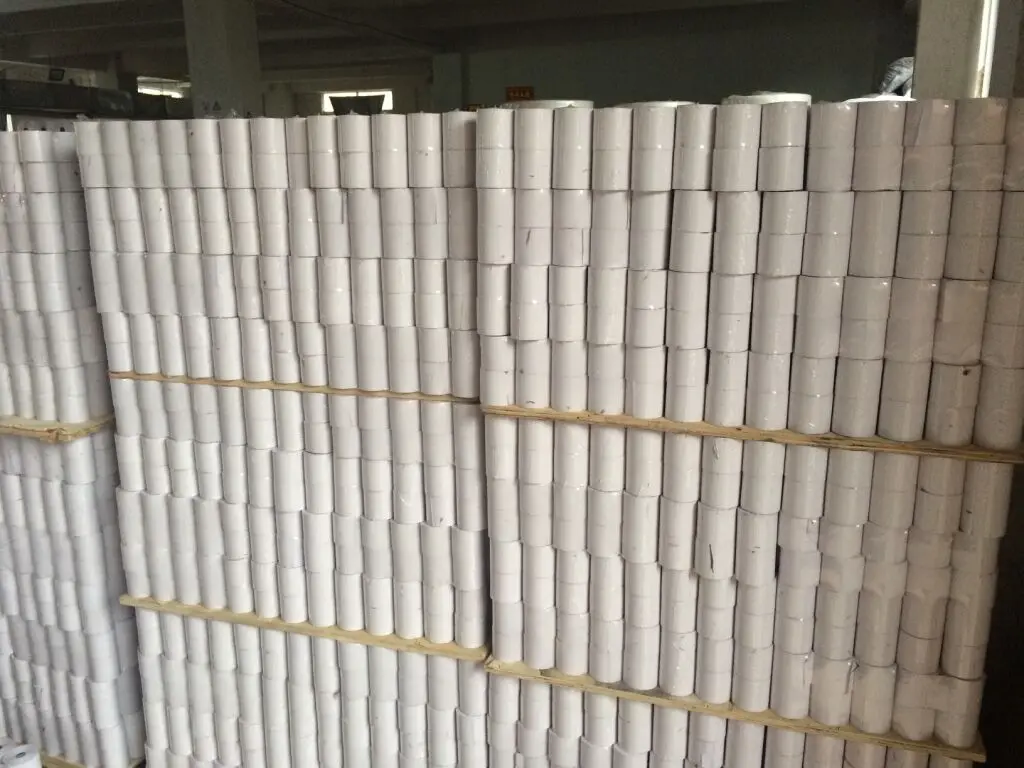

Samples show
Tools
Configuration
Name | Model | Pieces | Remark |
Computer System | PLC+HMI | 1 set | Siemens |
Main motor | - | 1 set | Siemens |
Frequency inverter | - | 1 Piece | Innovance from China |
Air Pressure Valve | - | 1 set | SMC |
Cylinder | - | 2 Piece | AIRTAC |
Unwinding Shaft | 76mm Air Expanding Shaft | 1 Piece | - |
Rewinding Shaft | 8mm or 10mm | 2 pieces | - |
Upper / Lower Knife | - | 16 sets | - |
Tension Controller | - | 1 set | - |
Sensor | - | 2 sets | - |
Low Voltage Electrical Switch | - | - | SCHNEIDER |
Magnetic Clutch | - | 1 set | From Taiwan |
Relay | - | - | Omron |

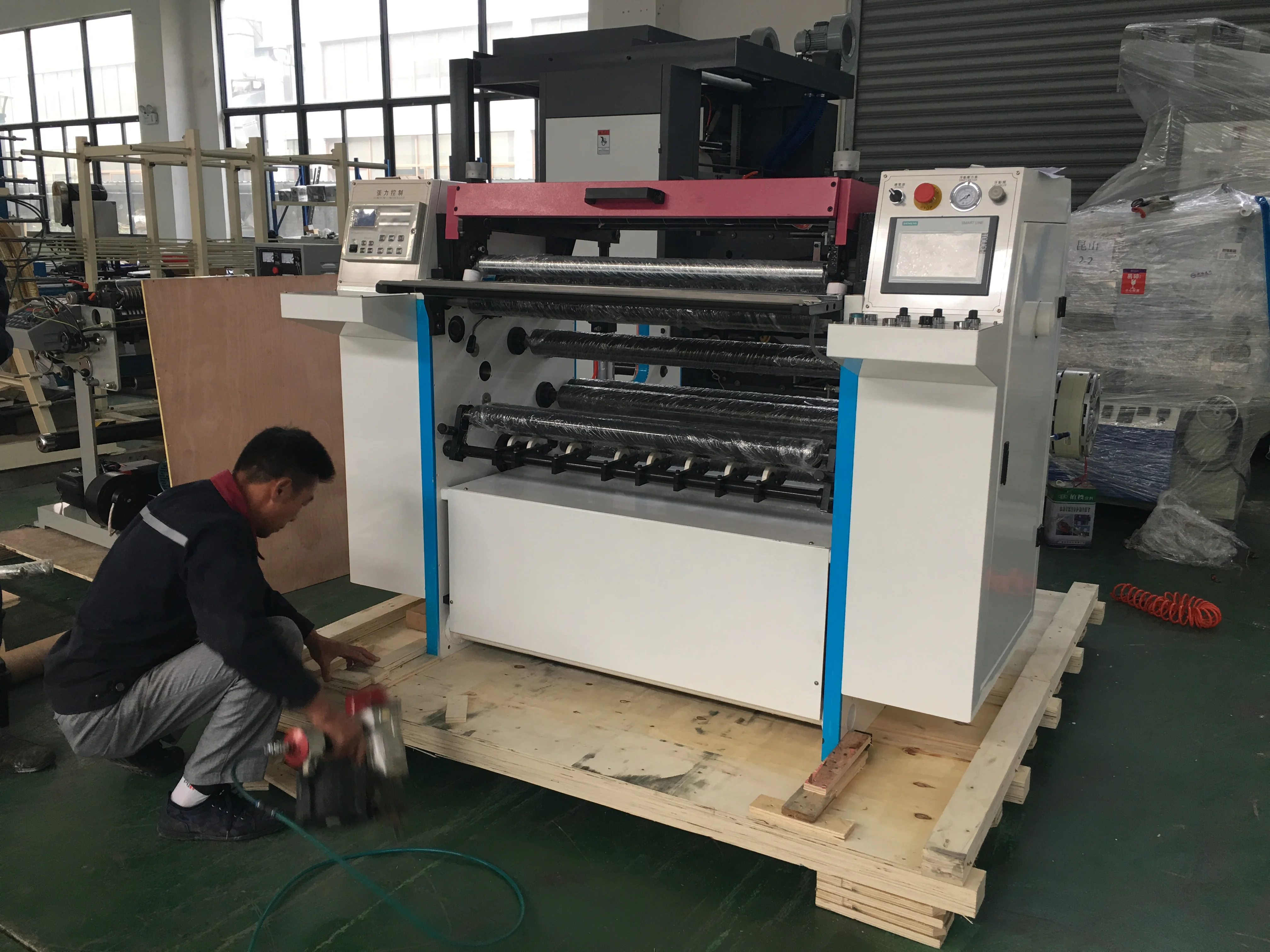

Packing&Shipping

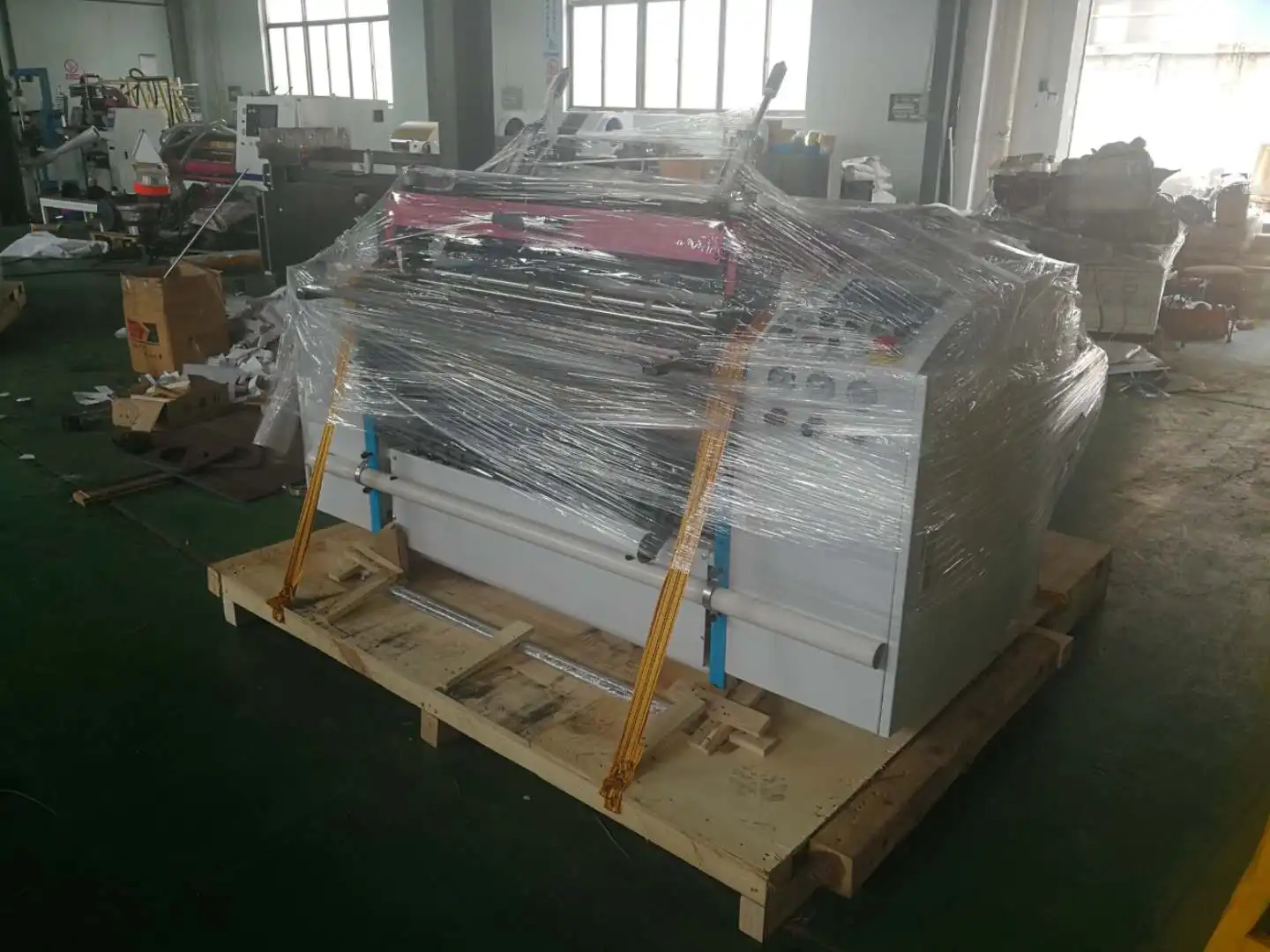

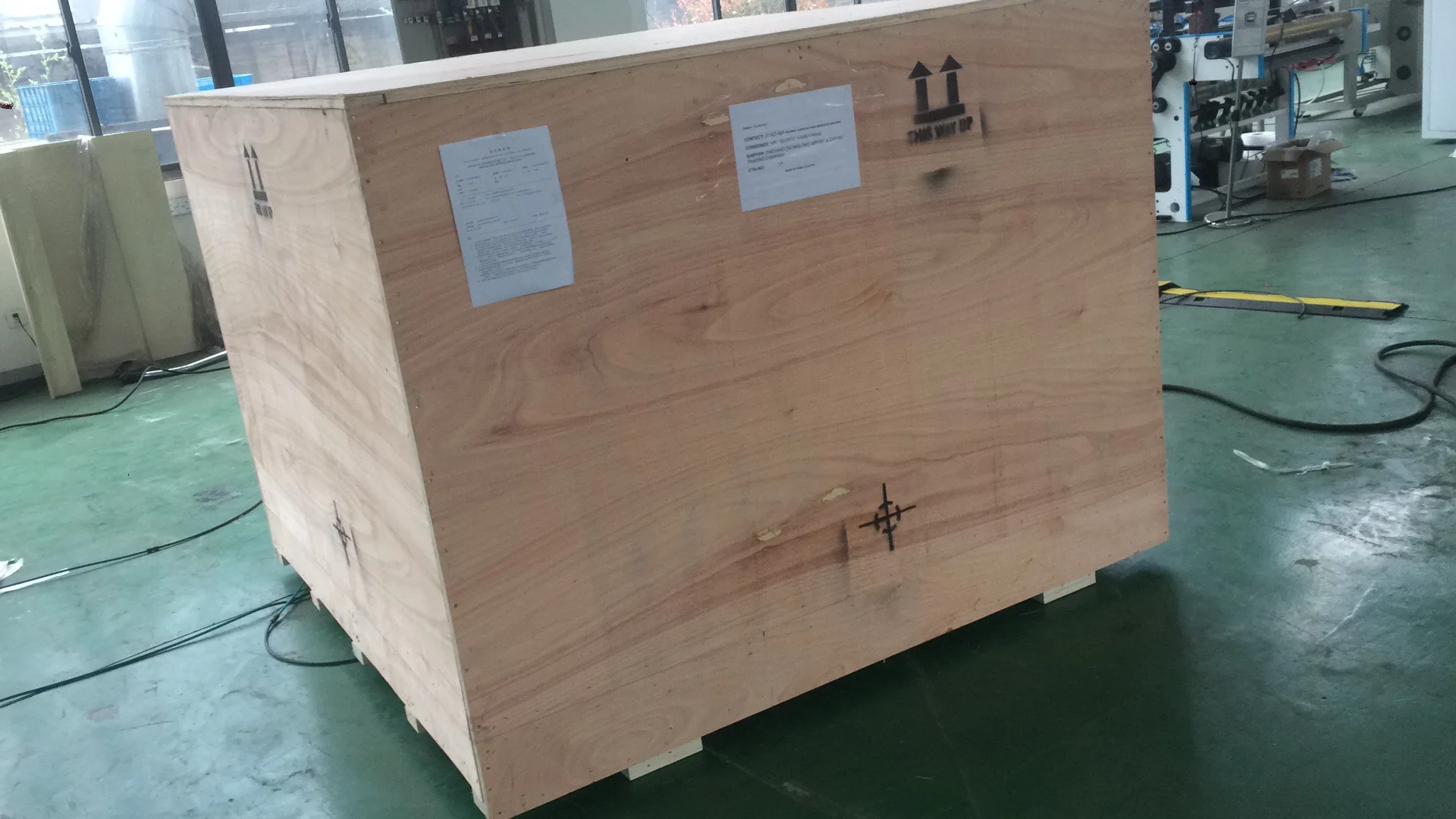

Packing Details:High Speed Coreless ATM Paper POS Paper Slitter Rewinder is with flexible wrapping and wooden case.With the machine, we will supply one year guarantee, whole life technical support, a set of tools, a box of vulnerable parts, English Manu, Inverter Manu and Electrical Schematic Diagram.
Delivery time : Within 30 days after received 30% deposit receipt by T/T.
Delivery time : Within 30 days after received 30% deposit receipt by T/T.
Company Profile

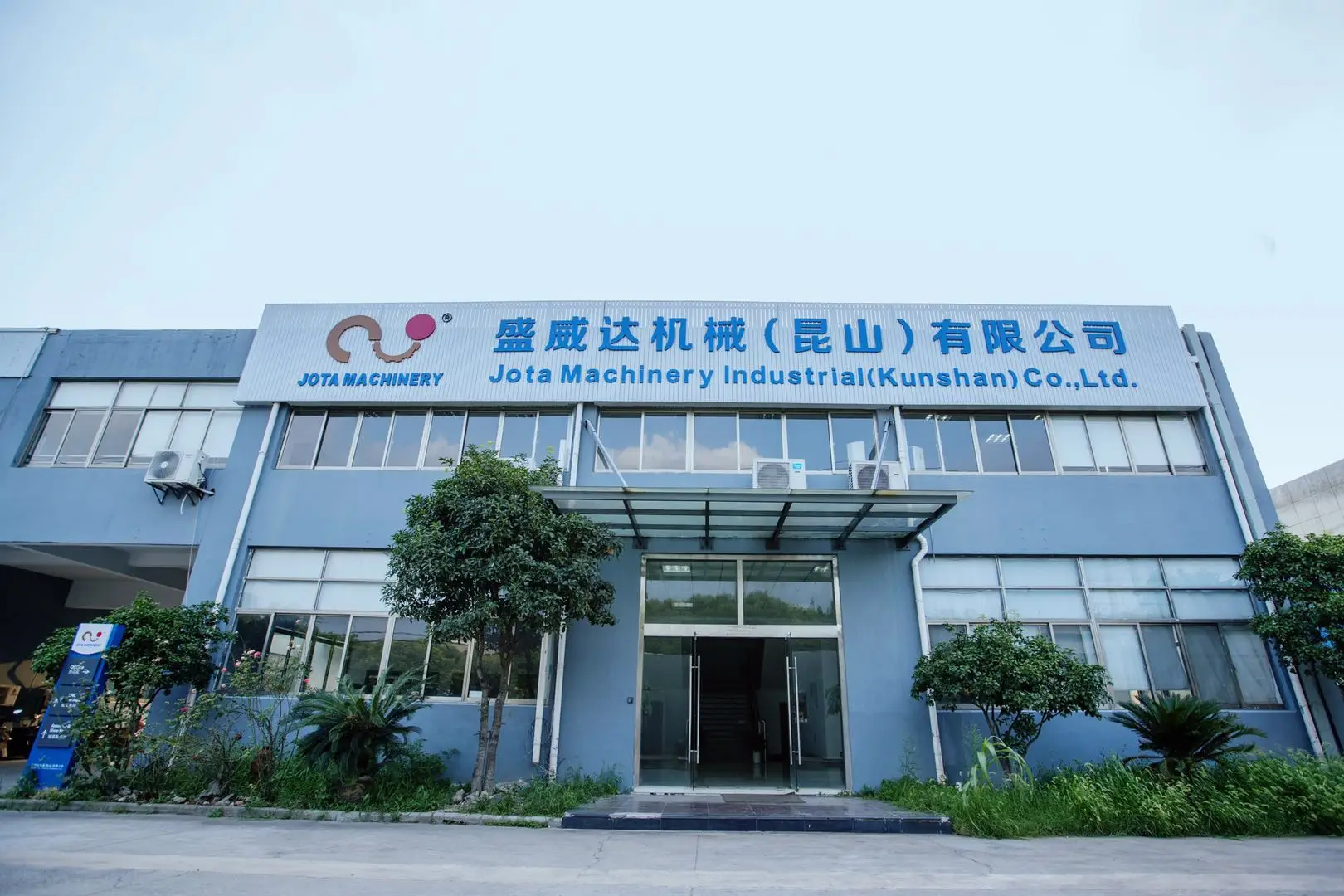

Jota Machinery Industrial (Kunshan) Co., Ltd
You Reliable Slitting Rewinding Manufacturer
Jota Machinery Industrial (Kunshan) Co.,Ltd is the original manufacturer in designing and manufacturing converting equipment,slitter rewinder machinery for flexible packaging related industry.
As a company whose target is always win-win together with you, each professional staff of Jota Machinery Industrial (Kunshan) Co.,Ltd stands by 24h a day to assist you to explore your deep requirements, based on our knowledge and experience.
After deep discussion for your requirements, get a better and comprehensive understanding of your scenario, then we
will provide the most suitable solution for clearing your long-standing pain point, backs up you bravely taking the step
of changing your current status.
Our Team
Exhibitions
Our Customers
Certifications
