Manufacture Of Fabric Pleating Machines Pleater Automatic Cloth Skirts Pleated Pleating Machine

Manufacture Of Fabric Pleating Machines Pleater Automatic Cloth Skirts Pleated Pleating Machine





Product Description of Automatic Fabric Pleating Machine

This machine is a special equipment for the pleating and hot setting of chemical fabrics and blend fabrics.The face fabrics processed are suitable for making garments,champagnes shirt,coat,mantle,scarf,children s garments and all kinds of adornments.With constant performance,high efficiency and easy to adjust the interval,the machine can process full pleat and two section pleat characterized by its distinct graduation,striking elastic and stereo effects.This product has been awarded excellent new product prize from state.



The machine is a special equipment for automatic pleating and heat setting of chemical fiber and blended fabric. The processed fabric can be used to make all kinds of garments, such as scarves, shirts, children's wear, skirts, etc., and the patterns are beautiful and special, and the three-dimensional feeling is strong. Such as: wave pattern, straight line, combination pattern, bamboo leaf pattern and so on. The heat-set fabric has increased elasticity and good stability. The machine is designed with a variable view mechanism and a sliding view device, and the size of the snoring is convenient to adjust.



Parameter of Automatic Fabric Pleating Machine



Model	DJ-217(D)	MNDJ-416	MNDJ-512(D)	MNDJ-516
Working width	1650mm	1600mm	1200mm	1500mm
Speed	80r/min	180r/min	40r/min	40r/min
Motor power	1.5kw	1.1kw	0.75kw	0.75kw
Heating power	13kw	7kw	5kw	6kw
Weight	1300kg	800kg	850kg	900kg
Dimension	3200*1650*1750mm	1900*1000*1300mm	2200*1300*1450mm	2400*1450*1550mm

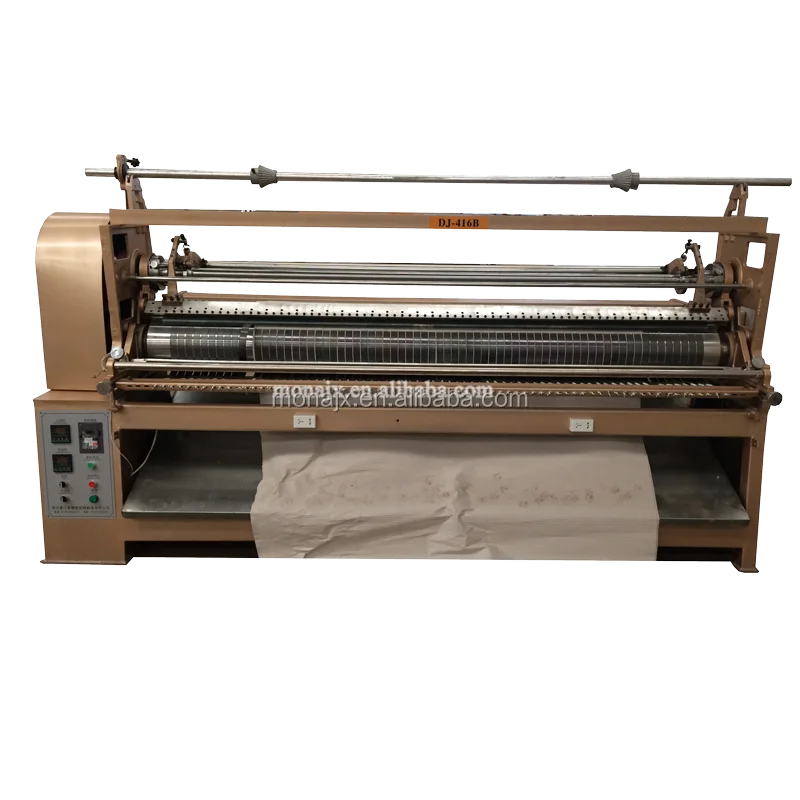

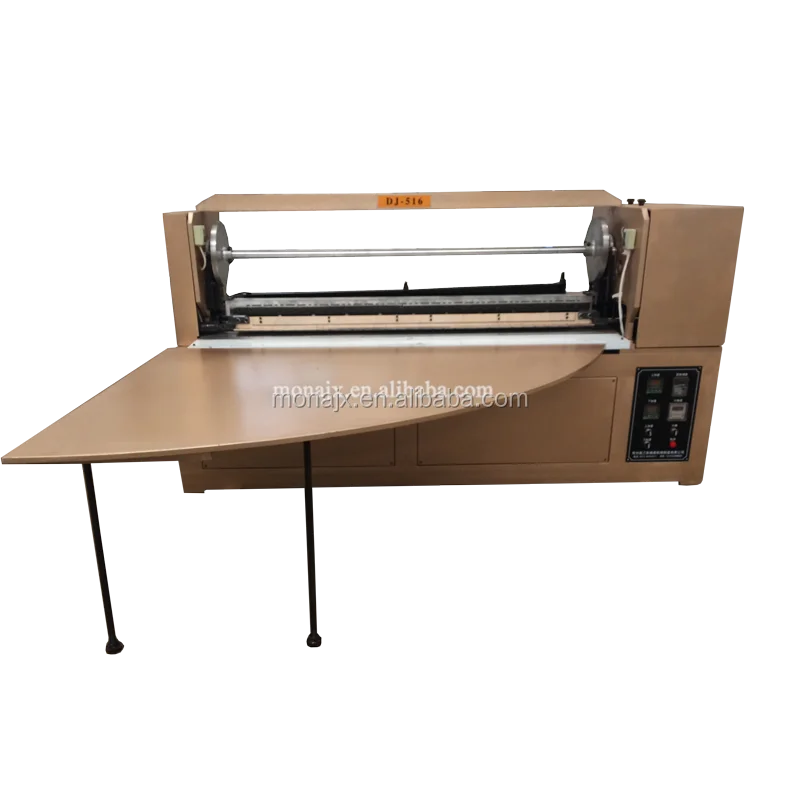

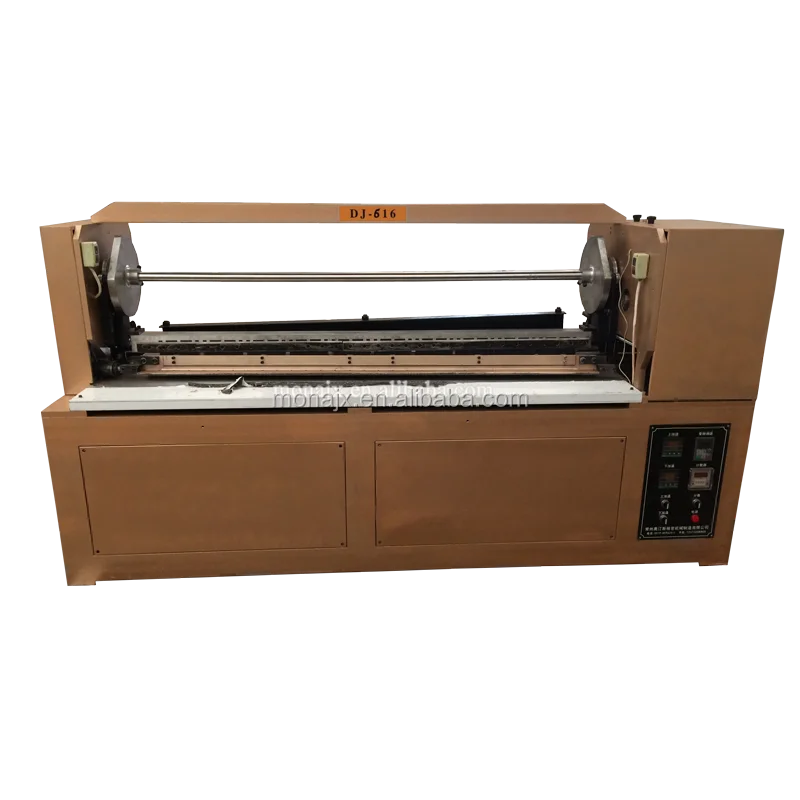

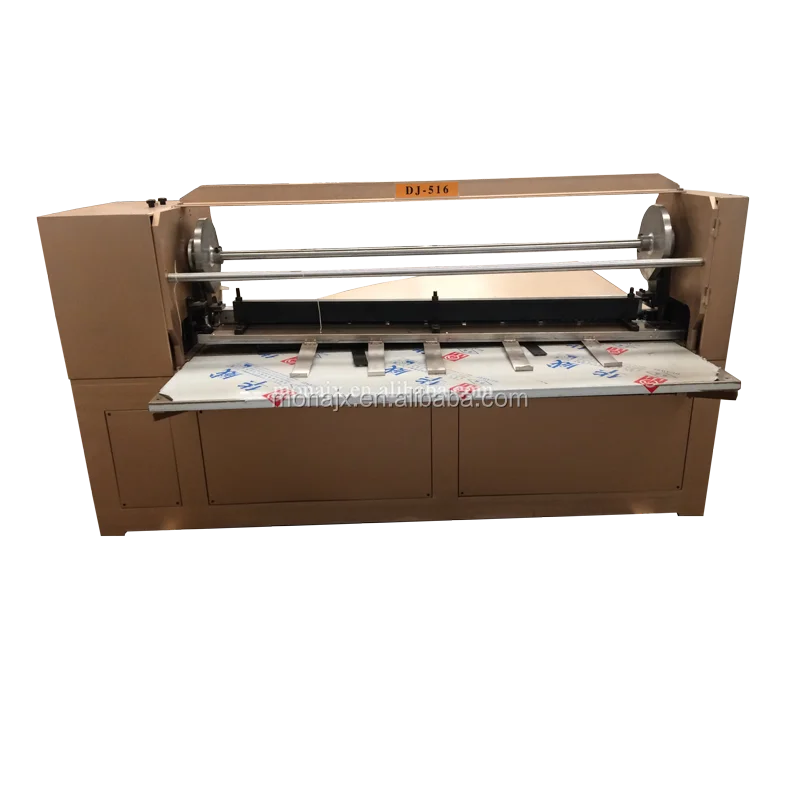

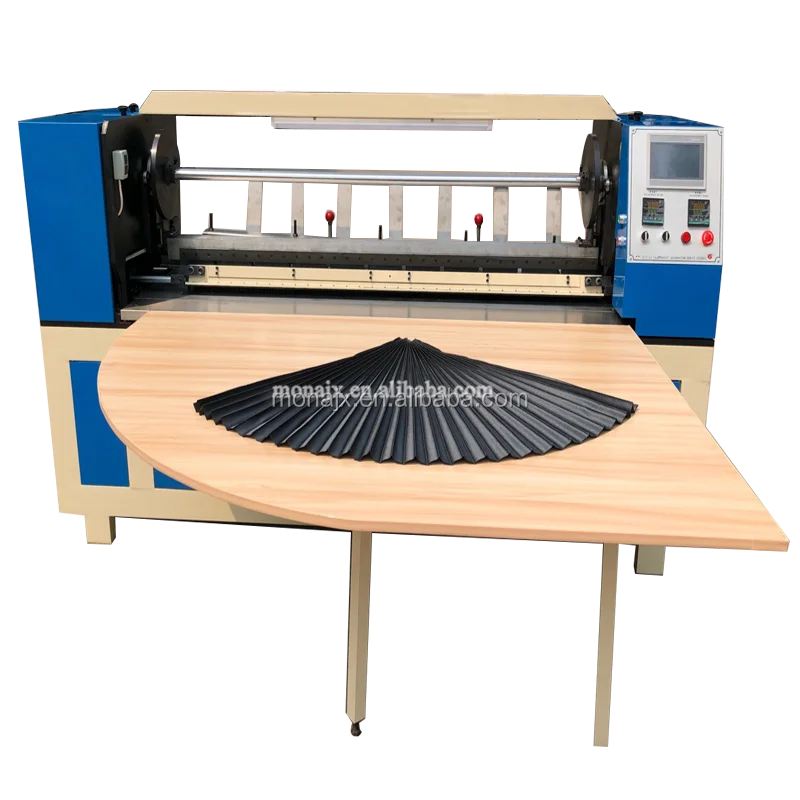

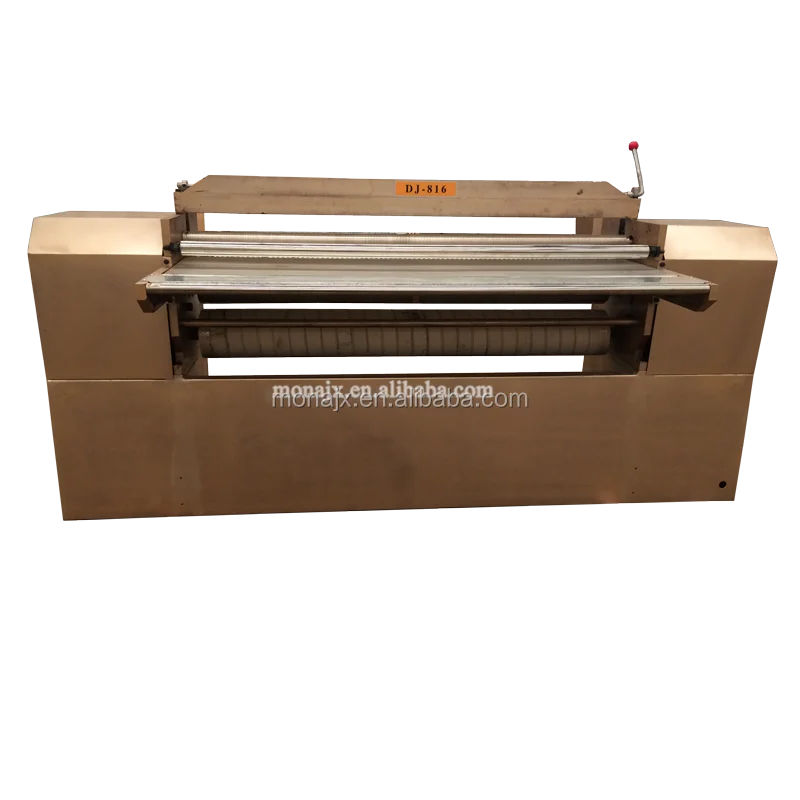

Picture of of Automatic Fabric Pleating Machine
