AZE 8 Port 17-In. KVM Rack Console Switch VGA KVM



1U 1-Port KVM Console for Server Rack - 17 inch- RMCON17016

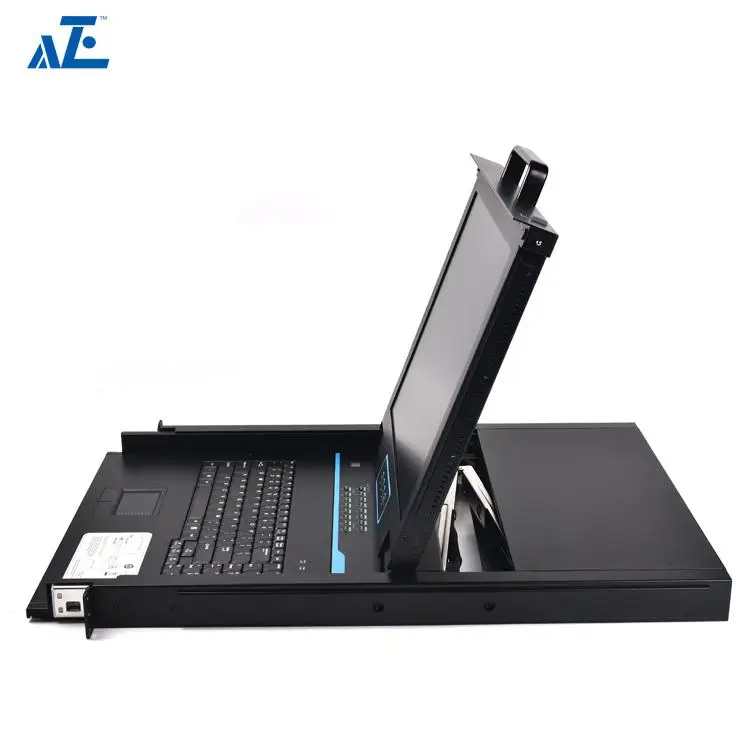

AZE Rack LCD Consoles are a keyboard, mouse, 17" LCD console, and optional integrated 16 port analog KVM Switch all in a compact 1U design. This compact design allows a KVM switch to be mounted in the rear of the Rack LCD Console, or, eliminate the need for a separate KVM switch altogether by choosing a Rack LCD Console with Integrated 16 port analog KVM Switch. The ultra-thin LCD screen, touchpad technology, and easy-to-install single user rack mount kit combine to form a high-quality, streamlined solution built for rack monitoring and management. The Rack LCD Consoles can be used in a variety of IT environments, from computer rooms to large data centers.

AZE's 1RU rack-mountable KVM switch. is a control unit that allows 16 computers from a PS/2 or USB KVM console. 16-port KVM Switch integrates 16 port analog KVM switch together with the LCD panel allowing access and controls up to 16 computers from 1 console.This rack-mountable KVM switch is well equipped with an integrated trackball and keyboard, making it easy to control and navigate.

• Hotplug


• 1U rack mount


• 17 inch LCD Screen


• 16 Port VGA Connectors


• KVM Cable Included


• Multi-language support


• Two level password security


• Integrated touchpad with trackball


• Quick release tabs to insert or remove the device


• Full-size 99keys keyboard with integrated number pad


• Convenient computer switching via front panel LED, OSD menu and mouse


• Easily installed and minimizes support and maintenance costs, ensuring lower cost of ownership

Technical Specifications
Model	RMCON1716
General
KVM ports	16
Number of Monitors Supported	1
Display Size	17inch
Cables Included	Yes
Panel Type	Active Matrix TFT LCD
PC Interface	USB and PS2
PC Video Type	VGA
Rack-Mountable	Yes
U Height	1U
Performance
Brightness	250cd/m²
Color Depth	16.7M colors
Contrast Ratio	1000:1
Max Resolution	1280 x 1024
Pixel Pitch Support	0.264 x 0.264mm
Connectors
Console Interface(s)	16 - VGA (15 pin)
Host Connectors	1 - VGA (15 pin)
Other Interface(s)	1 - VGA (15 pin)
	2 - USB Type-A (4 pin)
	2 - PS/2 (6 pin)
Power
Input Current	1.5A
Input Voltage	100 – 240V AC
Power Consumption	23W
Environmental
Humidity	0-80% RH, non condensing
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Physical Characteristics
Color	Black
Product weight	13.3kg (29.3 lb)
Product Dimension(WxDxH)	448mm x581mmx42.5mm/17.6 inx22.9 inx1.7 in

Model	Description
RMCON1708	1U 8-Port Rackmount KVM Console for Server Rack-17 inch
RMCON1716	1U 16-Port Rackmount KVM Console for Server Rack-17 inch
RMCON1908	1U 8-Port Rackmount KVM Console for Server Rack-19 inch
RMCON1916	1U 16-Port Rackmount KVM Console for Server Rack-19 inch
