Tesla smart New USB 2 0 KVM порта HDMI Клавиатура Мышь Переключатель коробка монитор!

	size: 91 (L) x 75 (W) x 13 (H) mm
	Chasing material:  Aluminum Alloy
	Item weight: 500g
	Delivery time: Within 3 days after payment

2x1 HDMI cable KVM Switch

#HKS0201C10

• This 2x1 HDMI Cable KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between two HDMI computers using one HDMI compliant display.


• This 2x1 HDMI Cable KVM Switch, built-in HDMI and USB cables for HDMI input connection, it available to connect HDMI sources directly. Support USB 2.0 hub and USB 2.0 keyboard/mouse, by using USB hub ports on the KVM, you can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switch can be control by keyboard hot key and front panel source selector buttons.

Features:

• Using only 1 set of keyboard, mouse and monitor to control 2 host devices.


• Support keyboard hot keys and front panel key to control KVM switch.


• Support resolution up to 4K@30Hz.


• Support USB 2.0 for printers, USB drives, barcode scanner etc.


• Support Unix/Windows/Debian/Ubuntu/Fedora /Mac OS X/Raspbian/Ubuntu for Raspberry Pi and other Linux based system.


• Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices.


• Built-in HDMI and USB cable, it available to connect HDMI sources directly

Packing List:

• 1 * 2x1 HDMI Cable KVM Switch


• 1 * User manual

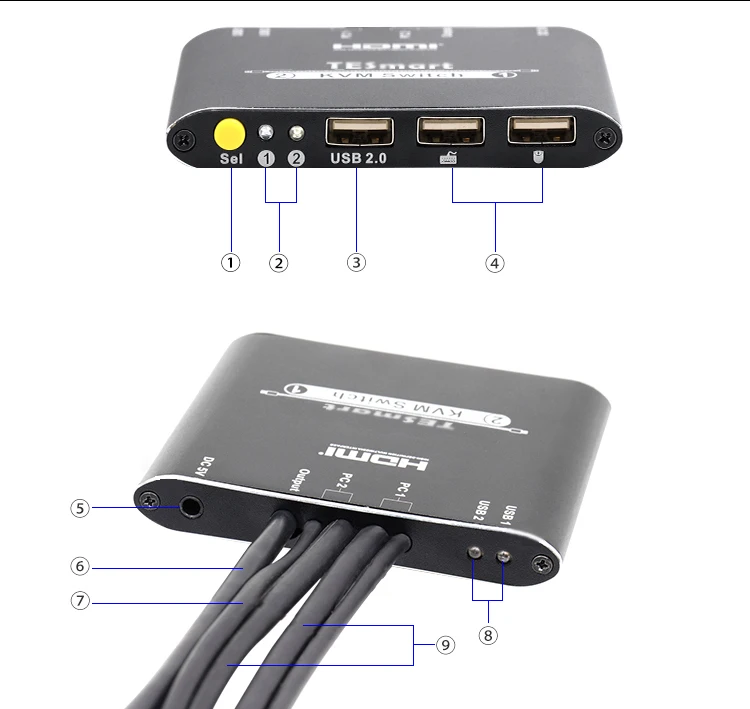

Panel Description:

ID	Name	Description
1	Input select button	Selecting HDMI input
2	Input selection status	Indicate current active selected input source
3	Standard USB2.0 port	Connect to USB 2.0 devices, printers, USB drives
4	Keyboard and mouse input	Connect to keyboard and mouse
5	DC 5V	DC 5V power supply
6	HDMI output cable connection	Connect to HDMI display
7	USB data cable connection	Connect to computer’s USB port
8	USB connection status	The corresponding LED will be lit if the USB data cable is well connected to the computer and the computer is on.
9	HDMI input cable connection	Connect to HDMI sources devices



Connection Diagram:

Support  resolution  up  to  4K

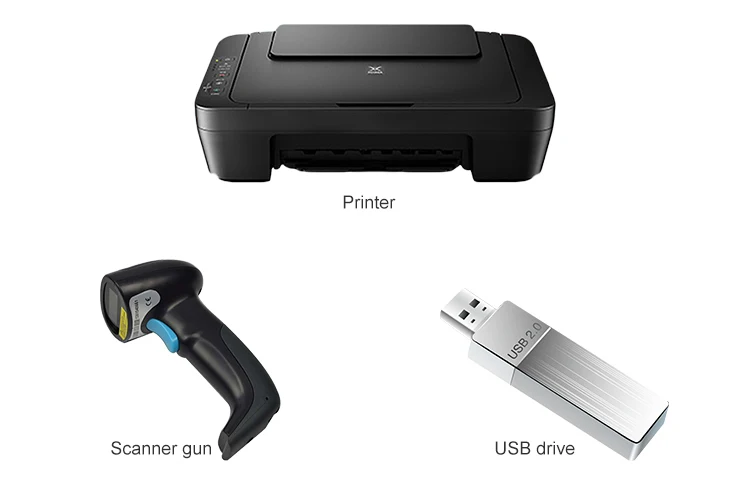

Support USB2.0 devices

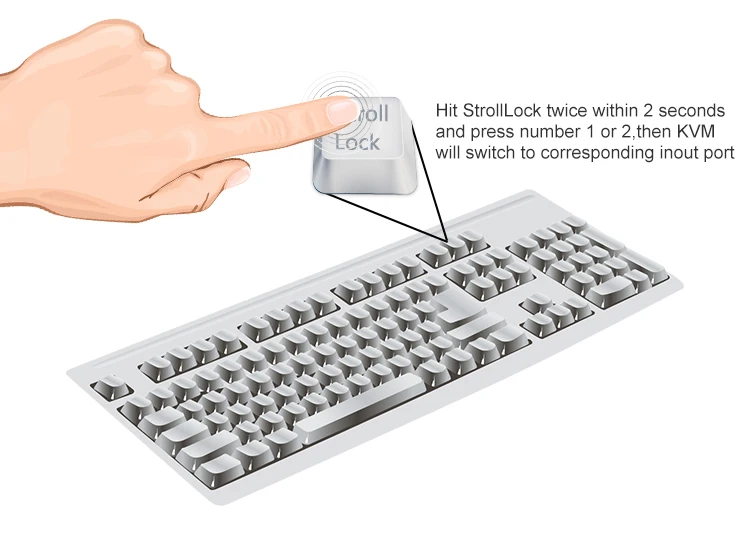

Support keyboard hotkeys to control KVM switch

Specification:
