Перфорационный станок для металлических листов
US $6500-$67500

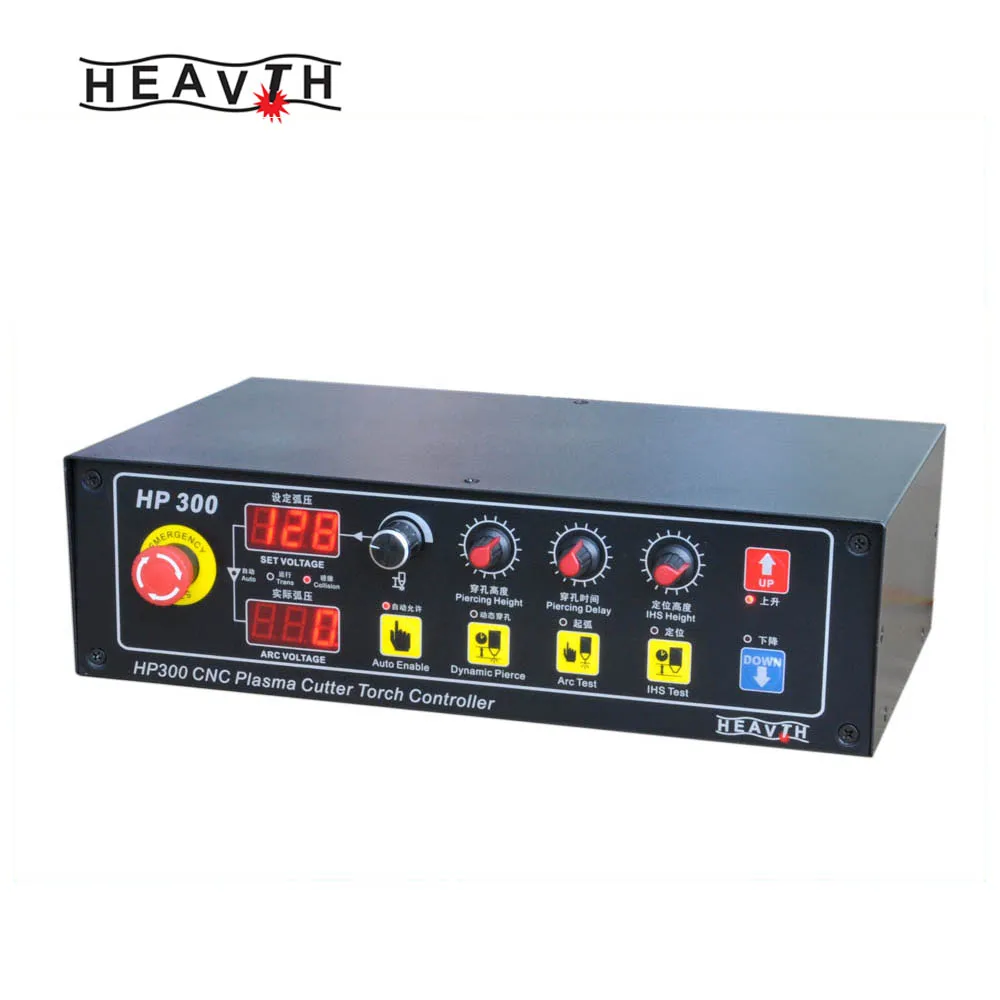

Контроллер высоты горелки для плазменной THC
- Категории: Other Metal & Metallurgy Machinery >>>
- Поставщик: Changzhou,Heavth,Science,&,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Technical parameter
l Working Voltage: AC/DC24±10%,Please prepare a isolated power, do not shared with others such as electronic valve . Especial pay more attention the DC 24V
l Lift motor: AC/DC24V DC motor
l Drive mode: PWM H-bridge
l Output current:3A
l Working temperature: -10-60℃
l IHS style: Switch inspecting IHS and Shield IHS
l Running transfer: Alternative Arc transfer and pierce transfer
l Input arc voltage:1:1 or 50:1
l Accuracy: ±1V-±5V,adjustable
l Dimension: Length, Width, Height: 320mmX200mmX90mm
l Weight: 3.5kg
l Protection class: IP64, to prevent dust entering.

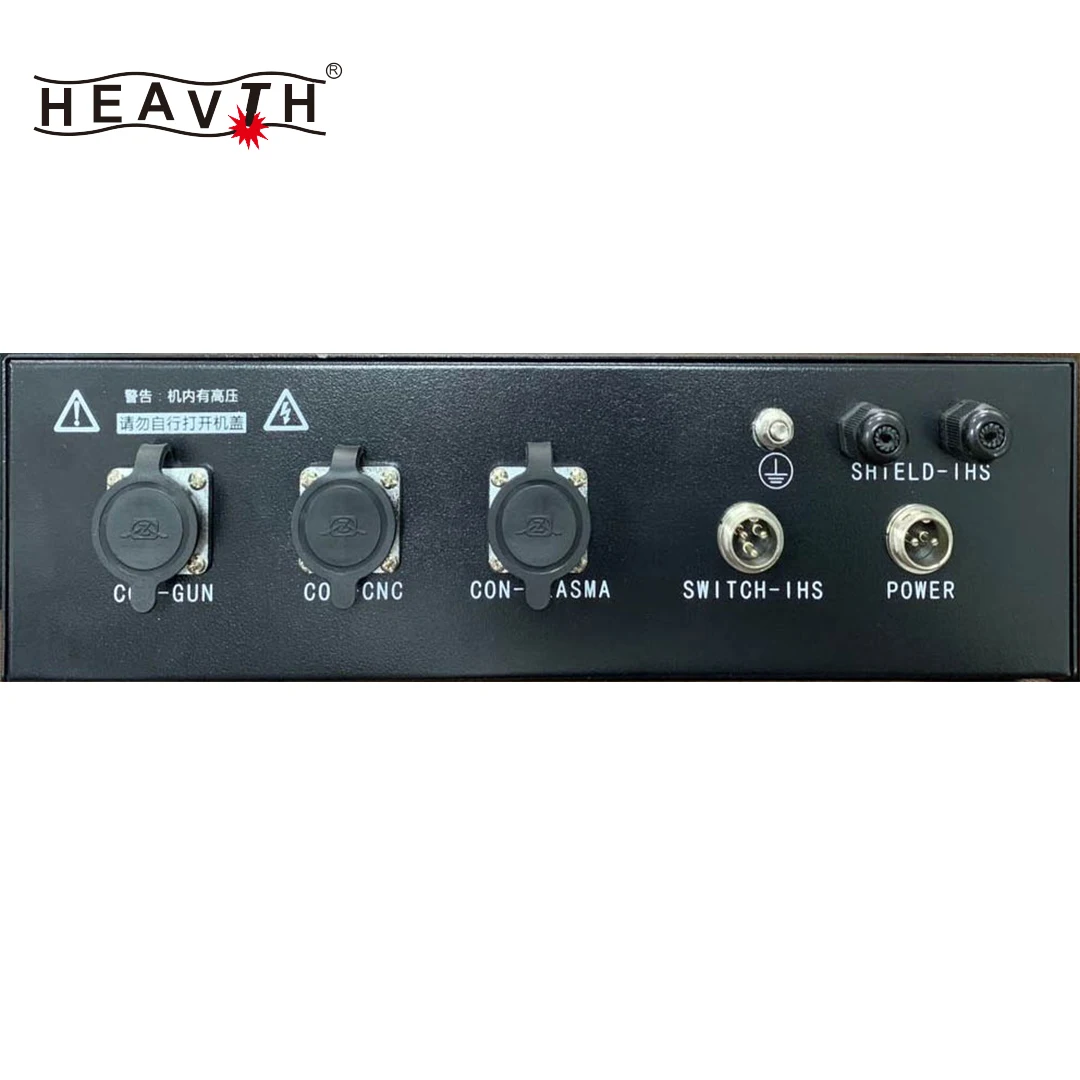

l Installation connector:2-pin, 4-pin, 5-pin, 8-pin
Installation position: Keep away from heat, air convection goodplace.
Main product

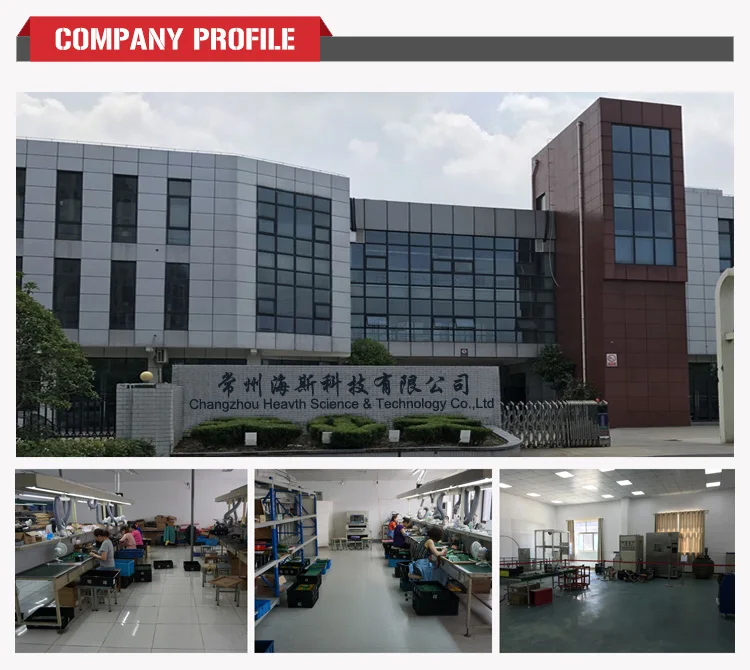

Company Information
Changzhou Heavth Science& Technogy CO.,LTD. was established in 2006.
We have many years of practical experience in motion control, software and hardware development, industrial automation, etc., .
Development and design of various types of CNC cutting machine and related accessories are widely used in the large number of industrial circle. Available to the user the best price, the most suitable CNC cutting machine. From the customer interests, according to the actual needs of customers, to provide the most economical and most effective CNC cutting solution.
Company research, production, operating as one, strong technical force, advanced production equipment, detection means complete, excellent product quality. Products covering the United States, Japan, Europe, South Korea, etc.
Certifications

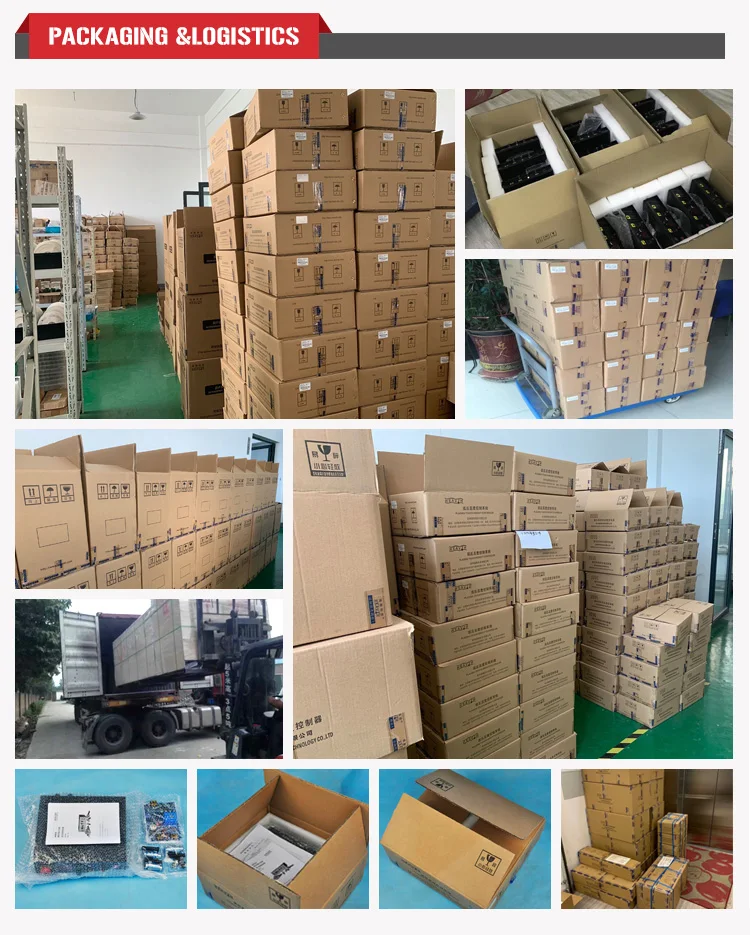

Packaging & Shipping
