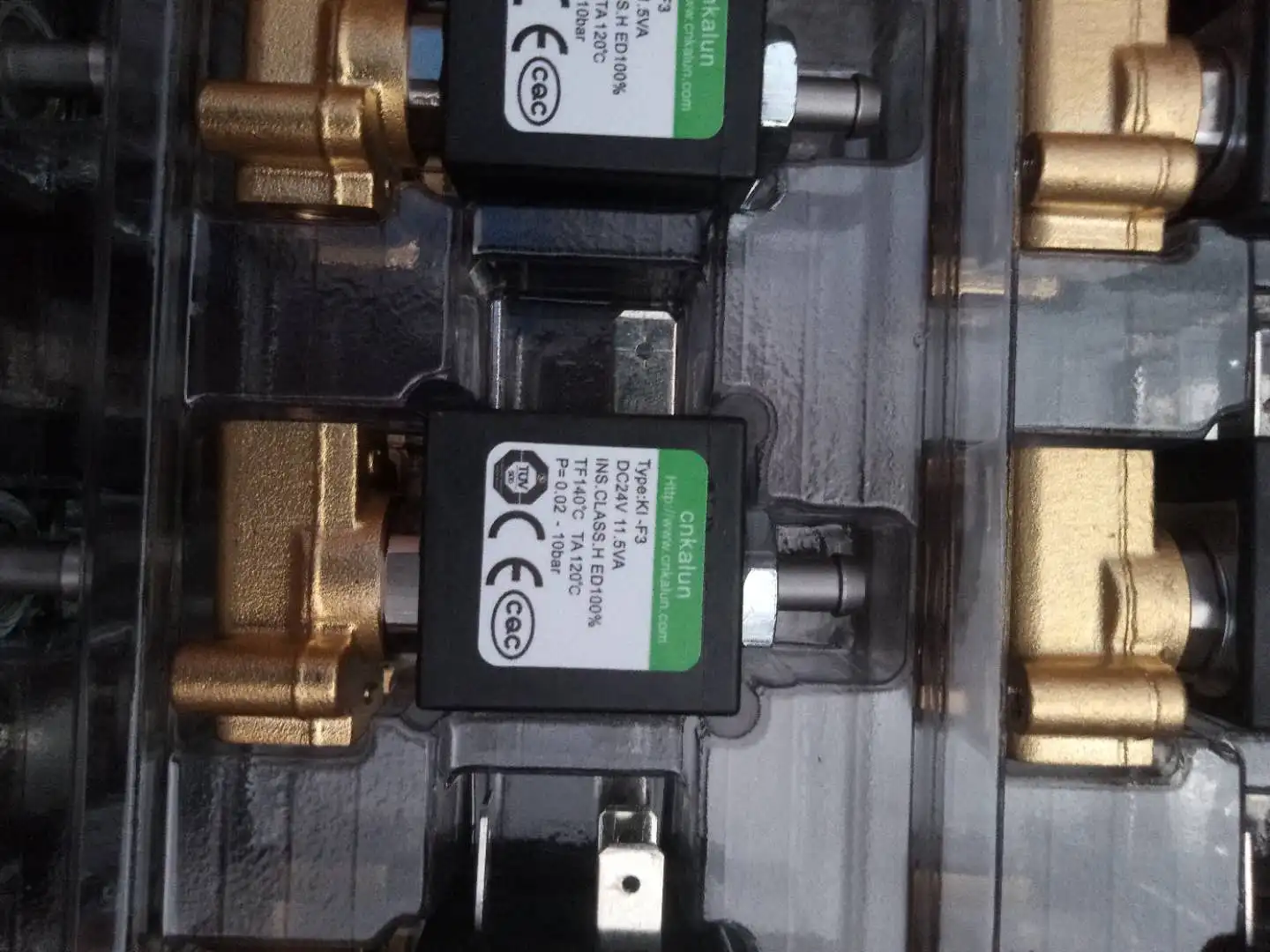

Электромагнитный клапан высокого давления высокоскоростной электромагнитный для кофемашины латунь 24 В стандартная вода или пластик нормальное
- Категории: Solenoid Valves >>>
- Поставщик: Dongguan,Yanlun,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Application
Soleniod Valves, Magnetic Valves for Water Dispenser,Coffee Machine, household applicatons,etc.
2 Station and 3 Ways.
For the Terminal, It can be made by plastic or brass for your choice.

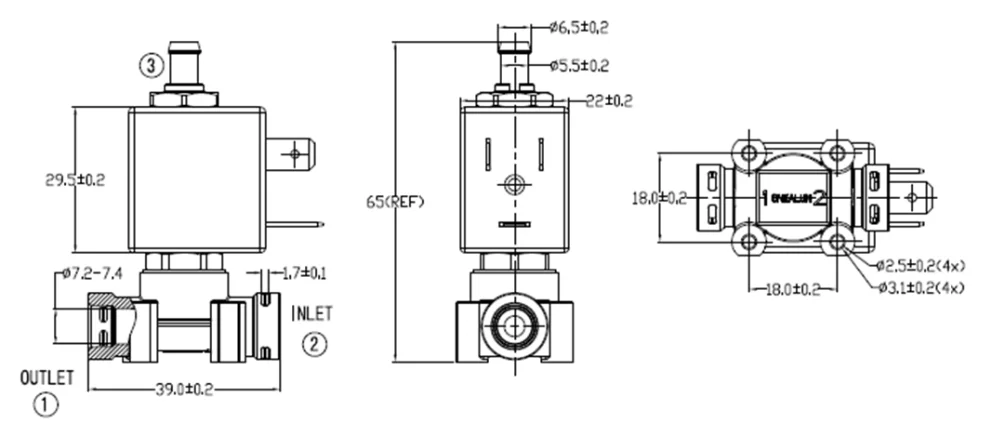

SPECIFICATIONS FOR MODEL KL-F3-PT | ||||||
Construction | Normal Close | |||||
Orifice Size | 0.9mm,1.2mm，2.0mm，2.3mm. | |||||
Rated Voltage And Power | 12VDC,24VDC,110VAC,120VAC,220VAC,230VAC,240VAC | |||||
Connection | Cannula | |||||
Enviromental Temperature | -10°C ~ +120°C | |||||
Fluid Temperature | +140ﾟC (FKM Gaskets for Oil, Water, Steam) | |||||
Max.Allowable Pressure | 20bar | |||||
M.O.P.D | 0~20bar | |||||
KV Flow | 1）0.5L/min (ø0.9mm) 2）0.7L/min (ø1.2mm) 3）1.8L/min (ø2.0mm) 4）2.3L/min (ø2.3mm) | |||||

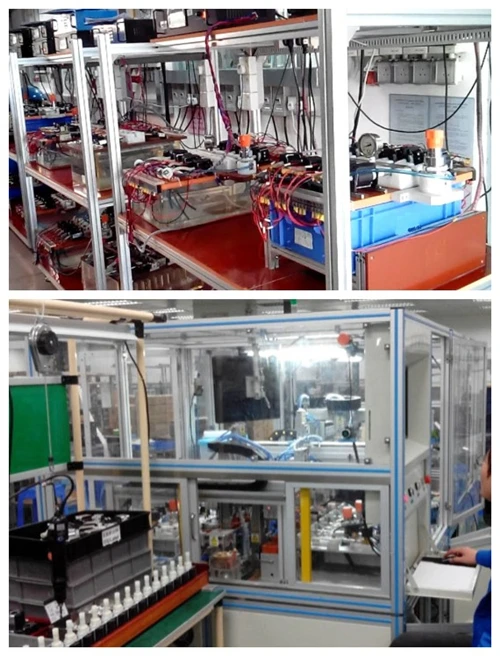

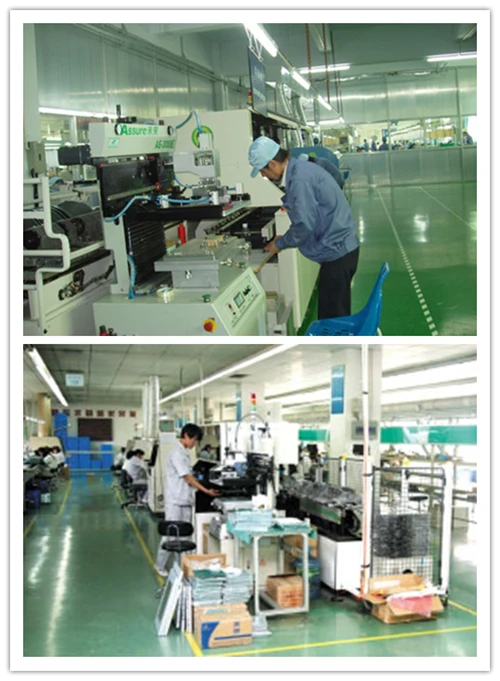

Our Company

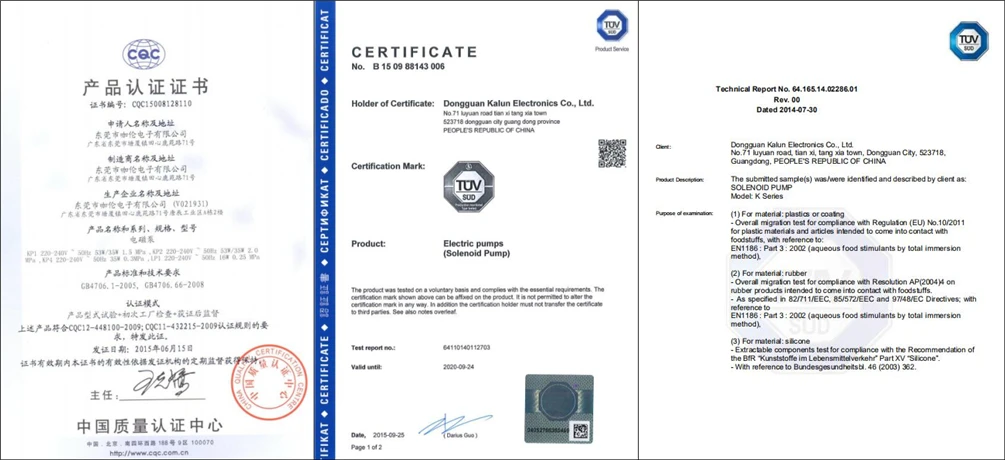

Certifications
Packing &delivery
Packing:by blister/carton box
Delivery:by air,by sea
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-25 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-25 days if the goods are not in stock, it is according to
quantity.
Q:What is your advantage?
our products have been exported to Europe, North America, South America, Southeast Asia, Central Asia, the Middle East, Africa and other countries and regions, we have first-class equipment and R & D engineer, the automation equipment have covered 80% of all production line,many types have been produced automatically.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
