Lifting equipment Wire Rope Electrical Hoist 380V
CD1 Model wire rope electric hoist lifting block CD1 Hoist Gearbox
Introduction of CD1 Model wire rope electric crane lifting block CD1 Hoist Gearbox
| Product parameters |
1.Reducer: adopt third-class dead axel helical gear transmission structure gear and geaaxel are made of heat treated alloy steel |
| 2.Button Switch: easy to operate, safey for operator, both remote control and pendant control are available. |
| 3.Motor: three-phase asynchronous induction motor, durable and powerful. Insulation grade is F. |
| 4.Protection grade: IP54, work grade: M3 |
| 5.Over load limit is available. Hook is widen and thicken |
| 6.Power-Off protection, Emergency stop system. |
Model | CD1-0.25 | CD1-0.5 | CD1-1 | CD1-2 | CD1-3 | CD1-5 | CD1-10 | |
Capacity(t) | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 | |
Standard lift(m) | 3-9 | 6-12 | 6-30 | 6-30 | 6-30 | 6-30 | 9-30 | |
Lifting speed(m/min) |
| 88/0.8 | 88/0.8 | 88/0.8 | 88/0.8 | 88/0.8 | 77/0.7 | |
Running speed(m/min) | 20(30) | 20(30) | 20(30) | 20(30) | 20(30) | 20(30) | 20(30) | |
Wire rope type |
| 6x37-4.8-180 | 6x37-7.4-180 | 6x37-11-155 | 6x37-13-170 | 6x37-15-200 | 6x37-17.5-200 | |
I Beam track type | 16-22b | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 28a-63c | |
Motor | Power(KW) | 04 | 0.8 | 1.5 | 3.0 | 4.5 | 7.5 | 13 |
R.P.M(r/min) | 1400 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | |
Voltage(V) | 380 | 380 | 380 | 380 | 380 | 380 | 380 | |
Frequency(Hz) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
Phase | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
CD1 Model wire rope electric hoist lifting block CD1 Hoist Gearbox
 |  | ||
Motor Light weight and small volume of high-performance motor. Rotating speed can be up to 3000r.m.p. High starting torque and high energy efficiency. Sustained rate of electric connection reaches up to 60%, which can meet the demand for high frequency handling. | |||

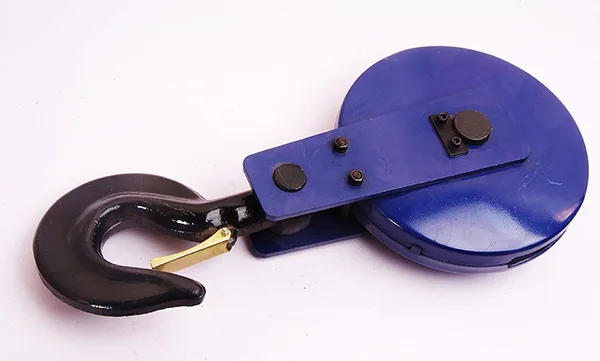

 | Hook it is hot forging with perfect strength

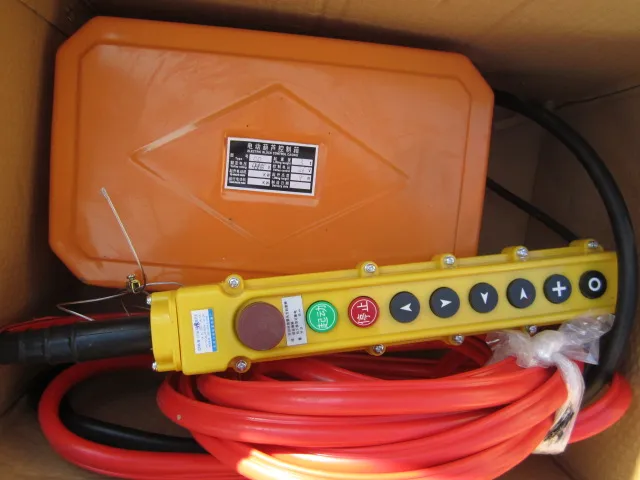

|  | Push button Waterproof push button is applied . it is light and durable. |

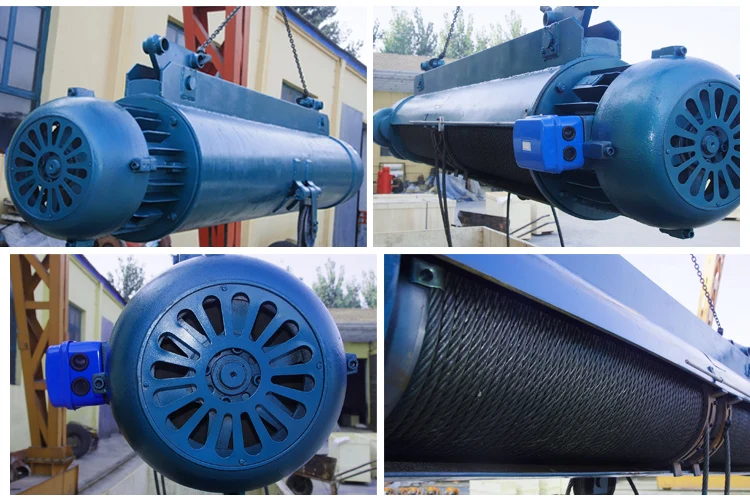

CD1 Model wire rope electric hoist Material object
CD1 Model wire rope electric hoist lifting block production process
CE ISO TUV SGS certificate
