Chilled Cast Iron banbury mixer rubber kneader internal mixer dispersion

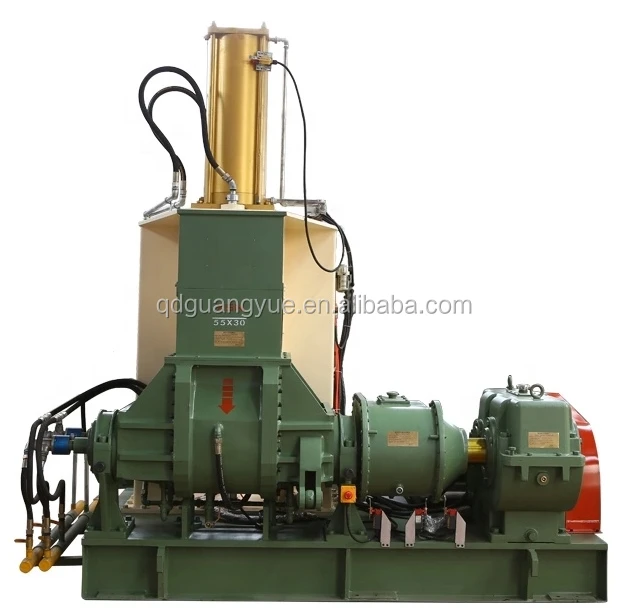

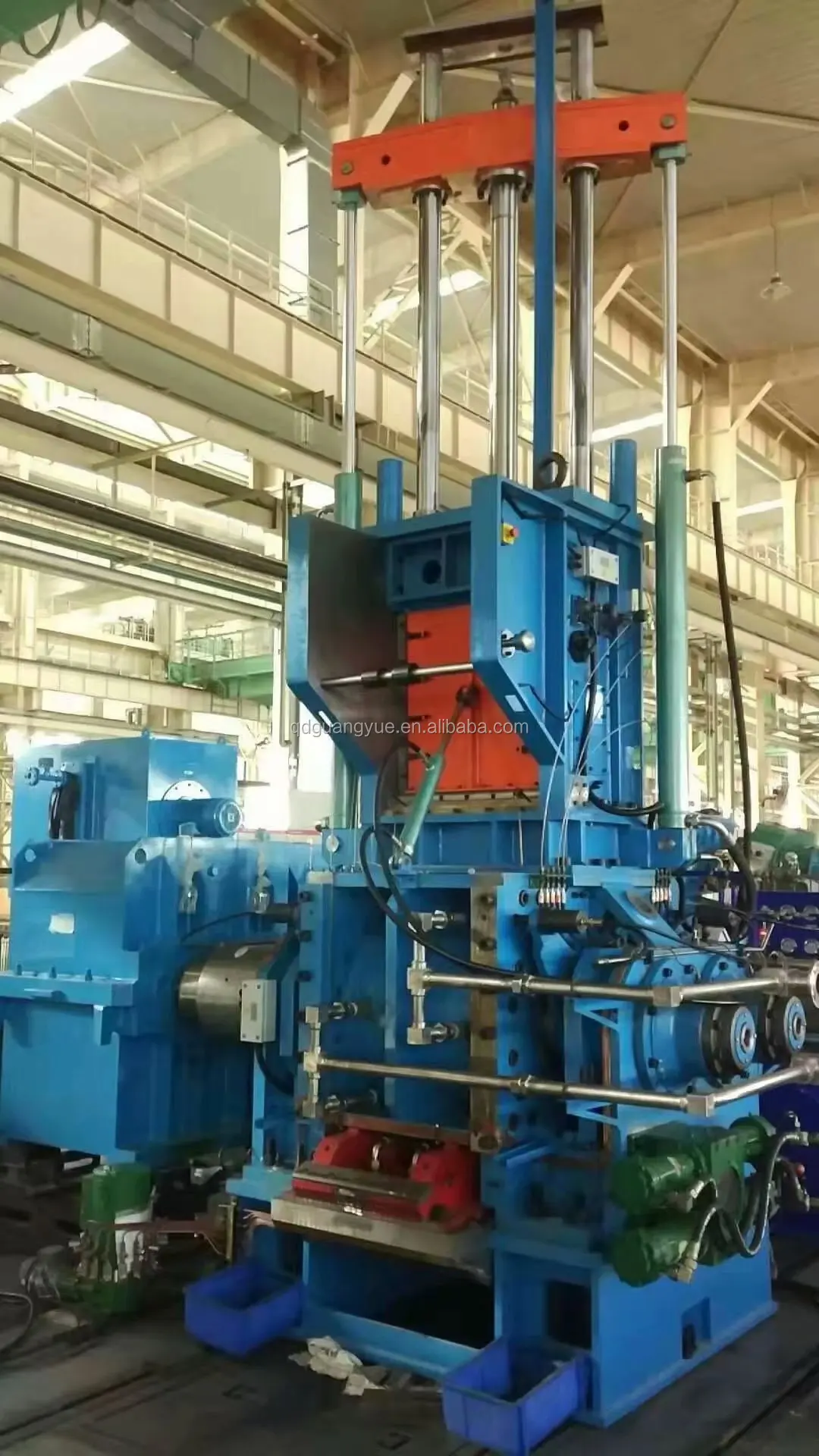

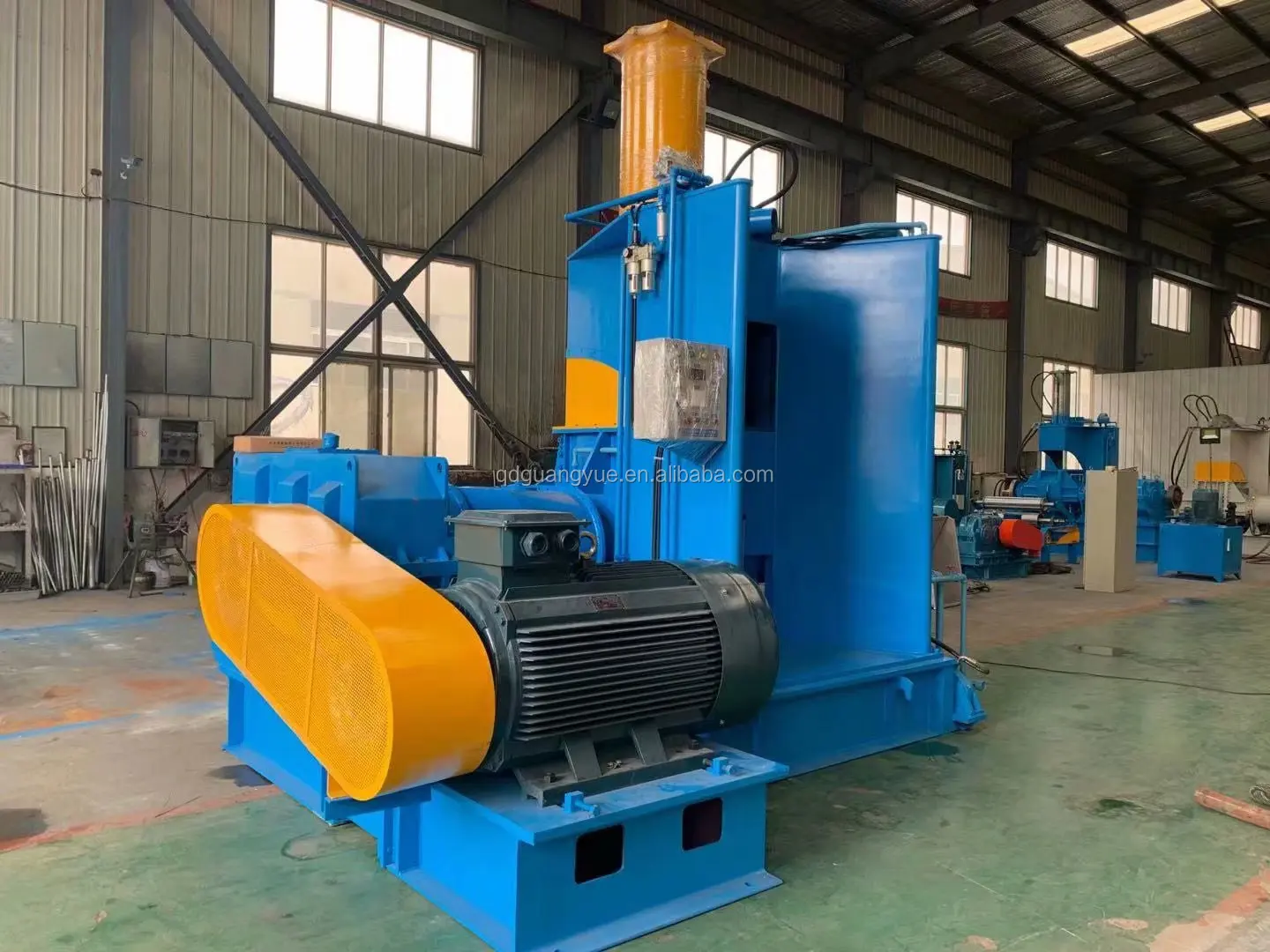

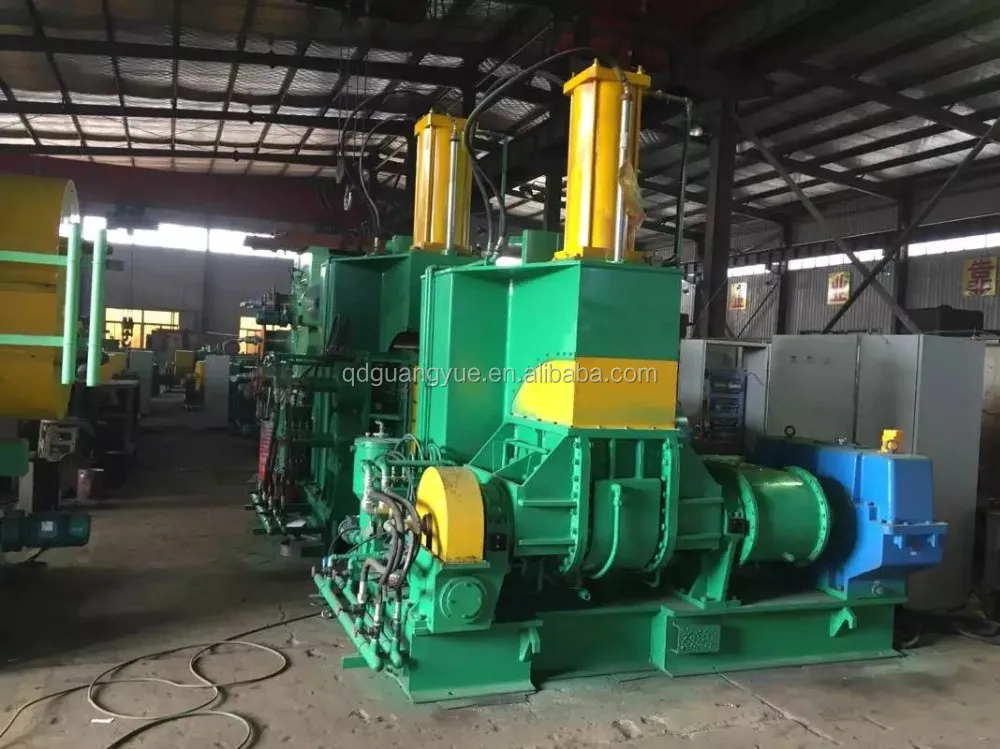

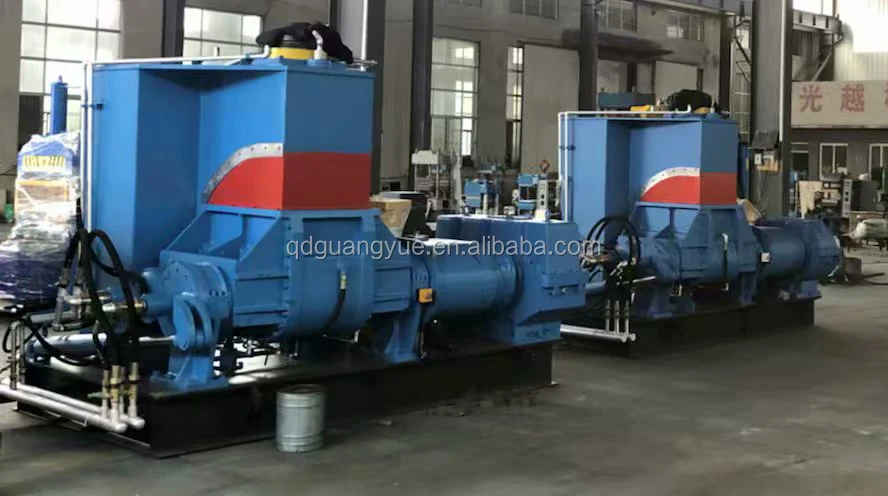

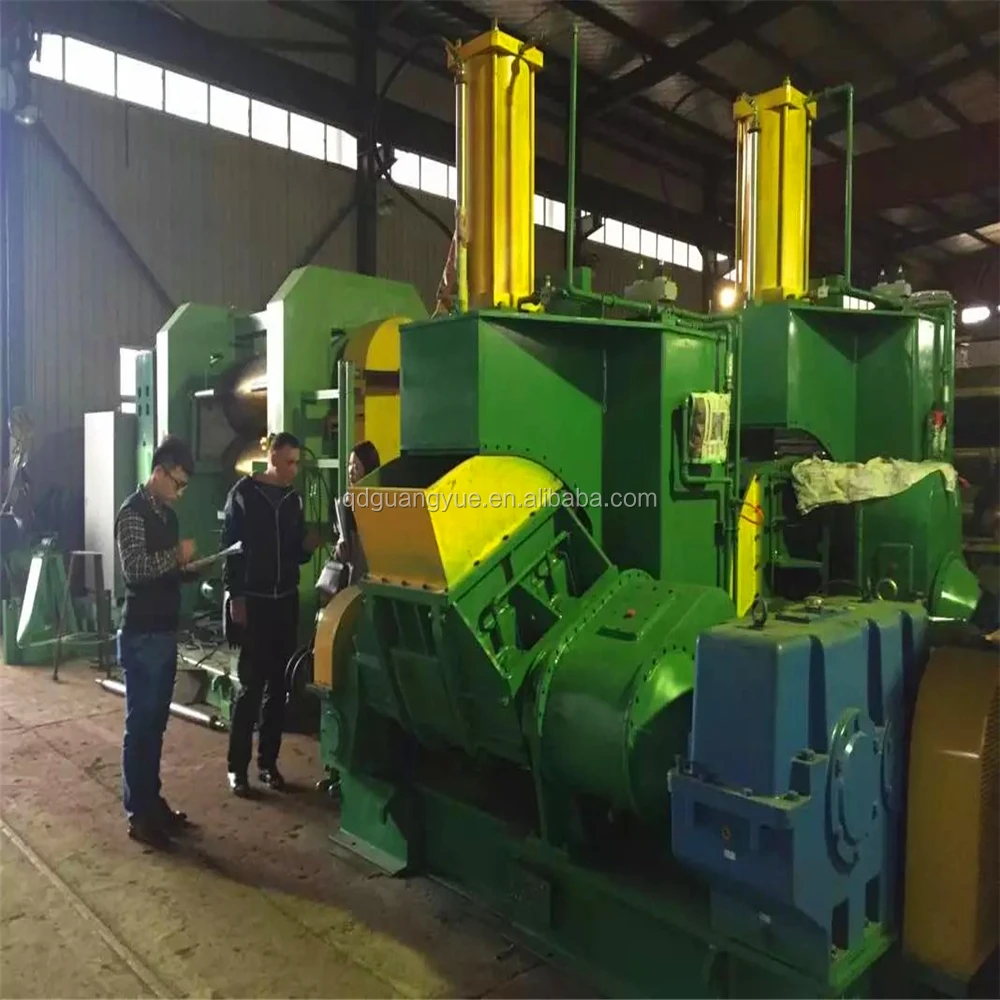

  Pictures of the machine

Dispersion Kneaders Superior by design

A dispersion kneader superior by design, engineering and construction represents an advanced class of kneaders

"GUANGYUE" Dispersion Kneader has proved a big boon to several medium and large rubber industries. Incorporating world-class technological features, it symbolizes techno-economic success among Indian Kneaders, by giving higher outputs, through perfect process control. Dispersion Mixer can be employed in a wide range of material mixing, ranging from low viscosity adhesives to high viscosity rubber.

With simple operation and easy cleaning, it gives its best even when the operator's skill and experience are limited.

Combination with Sheeting Mill



Several kneaders have been supplied with appropriate "UTTAM" Sheeting Mill through a skip conveyor.





Main technical features

» MIXING CHAMBER :Single piece Alloy steel chamber duly finished, hard faced, hard chrome platted and jacketed for water cooling or heating.

» SIDE BOARD : Single piece Alloy steel side boards. Ensuring side clearance for longer life of rotor edges. Sideboards are duly machined finished, hard chrome platted and jacketed for cooling or heating.

» PRESSURE LID: Single piece Alloy steel of rigid thickness, duly machined finished hard chrome platted and jacketed for cooling or heating.

» ROTORS : Single piece Alloy steel and designed for effective temperature control. Rotor Blades duly hard faced with Stealite welding process to give wear resistance surface and hard chrome platted.



» TITLING : Discharge of material by Hydraulic tilting system. This tilting system provides TROUBLE FREE WORKING of the machine. As there is NO Wear & Tear of the gears like in the machines where Worm gear System is used for tilting chamber OR Breakage of the screw and nuts like in the machines where screw and nut system is used for tilting chamber.





TECHNICAL PARAMETERS

Model Item			X(S)N- 1×12~58	X(S)N- 3×32 (6-60)	X(S)N- 10×32	X(S)N- 20×32	X(S)N- 35×30	X(S)N- 55×30	X(S)N- 75×30	X(S)N- 110×30	X(S)N- 150×30	X(S)N- 200×30
Total volume of mixing  chamber		L	3	8	25	45	75	125	180	250	325	440
Working volume of mixing  chamber		L	1	3	10	20	35	55	75	110	150	200
Driving motor power		Kw	4	5.5	15	30	55	75	110	185	220	280
Tilting motor power		Kw	Manual	0.55	1.1	1.5	2.2	2.2	4	4	5.5	7.5
Tilting angle		.	≤140	135	140	140	140	140	140	140	140	140
Rotational speed of the rotor (front/rear)		r/min	12~58	6-60 32/24.5	32/23.5	32/25	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5
Pressure of compressed air		Mpa	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Capacity of compressed air		M³/min	≥0.3	≥0.3	≥0.5	≥0.7	≥0.9	≥1.0	≥1.0	≥1.5	≥2.0	≥2.0
Pressure of cooling water (rubber mixing)		Mpa	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
Pressure of heating steam (plastics mixing)		Mpa	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
Overall dimension	L	mm	1400	1660	2580	2630	3200	3280	3330	3930	4200	4520
	W		760	960	1300	1520	1900	1930	2620	3000	3300	3400
	H		1914	1750	2280	2550	2950	3070	3340	3660	3900	4215
Weight		Kg	800	2000	3300	4000	6500	7800	10500	16000	19500	22500
