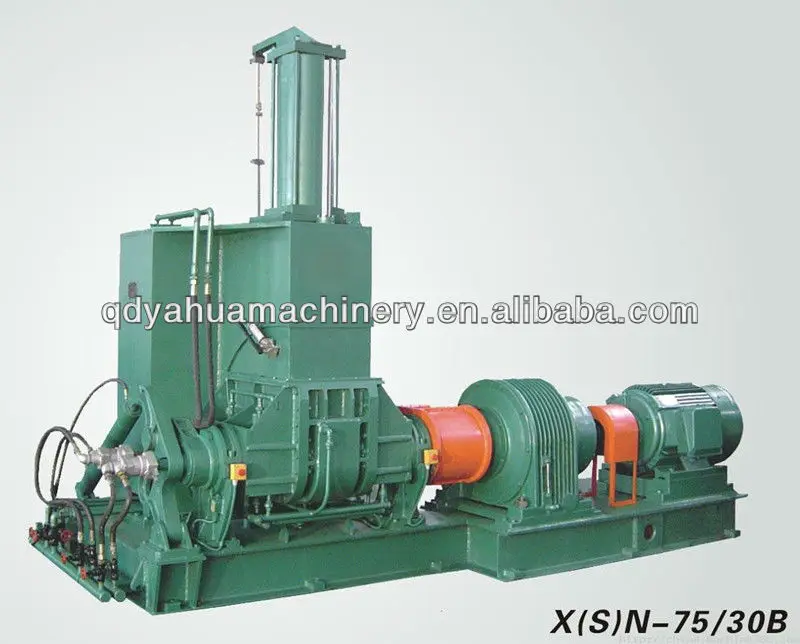

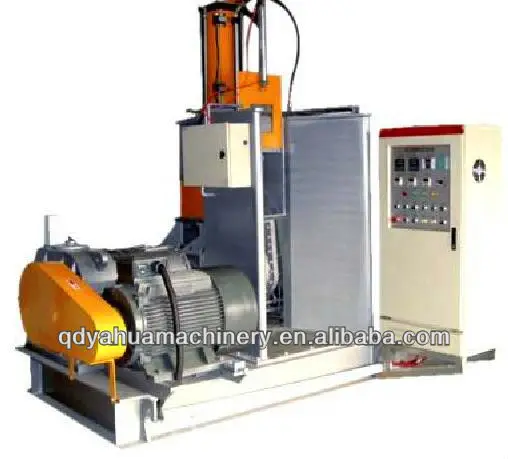

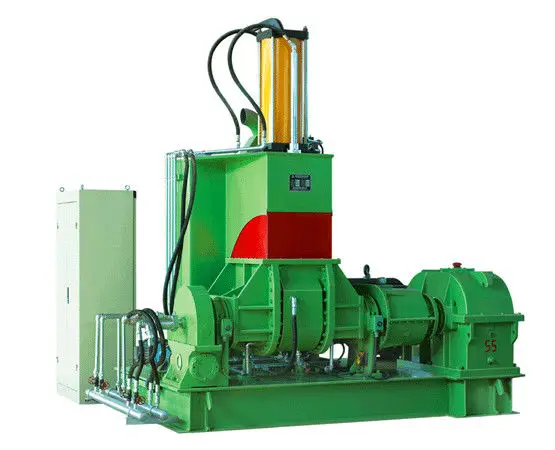

Banbury mixer
The internal rubber mixer, internal mixer for short, is mainly used for rubber plasticating and mixing. The internal mixer, equipped with a pair of rotors which perform relative rotation with the specific shape, is a kind of machine for intermittently plastic and mixing the polymer materials under the enclosed condition with adjustable temperature and pressure. The mixer is mainly composed of the chamber, rotors, rotor sealing devices, charging & pressing devices, discharging devices, gearing, base, etc.
Technical parameter of internal mixer:
Mode Item | X(S)N-3×32 | X(S)N-10×32 | X(S)N-20×32 | X(S)N-35×30 | X(S)N-55×30 | X(S)N-75×30 | X(S)N-110×30 | X(S)N-150×30 | ||
Total volume of mixing chamber | L | 8 | 25 | 45 | 75 | 125 | 180 | 250 | 325 | |
Working volume of mixing chamber | L | 3 | 10 | 20 | 35 | 55 | 75 | 110 | 150 | |
Driving motor power | KW | 5.5 | 15 | 30 | 55 | 75 | 110 | 185 | 220 | |
Tilting motor power | KW | 0.55 | 1.1 | 1.5 | 2.2 | 2.2 | 4 | 4 | 5.5 | |
Tilting angle | . | 135 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | |
Rotational speed of the rotor(front/rear) | r/min | 6~60 32/24.5 | 32/23.5 | 32/25 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | |
Pressure of compressed air | MPa | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | |
Capacity of compressed air | m3/min | ≥0.3 | ≥0.5 | ≥0.7 | ≥0.9 | ≥1.0 | ≥1.0 | ≥1.5 | ≥2.0 | |
Pressure of cooling water (rubber mixing) | MPa | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | |
Pressure of heating steam (plastics mixing) | MPa | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | |
Overall dimension | L | mm | 1660 | 2580 | 2630 | 3200 | 3280 | 3330 | 3930 | 4200 |
K | 960 | 1300 | 1520 | 1900 | 1930 | 2620 | 3000 | 3300 | ||
H | 1750 | 2280 | 2550 | 2950 | 3070 | 3340 | 3660 | 3900 | ||
Mass |
| 2000 | 3300 | 4500 | 6500 | 7800 | 10500 | 14500 | 19500 | |
