Gps-антенна 1575,42 МГц для автомобиля
US $2.30-$2.70
Deincomm AG-M4837-N1 конкурентноспособной с высоким коэффициентом усиления 1575 42 МГц GPS & BD и ГЛОНАСС внешняя
- Категории: GNSS & GPS Antenna >>>
- Поставщик: Shenzhen,Delin,Communication,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Deincomm AG-M4837-SZ1 Competitable High Gain 1575.42Mhz GPS&BD&GLONASS External Antenna
Product Description
Production Name | Production Number | version |
GPS External Antenna | AG-M4837-N1 | V1.0 |
1. Antenna Characteristics
Design Specifications | Typical | Units |
Antenna form | Passive antenna |
|
working Frequency | 1575.42±3MHz | MHz |
Gain | 3dB |
|
Antenna efficiency | 55% |
|
VSWR | ≤2.0 |
|
Polarization mode | Right-handed polarization |
|
Axial Ratio | ≤3.0 |
|
Radiation pattern | directional |
|
impedance | 50Ω |
|
2. Mechanical Specifications
Size (mm) | 48.5*37*17mm | Mounting | The magnet |
Weight(g) | 59 gram | Connector | N gold-plated straight male |
Color | Black | Cable | RG174 - 3m |
Operating Temp. | -40℃~+85℃ | Operating Humidity | 0~95% |
Storage Temp. | -45℃~+85℃ | Storage Humidity | 0~95% |
Experimental standard:
The appearance is not deformed, and the performance does not change significantly after recovery at room temperature, no oxidation and rust formation, and all meet the design requirements.
Sample Quantities | Suspension mode | parameter | inspection | result |
2 pairs |
30degrees suspension,trimming covered with 3M |
Dust free, atmospheric pressure 80PA pressure; solution pH: 6.9; salt solution concentration at 35 ° C (42 liters of sea salt solute per liter of solution); density: 1.0366; after 8 hours of testing, rinse with 32 ° C flowing pure water; hair dryer air dried. |
No oxidation, no corrosion |
This test result shows that this product has oxidation resistant and good corrosion resistant.
|
3,Rain test: Put it under a faucet and let water rush on the shell for 4 hours. Pick it up after 4 hours, there is no water at the bottom of antenna. It shows that this product has a good waterproof function.
Our Services
1.ODM/OEM by Factory
2.Fast Shipping;
3.Good quality and payment Insurrance;
4.Mass quantity Discount;
Related Products
 |  |  |

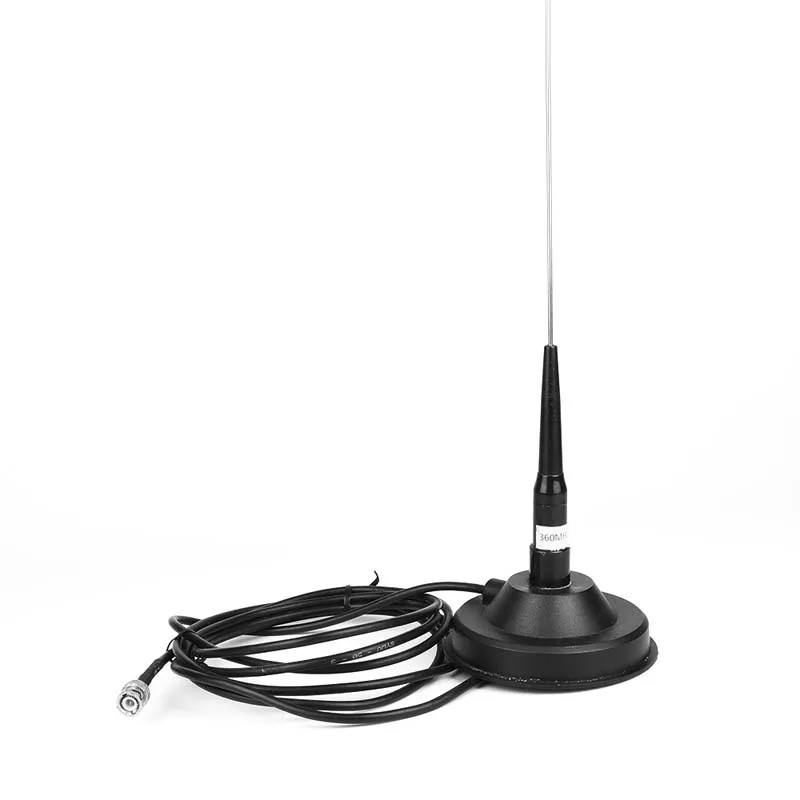

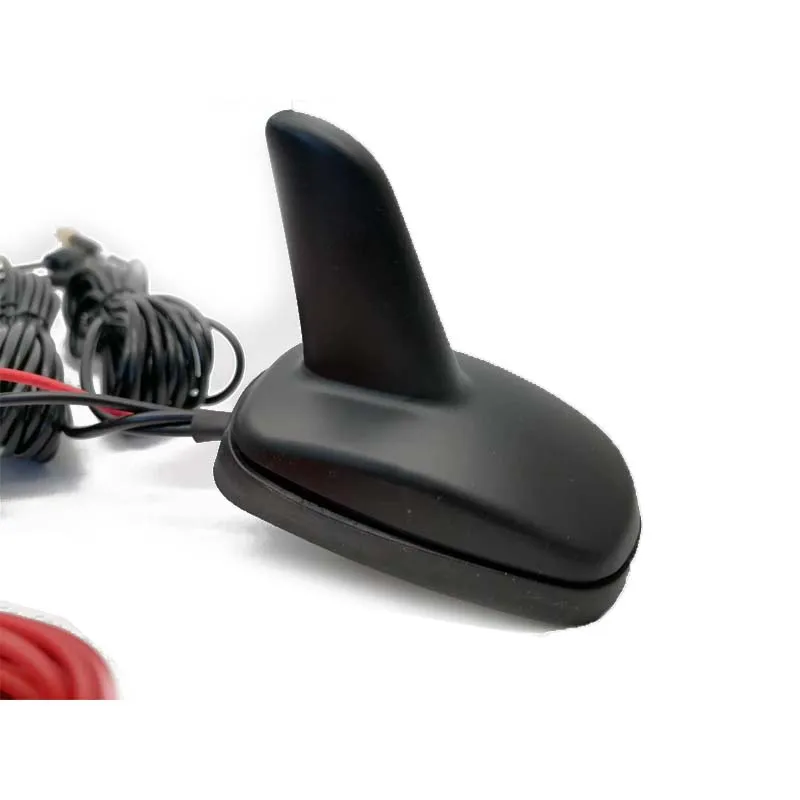

| Magnet GPS Antenna | shark fin GPS antenna | External Antenna |
 |  |  |

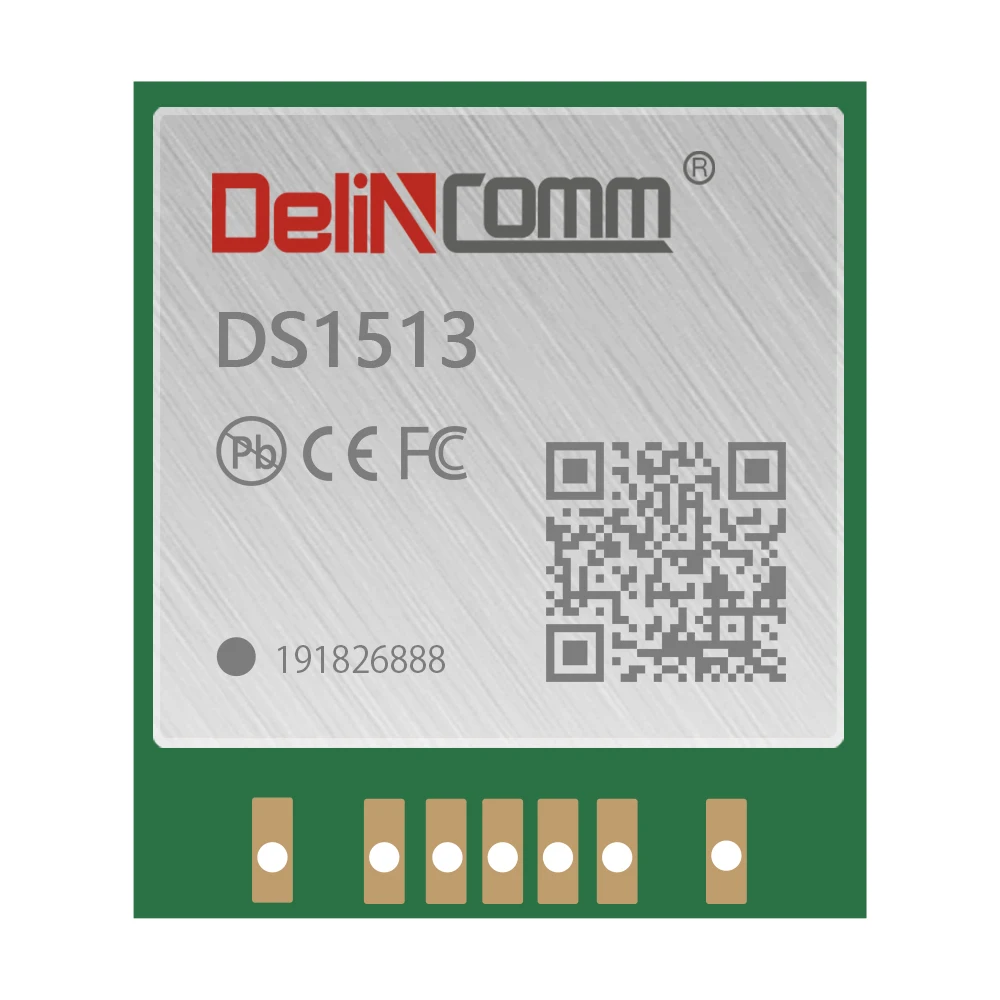

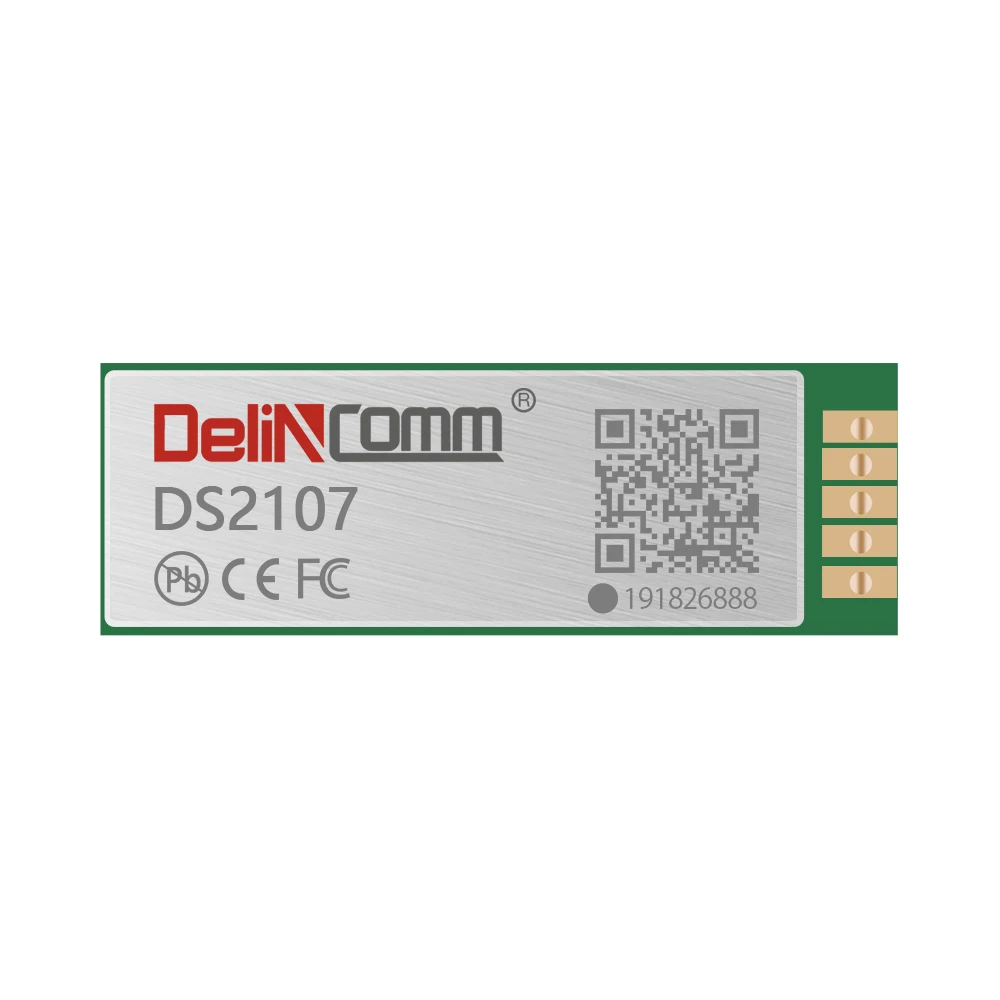

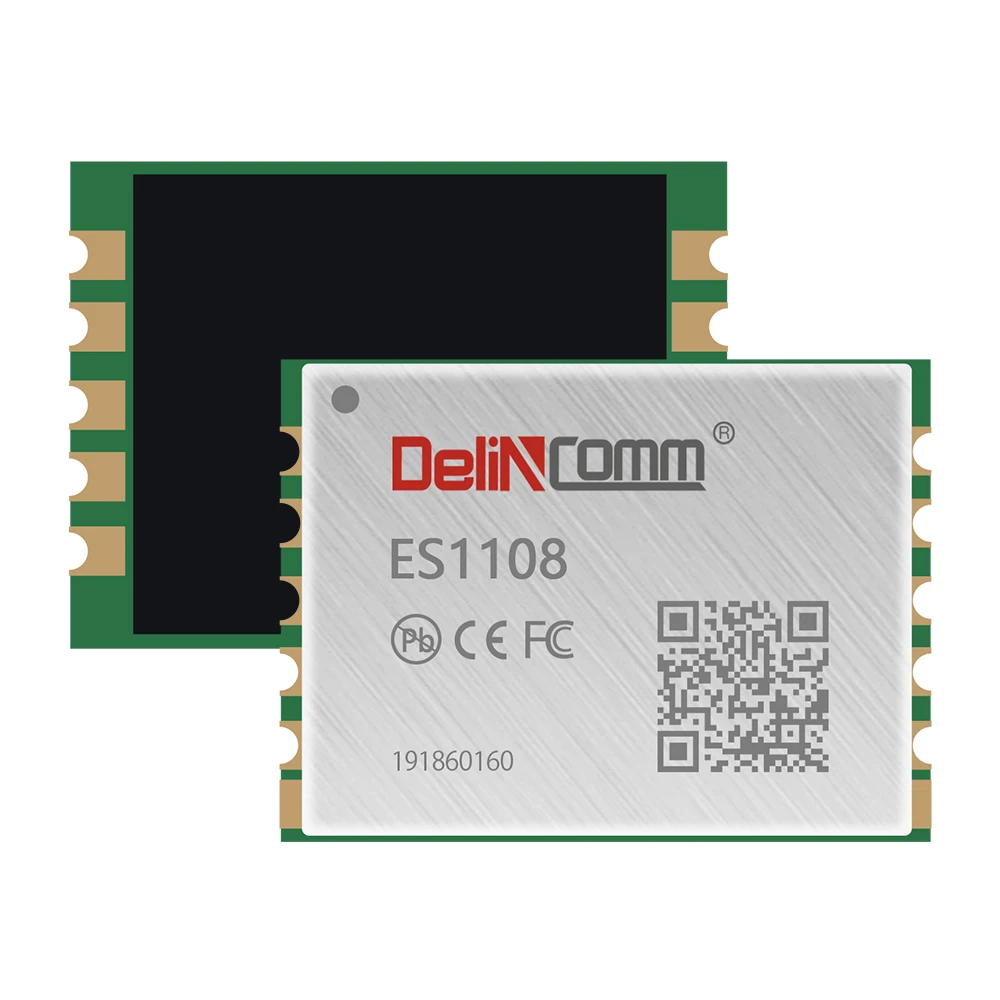

| ES2107 GPS Module | ES1108 GPS Module | DS1513 GPS Module Antenna |
Packaging & Shipping
Company Information
Shenzhen DeliNComm Communication Technology., Ltd.
(www.delincomm.com)
specializes in wireless communication terminal products
and application systems research and development, production and sales.
We manufacture various antennas, including5.8G/4G/3G/2.4G/GSM/433MHz
antenna with frequency of 433Mhz/2400Mhz/800-2700MHz, GPS antennas,
GLONASS Antennas, DVB-T antennas,DAB antenna, ect., and also supply SMA
connectors, Sim card sockets, GPRS/3G/4G wireless modems and modules, GPS OBD
tracker, ect.The wireless module we provide is for different applications like WLL, M2M, mobile
computing and handheld devices on GSM/EDGE,WCDMA/HSDPA TD-SCDMA, WiFi and GPS technology.
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original
products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please
kindly check with us the details by email. Thank you.
