Advantages
Product Description

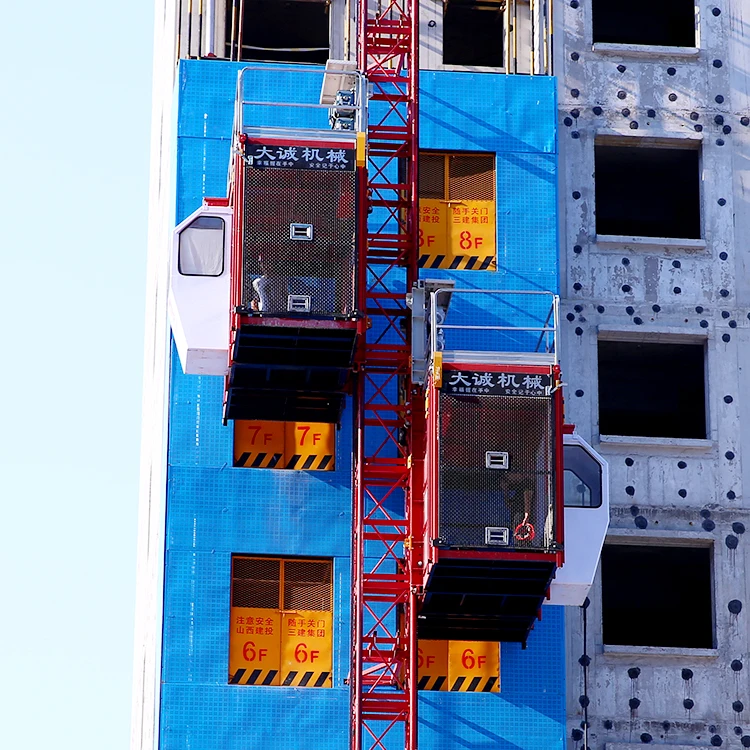

Fixed Speed Construction Hoist for Material Lifting
This product absorbs advanced technology at home and abroad, is novel in design, simple in operation and convenient to dismantle and repair. Its safety design and configuration is fully in conformity with national standards. It is mainly suitable for bridge, chimney, building and other high-rise building builders and cargo transportation, and can also be used in warehouses, wharfs and other places where vertical transportation needs to be used.
28 years of professional attention to construction lifts | ||||||
SC200/200 building hoist | ||||||
Basic parameters | Speed of lifting | m/min | 33 | |||
Motor power | Kw | 2*3*11 / 2*2*15 | ||||
Voltage | V | 220,380,415,440 or as customers' request | ||||
Fuse current | A | 2*96 | ||||
Basic parameters | Rated load | kg | 2*2000 or 2*13 person | |||
Lifting weight | Kg | 2*2000 or 2*13 person | ||||
Maximum height | m | 350 | ||||
Mast | Dimension | mm | 650×650×1508 | |||
Main column(tube) size | mm | φ76×4.5/Q345B | ||||
Weight | Kg | 150 | ||||
Cabin | Outer cabin weight | Kg | 1480 | |||
Inner cabin dimension | mm | 3100*1500*2500 | ||||
Sidewall type | / | Punched aluminum sheet or as customers' request | ||||
Transmission mechanism
Our company's transmission mechanism components are made of well-known domestic and foreign brand manufacturers. The motor and reducer have low noise, stable braking and durable. In addition, each motor of each transmission mechanism of our company is equipped with double protection of motor bracket and motor strap, which effectively guarantees the stability of the motor and prolongs the service life of the motor, reducer and other accessories.
Cabin
The inner size of the Cabin is 3000X1500X2180MM. Large space and high strength are our characteristics. The Cabin beam is the core part of the Cabin frame. The beams including the main stressed parts are all made of Q355B material, which effectively guarantees the robustness of the whole machine. The girder of the Cabin adopts a steel plate bending process and has a width of 23 cm, which is far exceeding the current widest in the industry by only 14 cm. The advantages are high strength, strong bearing capacity and long service life.
Electric control box
Our company adopts the electrical box of the multi-functional safety monitoring system. Stainless steel shape, exquisite and small footprint, mainly suitable for on-site security monitoring of high-rise buildings and various construction machinery. The electrical box is equipped with a remote control as standard. The advantage is that it saves cables. The electric control box can be placed directly next to the equipment, and is suitable for remote control operation.
Safety device
The anti-dropping device adopts a nationally well-known brand product. The anti-dropping device is an extremely important safety device on the rack and pinion construction elevator. It can limit the speeding down of the cage and effectively prevent and eliminate the occurrence of cage fall accidents.
Frequency converter
We use a brand-integrated dedicated frequency conversion operating system. Features: The elevator starts and stops smoothly and comfortably during movement, with fault self-diagnosis function, more complete protection functions, longer component life, lower average current, and site adaptation With stronger performance, intelligent control, reliable energy saving, and convenient maintenance, it has become a "milestone" new journey of Dacheng Machinery in the field of construction elevators.
Main Features
1) Rely on motor drive gear, rolling up and down on the gear.
2) Advanced technology at home and abroad, with novel design, reasonable structure, simple operation and easy maintenance.
3) The use of famous brands at home and abroad.
4)With perfect pre-sale, sale, and after sale service.
Factory Details
Factory Details
Since 1992
Factory area： 45000 m²
Number of employees： More than 200
Number of engineers： More than 20
Monthly production: More than 600 sets
The above certificates are some of our qualifications and honors , some quality testing certificates of our products. We have been specialized in producing safety , durable construction hoist for more than 20 years .
Manufacturing License
People's Republic of China special equipment manufacturing license（Left）
Safety production standardization certificate（Right）
Products Quality and Company Strength Certificate
CE Quality Certificate(Left)
BV audit certificate(Right)
Prepare materials
Prepare materials
Spraying Process
Advanced Production Equipment
Horizontal Inspection Platform
Machine Test
Loading(Domestic)
Loading(Export)

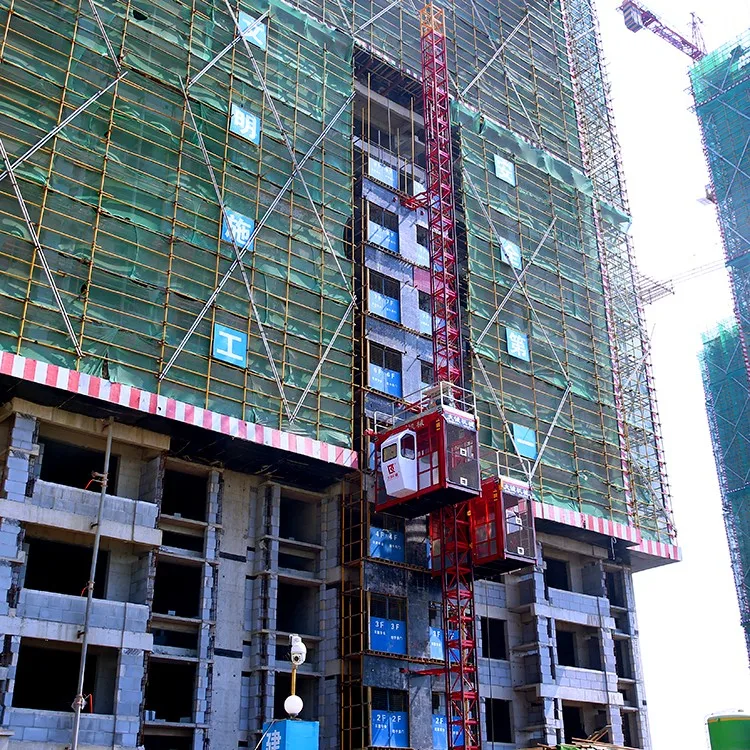

Case Show
Our service
Pre-sales Service.
1.Hot lines for 24-hour Pre-sales Service.
2.We offer customers free catalogs of our products and other relevant files.
3.Free to pick up customers from the airport to visit our factory.
4.Best solutions from our professional engineers
After-sales Service
1. Hot lines for 24-hour after-sales services.
2. Online after-sales service is available as well.
3. The technical documents will be attached with the equipment while leaving the factory.
4. Engineer available to service machinery overseas.
FAQ
1.\tAre you manufacturer or Trade Company?
A：We are construction hoist manufacturer in China, and we also export our machine to other countries.
2.\tWhat’s the difference between converter motor and constant frequency motor?
A: Converter motor hoist is steadier in the process of going up and down than constant frequency motor hoist.
3.\tCan we visit your factory?
A: Yes, of course, you will be warmly welcome to visit our factory.
4. Do you have CE certificate?
A: Yes, we have CE certificate, but if you need other certificate, we can also issue.
5.If i want to be your agent, is it possible?
A: Welcome to be our agent to cooperate for the business.
A: Welcome to be our agent to cooperate for the business.
