OEM встроенный 1D QR сканер штрих-кода двигатель с фиксированным креплением Модуль сканера для планшетного ПК Android
- Категории: Scanners >>>
- Поставщик: Smartgiant,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
OEM Embedded 1D QR Barcode Scan Engine Fixed Mount Barcode Scanner Module For Tablet PC Android Pos System
AS1002 Advantage
1, No driver is required, just plug and use.
2, Support serial port mode, command control function.
3, Support USB virtual serial port function, compatible with a variety of software.
4, Continuous scanning / automatic detection (for choose), the operation is very comfortable.
5, Super scanning incomplete and fuzzy codes.
6, Scan the 2D and 1D barcodes printed on the label or displayed on the device screen.
7, Compact and lightweight, easy to integrate into various solutions, such as kiosks, assembly lines, medical equipment, ticketing machines, vending machines, etc.
8, Can be customized according to customer needs.
2, Support serial port mode, command control function.
3, Support USB virtual serial port function, compatible with a variety of software.
4, Continuous scanning / automatic detection (for choose), the operation is very comfortable.
5, Super scanning incomplete and fuzzy codes.
6, Scan the 2D and 1D barcodes printed on the label or displayed on the device screen.
7, Compact and lightweight, easy to integrate into various solutions, such as kiosks, assembly lines, medical equipment, ticketing machines, vending machines, etc.
8, Can be customized according to customer needs.
AS1002 Specification
Product Name | Stationary Barcode Reader for Commercial | ||||
Model | AS1002 | ||||
Working Distance | 40~220 mm | ||||
Dimensions (L x W x H) | 57.53 * 56.6 * 25 mm | ||||
Trigger Mode | Auto /command/button induction | ||||
Light Focus | Red LED cursor | ||||
Scan Barcode Type | 1D: EAN13, EAN8, UPCA, UPCE, Code 128, Code 39, CODABAR, Interleaved 25, Standard 25, Industrial 25, Plessey, MSI Plessey, Code 93 | ||||
2D: QR Code, Data Matrix, PDF417 | |||||
Interface | RS-232, USB HID-KBW USB VSPD(Virtual Serial Ports Driver) | ||||
Minimal DM Resolution | 5 mil | ||||
Scan Angle | Rotation 360°, Elevation ± 50°, Deflection ± 50° | ||||
FOV (Field of View) | Horizontal 44°, Vertical 34° | ||||
Support language | Multi-language, supports multiple national keyboard languages | ||||
Working voltage/current | DC 5 V / ≤ 300mA | ||||
Environmental | Ambient Temperature | -20℃ ~ 60℃, non-condensing | |||
Humidity | 5~95% RH, non-condensing | ||||
AS1002 Details
Company Introduction
Guangzhou Smartgiant Network Technology Co., Ltd.
SmartGiant Technology is an experienced provider of online automated testing solutions, integrating services of R&D,manufacturing, sales, and after-sales maintenance.
● Professional optical darkrooms, calibration rooms, and high-temperature aging rooms
● Factory areas over 4,800 m²
● Professional optical darkrooms, calibration rooms, and high-temperature aging rooms
● Factory areas over 4,800 m²
Work Shop
Certifications
Our Production Line
Testing and Measurement Instruments/Solutions
Vision Inspection Instruments/Solutions
Hardware/Firmware Designs
Vision Inspection Instruments/Solutions
Hardware/Firmware Designs
Application Field
Embedded Instrument System
Vision Inspection Solutions
Customized Designs & Verification
Vision Inspection Solutions
Customized Designs & Verification
Location
Headquarter, Panyu, Guangzhou
Pre-Research Center,Huangpu,Guangzhou
Shanghai/Shenzhen/Changsha Branch Office
Hongkong, Sillicon Valley
Pre-Research Center,Huangpu,Guangzhou
Shanghai/Shenzhen/Changsha Branch Office
Hongkong, Sillicon Valley
Our Team
Exhibition
Why Choose Us
1. Reference customers: Testing and Measurement Instruments/Solutions, Vision Inspection Instruments/Solutions,
Hardware/Firmware Designs.
2. Mature used in 3C automatic production line and automatic production equipment, like phone, PC, laptop, etc.
3. 15+ years in AI vision inspection & Automated testing.
4. Certificate: ISO-14001,ISO-27001,CE,CCC, 41 Copyrights, 32 Patents.
5. Over 300 million Revenue in recent 3 years.
6. 7X24 hours Aftersales service and technical support.
7. Plant Area: 5000 Square meter
4. Certificate: ISO-14001,ISO-27001,CE,CCC, 41 Copyrights, 32 Patents.
5. Over 300 million Revenue in recent 3 years.
6. 7X24 hours Aftersales service and technical support.
7. Plant Area: 5000 Square meter

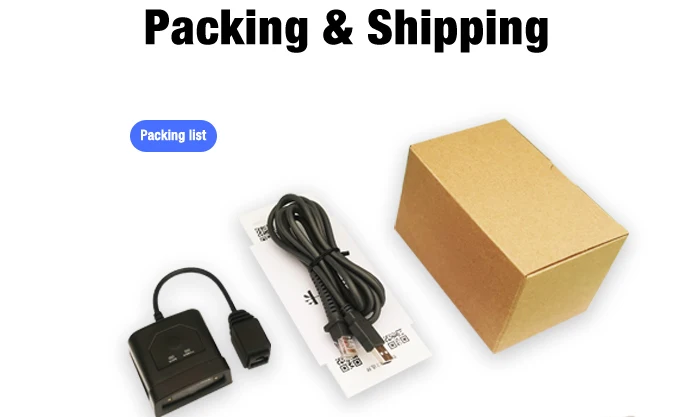

Packaging & Shipping
FAQ
Q: What's included in the shipping fee?
A: The shipping fee includes the costs for shipping and customs declaration fees. For a single order, the customs declaration fee is $50. The shipping cost is based on the packaging volume or weight of the goods. Please contact us for more details.
Q: The ordering system limits the order to 1pcs of sample. Why can't I place an order for 2 pcs or more?
A: This is because the final charge involves calculation of the freight and customs fees of the goods. For orders of 2 pcs or more, please contact us for more details.
Q: What is the delivery time?
A: It depends on your order quantity and the season you place an order. For a small quantity, shipment takes about 7–15 days. For a large quantity, shipment takes about 30 days.
Q: What is the payment method?
A: T/T, L/C, Western Union, PayPal. Specific payment terms are negotiable.
Q: What is the shipping method?
A: By sea, by air, or by express delivery (EMS, UPS, DHL, TNT, FedEx, etc.).
Please confirm with us before placing an order.
A: The shipping fee includes the costs for shipping and customs declaration fees. For a single order, the customs declaration fee is $50. The shipping cost is based on the packaging volume or weight of the goods. Please contact us for more details.
Q: The ordering system limits the order to 1pcs of sample. Why can't I place an order for 2 pcs or more?
A: This is because the final charge involves calculation of the freight and customs fees of the goods. For orders of 2 pcs or more, please contact us for more details.
Q: What is the delivery time?
A: It depends on your order quantity and the season you place an order. For a small quantity, shipment takes about 7–15 days. For a large quantity, shipment takes about 30 days.
Q: What is the payment method?
A: T/T, L/C, Western Union, PayPal. Specific payment terms are negotiable.
Q: What is the shipping method?
A: By sea, by air, or by express delivery (EMS, UPS, DHL, TNT, FedEx, etc.).
Please confirm with us before placing an order.
