Product Overview

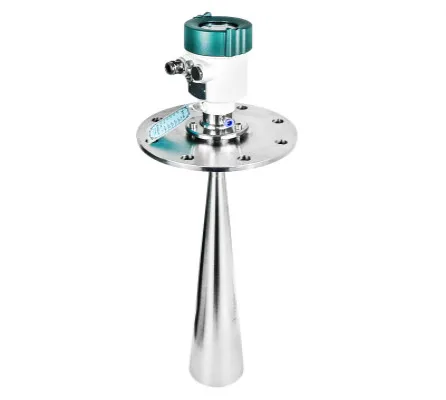

Factory Price 4-20mA Level Measuring Instrument River Water Depth Meter Radar Type Modbus Water Meter

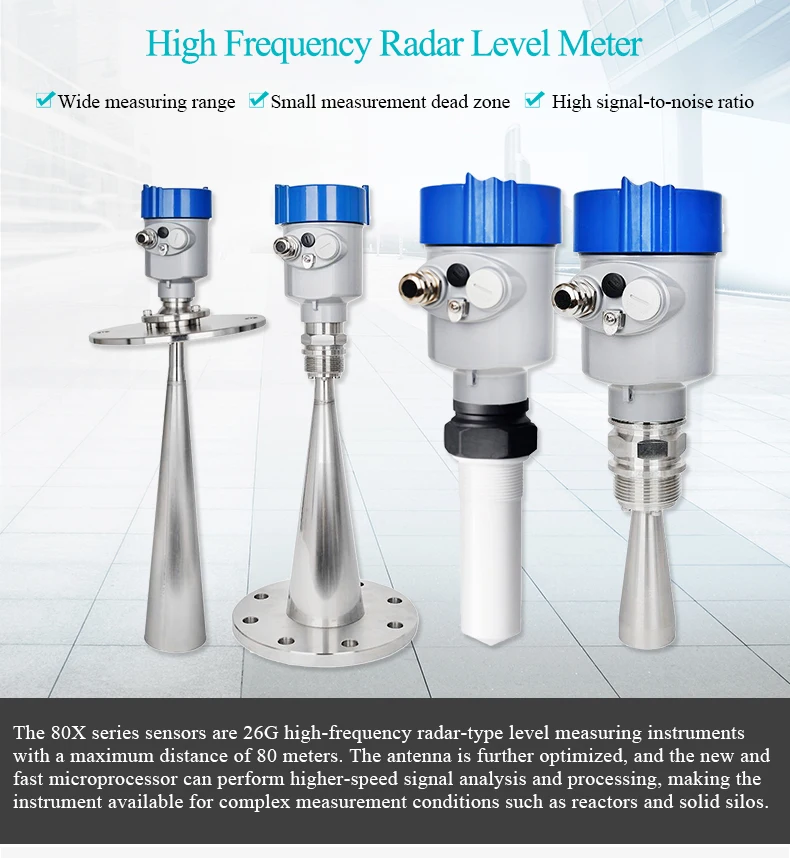

This series of radar level meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 70 meters.Antenna is optimized further processing, the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.
FEATURES AT A GLANCE
1.Small antenna size, easy to install
2.Non-contact radar, no wear, no pollution
3.Serious dust environment on the high level meter work has little effect.
4.A shorter wavelength, the reflection of solid surface inclination is better
5.Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference.
6.The measuring range is smaller, for a measurement will yield good results.
7.High signal-to-noise ratio, the level fluctuation state can obtain better performance.
8.High frequency, measurement of solid and low dielectric constant of the best choice.

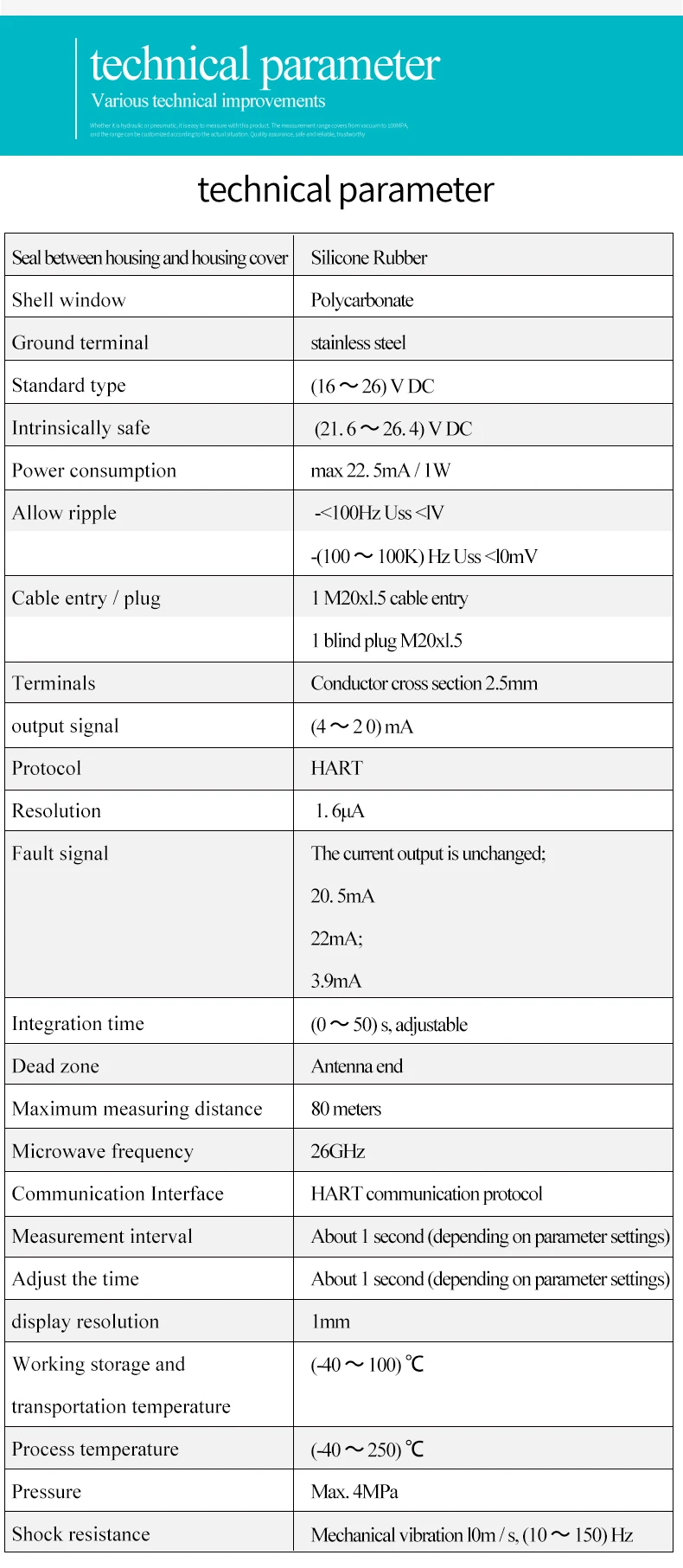

PRODUCT SPECIFICATIONS
The outer shell | Stainless steel | ||||||
Casing window | Polycarbonate | ||||||
The ground terminal | Stainless steel | ||||||
The power supply voltage | Standard(16 ~ 26) V DC | ||||||
The cable parameters Cable entrance / plug Terminal | One M20xl.5 cable entrance One blind plug Conductor cross section 1.0mm² | ||||||
The output signal | (4 ~ 20) mA/RS485 | ||||||
Communication protocol | HART | ||||||
The maximum distance measurement | 70m | ||||||
Working temperature | (-40~100) ℃ | ||||||
Process temperature | (-40~250)℃ | ||||||
Pressure | Max.4MPa | ||||||

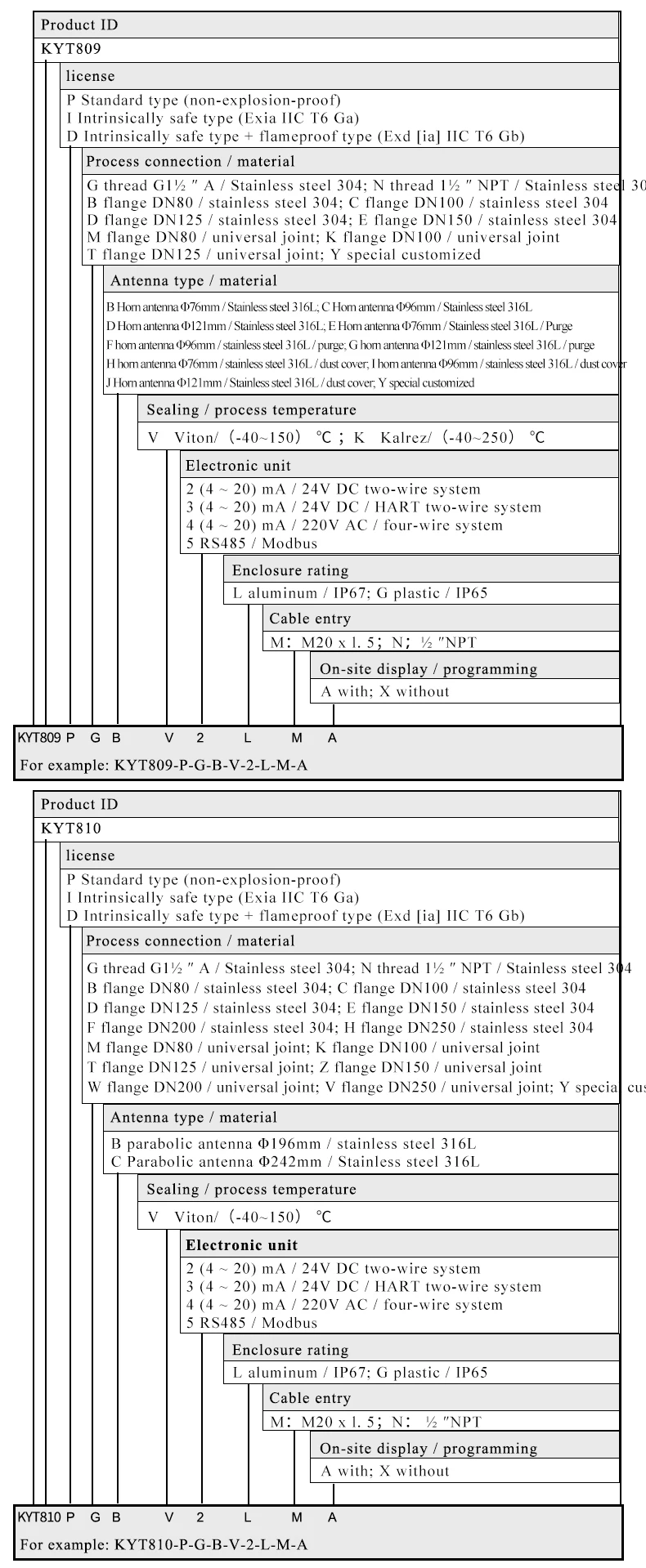

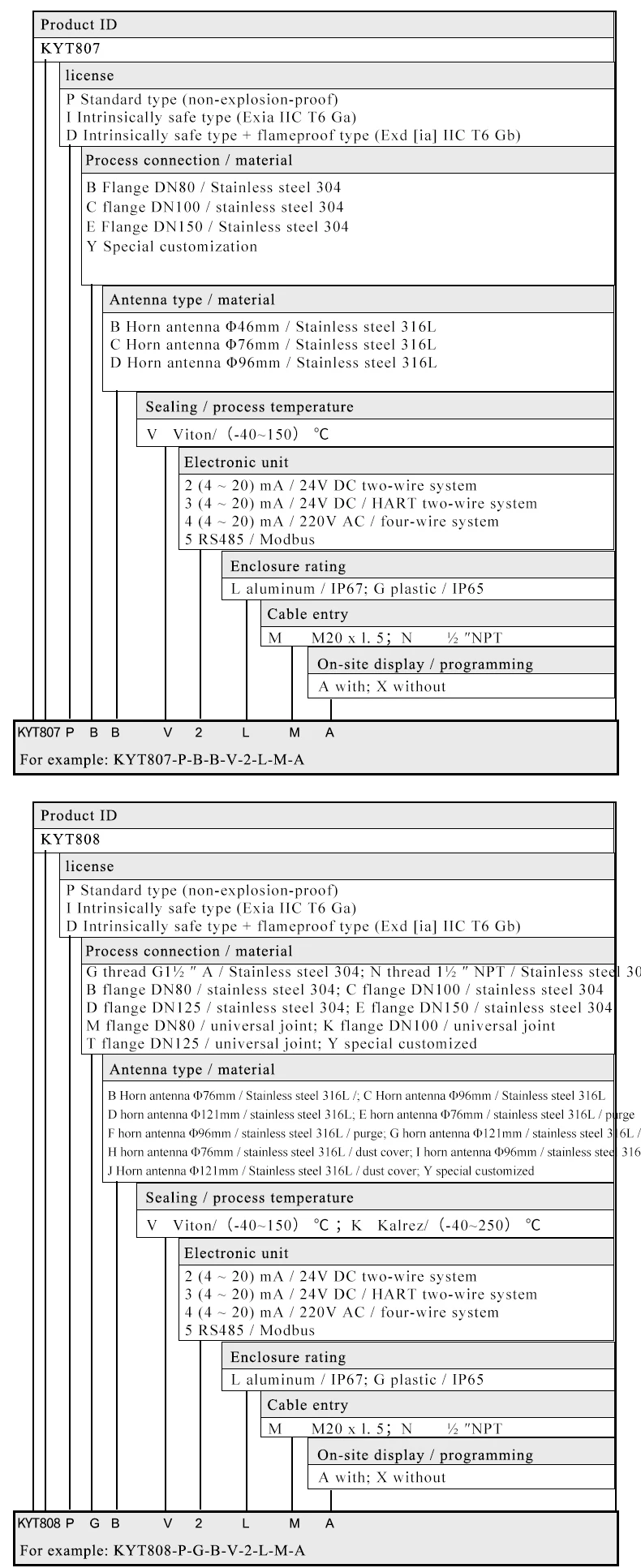

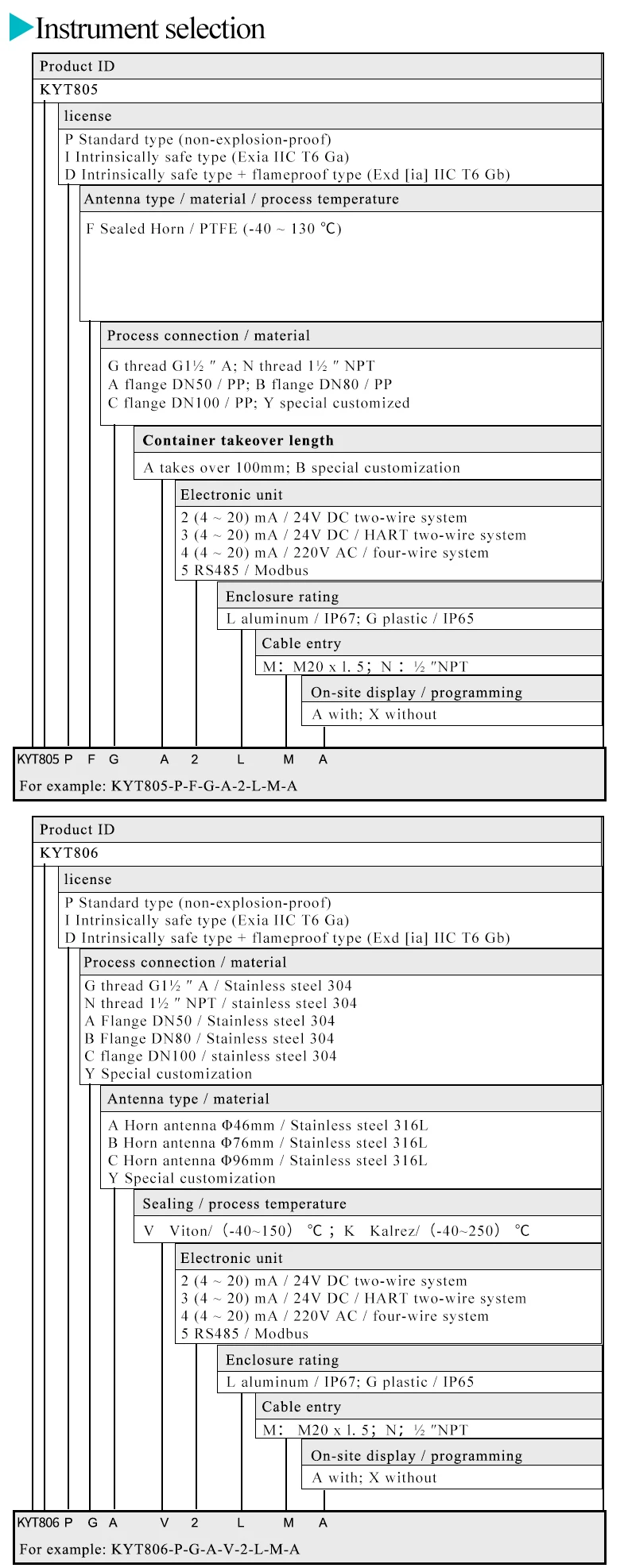

PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK
Service Advantage
1.Contains a variety of industrial control products such as signal isolators, pressure and liquid level sensors, temperature,
current, voltage, frequency and other transmitters. All products are in stock (except for special customization).
2.OEM, Accept lower quantity trial order
3.Fast delivery. 24 hours With Discount Courier, Air shipment
4.We guarantee you the lower pricing from us compared with your any competitive prices from others in volume.
5. We can guarantee you any quality issue from us will be refund you immediately or replace with new & qualified products.
6.We can support you 24Hours online service via email, skype, what’sapp, facebook etc.
7.Long term warranty. Pressure and level transmitters are 2 years. The others in our shop are with five-year warranty!
1.Contains a variety of industrial control products such as signal isolators, pressure and liquid level sensors, temperature,
current, voltage, frequency and other transmitters. All products are in stock (except for special customization).
2.OEM, Accept lower quantity trial order
3.Fast delivery. 24 hours With Discount Courier, Air shipment
4.We guarantee you the lower pricing from us compared with your any competitive prices from others in volume.
5. We can guarantee you any quality issue from us will be refund you immediately or replace with new & qualified products.
6.We can support you 24Hours online service via email, skype, what’sapp, facebook etc.
7.Long term warranty. Pressure and level transmitters are 2 years. The others in our shop are with five-year warranty!
