4-20 мА ультразвуковой датчик уровня для измерения резервуара
- Категории: >>>
- Поставщик: Dandong,Virtue,River,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

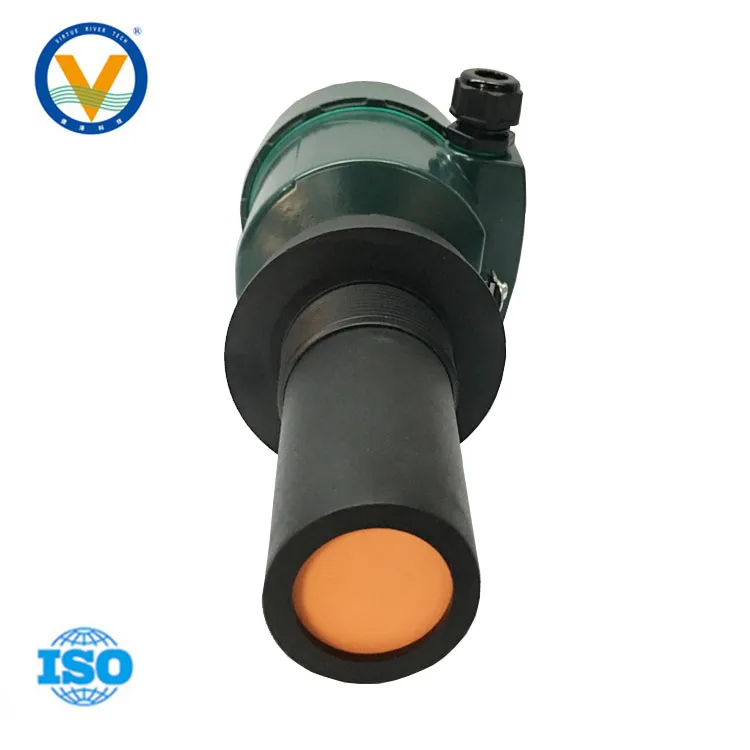

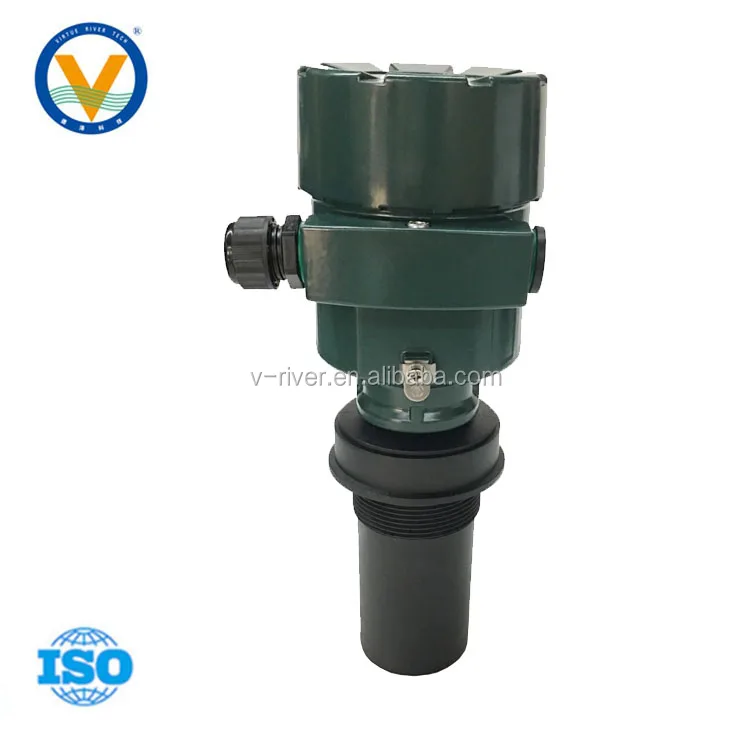

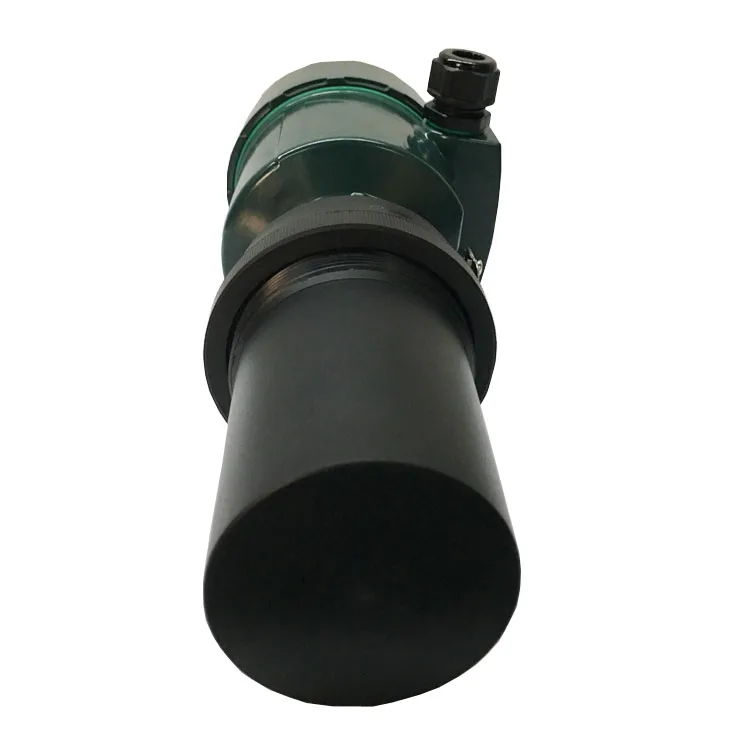

VRPWCS72 Ultrasonic level sensor/ tank level sensor

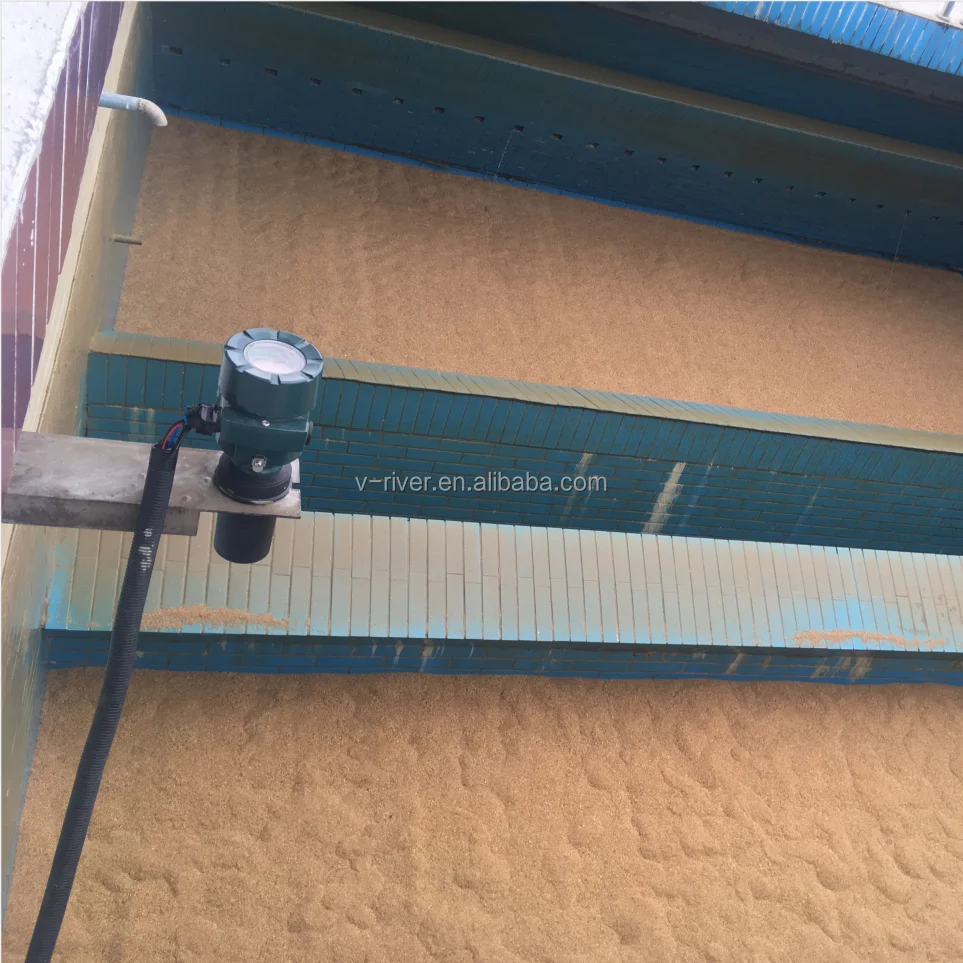

It’s mainly used for liquid or solid particles level measurement in different kinds of industrial areas, especially for water treatment industry.

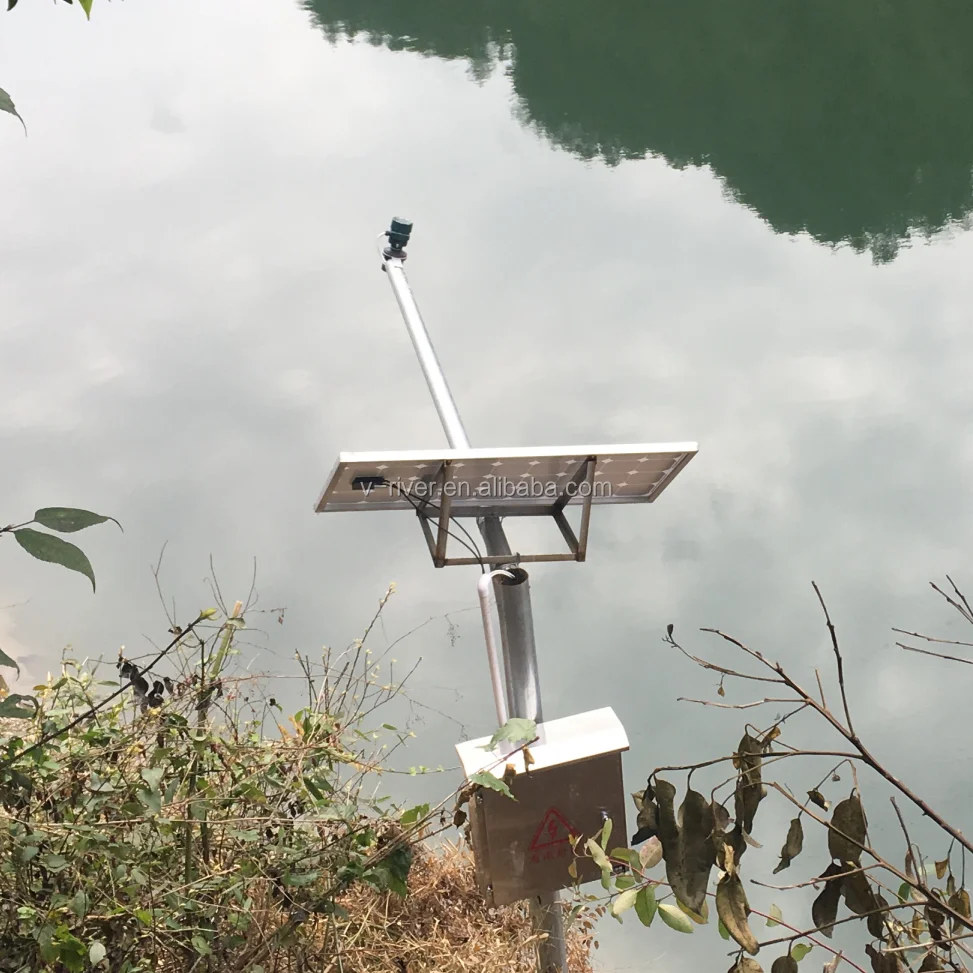

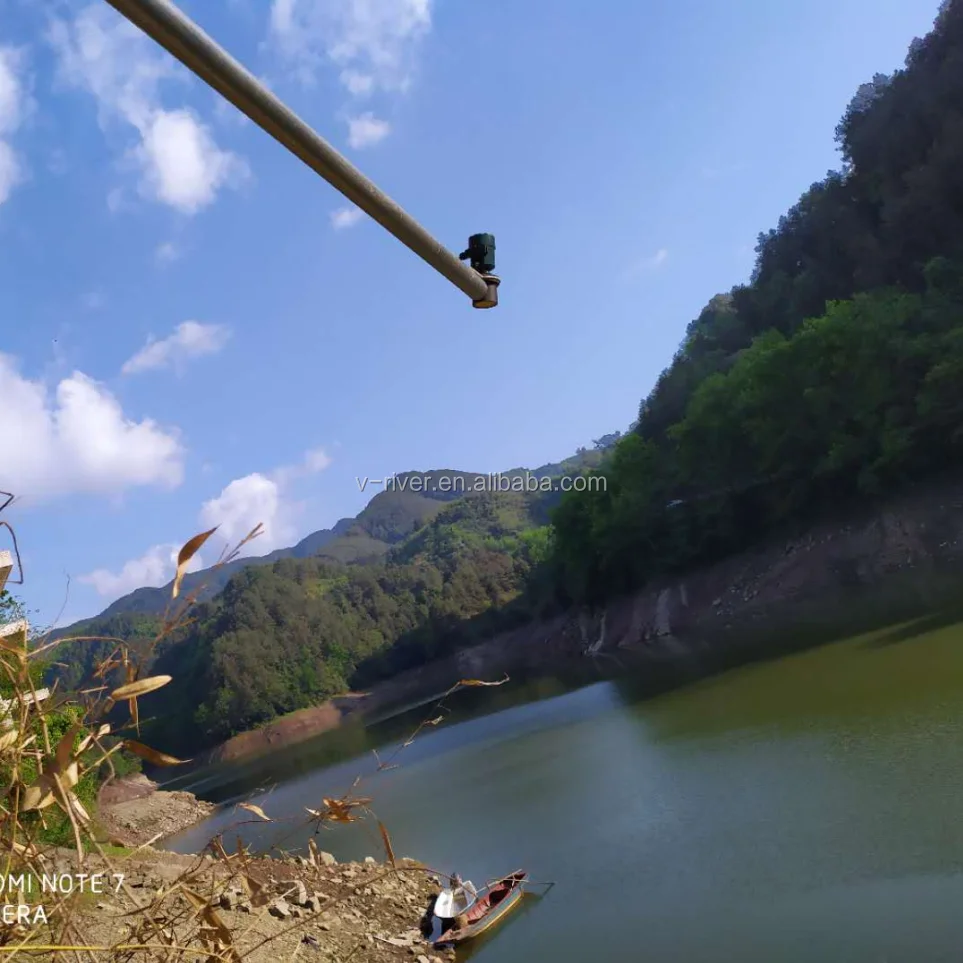

Data could be ported for IOT use. For example, rivers, lakes, reservoirs remote monitoring telemetric systems (IOT)，monitoring and flood response support systems (IOT), irrigation water conservation remote management systems (IOT), grain storage warehouse or silos level remote management systems (IOT), feed tanks level monitoring and remote management systems (IOT), remote tank level monitoring management systems (customized IIOT solutions ) etc.
Features
1. Adopting advanced microprocessor
2. Unique echo processing technology
3. False echo storage
4. Built-in temperature compensation
5. Narrow beam, simple debugging and calibration
6. Available for both AL enclosure and Plastic enclosure

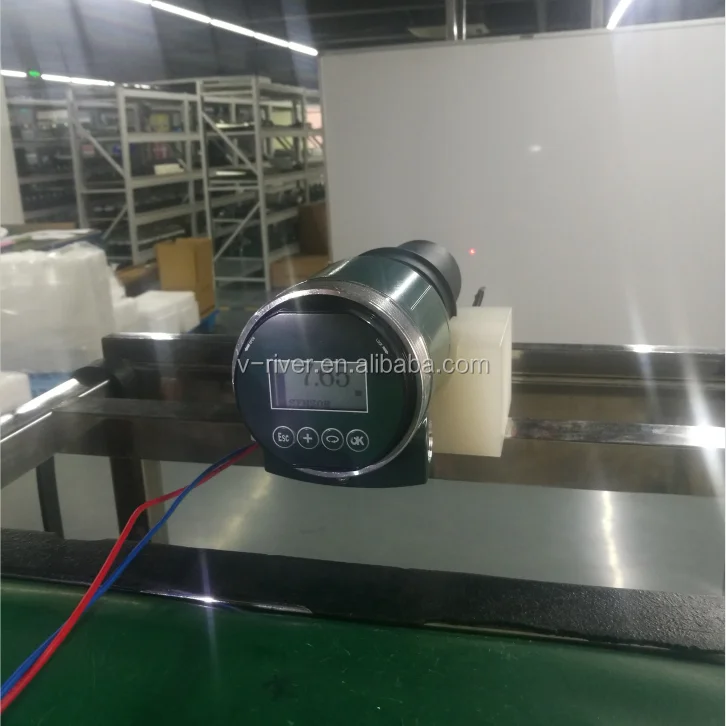

7. With a menu in both English and Chinese, and an echo curve display.
8. Optional for intrinsically safe

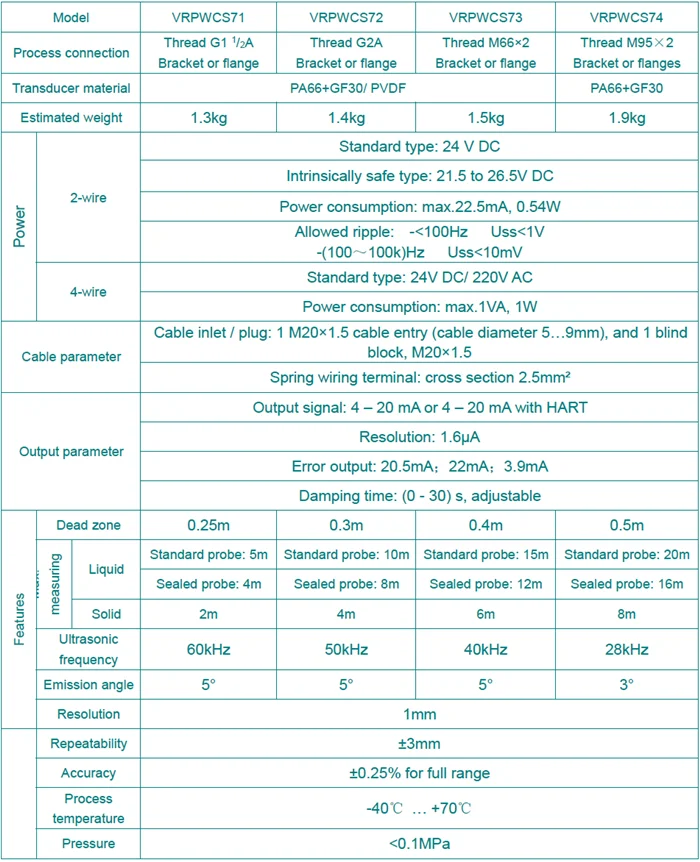

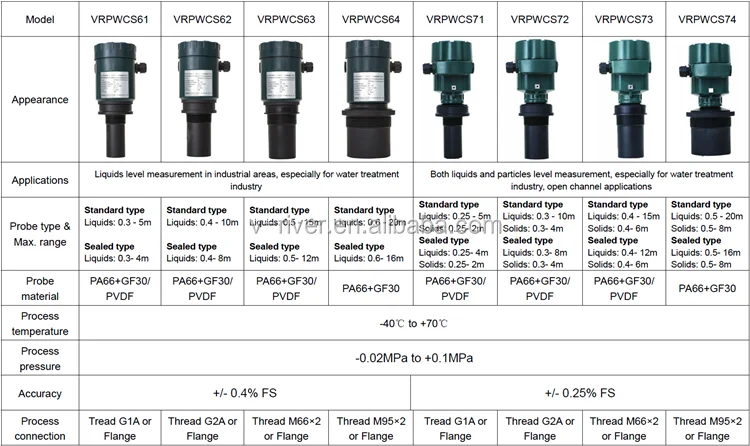

Product Parameters

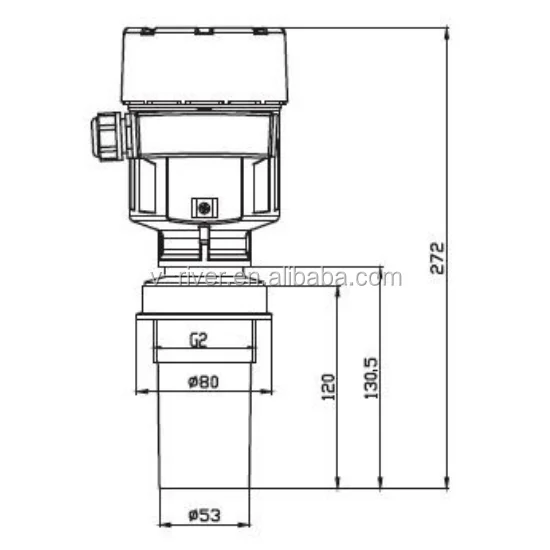

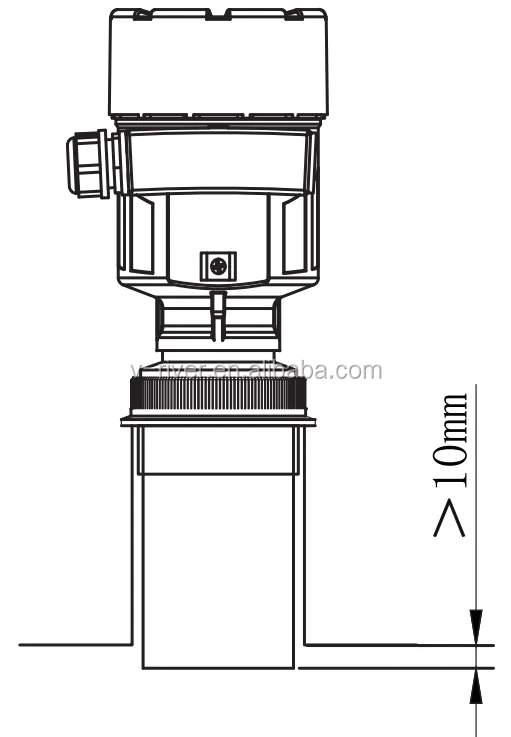

Overall Dimensions

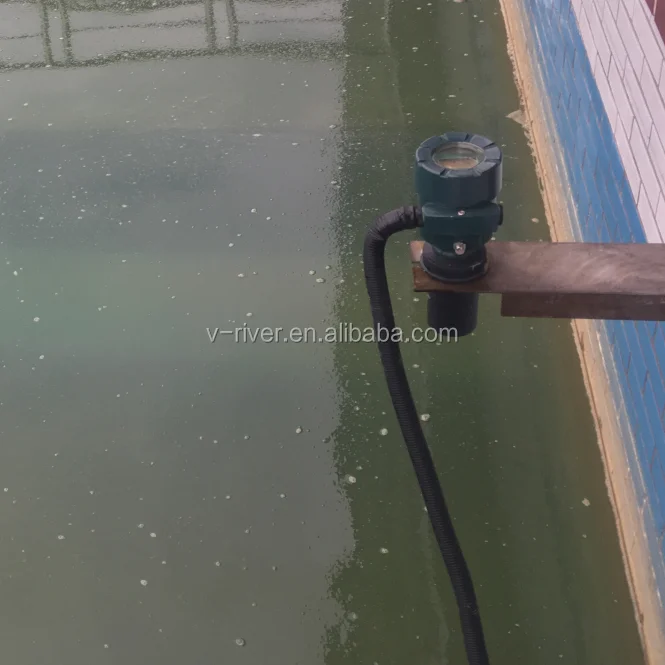

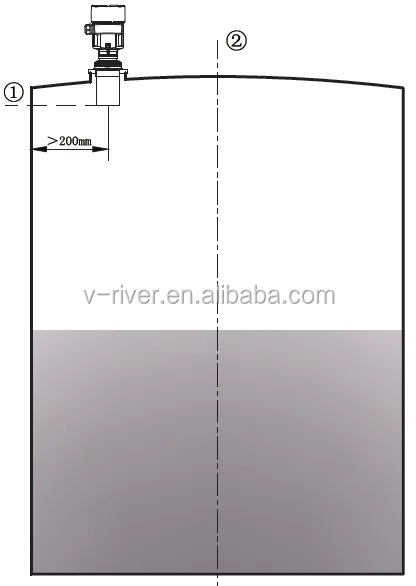

Installation Instructions

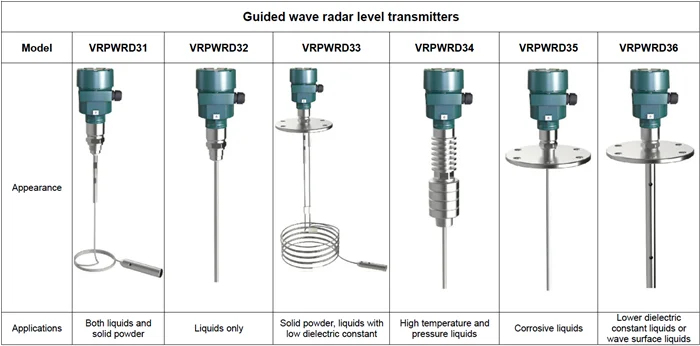

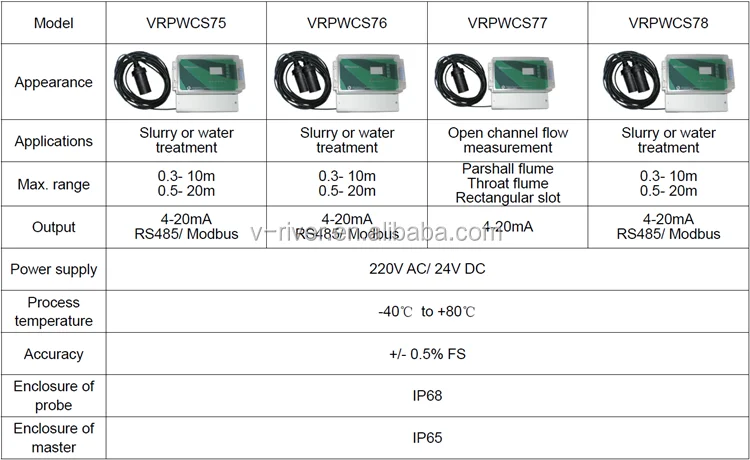

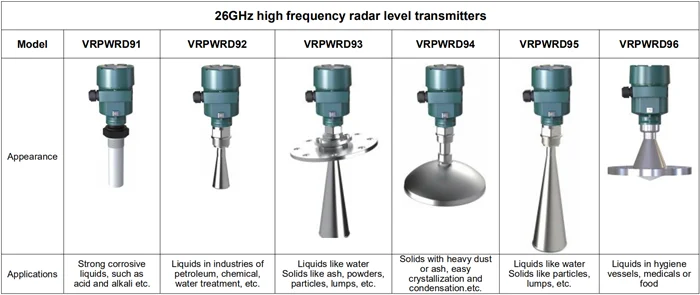

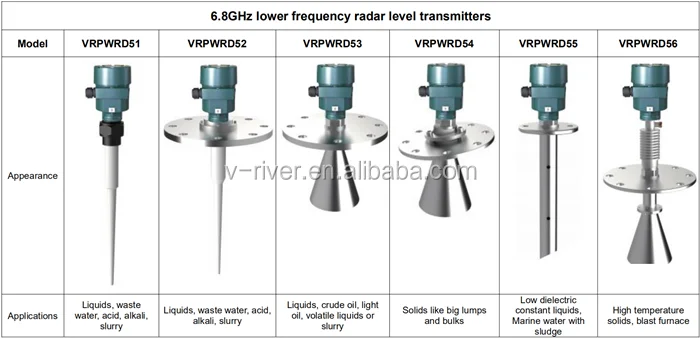

Related Products
Packing&Shipping
Carton boxes or on request
Company Introduction
Dandong Virtue River Technology Co., Ltd. is a professional supplier for providing customers all around world a variety of instruments, such as level transmitters including radar level transmitters, ultrasonic level transmitters, displacer level transmitters, magnetostrictive level transmitters, magnetic level indicators, and other level gauges, RF admittance solid level switches, etc. also different kinds of flowmeters, pressure sensors, smart power meters, motor protectors, and agricultural machines.
We are now also engaged in IOT control platform for many different industries such as animal feeding, water level monitoring and control etc.
We always have one basic objective: to provide innovative, market leading and reliable products to customers all around the world.
“Share win-win with virtue” is our core philosophy. We have been building up a leading import & export platform of mechanical & electrical products for companies both in China and foreign countries. We are working hard with virtue!
Order Guide & FAQ
Order Guide
Medium name | |||||
Medium state | ◊ Liquid ◊ Solid | ||||
Solid type | ◊ Lump ◊ Particles ◊ Powder ◊ Fly ash | ||||
Measuring range | mm | ||||
Process temperature ℃ | |||||
Process pressure kg/cm2 | |||||
Process connection flange size | |||||
Mounting nozzle dia & height | |||||
Communication protocol | ◊ HART ◊ RS485 ◊ N/ A | ||||
Exproof type | ◊ Ex ia (Intrinsically safe) ◊ Ex d (Explosion isolation) ◊ N/ A | ||||
Cable entry type | ◊ M20*1.5 ◊ 1/2’’ NPT | ||||
FAQ
1.About Price:
The price is based on the functions on request, and also it is negotiable.
It can be changed according to the quantity in one PO. When you are making an inquiry, please let us know the quantity in demand.
2.About sample:
Sample is available with special discount.
3.About MOQ:
The MOQ for all different types of our level transmitters is 1 unit.
4.About OEM:
Welcome, you can select one color from our existing housing color collections, which is free of charge. You can also design your own housing color, which may be chargeable depending on the quantity. The nameplate information can be put on your requirement with your LOGO.
5.About warranty:
We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. The warranty period is 18 months from date of delivery or 12 months upon arrival.
6.About technical service:
We provide positively technical support for necessary documents or drawings in need, and also prompt response for any problem at the working site. We also offer technical assistance in efficient ways.
The price is based on the functions on request, and also it is negotiable.
It can be changed according to the quantity in one PO. When you are making an inquiry, please let us know the quantity in demand.
2.About sample:
Sample is available with special discount.
3.About MOQ:
The MOQ for all different types of our level transmitters is 1 unit.
4.About OEM:
Welcome, you can select one color from our existing housing color collections, which is free of charge. You can also design your own housing color, which may be chargeable depending on the quantity. The nameplate information can be put on your requirement with your LOGO.
5.About warranty:
We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. The warranty period is 18 months from date of delivery or 12 months upon arrival.
6.About technical service:
We provide positively technical support for necessary documents or drawings in need, and also prompt response for any problem at the working site. We also offer technical assistance in efficient ways.
7.About payment or other questions：Please contact with us in details.
