Neje Master 10 Вт высокоскоростной мини-ЧПУ лазерный гравер для гравировки металла резьбы лазерная резка
- Категории: Laser Engraving Machines >>>
- Поставщик: Wuhan,Amark,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Features
1. More Convenient. Off-line and APP Wireless Control. NEJE Scanner Wireless Transfer. Cloud Gallery and Online Gcode Makes Creation Easier.
Professional CNC software: Benbox , LaserGRBL. 110 x 120 mm Engraving Range. Operating System: windows 7/ 8.1 / 10 / android / iOS/ OSmac. Picture format: BMP / PNG / JPG / NC / DXF
2. Greater Power. Faster Speed, More Accurate Precision, If you are a true Maker, DIY Handyman, CNC engineer or an artist, this machine offer a great way to that
3. Carved more material. It can carve MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam paper, anodized aluminum, etc.(Not suitable for iron or other metal)
Professional CNC software: Benbox , LaserGRBL. 110 x 120 mm Engraving Range. Operating System: windows 7/ 8.1 / 10 / android / iOS/ OSmac. Picture format: BMP / PNG / JPG / NC / DXF
2. Greater Power. Faster Speed, More Accurate Precision, If you are a true Maker, DIY Handyman, CNC engineer or an artist, this machine offer a great way to that
3. Carved more material. It can carve MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam paper, anodized aluminum, etc.(Not suitable for iron or other metal)
Industry Application

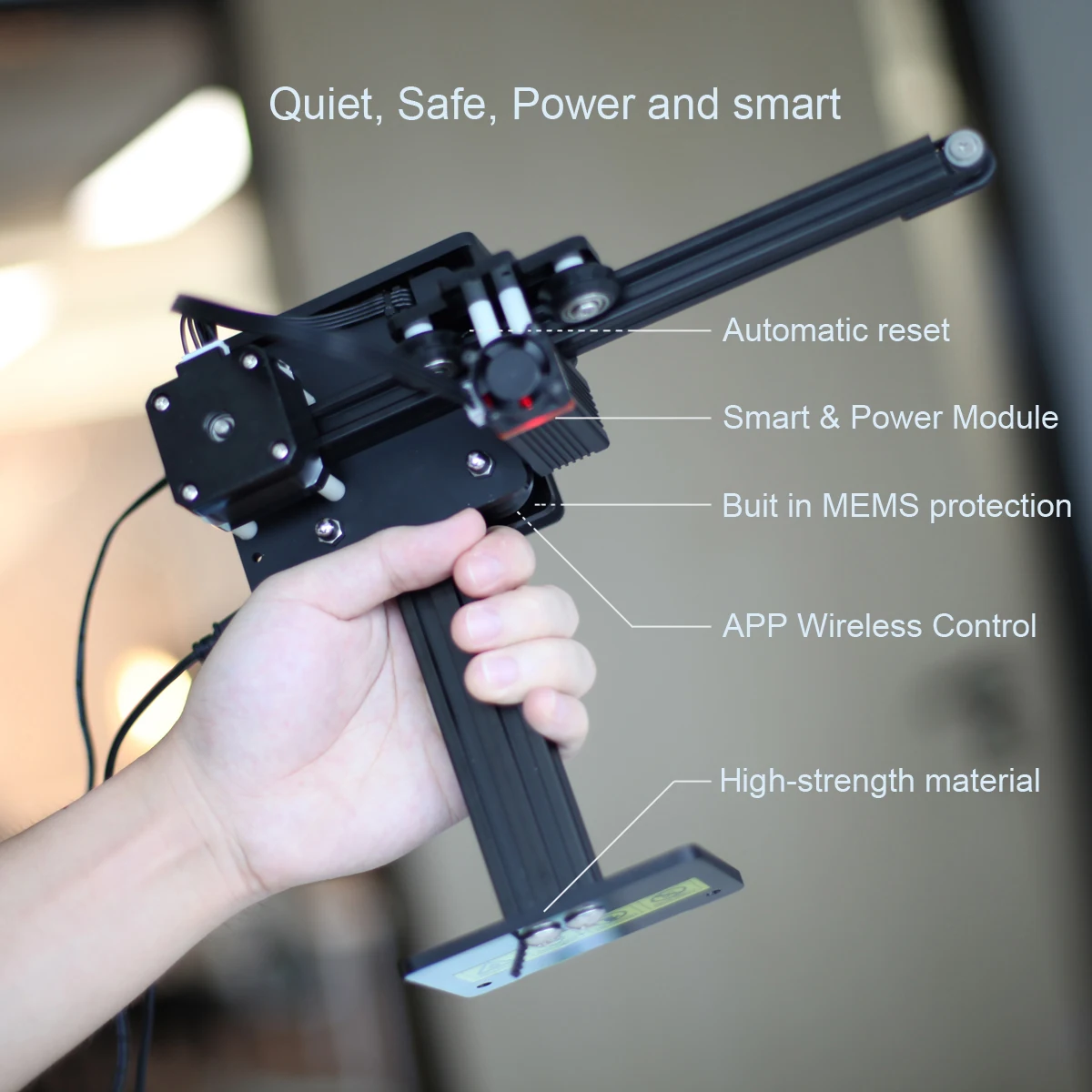

- Master engraving machine is a portable engraving machine with simple installation, safety and easy operation.
- It has built-in sensor accelerometer. When the machine tilts, it will automatically stop laser work and protect from laser damage.

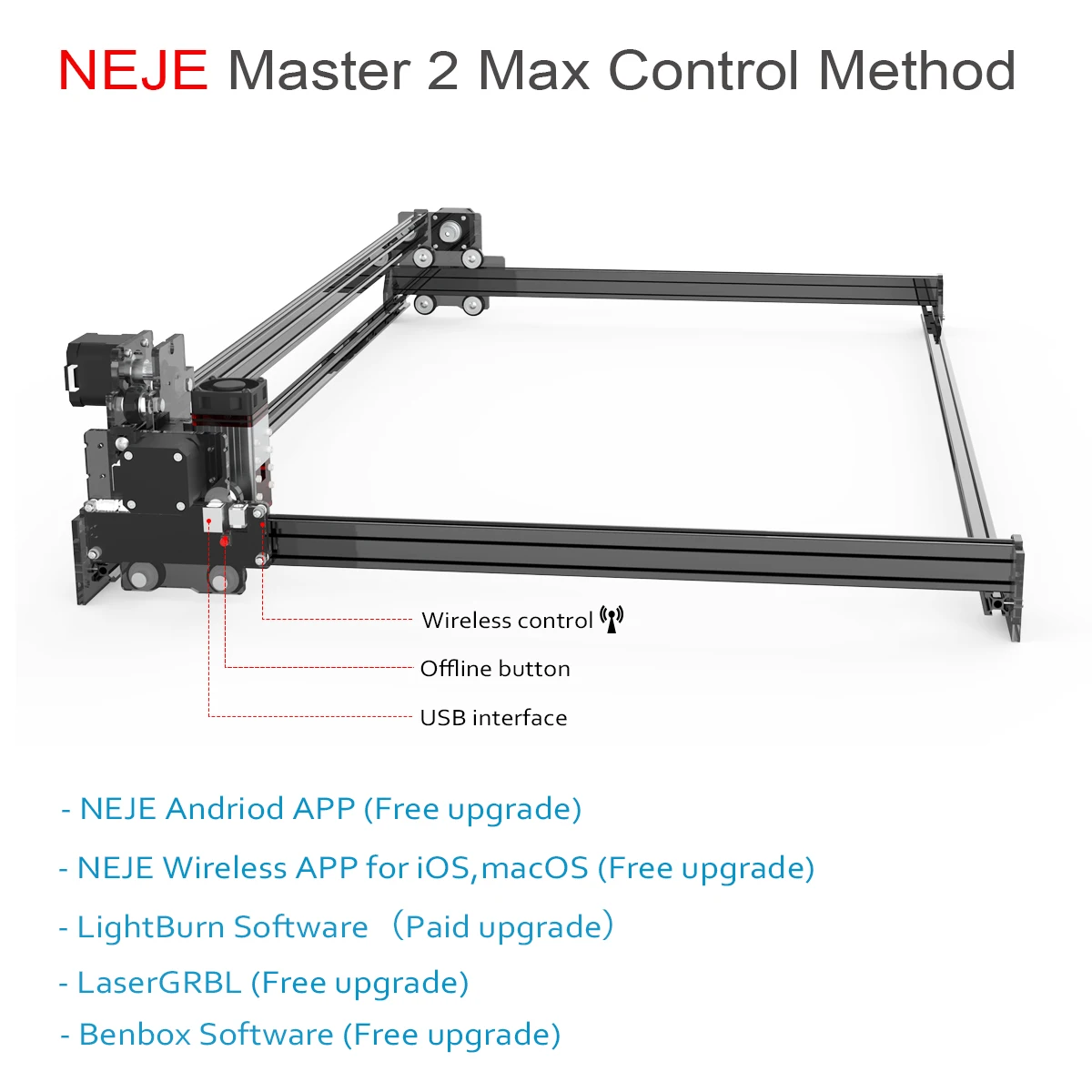

- At the same time, it supports NEJE control software and GRBL software, which can not only enjoy the simple portability of NEJE software, but also support the operation fun of GRBL open source software;
- The master 10w specializes in metal engraving and deep wood engraving and cutting
- It has built-in sensor accelerometer. When the machine tilts, it will automatically stop laser work and protect from laser damage.
- At the same time, it supports NEJE control software and GRBL software, which can not only enjoy the simple portability of NEJE software, but also support the operation fun of GRBL open source software;
- It supports the dynamic control laser module developed by Neje, which can support PWM power regulation, low light brightness regulation, laser temperature induction protection; it also supports different power lasers.
- The master 10w specializes in metal engraving and deep wood engraving and cutting
Specification
Material | Acrylic + PP + Aluminum |
Image Format | .nc \\ .dxf \\ .bmp \\ .jpg \\ .png etc.. |
Image Size | 2000 * 2000 pixels / 0.075mm point distance |
Support System | Win7 / Win8 / XP / Win10 ， android APP(neje scanner) |
Control Board | 2 x MCU + Wireless control + MEMS |
Working Size | 110 x 120 mm |
Pixel | 2266 x 2266 px |
Dot pitch | 0.075mm |
Software | NEJE APP for Android, NEJE Wireless APP for iOS / OSmac, NEJE software for windows, Benbox, LaserGRBL with firmware GRBL1.1f. |
Frame material | CNC Cutting Composite plate, aluminum alloy, acrylic. |
Can Engrave | MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum |
Can Not Engrave | Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material Continue working: Unlimited |
Wavelength | 450nm |
Beam Shape | Dot (Focusable) |
Lens Material | Lens Material |
Luminous Color | Blue |
Input Voltage | AC100-240V, 50/60Hz |
Plug Type | EU / US (Optional) |
Depth of engraving | (0.5-3mm wood), thickness of cutting(2mm wood). |
Marketing Campaign

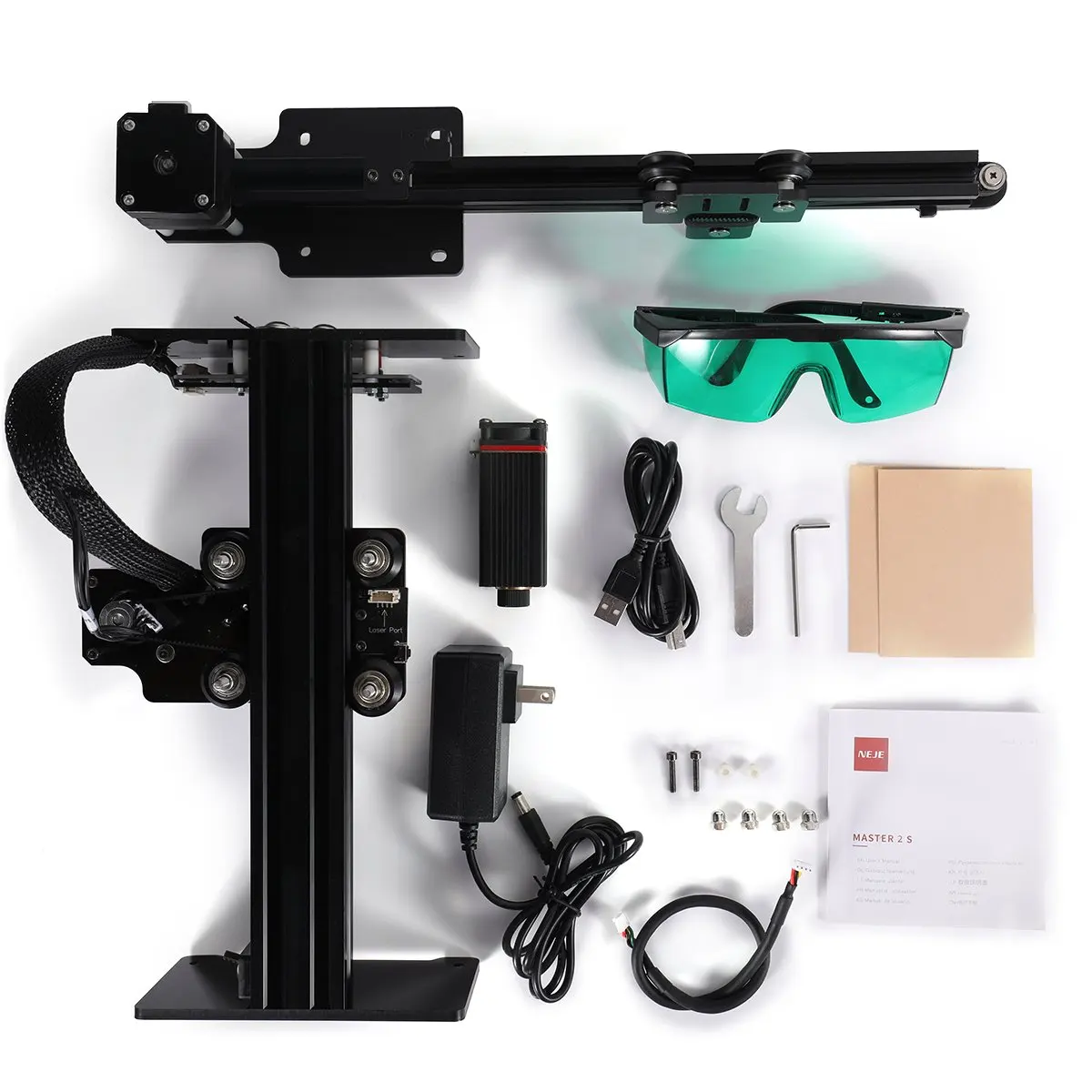

Packing List
You may need
Pay attention
Pay attention ,please
Note 1(Please pay attention):
1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
2. Do not engrave mirror objects，Pay attention to fire，Pay attention to pets when working！
3. Smoke will be generated when burned, please pay attention to smoke exhaust indoors.
4. The warranty period of laser module is one year. If you have any quality problem(Except individual situation like using the laser module more than 30 minutes per time and casue the damage ), please feel free to ask our customer service for a help.
5. If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module.
6. If you have any quality problem about the machine, please feel free to contact us. Many operative problem can be solved
according to your video and problem description. Thank you in advance.
Note 2:
1.When the machine is working, it is recommended not to look directly at the laser head, and not to operate the laser head directly by hand
2.Laser diode is a sensitive component, pay attention to prevent electrostatic damage (product includes electrostatic protection design, but there is a certain probability of damage)
3.The Laser Module warranty time is 1 yesr
4.The controller board warranty time is 3 yesr
5. that the manual and CD-ROM are not included, software download
