Automatic Bottle 4 Heads Liquid Filling Capping Machine
Automatic liquid bottle filling capping machine controlled by pneumatic and electric.Filling through the gear pump for getting high filling accuracy.
Mainly use in filling liquid products, like essential oil, makeup remover, mouthwash, spray liquid, toner etc.
Filling nozzles can be customized with 4 /6 /8 filling heads with anti-drop type, different size as your request.
Machine | Item | Description |
Filling Machine | Filling Type | Automatic Liquid Gear Pump Filling Machine |
Filling Heads | 4 Filling Nozzles | |
Filling volume | Depends on the filling time (customized) | |
Filling speed | 30-40BPM (adjustable) | |
Power supply | AC220V / 50Hz, single phase (customized as your request) | |
Driven Type | Servo motor/Pneumatic drive | |
PLC | Mitsubishi | |
Capping Machine | Capping Type | Automatic Cap Screwing Machine |
Applicable cap Diameter | 30-80mm(customized) | |
Production capacity | 30-40BPM | |
Power supply | AC220V / 50Hz, single phase (customized as your request) | |
Cap application | Screw cap, spray pump head etc | |
Bottle application | Round bottle, flat bottle, square bottle | |
Dimension | 2000X900X1600mm |

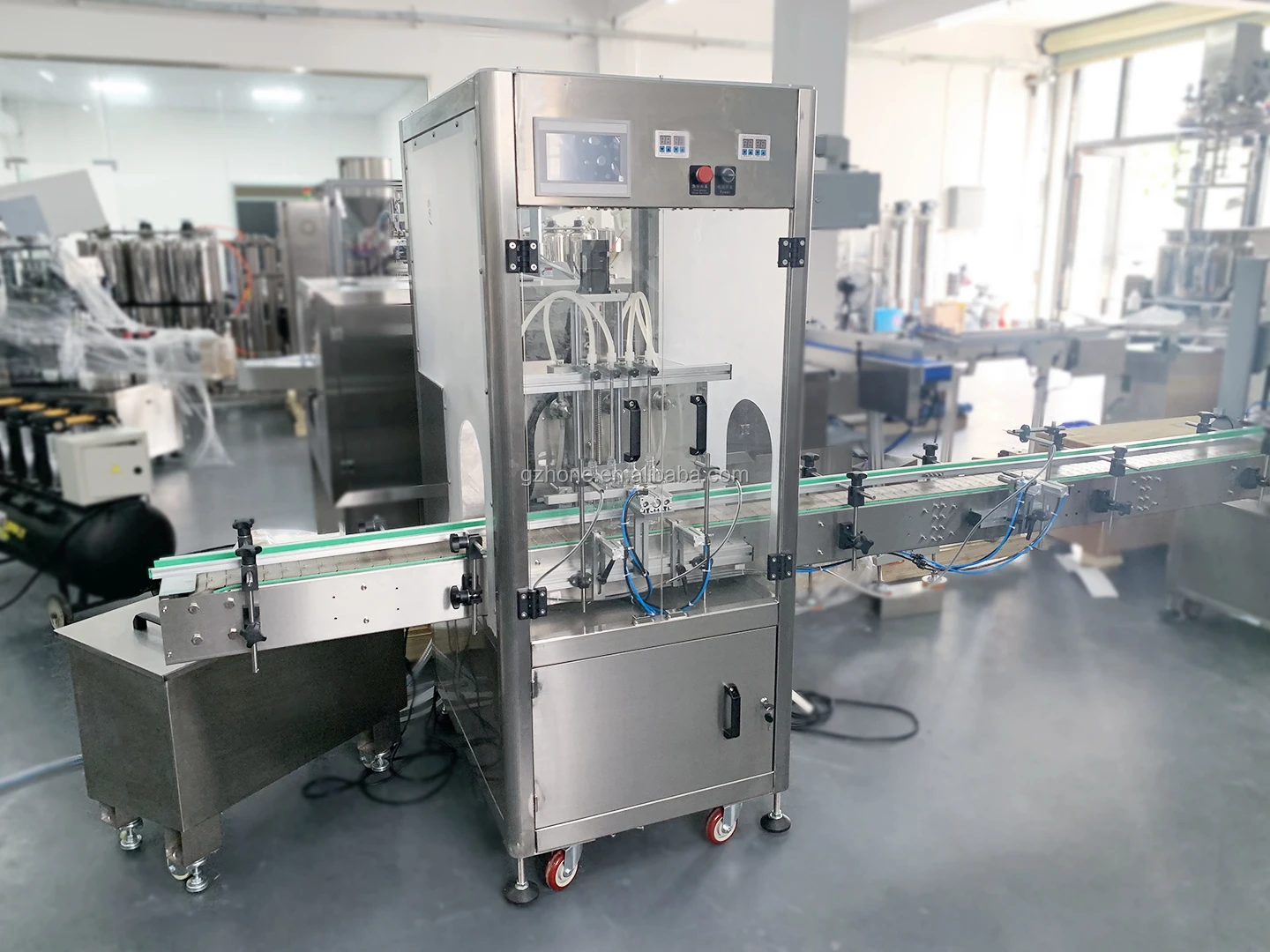

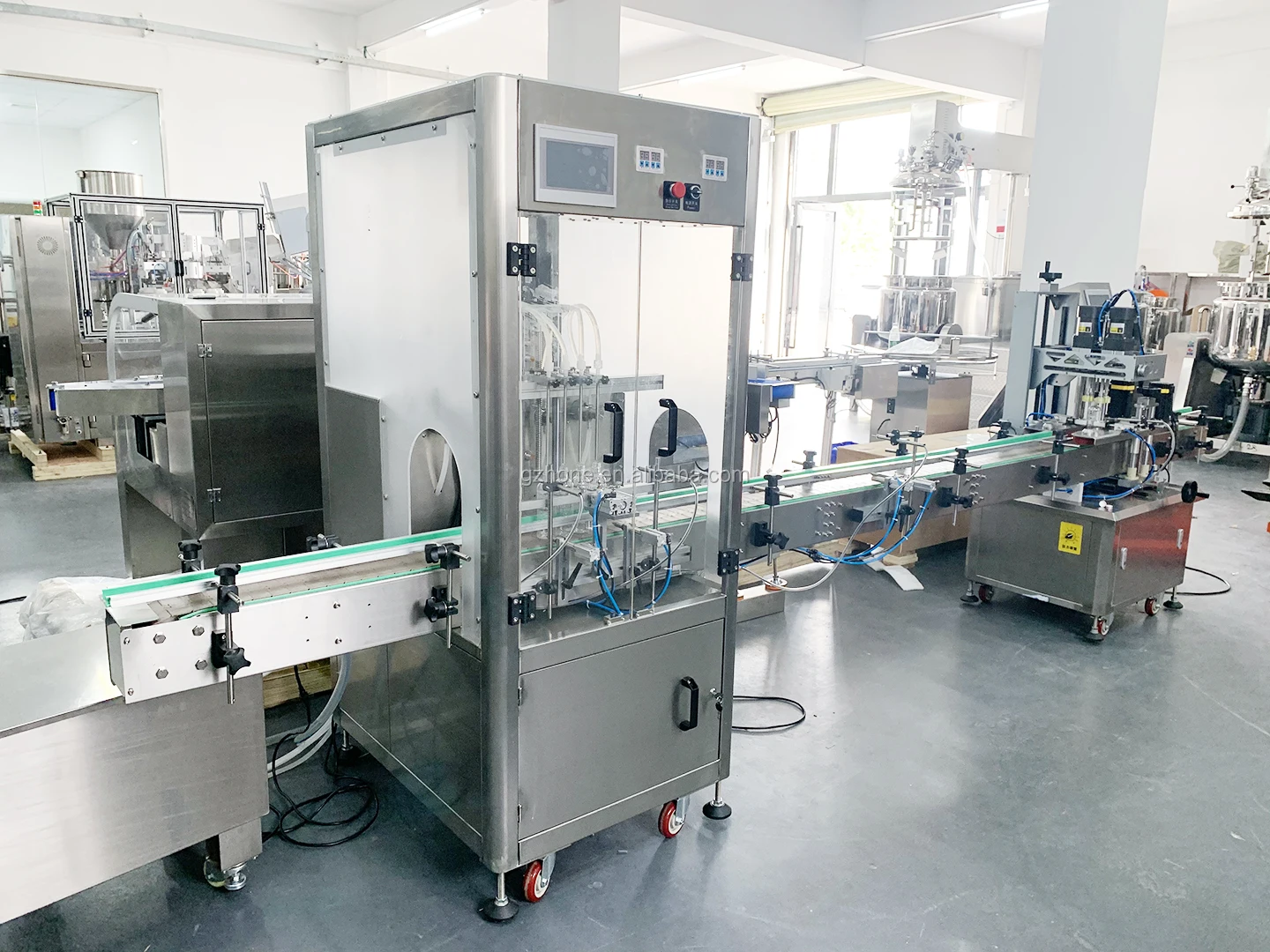

Automatic Liquid Filling Machine
PLC touch screen control & speed adjustment, easy operation
Design servo motor control filling lifting (pneumatic control optional)
4 heads filling with gear pump
Bottle positioning device for small bottles
Bottle splitting sensor device
Material storage tank for auto feeding

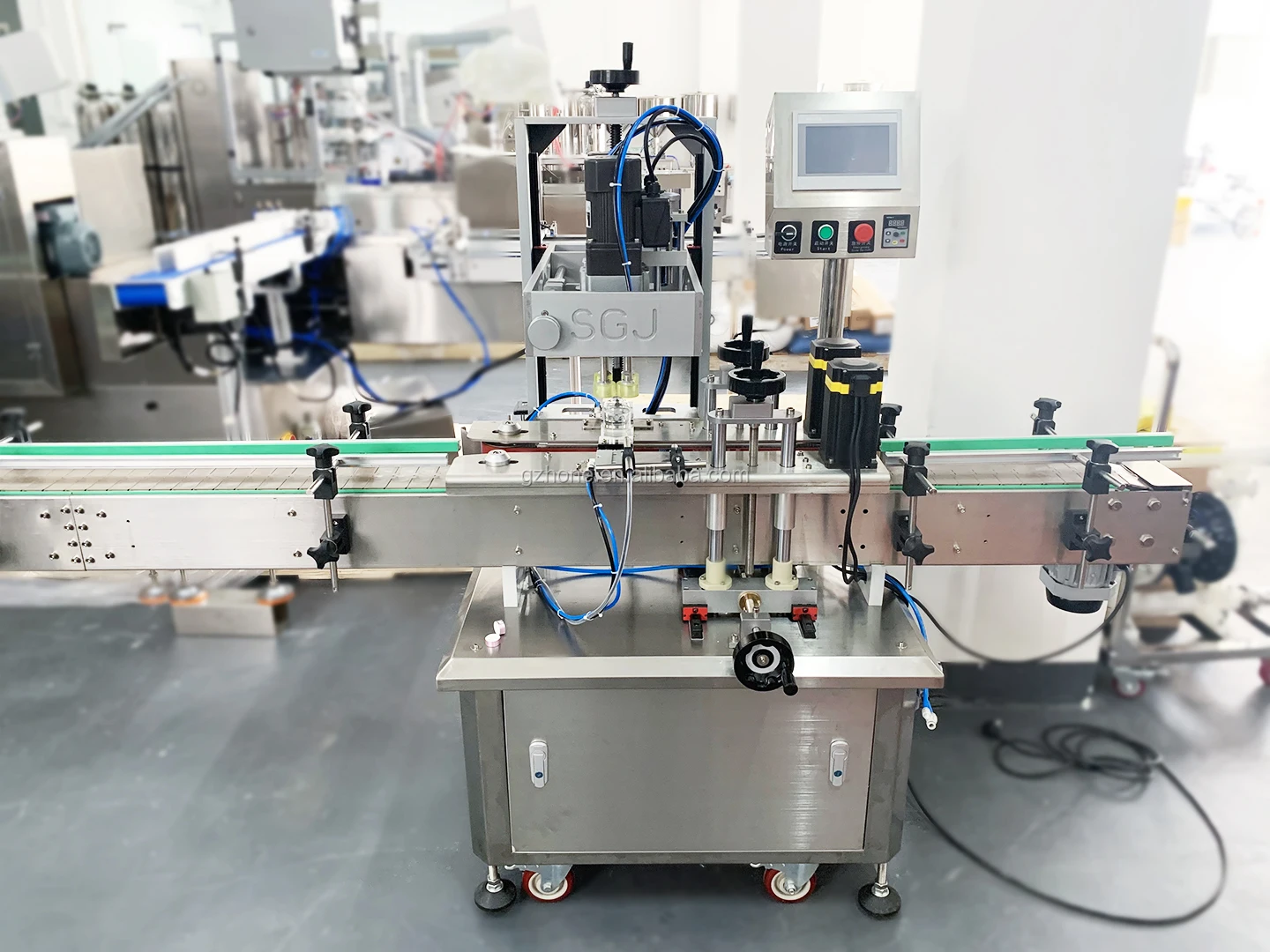

Automatic Cap Screwing Machine
PLC touch screen control
Adjustments for matching different bottles size
Cap screwing control by 4 wheels, bottle positioning device
Double motor control clipping transfer belt
