Product Description

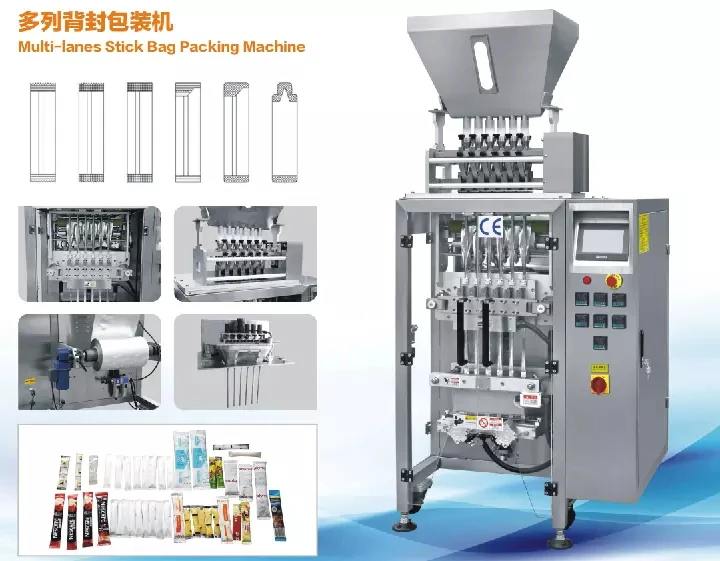

Multi-lane sauce sachet filling and packing machine
Technical characteristics:
1. PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
4. External film releasing mechanism: simpler and easier installation of packing film.
5. Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple .
6. Close down type mechanism , defending powder into inside of machine.
Type | JT-420-4K | JT-420-6K |
Bag length | 30-140mm(L) | 30-140mm(L) |
bag width | 10-50mm(W) | 10-50mm(W) |
max width of roll film | 440mm | 440MM |
packing speed | 30-50bag/min/lane | 30-50bag/min/lane |
air consumption | 0.65mpa | 0.65mpa |
gas consumption | 0.2m3/min | 0.2m3/min |
powder voltage | 220VAC/50HZ | 220VAC/50HZ |
powder | 2.0KW | 2.2KW |
demension | 1100MM(L)*990MM(W)*2100MM(H) | 1100MM(L)*990MM(W)*2100MM(H) |
weight | 400KG | 450KG |
Application

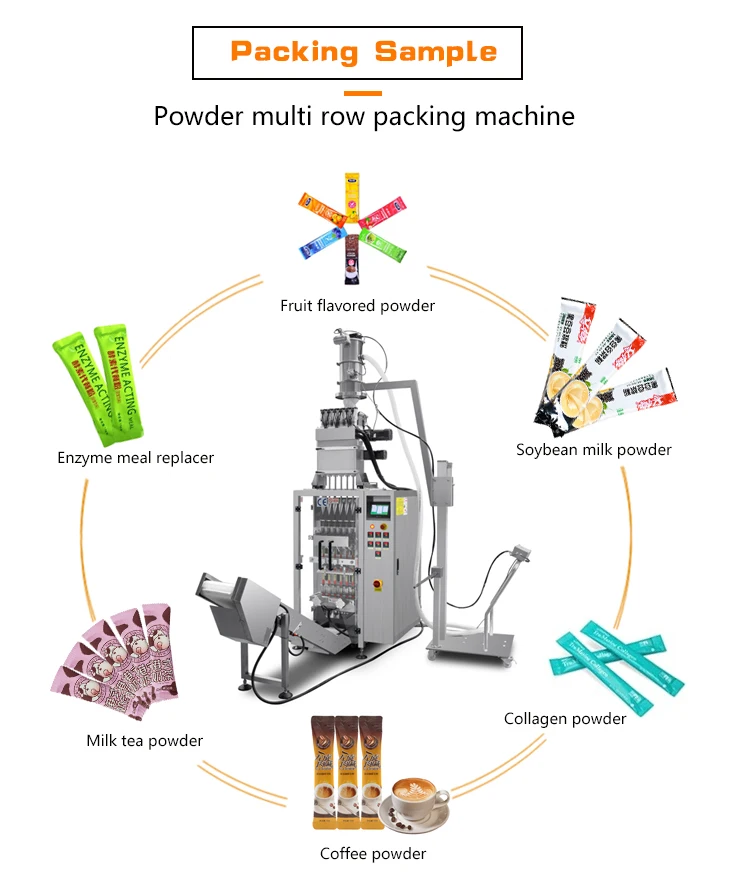

This machine is suitable for various kinds of materials like sugar, coffee granule, coffee powder, milk powder, and liquid, etc.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

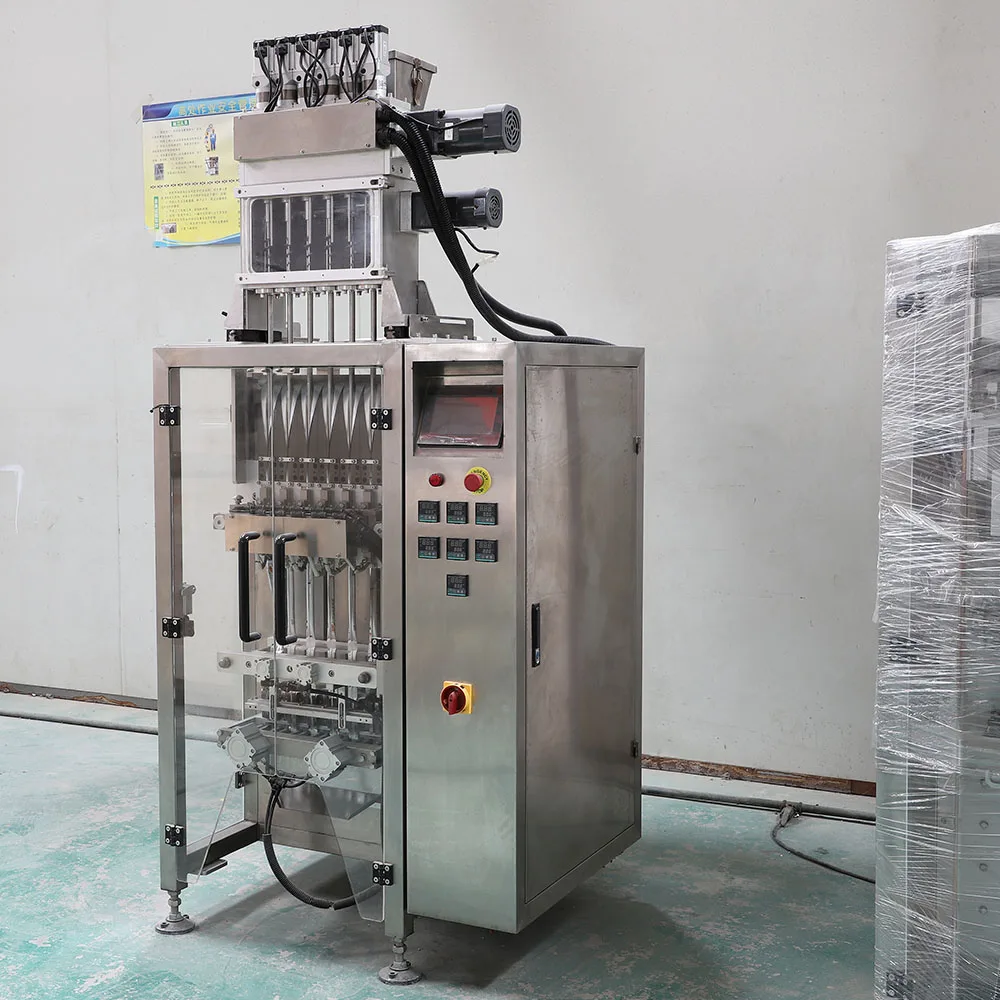

Details Images
Packaging details
1. Injection of powder to be packed
2. Transport plastic film
3. Print date
4. Bag making and powder filling
5. Complete packaging, cutting and conveying finished products
2. Transport plastic film
3. Print date
4. Bag making and powder filling
5. Complete packaging, cutting and conveying finished products
Operation demo
Our Company
Foshan Nanhai Jintian Packing Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in China,specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. quantitative packaging scales and supporting equipment.
JINTIAN has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time.
"JINTIAN" series vertical packaging machines are sold to more than 20 different countries and regions in Europe, America,the Middle East, South Asia, etc., and win a consistently high reputation because of high quality and quick professional service .
We are looking for exclusive agents in different countries for expanding sales channels. You are warmly welcome to contact us
We are looking for exclusive agents in different countries for expanding sales channels. You are warmly welcome to contact us
Client visiting
Certifications
Our Service
Pre-Sales Service
* we can customzie for your need
* DRAWING AND TECHNICAL SUPPORT
* Training in factory
After-Sales Service
*Field maintenance and repair service
Free spare parts
Field installation, commissioning and training Video Technical support Online support
Engineer oversea
FAQ
1. Can your machine meet our needs well?
We will give you the proposal according to your specific requirments.
Every machine is customized to meet your needs well.
2. Are you factory or trading company?
We are the factory, we doing this line for more than 10 years.
3. What's your payment way?
T/T by our bank account directly, or by alibaba trade assurance service, or by West Union, or in cash.
4. How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in the third party inspection organization .
5. We are afraid you won't send us the machine after we send you the money?
Please note our above business license and certificate. And if you don't trust us, then we can use alibaba trade assurance service or payment by LC, guarantee your money.
6. Why we should choose your company?
We are professtional in packing machines over 10 years, and we provide better after-sales service. You guarantee no risk for our deal.
Packing & Delivery
Packing detaisl | ||
Size | 1200*1300*1400 | |
weight | 1.2 T | |
Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
