Ртутный реторт дистиллятор для разделения ртути и
- Категории: >>>
- Поставщик: Jiangxi,Hengcheng,Mining,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Overview

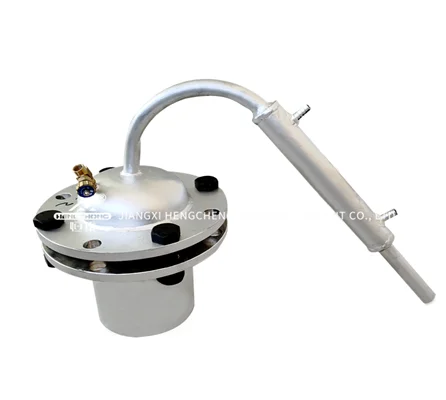

Mercury distiller
Product description:
Gold mercury distiller is widely used in small gold mining plant for evaporation the Hg from the Hg+ gold mixture, and refining the pure gold.Product working principle:
Due to mercury gasification temperature is below the melting point and boiling point of gold. We commonly used the method of distillation to separate the gold from amalgam mercury.
Due to mercury gasification temperature is below the melting point and boiling point of gold. We commonly used the method of distillation to separate the gold from amalgam mercury.
PRODUCT SPECIFICATIONS
Model | Diameter(mm) | Length(mm) | Capacity(kg) | Weight(kg) |
Cylindrical | 140-150 | 200 | 35-40 | 18 |
FEATURES AT A GLANCE
1, small size, easy to carry and transfer.
2, high distillation efficiency, simple operation.
3, compact design, unique water cooling device to ensure complete liquefaction of mercury.
4, even the three distillation tanks with special distillation device to avoid the distillation of residual mercury vapor after
the tank on the human body damage.
2, high distillation efficiency, simple operation.
3, compact design, unique water cooling device to ensure complete liquefaction of mercury.
4, even the three distillation tanks with special distillation device to avoid the distillation of residual mercury vapor after
the tank on the human body damage.
Middle elevation
Left elevation
Front elevation

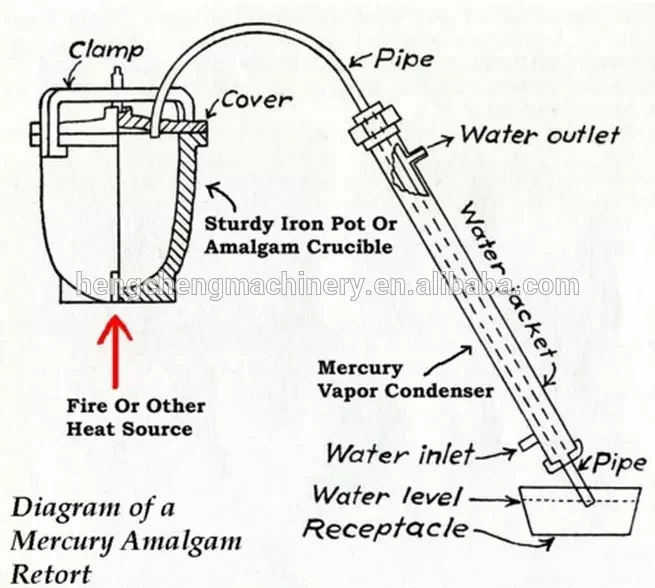

How to use this product?
1. Put the amalgam mercury with gold into the sealed mercury distill
There is a condenser tube connected with the top of the distiller.
2. Heat the distiller on the coke, gas or electric furnace
3. When the temperature reached 356°C, the amalgam will gasification, the mercury gas will run out through the iron tube
4. The gas mercury will become Spherical droplets after go through the condenser tube, and then you can recycle the mercury.
5. In order to separate the Hg completely, gold mining plant usually maintained the temperature on 400-450°C. And in the last 30
minutes, raised the temperature to 750-800°C.
6. Distill the mercury for around 5-6hours, the gold recovery rate can reach 99%.
There is a condenser tube connected with the top of the distiller.
2. Heat the distiller on the coke, gas or electric furnace
3. When the temperature reached 356°C, the amalgam will gasification, the mercury gas will run out through the iron tube
4. The gas mercury will become Spherical droplets after go through the condenser tube, and then you can recycle the mercury.
5. In order to separate the Hg completely, gold mining plant usually maintained the temperature on 400-450°C. And in the last 30
minutes, raised the temperature to 750-800°C.
6. Distill the mercury for around 5-6hours, the gold recovery rate can reach 99%.
Product advantage:
1. low price, fast pay back
2. small, very easy to carry and remove
3. high efficient, easy operation
4. Hg recycle use
2. small, very easy to carry and remove
3. high efficient, easy operation
4. Hg recycle use
FAQ
1. Q: Can I visit your factory?
A: Yes. Many domestic and overseas customers visited our factory every year.
2. Q: What about the warranty of your equipment? Do you supply spare parts?
A: Our warranty is one year(12 months), and we can supply spare parts also.
3. Q: Do you provide after-sales service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.
4. Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All
of our engineers have passport.
5. Q: Do you provide producution flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore,
tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
6. Q: Can you test our sample ore?
A: Yes. You can send your samples to us for testing and analysis.
7. Q: Have you made the whole ore dressing lines?
A: Yes. We have made many large&small scale ore dressing lines at home and abroad.
A: Yes. Many domestic and overseas customers visited our factory every year.
2. Q: What about the warranty of your equipment? Do you supply spare parts?
A: Our warranty is one year(12 months), and we can supply spare parts also.
3. Q: Do you provide after-sales service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.
4. Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All
of our engineers have passport.
5. Q: Do you provide producution flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore,
tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
6. Q: Can you test our sample ore?
A: Yes. You can send your samples to us for testing and analysis.
7. Q: Have you made the whole ore dressing lines?
A: Yes. We have made many large&small scale ore dressing lines at home and abroad.
