Самосвал Для горных работ 40 тонн новый дизельный самосвал с шарнирным соединением
- Категории: >>>
- Поставщик: Qingzhou,Changhui,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Mining Dumper 40 ton new Diesel Articulated Dump Truck for Mining Price
HIGH RELIABILITY
They are matched through Weichai Power’s five-axis powertrain test bench which is the only one in China. The whole vehicle has passed thousands of tests which enhance the power, reliability and safety to be optimized while the high-intensity operation in harsh conditions.
HIGH LOADING CAPACITY
Computer-aided finite element analysis, the overall welding rectangular frame, loading capacity and impact resistance is stronger. In usual earthwork condi-
tions, compared with similar models, cargo loading capacity is 20% higher.
LOW USE COST
According to the specific working conditions, design and choose the suitable products and provide reasonable and scientific product use scheme, to enable the fuel consumption maintenance rate, maintenance costs and operating costs lower than those of the same type, and the effectiveness is maximized.
| Mining dump trucks | |||
| Vehicle parameters | 95Ton | ||
| Model | SK95-C1 | SK95A-C1 | |
| Total mass(kg) | 95000 | 95000 | |
| Curb weight(kg) | 32000 | 32000 | |
| Load capacity(kg) | 63000 | 63000 | |
| Length x Widthx Height(mm) | 9300×3650×4380 | 9300×3650×4380 | |
| Drive type | 6×4 | 6×4 | |
| Case volume(m3)(SAE2:1) | 35/44 | 35/44 | |
| Axle distance(mm) | 3885+1780 | 3885+1780 | |
| Wheelbase(mm) | 2610(Front2712) | 2610(Front2712) | |
| Max-speed(km/h) | 45 | 45 | |
| Gradeability(%) | 30 | 30 | |
| Min turning diameter(m) | 24 | 24 | |
| Ground clearance(mm) | 400 | 400 | |
| Engine | Model | WP12G460E310(III) | WP12G460E310(III) |
| Power/Speed(kW r/min) | 338/2100 | 338/2100 | |
| Torque/Speed(N*m /rpm) | 2000/(1200-1600) | 2000/(1200-1600) | |
| Gearbox | Model | 8DS240A | FC6A210 |
| CAB | Type | Single side left, semi-floating, forward 46° | Single side left, semi-floating, forward 46° |
| Damping seat | Adjustable up and down, front and rear, adjustable backrest angle | Adjustable up and down, front and rear, adjustable backrest angle | |
| Frame | Frame | High-strength steel flexible frame (12+12+8) | High-strength steel flexible frame (12+12+8) |
| Wheel | Tyre model | 16.00-25 | 16.00-25 |
| Rim model | 11.25-25 | 11.25-25 | |
| Other | Optional device | Optional steel tire, aluminum alloy fuel tank, hydraulic retarder, dual-chamber fuel tank, blowback air conditioner, oil filter, floor heating, full hydraulic steering, spray device | |

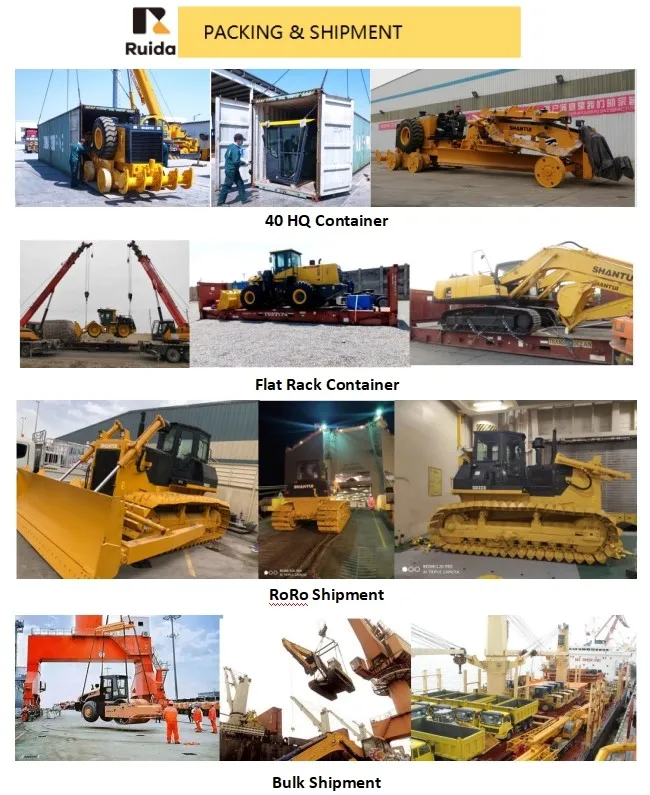

Packaging & Shipping
Our Services
FAQ
