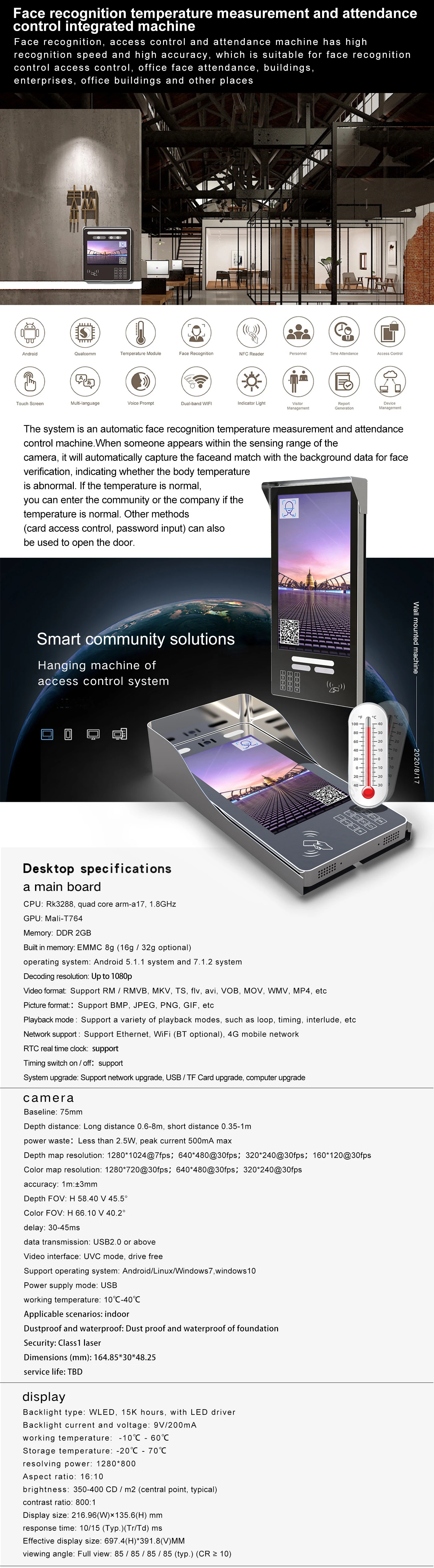

Настенный инфракрасный интеллектуальный контроль все в одном аппарат для контроля доступа с камерой распознавания

Appearance parameters

Appearance material

Aluminum shell, sheet metal wall hanging

physical dimension

292*256*40mm

Shell craft

Sandblasting oxidation high gloss process

Shell color

Silver/black/white

Tempered glass

High transparent display tempered glass

Wall mount size

190*220MM

Display parameters

Backlight type

WLED, 15K hours, with LED driver

Backlight current and voltage

9V/200mA

Operating temperature

-10℃-60℃

Storage temperature

-20℃-70℃

Resolution

1280*800

Aspect ratio

16:10

brightness

350-400cd/m2 (center point, typical)

Contrast

800:1

Display size

216.96(W)×135.6(H) mm

Response time

10/15 (Typ.)(Tr/Td) ms

Effective display size

697.4(H)*391.8(V)MM

Viewing angle

Full viewing angle: 85/85/85/85 (Typ.) (CR≥10)

Touch screen parameters

(Optional, the price does not include touch)

Principle of Identification

Capacitance recognition

Multi-touch

10-point touch

Anti-light interference

The screen can be used normally under light and various angles

Notation

Conductor contact operation by hand or stylus

Touch accuracy

<2.5mm

communication method

USB/I2C

Surface hardness of writing screen

>=6H

responding speed

<3ms

Touch life

Withstand more than 5000W touches

Camera parameters

(3D structured light)

Baseline

75mm

Depth distance

Long distance 0.6-8m, short distance 0.35-1m

Power consumption

Less than 2.5w, peak current 500ma Max

Depth map resolution

1280*1024@7fps; 640*480@30fps; 320*240@30fps; 160*120@30fps

Color image resolution

1280*720@30fps; 640*480@30fps; 320*240@30fps;

Precision

1m: ±3mm

Depth FOV

H 58.40 V 45.5°

Color FOV

H 66.10 V 40.2°

delay

30-45ms

data transmission

USB2.0 or above

Video interface

UVC mode, drive-free

Support operating system

Android/Linux/Windows7,windows10

Power supply

USB

Operating temperature

10℃-40℃

Applicable scene

indoor

Dustproof and waterproof

Basic dust and waterproof

safety

Class1 laser

Dimensions (mm)

164.85*30*48.25

Service life

TBD

Packaging Information

Bare metal size

292*256*40mm

Bare metal weight

2.5KG

Color box size

365*335*156mm

Carton size

365*335*156mm

net weight

2.5KG

Gross weight

6KG
