Concrete Batching Plant
Мобильный бетонный завод Product винтовой воздушный компрессор

Мобильный бетонный завод Product винтовой воздушный компрессор

Категории: Concrete Batching Plant >>>
Поставщик: Oriemac,Machinery,&,Equipment,(Shanghai),Co.,Ltd.

Цена:1 580 000,00 $ - 1 620 000,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

Reusability

The container type external decorations achieve high reusability.

Metering by coarse and fine scales

The metering by coarse and fine scales achieves high and stable metering accuracy and meets the high-speed railway construction requirements.

High productivity

The high-efficiency mixer is applied to achieve high productivity and can be matched with multiple feeding processes and technologies to adapt to diversified concrete mixing needs.

Flexible layout

The modular design features easy disassembling and assembling, rapid site transfer, and flexible site layout.

Comparative item	SjHZS090-3R	SjHZS120-3R	SjHZS180-3R	SjHZS240-3R	SjHZS270-3R
Theoretical productivity (m³/h)	90	120	180	240	270
Mixer parameter
Model	SjJS1500-3B	SjJS2000-3B	SjJS3000-3B	SjJS4000-3B	SjJS4500-3B
Drive power (Kw)	2X30	2X37	2X55	2X75	2X75
Discharge capacity (L)	1500	2000	3000	4000	4500
Maximum aggregate size (gravel/pebble) mm	≤60/80	≤60/80	≤60/80	≤60/80	≤60/80
Material bin
Bin capacity (m³)	4X12	4X20	4X20	4X30	4X30
Winch motor power(Kw)	300	400	600	800	800
Weighing range and metering accuracy
Aggregate (kg)	4X(1500±2%)	4X(2000±2%)	4X(3000±2%)	4X(4000±2%)	4X(4500±2%)
Cement (kg)	800±1%	1000±1%	1500±1%	2000±1%	2500±1%
Coal ash (kg)	200±1%	400±1%	600±1%	800±1%	900±1%
Mineral powder (kg)	200±1%	300±1%	400±1%	500±1%	600±1%
Water (kg)	300±1%	400±1%	600±1%	800±1%	900±1%
Additive(kg)	30±1%	40±1%	60±1%	80±1%	90±1%
Dumping height(m)	4.2	4.2	4.2	4.2	4.2
Gross power (Kw)	150	200	250	300	300

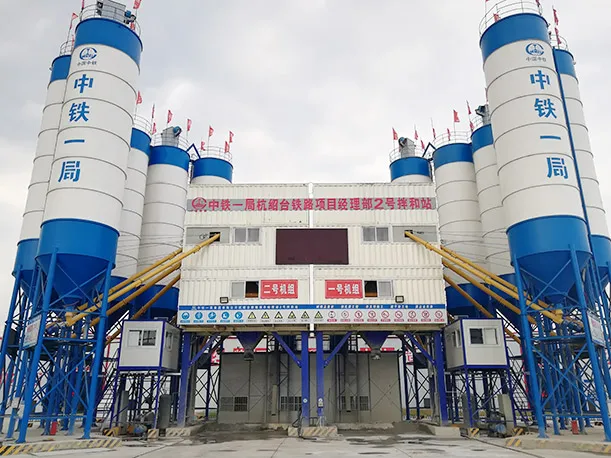

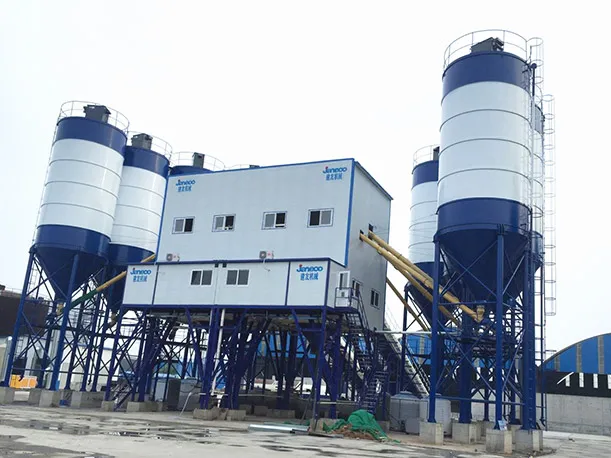

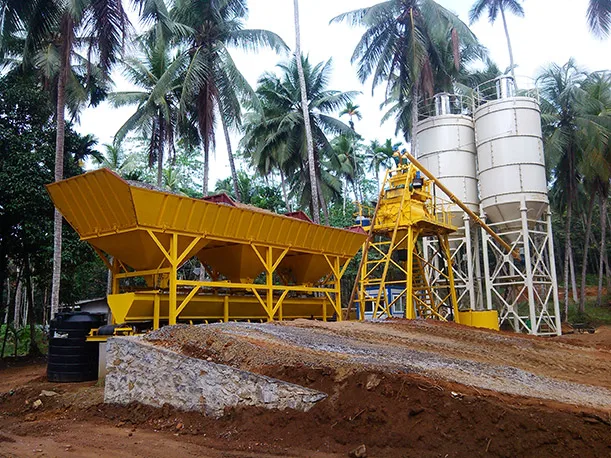

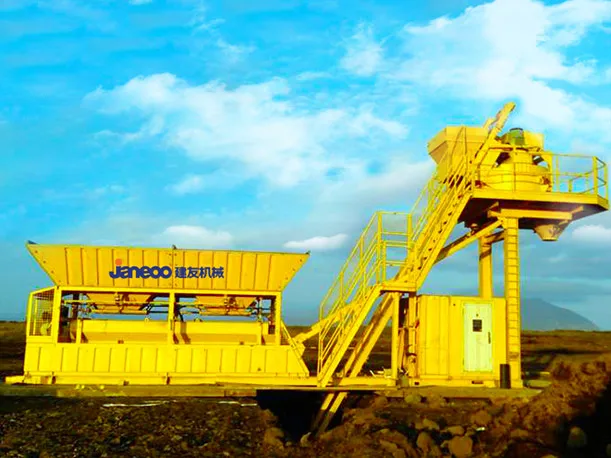

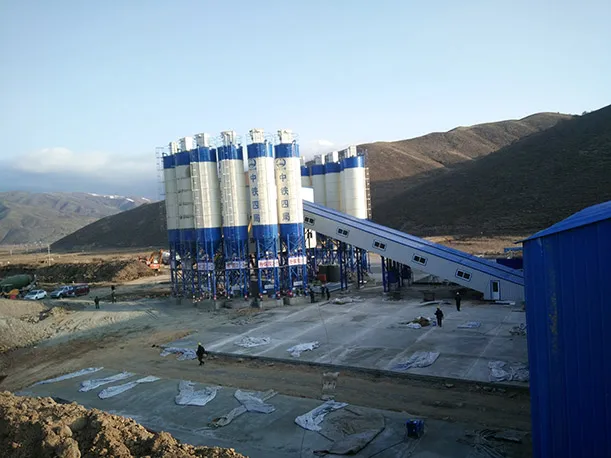

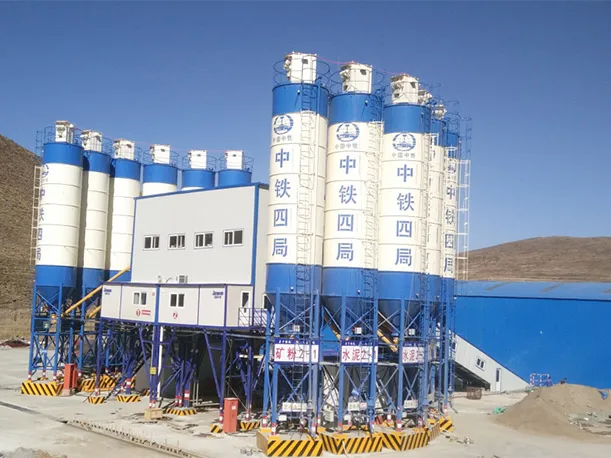

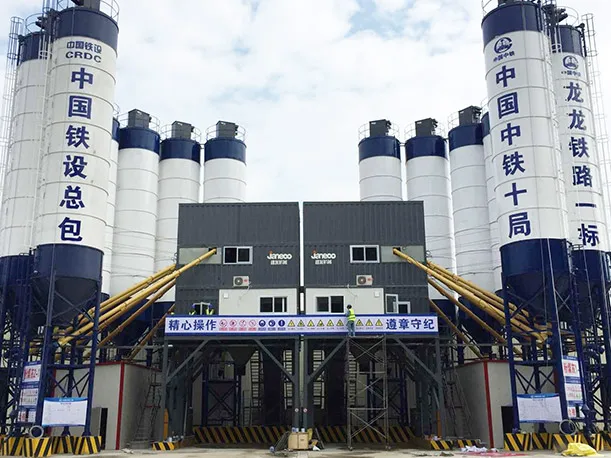

Shantui mixing plant (1).jpg Shantui mixing plant (2).jpg Shantui mixing plant (3).jpg Shantui mixing plant (4).jpg Shantui mixing plant (11).jpg shantui plant (1).jpg shantui plant (2).jpg
