L-Vision LV1982D 8 Inch Attendance Access Control System IR Thermal Image Scanning Camera Device Facial Recognition Kiosk
Features
8-inch IPS full-view LCD display.
Industrial-class appearance, waterproof and dustproof design which is stable and reliable.
Supports 30,000 face database. The 1: 1 comparison recognition rate is more than 99.7%, the 1: N
comparison recognition rate is more than 96.7%@0.1% misrecognition rate, and the live detection accuracy rate is
98.3%@1% rejection rate. Face recognition pass speed is less than 1 second.
Supports accurate face recognition and comparison while wearing a mask.

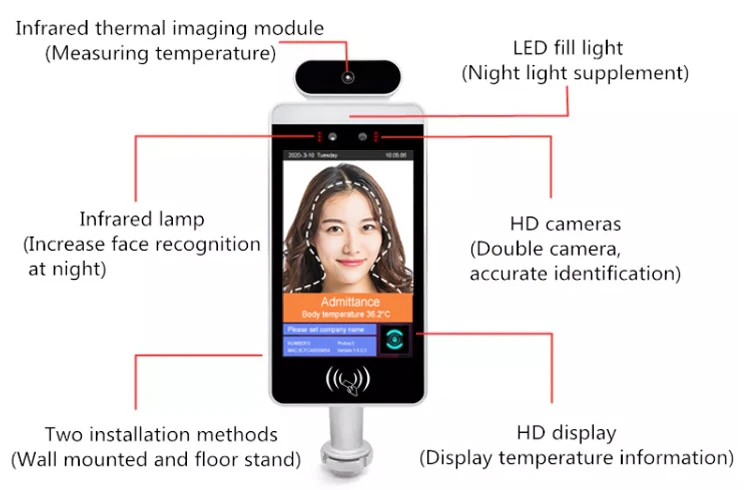

Using the industrial-grade binocular wide dynamic camera, night infrared, and LED dual photoflood lamp.
Support processors with strong performance: Rockchip RK3288 quad-core processor, Rockchip RK3399
six-core processor and Qualcomm MSM8953 octa-core processor.
Supports human body temperature detection and temperature display. The best temperature
detection distance is 0.5 meters. The longest distance at which body temperature can be measured is 1 meter.
The measurement error is plus or minus 0.2 ℃.
It only takes a few seconds for detection and supports automatic alarm for body temperature abnormality.
Attendance temperature measurement data is exported in real-time.
Supports various peripheral expansions such as ID card reader, fingerprint reader, IC card reader, QR code reader, etc.
The documentation is complete and supports secondary development.
Support system level, APP offline level, APP + background network-level multiple API docking.
Product Description
www.facescanner.cn

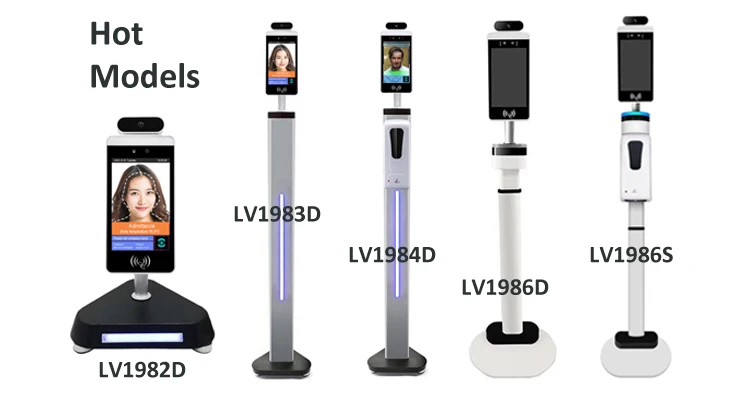

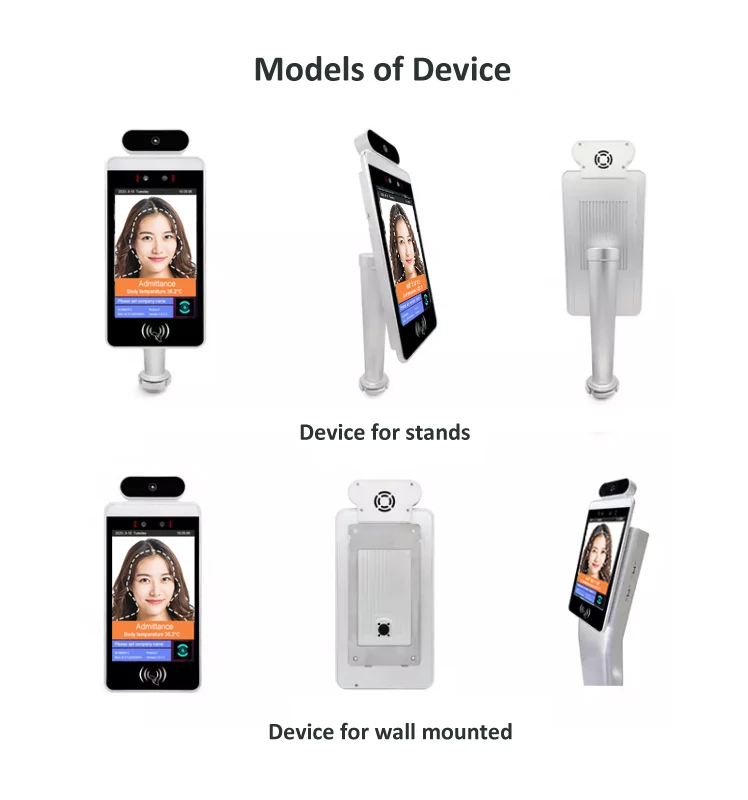

* LV1981D-----Device without stand, wallmounted device, simple desktop model Optional
* LV1982D-----Desktop moodel with led strips
* LV1983D-----Device with 43 inch floor stand
* LV1984D-----LV1983 add automatic hand sanitizer dispenser
* LV1985D-----Device with bent stands
* LV1986D-----Device with collapsible stands 22inch~43inch adjustable
| L-Vision facial recognition therometer smart device Parameters | ||||
| Camera | Size | 8.0 inch IPS LCD screen | Aperture | F2.4 |
| Camera Type | Binocular wide dynamic camera | Resolution | 2 million pixels | |
| Focusing distance | 50~150cm | White balance | auto | |
| Photo flood light | LED and IR dual photo flood light | |||
| Screen | Touch | Not supported (optional support) | Resolution | 800×1280 |
| Processor | CPU | RK3288 quad-core | Storage | EMMC 8G |

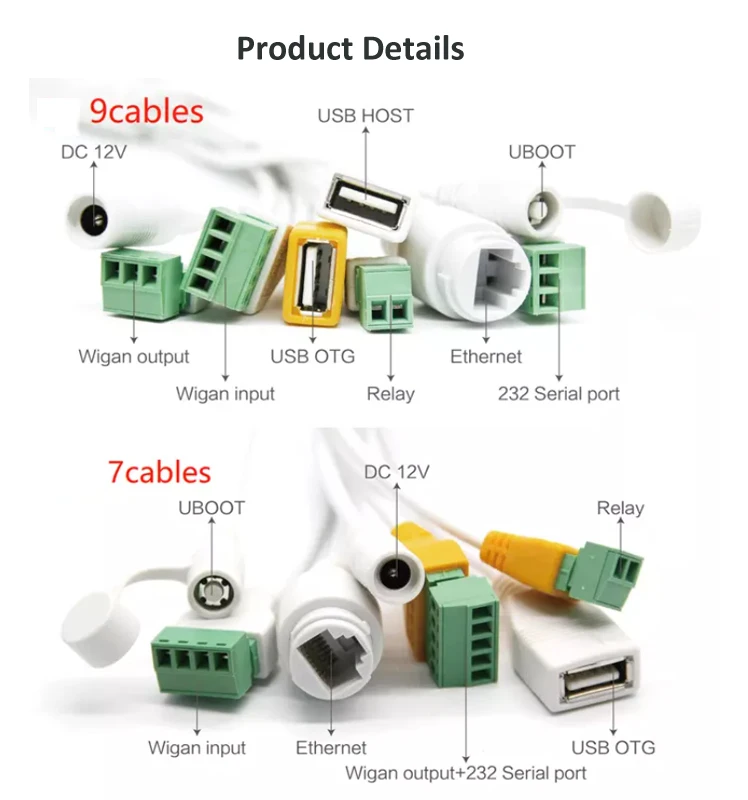

| Interface | Network module | Ethernet and wireless (WIFI) | Audio | 2.5W / 4R speakers |
| USB | 1 USB OTG, 1 USB standard port | Serial communication | 1 RS232 serial port | |
| Wiegand | Wiegand 26/34 output and input | Relay output | 1 open door signal output | |
| Upgrade button | Support Uboot upgrade button | Wired network | 1 RJ45 Ethernet socket | |
| Function | Credit card reader | IC card reader, optional QR card | Faces storge | Up to 30,000 |
| Identify distance configuration | Support | 1: N face recognition | Support | |
| UI interface configuration | Support | 1: 1 face comparison | Support | |
| Upgrade remotely | Support | Stranger detection | Support | |
| Face Detection | Supports detection and tracking of multiple people at the same time | |||

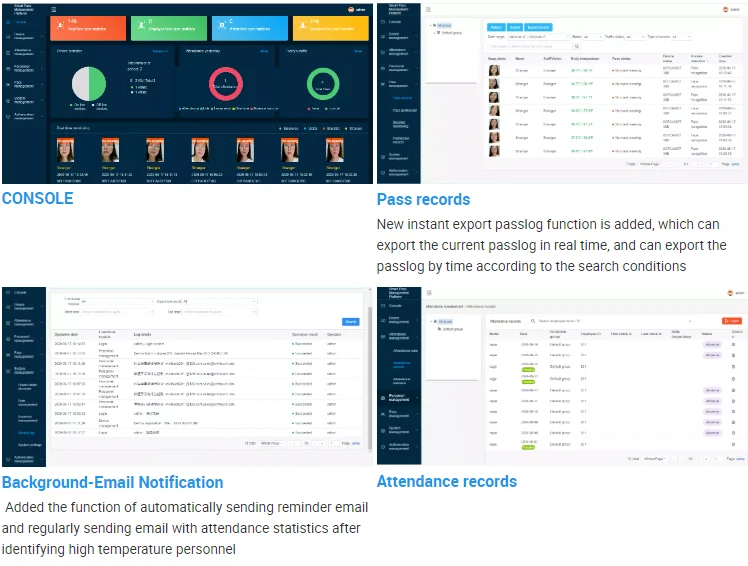

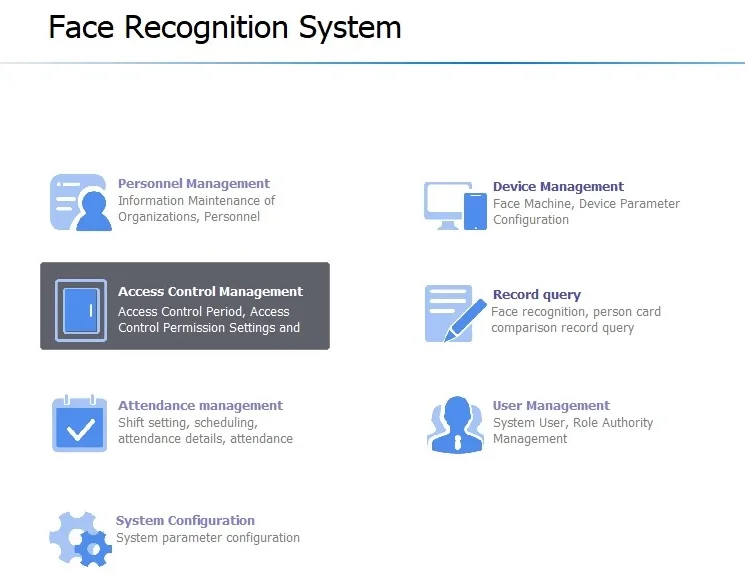

| Interface | Interfaces include device management, personnel / photo management, record query, etc. | |||
| Deployment method | Support public cloud deployment, privatized deployment, LAN use, stand-alone use | |||
| Infrared thermal imaging module | Temperature detection distance | 1 meter (optimal distance 0.5 meter) | Temperature detection | Support |
| Temperature measurement range | 10℃~42℃ | Temperature accuracy | ≤ ±0.2℃ | |
| Visitors' temperature directly | Support normal and released | Thermal View Area | 32 X 32 | |
| Abnormal temperature alarm | Support (temperature alarm value can be set) | |||
| General parameters | Power | DC12V(±10%) | Storage temperature | -20℃ ~60℃ |
| Operating temperature | 0℃~60℃ | Power consumption | 13.5W(Max) | |
| Installation method | Gate bracket installation | Floor stand | Desktop | |
| Standard Size:274.24*128*21.48(mm) IC card / ID card:296.18*132.88*25(mm) | ||||
| Machine * 1, power adapter * 1, manual * 1, certificate of conformity * 1 | ||||
Our Services
1. Warranty: 18 Month.
2. After-sales Service:
For the user questions or machine fault,we will arrange engineer provide remote-control technical support and maintenance services for you at any time.
4. After-sales Service Team:
L-Vision after-sales service center is equipped with a professional technical service team with abundant experience in maintenance and support.
3. Product Quality Assurance:
L-Vision products had gone through authoritative evaluation, approves CE, RoHS certification, and strict test before shipment.
5. Special statement:
L-Vision provides 18 month warranty for free.
Validity starts from the device deliver and the signature acceptance, all man-made damage, accidental damage and malfunction caused by illegal operation are out of warranty. Beyond the equipment warranty period, L-Vision provide equipment maintenance paid service, and charge for components and parts at our discretion with free maintenance . Within Warranty period, users will be provided with various timely response and support 24 hours all day-hotline service
Company Information
Packaging & Shipping
L-Vision use international inspection wooden case, safe and solid package, suitable for export.
Safe Package High quality packaging to avoid collision
FAQ
Q:What does the local version mean? If the customer needs to check the data on the background server after measuring the body temperature on an 8-inch machine, does this refer to the online version? Can the customer's requirements be fulfilled?
A:The local machine board is that the information is not connected to the server, only the data is saved inside the machine. data can be uploaded and copied via U disk.
We can help you to built a cloud platform with your server.
Q:Is our current software can only support attendance system?
A: Support the measurement of attendance and temperature measurement data. Company personnel need to input data in advance to carry out comparative measurement. Or a stranger who opens the gate. You don't have to enter data.
Q:Do other functions require secondary development?
A: other functions need to be feasibility analysis before they can be secondary development.
Q:Are the two software functions of face recognition and temperature measurement separated?
A: Face recognition and body temperature measurement software are integrated, and the stranger mode will not be diagnosed by the diagnosis personal.
Q:How can face recognition recognize strangers? Do you want to enter the data comparison first?
A: The identification of strangers is a comparison of data, and the conclusion obtained by comparing with the data entered in the system. Data entry is required first.
Q:Where is the attendance data of the attendance software stored? Is it okay for a customer to store data on his own server?
A: It is stored in the Android device, and customers also can download and copy it from the computer. LAN server versions with Cloud data function also ok.
Q:When is the software for LAN version and cloud platform expected to come out? Is it possible for customers to update the stand-alone version after they come out?
A: The LAN version is already being tested and adjusted, and the back-end server language is also increasing in English. After coming out, only need to replace the terminal APK, you can achieve the LAN mode. This is not affected.

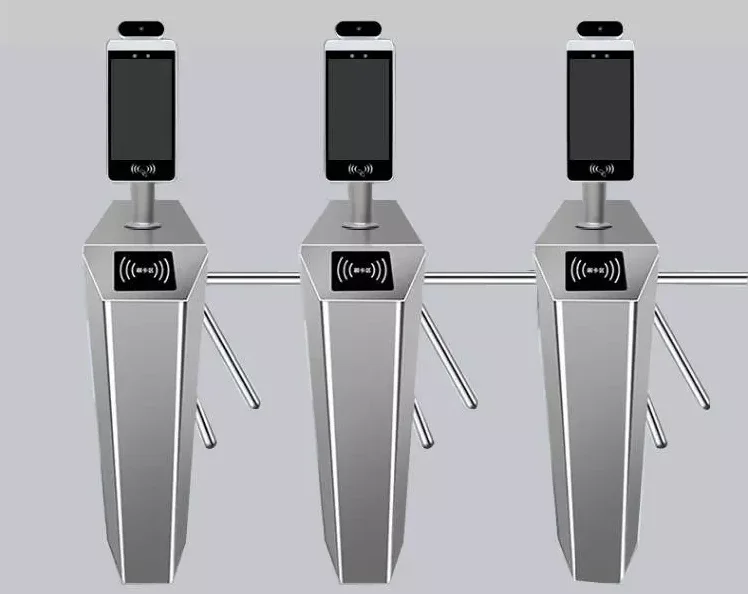

Q:If the customer is using a complete set of gate access control system, how is it connected to our machine? What do customers need to provide?
A: The gate access control system, we have a relay signal to the gate to achieve access control. If it is a customer's gate, connect the relay signal on our access control machine to control the gate switch. Turn on when power is on, and turn off when power is off.
Q:What is the general error of the measured temperature data?
A:The general error of body temperature data is within ± 0.2℃
Q:Does it support outdoor models?
Temporarily does not support outdoor models, mainly because the temperature measurement module is a sensitive component, and the accuracy of temperature measurement can be affected in outdoor direct sunlight and high temperature and high heat environments. It can only be a semi-outdoor model.
Q:Increasing the background check of the pass identification and comparison of pass records; increase the local face database to increase the ID display; increase the local company name setting; are these three functions for the attendance system?
A: Yes, improve the interface settings, the function of Local Lan mode.
