Product Description
Rough abrassive processing line of raisins
Rough abrassive processing line of raisin
Production Process flow : Remove the stalk--Gravity separator(remove the impurity)- Gravity Destoner (remove the stone)- Raisin grading machine (vibrating sorting)-color sort(Laser sorting equipment).
This equipment can process the raisin abrasively .
1. Raisin roughing production line Production capacity: 3000kg/hour.
2 Technical indicators: Instigation rate >95% ,Dust removal rate >98%,Removal rate >96%
Stone removal rate >92% (stone seed diameter 2.5mm or more) Specific gravity selectivity >90%
3. Classification: large, medium, small, special small four, (mesh size according to user requirements)
4 In the complete equipment, the specific gravity machine and the stone screen surface are made of stainless steel, and the rest
are made of high quality ordinary carbon steel.
Production Process flow : Remove the stalk--Gravity separator(remove the impurity)- Gravity Destoner (remove the stone)- Raisin grading machine (vibrating sorting)-color sort(Laser sorting equipment).
This equipment can process the raisin abrasively .
1. Raisin roughing production line Production capacity: 3000kg/hour.
2 Technical indicators: Instigation rate >95% ,Dust removal rate >98%,Removal rate >96%
Stone removal rate >92% (stone seed diameter 2.5mm or more) Specific gravity selectivity >90%
3. Classification: large, medium, small, special small four, (mesh size according to user requirements)
4 In the complete equipment, the specific gravity machine and the stone screen surface are made of stainless steel, and the rest
are made of high quality ordinary carbon steel.
Fine processing line of raisin
Production Process :Bubble washing -flushing washing cleaning-dehydrate-Glazing-drying-X-ray detection--Hot air drying -Rapid cooling-Automatic weighing and packing-wrapping . This line can process the raisin finely.
Specification
No. | Description | Specification | Qty/set | |
1 | Vibration feeder | 2400*1000*1250mm | 1 | Rough abrassive processing line of raisins |
2 | Elevator | 3000*600*2200mm | 1 | |
3 | Raisins stem removing machine | 4000*1600*2050mm | 1 | |
4 | Elevator | 2500*600*1650mm | 1 | |
5 | Gravity separator | 4000*2000*1500mm | 1 | |
6 | Elevator | 2500*600*1450mm | 1 | |
7 | Gravity stone-removing machine | 4000*3000*1250mm | 1 | |
8 | Elevator | 2500*600*1350mm | 1 | |
9 | Raisin grading machine | 3000*1100*1150mm | 1 | |
10 | Elevator | 2500*600*1350mm | 1 | Raisins fine processing line and packing system |
11 | Vibration feeder | 2400*1000*1250mm | 1 | |
12 | Washing Platform unit | 7500*2400*3800mm | 1 | |
13 | Bubble washing machine with the platform | 3500*1200*1200mm | 1 | |
14 | Water flushing washing machine | 2100*1000*1360mm | 1 | |
15 | High pressure water spraying washing machine | 2000*1200*1100mm | 1 | |
16 | Elevator | 2500*1000*1800mm | 1 | |
17 | Double Cylinder Centrifugal Dehydrator | 2800*1600*1700mm | 1 | |
18 | Lower Hoist | 4000*800*1500mm | 1 | |
19 | Elevator feeder | 4500*1600*3000mm | 1 | |
20 | 5-layer Hot air Drying machine | 12000*3000*3200mm | 1 | |
21 | Air cooling machine | 6000*1600*1300mm | 1 | |
22 | Packaging machine | / | 1 | |
23 | Electricity Distribution Controller | 1000*500*1500mm | 2 |
Details Images
1. Raisins stem removing machine
Function :remove the stems from raisins, clean and remove the dust.
Features: through mechanical principle, raisins with stalks are separated and then screened.
Technical parameters:
dimension:4000*1600*2050mm
Power: 3kw / 380V / 50Hz
Features: through mechanical principle, raisins with stalks are separated and then screened.
Technical parameters:
dimension:4000*1600*2050mm
Power: 3kw / 380V / 50Hz
2. Specific gravity separator
Function :can separate all types of impurities from all types of raisins using the specific gravity principle
Features: big capacity ,good processing effect, easy maintenance, easy cleaning, no rust.
Technical parameter:
Size :3000*2000*1500mm
Power :4kw/380v/50HZ
Features: big capacity ,good processing effect, easy maintenance, easy cleaning, no rust.
Technical parameter:
Size :3000*2000*1500mm
Power :4kw/380v/50HZ
3.Gravity stone-removing machine
Function :separate the heavier impurities(stone, mud blocks and cement blocks)from raisins. and it also blow off the dust and light impurities.
Features: big capacity ,good processing effect, easy maintenance, easy cleaning, no rust.
Technical parameter:
Size :3000*3000*1450mm
Power :4kw/380v/50HZ
Features: big capacity ,good processing effect, easy maintenance, easy cleaning, no rust.
Technical parameter:
Size :3000*3000*1450mm
Power :4kw/380v/50HZ
4.Vibrating grading machine
Function :multilayered screen to separate different sizes of raisins into four grades(big,medium,small and super small 3 grades
Features: The machine is made of food grade stainless steel, easy maintenance, easy cleaning, no rust.
Technical parameter:
Size :3000*1100*1150mm
Power :3kw/380v/50HZ
Texture:50*50*2mm304stainless steel tube
Motor :frequency variable motor
Features: The machine is made of food grade stainless steel, easy maintenance, easy cleaning, no rust.
Technical parameter:
Size :3000*1100*1150mm
Power :3kw/380v/50HZ
Texture:50*50*2mm304stainless steel tube
Motor :frequency variable motor
5.Color sorter
Function : Automatic sorting of heterochromatic particles from granular materials by photoelectric detection technology.
Features: High precision, large output and good separation effect
Technical parameter:
Size :3000*1500*2600mm
Power :3kw/380v/50HZ
Features: High precision, large output and good separation effect
Technical parameter:
Size :3000*1500*2600mm
Power :3kw/380v/50HZ
6.Laser sorting machine
Function :Be able to identify and remove the defective products with different colors, shape defects and moths products.
defective products with spots, all kinds of impurities and pollution and deterioration products invisible to the naked eye
Features: two-sided red laser and two-sided infrared laser,smart sorting,good effect for raisin.
Technical parameter:
Size :4190*3219 *2080mm
Power :3kw/380v/50HZ
Operating weight :400kg Capacity:500-2500kg/h.
defective products with spots, all kinds of impurities and pollution and deterioration products invisible to the naked eye
Features: two-sided red laser and two-sided infrared laser,smart sorting,good effect for raisin.
Technical parameter:
Size :4190*3219 *2080mm
Power :3kw/380v/50HZ
Operating weight :400kg Capacity:500-2500kg/h.
7.Washing Platform unit
Function: The platform is used to place bubble washing machine, flush washing machine and vibration spraying washing machine.
there are two tanks below the platform for recycling the water .
Features: The structure is strong and durable. With stairs, it is convenient for workers to work and clean equipment.
Technical parameters:
dimension: 7500*2400*3800mm
there are two tanks below the platform for recycling the water .
Features: The structure is strong and durable. With stairs, it is convenient for workers to work and clean equipment.
Technical parameters:
dimension: 7500*2400*3800mm
8. Bubble washing machine
Function :: it adopts the high pressure flow and bubble generation device to clean the surface of the raisin.
Features: The conveyor belt is made of 304food grade SUS , more durable. the
machine is easy to operate ,maintenance, easy cleaning, no rust.
Technical parameter:
Size :3500*1200*1200mm，
Power :7kw/380v/50Hz
Driving motor :frequency variable motor, t
Features: The conveyor belt is made of 304food grade SUS , more durable. the
machine is easy to operate ,maintenance, easy cleaning, no rust.
Technical parameter:
Size :3500*1200*1200mm，
Power :7kw/380v/50Hz
Driving motor :frequency variable motor, t
9.High pressure water spraying washing machine
Function :it can wash the raisin with spraying high pressure clean water while vibrating the raisin.
Features: it is made of 304food grade SUS. high pressure spraying can flush the raisin cleaner .
Technical parameter:
Size :2000*1200*1500
Power :0.5kw/380v/50HZ
Texture :50*50*2mm SUS304 tube
Features: it is made of 304food grade SUS. high pressure spraying can flush the raisin cleaner .
Technical parameter:
Size :2000*1200*1500
Power :0.5kw/380v/50HZ
Texture :50*50*2mm SUS304 tube
10. Centrifugal Dehydrator
Function :Through the centrifugal principle, the moisture containing raisins quickly dry, two barrels can work continuously
Features: high efficiency of dehydration, big capacity, durable.
Technical parameter:
Size :2800*1600*1700mm
Power :4.4KW/380v/50HZ
Texture:50*50*2mm304stainless steel tube
Features: high efficiency of dehydration, big capacity, durable.
Technical parameter:
Size :2800*1600*1700mm
Power :4.4KW/380v/50HZ
Texture:50*50*2mm304stainless steel tube
11. 5-layer Hot air Drying machine
Function : It can evaporate the moisture from the raisin surface.
Features: automatic continuous drying, the drying temperature can be adjusted high drying efficiency ,better drying effect.
Technical parameters:
Dimensions: 12000*3000*3200mm
Conveying power:3kw*2sets
Mesh belt width: 1500 mm, 5layers.
Heating method: natural gas or steam.
Driving motor :frequency variable motor,
Features: automatic continuous drying, the drying temperature can be adjusted high drying efficiency ,better drying effect.
Technical parameters:
Dimensions: 12000*3000*3200mm
Conveying power:3kw*2sets
Mesh belt width: 1500 mm, 5layers.
Heating method: natural gas or steam.
Driving motor :frequency variable motor,
12. Automatic packaging machine 420 type
Function: Automatic feeding, metering, bag filling, date printing, inflatable (exhaust), the whole process of the finished product output, high precision, high efficiency and no waste.
Packing speed:80-140 bags/min
Bag size range:
W:100~210mm L:100~350mm
filling scope: Granule 10~1000g adjustable
Dimension: 3658*2610*3650mm
Packing speed:80-140 bags/min
Bag size range:
W:100~210mm L:100~350mm
filling scope: Granule 10~1000g adjustable
Dimension: 3658*2610*3650mm

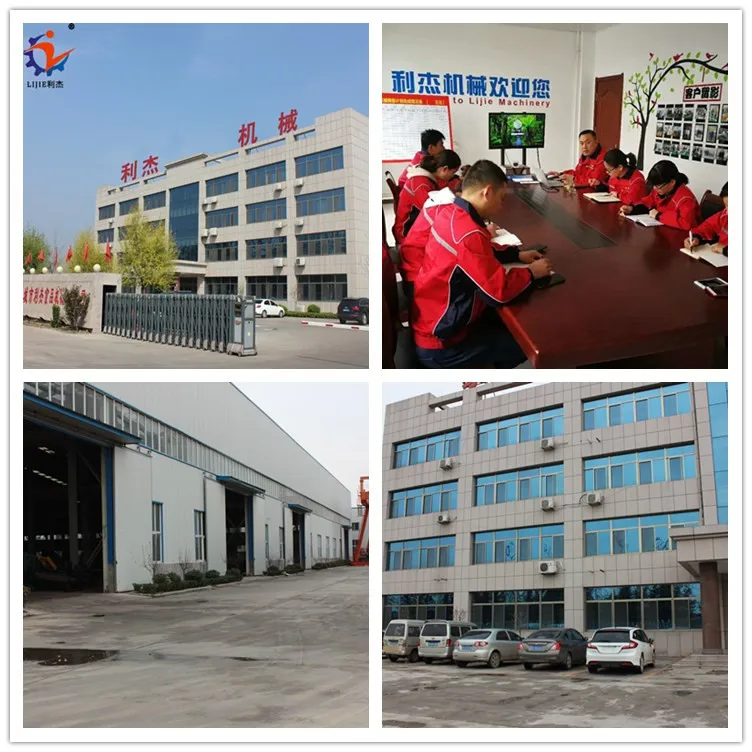

Company Profile
Zhucheng Lijie Food Machinery Co., Ltd is located in Zhucheng City, Shandong Province. Our products mainly sold to the United
States, Singapore, Russia,kazakhstan, Burma, United Kingdom and so on.The company has 12000 square meters of factory buildings and
1500 square meters of office space. The company have 60 employees,15 technical personnel,41 workshop staff and 10 welfare officers
among them to provide good service and complete solutions.
Our company's main products include Frying machine, potato chips and French fries frying (frozen) line, fruit & vegetable washing
machine, pasteurizer, large-scale hot air drying machine, air drying machine, sandwich pot, and cooking equipment, etc.
States, Singapore, Russia,kazakhstan, Burma, United Kingdom and so on.The company has 12000 square meters of factory buildings and
1500 square meters of office space. The company have 60 employees,15 technical personnel,41 workshop staff and 10 welfare officers
among them to provide good service and complete solutions.
Our company's main products include Frying machine, potato chips and French fries frying (frozen) line, fruit & vegetable washing
machine, pasteurizer, large-scale hot air drying machine, air drying machine, sandwich pot, and cooking equipment, etc.
