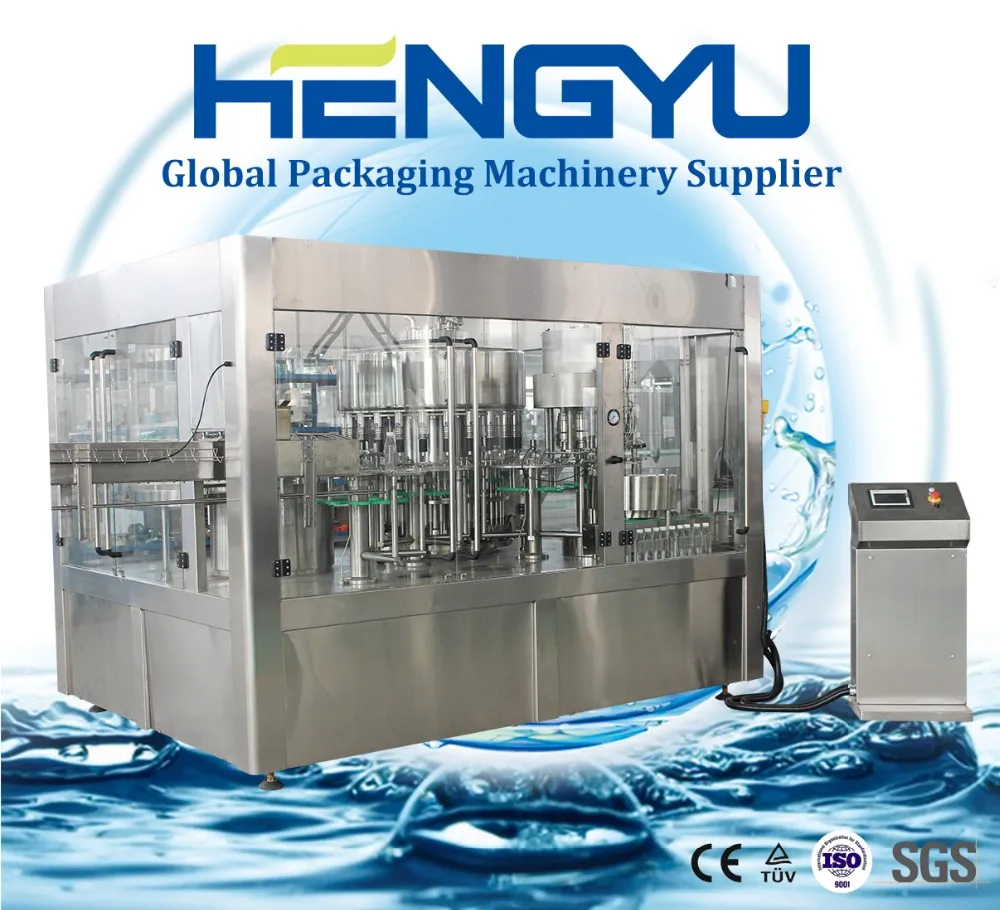

Product Description
1)The water bottle filling machine is mainly used for PET bottled non-carbonated beverage production line,such as spring water and wine drinks.
2)Washing,filling and capping are available in one machine.
3)The contact time between raw materials and the outside world has been reduced to improve the health conditions, production capacity and economic benefits.
4)The structure of conveying is hanging type and clamping the bottleneck to easily change bottle type.
5)Using the advanced PLC(Programmable Logic Controller) technology.
6)The major electrical apparatus are all products of well-known brands, such as SIEMENS, MITSUBISHI, Schneider and OMRON.
2)Washing,filling and capping are available in one machine.
3)The contact time between raw materials and the outside world has been reduced to improve the health conditions, production capacity and economic benefits.
4)The structure of conveying is hanging type and clamping the bottleneck to easily change bottle type.
5)Using the advanced PLC(Programmable Logic Controller) technology.
6)The major electrical apparatus are all products of well-known brands, such as SIEMENS, MITSUBISHI, Schneider and OMRON.
Technical parameters
Model(CGF) | 14/12/5 | 18/18/6 | 24/24/8 | 32/32/10 | 40/40/12 | 50/50/12 | 60/60/15 |
Rinsing heads | 14 | 18 | 24 | 32 | 40 | 50 | 60 |
Filling heads | 12 | 18 | 24 | 32 | 40 | 50 | 60 |
Capping heads | 5 | 6 | 8 | 10 | 12 | 12 | 15 |
Capacity(BPH) | 4000 | 7000 | 11000 | 13000 | 18000 | 24000 | 28000 |
Power(kw) | 2.2 | 3.5 | 4.5 | 6 | 7.5 | 9.5 | 11.2 |
Dimension(mm) | 2400*1650*2500 | 2600*1920*2550 | 3100*2100*2800 | 3800*2800*2900 | 4600*2800*2900 | 5450*3300*2900 | 6500*4500*2900 |
Weight(kg) | 2500 | 3500 | 4500 | 5600 | 8500 | 9800 | 12800 |
Detail Images

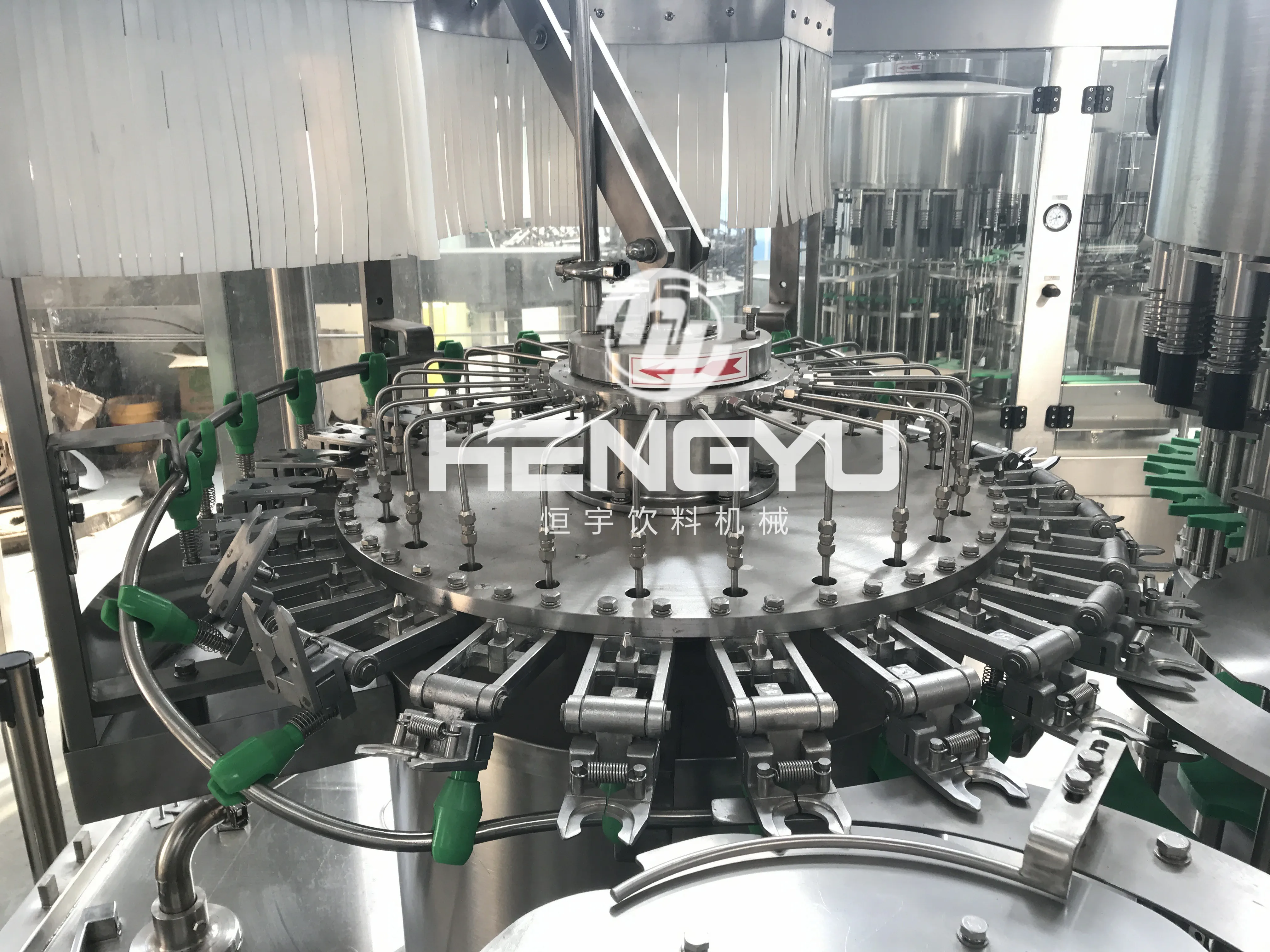

Washing heads
1)Into bottle way is air conveyor direct connection with Bottle dial .
2)All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
3)304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
4)304/316 stainless steel washing pump make the machine more durable .
1)Into bottle way is air conveyor direct connection with Bottle dial .
2)All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
3)304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
4)304/316 stainless steel washing pump make the machine more durable .

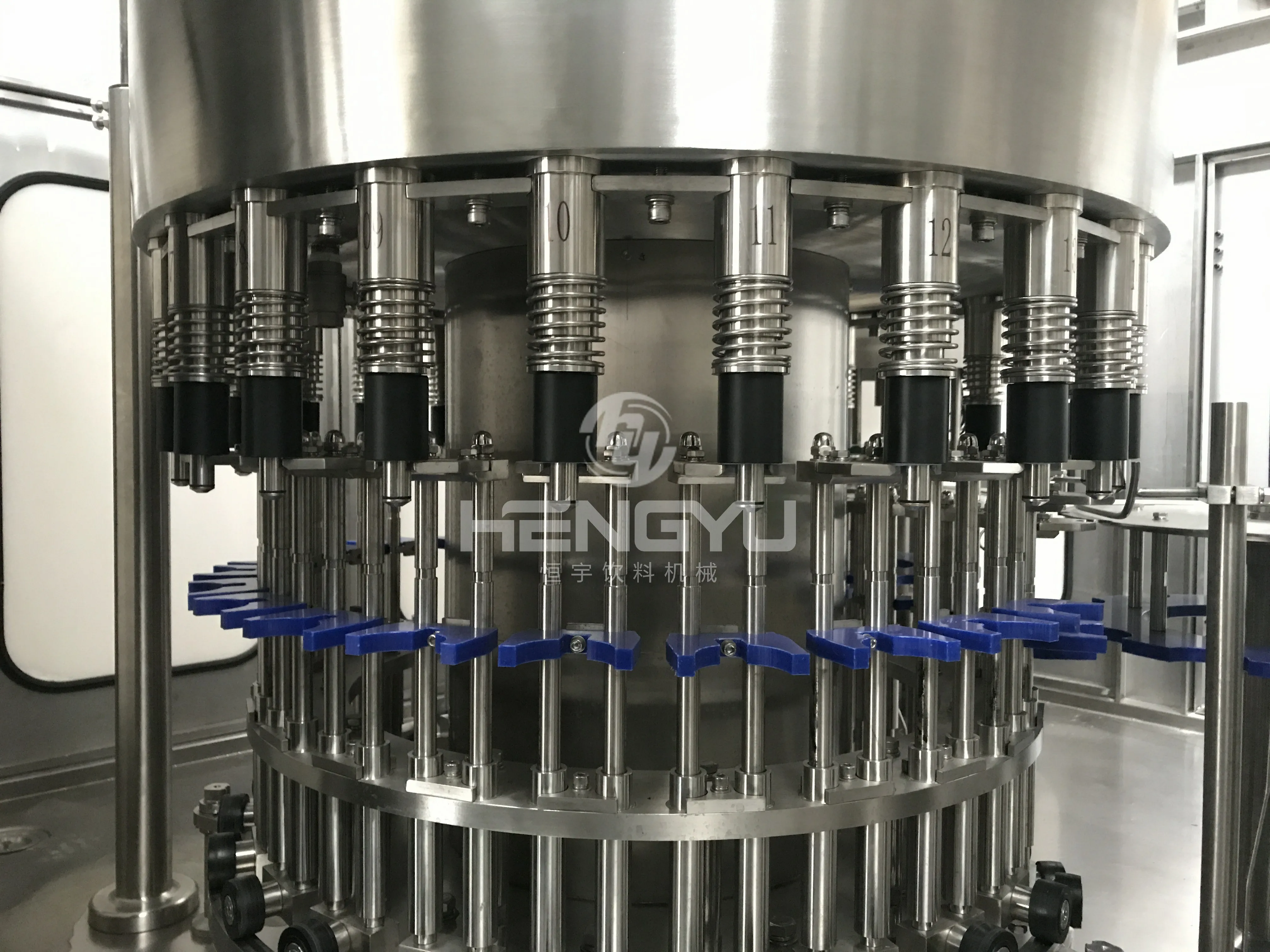

Filling heads
1)304/316 Stainless steel high precision filling nozzle
2) Filling volume adjustable in fine rank, same liquid level after filling
3)All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4) 304/316 stainless steel filling pump
5)Efficient spray nozzle rinse thoroughly and save water for flushing
1)304/316 Stainless steel high precision filling nozzle
2) Filling volume adjustable in fine rank, same liquid level after filling
3)All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4) 304/316 stainless steel filling pump
5)Efficient spray nozzle rinse thoroughly and save water for flushing

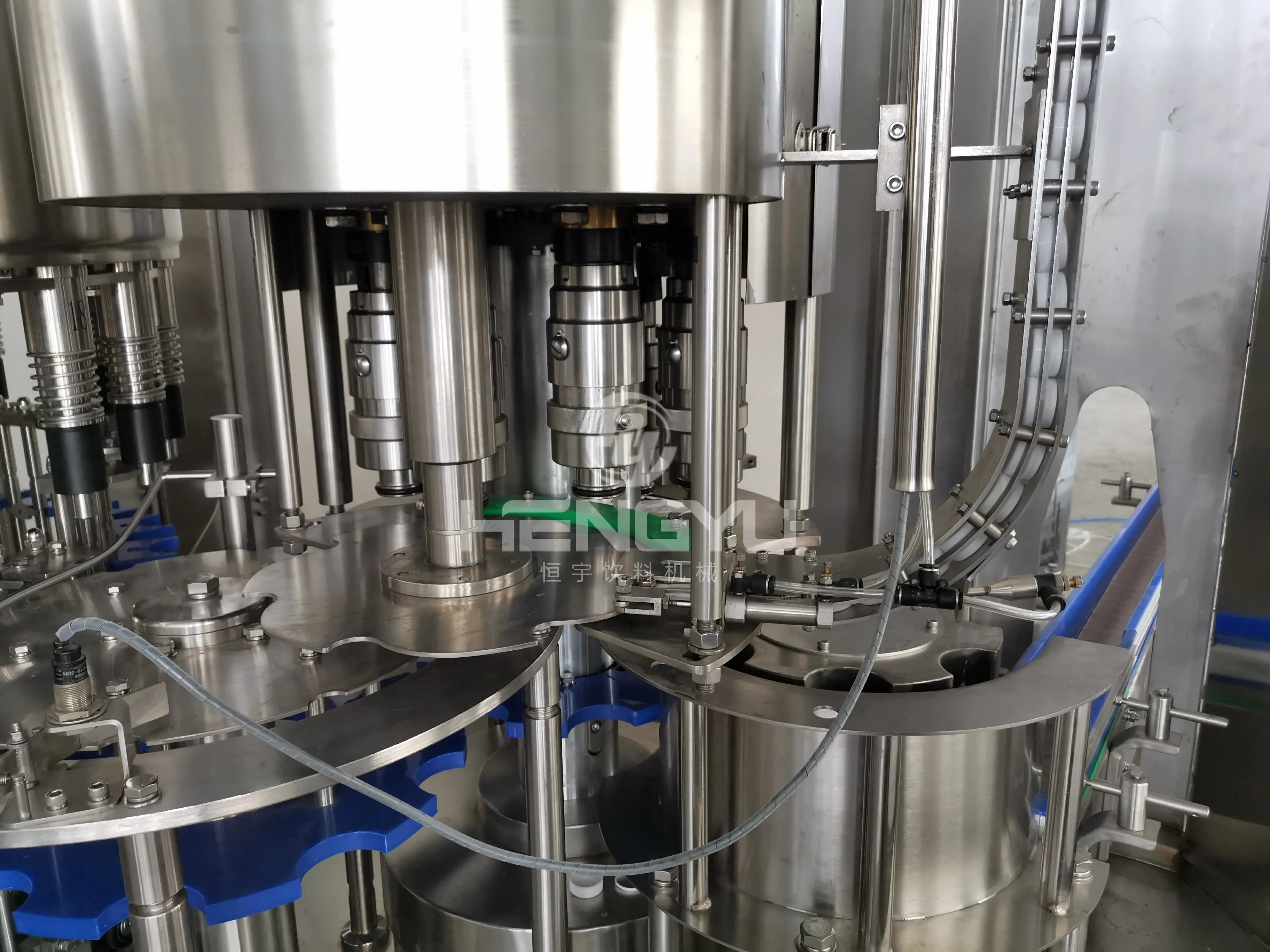

Capping heads
1) Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
2)All 304/316 stainless steel construction
3)No bottle no capping
4)Automatic stop when lack of bottle
5)Capping effect is stable and reliable ,Defective rate ≤0.2% .
1) Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
2)All 304/316 stainless steel construction
3)No bottle no capping
4)Automatic stop when lack of bottle
5)Capping effect is stable and reliable ,Defective rate ≤0.2% .
Auxiliary machines

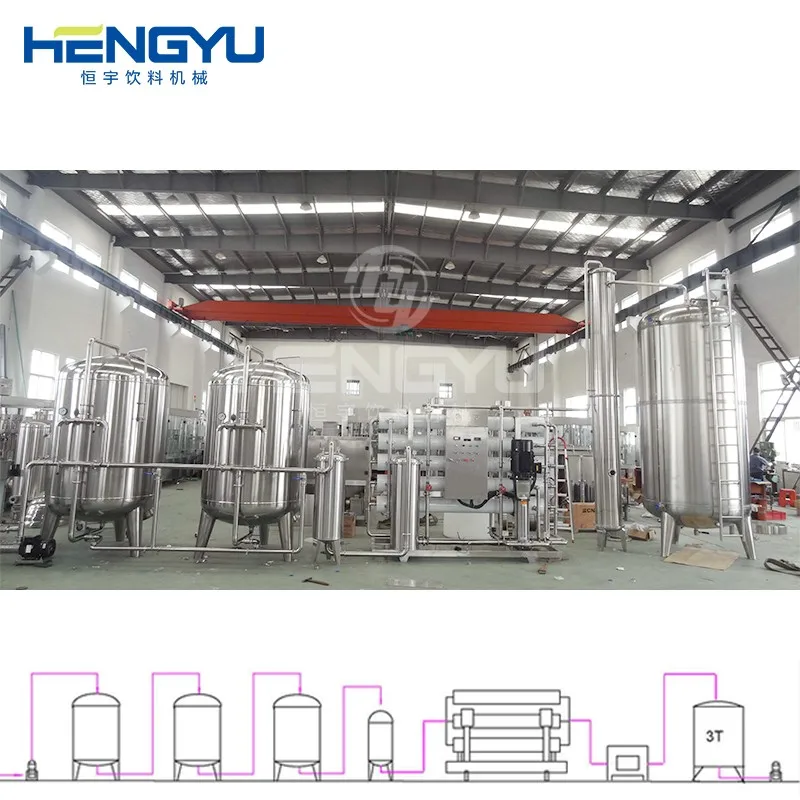

Water Treatment System
1)Stainless steel high pressure film shell
2)All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
3)Online type pressure auto self-protection device
4)Online type electricity indicator (with stable compensation)
5)System safe protecting and alarm system
6)System frame
Reverse Osmosis
The reverse osmosis can remove more than 97% of the soluble salt and above 99% of the colloid, microorganism, particles and organic materials, becoming the best first-choice choice equipment in the engineering of modern purified water, highly purified water and space water (super-purified water). The most highlighted features are low energy consumption, no pollution, simple technique, high-quality water and convenient operation and maintenance.
1)Stainless steel high pressure film shell
2)All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
3)Online type pressure auto self-protection device
4)Online type electricity indicator (with stable compensation)
5)System safe protecting and alarm system
6)System frame
Reverse Osmosis
The reverse osmosis can remove more than 97% of the soluble salt and above 99% of the colloid, microorganism, particles and organic materials, becoming the best first-choice choice equipment in the engineering of modern purified water, highly purified water and space water (super-purified water). The most highlighted features are low energy consumption, no pollution, simple technique, high-quality water and convenient operation and maintenance.

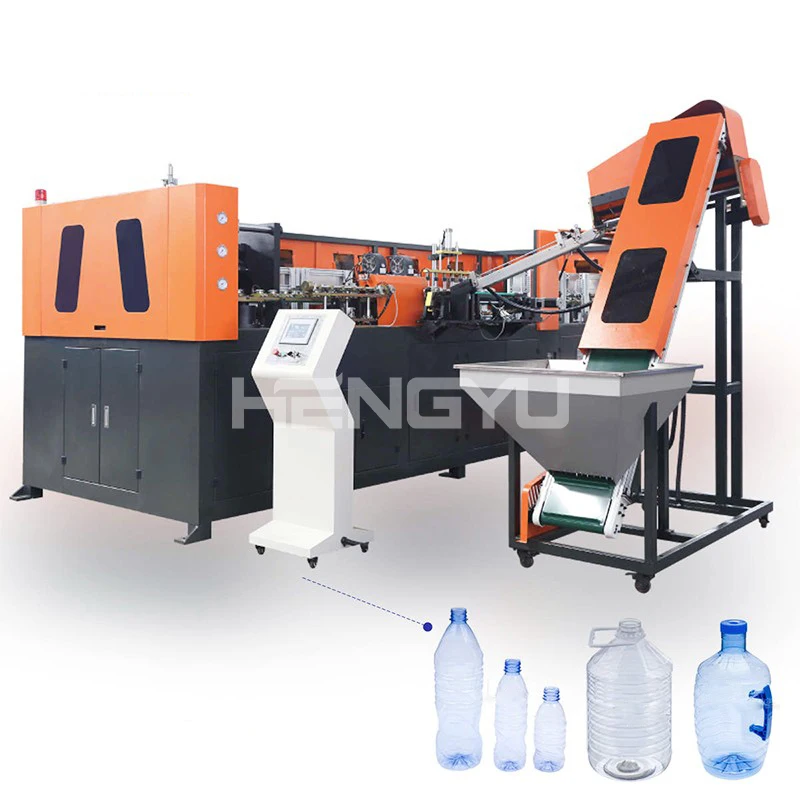

Bottle Blowiing Part
1)Widely used to produce the carbonated bottle,mineral water bottle,pesticide bottle,oil bottle and cosmetics etc.
2)Suitable for producing PET plastic containers and bottles in all shapes.
3)With famous electrical components and have various capacities.
1)Widely used to produce the carbonated bottle,mineral water bottle,pesticide bottle,oil bottle and cosmetics etc.
2)Suitable for producing PET plastic containers and bottles in all shapes.
3)With famous electrical components and have various capacities.

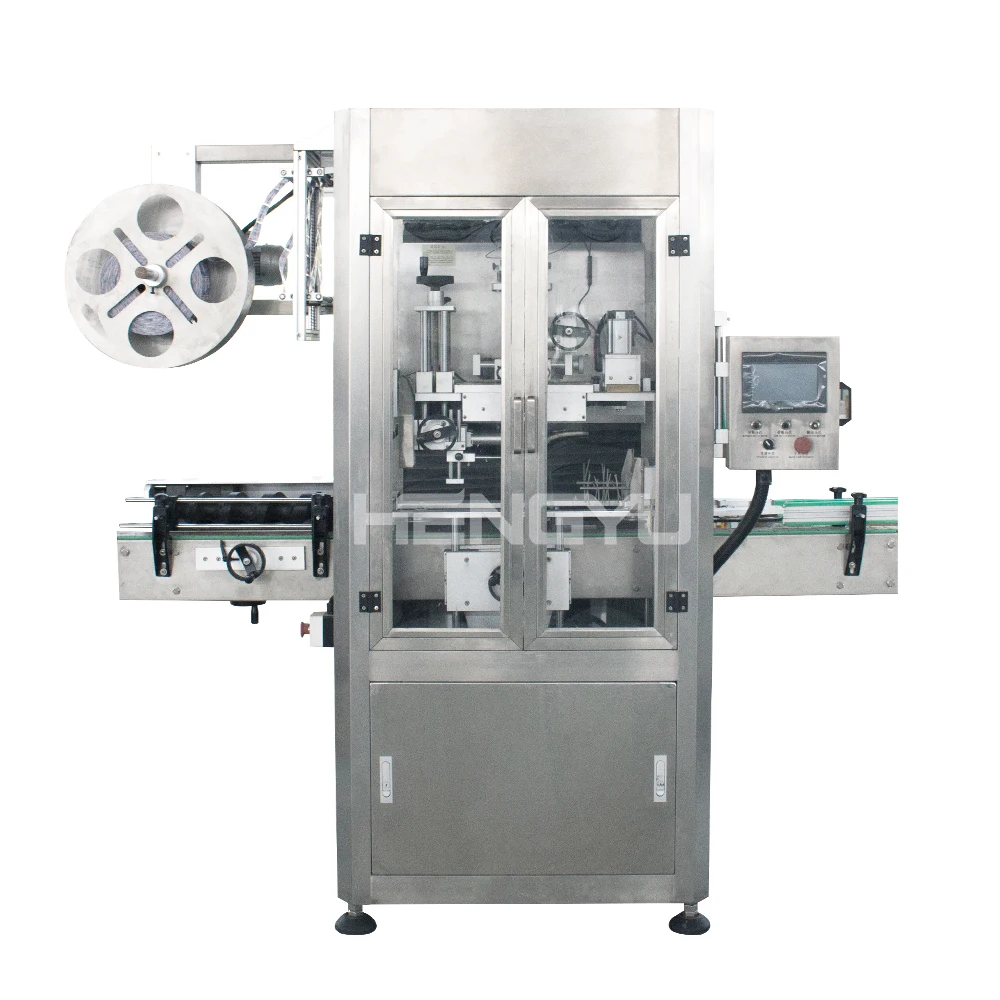

Labeling Part
1)Heat shrink sleeve labeling machine
2)OPP Hot melt labeling machine
3)PVC label stick labeling machine
The running of complete machine is stable and at high speed with the use of imported servo control system.Using of special
bottle-distributing mechanism to avoid the materials being scrached and with which the machine can be adjusted and located quickly
to label bottles with any diameter without replacing accessories.
1)Heat shrink sleeve labeling machine
2)OPP Hot melt labeling machine
3)PVC label stick labeling machine
The running of complete machine is stable and at high speed with the use of imported servo control system.Using of special
bottle-distributing mechanism to avoid the materials being scrached and with which the machine can be adjusted and located quickly
to label bottles with any diameter without replacing accessories.
Packaging Part
1)PE film shrink wrapping machine
2)Half-tray shrink wrapping machine
3)Carton box packaging machine
It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable
element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished
product.
1)PE film shrink wrapping machine
2)Half-tray shrink wrapping machine
3)Carton box packaging machine
It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable
element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished
product.
Packing & Delivery
Standard Export Package for Zhangjiagang manufacturers hengyu machinery cheap price mineral water plant project cost in india
Certifications
Company Profile
Zhangjiagang Hengyu Beverage Machinery Co.,Ltd.is a professional manufacturer of food and beverage machinery development.
We are professinal manufacturer of Food and Beverage production line equipments.we offer Design and manufacture, installation and debugging, manning guide, after-sales service in one.
Our company adhere to market-oriented,technology-leading,quality as the main line,services for the protection and established a perfect quality assurance system.Our company has self-and agent all kinds of goods and technology import and export business,and add the key engineering contract.
The company's main products as these:All kinds of series carbonated drinks,mineral water,purified water,juice,tea,milk,wine and other food liquids bottled,bottled and other glass production line equipment and drinking water,mineral water,purified water and other types of water treatment equipment.Wherein,CGF series,CGF series botting lines and QGF Trinity bottled beverage production lines,QHS series drink mixer,both digestion and absorption of Germany,Italy,Japan advanced technology made of,Our product technology is mature and with high quality.Not only selling domestic 29 provinces,municipalities and autonomous regions,and exported to Russia,Kyrgyzstan,Ecuador,Malaysia,Indonesia,Philippines,Vietnam,Libya,Kenya and other countries and regions,the majority of users.Meanwhile,the company can provide customers Technological advice,plant graphic design,installation and commissioning,technical training etc.
The company has consistently adhered to the "Integrity of others,Trustworthiness as a fundamental and Good product quality to win" business philosophy, willing to work with all walks of life work together to develop,establish long-time stable business ralationship.
Warmly welcome new and old customers to visit us!
We are professinal manufacturer of Food and Beverage production line equipments.we offer Design and manufacture, installation and debugging, manning guide, after-sales service in one.
Our company adhere to market-oriented,technology-leading,quality as the main line,services for the protection and established a perfect quality assurance system.Our company has self-and agent all kinds of goods and technology import and export business,and add the key engineering contract.
The company's main products as these:All kinds of series carbonated drinks,mineral water,purified water,juice,tea,milk,wine and other food liquids bottled,bottled and other glass production line equipment and drinking water,mineral water,purified water and other types of water treatment equipment.Wherein,CGF series,CGF series botting lines and QGF Trinity bottled beverage production lines,QHS series drink mixer,both digestion and absorption of Germany,Italy,Japan advanced technology made of,Our product technology is mature and with high quality.Not only selling domestic 29 provinces,municipalities and autonomous regions,and exported to Russia,Kyrgyzstan,Ecuador,Malaysia,Indonesia,Philippines,Vietnam,Libya,Kenya and other countries and regions,the majority of users.Meanwhile,the company can provide customers Technological advice,plant graphic design,installation and commissioning,technical training etc.
The company has consistently adhered to the "Integrity of others,Trustworthiness as a fundamental and Good product quality to win" business philosophy, willing to work with all walks of life work together to develop,establish long-time stable business ralationship.
Warmly welcome new and old customers to visit us!
