Станок для резки и гравировки Волоконным лазером 3015 Рабочий стол 1000 Вт мощность лазера с длительным сроком
- Категории: Лазерное оборудование для промышленности >>>
- Поставщик: Anhui,Zhongrui,Machine,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
3 in 1 tube plate integrated cnc fiber laser cutting machine
1.Small focus point, fine cutting line; Double function ,metal sheet cutting and pipe cutting.
2.Whole power consumption is 20% to 30% of CO2 laser cutting machine .It can cut different metal with air.
3.Simple and friendly Human-Computer interaction,Modular design, automatic identification of solidworks files, automatic loading of 3D cutting path, automatic sequencing .

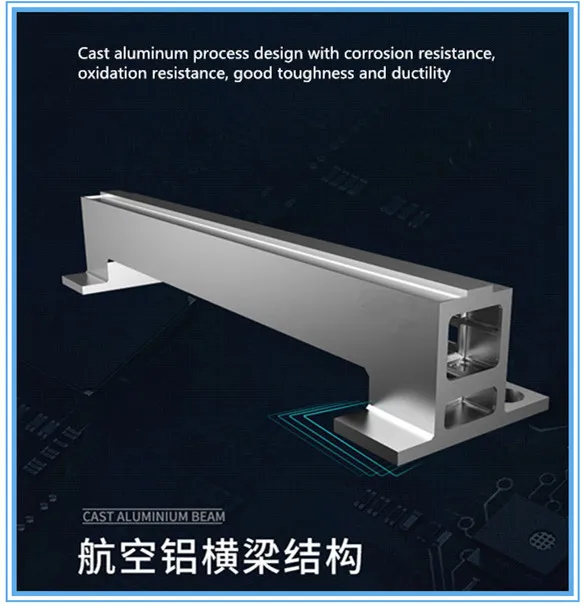

4.Gantry structure high damping workbench, extrusion forming aluminum alloy beam which can bear high speed and acceleration
2.Whole power consumption is 20% to 30% of CO2 laser cutting machine .It can cut different metal with air.
3.Simple and friendly Human-Computer interaction,Modular design, automatic identification of solidworks files, automatic loading of 3D cutting path, automatic sequencing .
4.Gantry structure high damping workbench, extrusion forming aluminum alloy beam which can bear high speed and acceleration
5. With modern industry's leading platform switching device.Can achieve 10 seconds,double platform swaps.
Model | HL-3015/6015/4020/6020 |
Laser power | 1000-6000W |
Positioning accuracy | ±0.03mm /m |
max cuting speed | 100m/min |
Youtube | https://youtu.be/KUFA4rtDPVc |
Swiss raytool laser cutting head
Swiss imported raytool laser cutting head with autofocus High cutting speed and best cutting quality
Easier faster protective glass cartridge change Temperature constant distance control Scale for setting the focus position in lateral and vertical position
Easier faster protective glass cartridge change Temperature constant distance control Scale for setting the focus position in lateral and vertical position

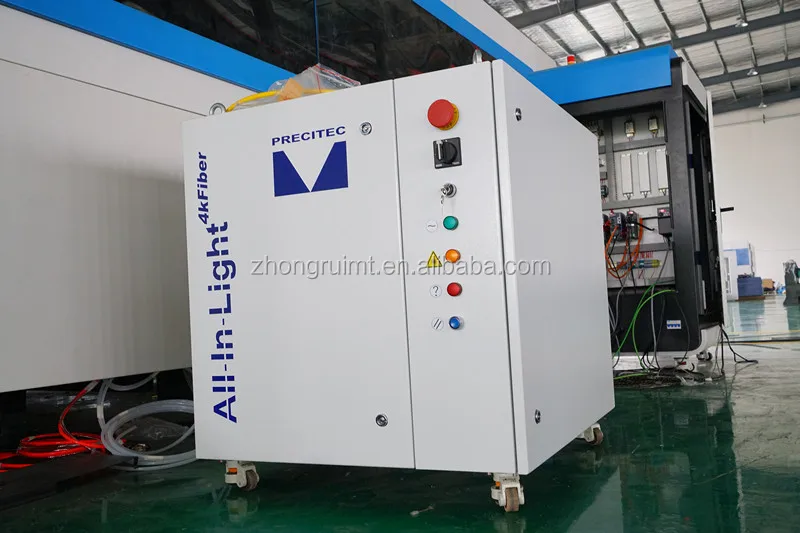

IPG fiber source
The photoelectric conversion more than 35%;
Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric conversion efficiency, good beam quality and low maintenance cost,(The Germany PG Laser source is optional).
Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric conversion efficiency, good beam quality and low maintenance cost,(The Germany PG Laser source is optional).
Optional :Raycus Laser Source

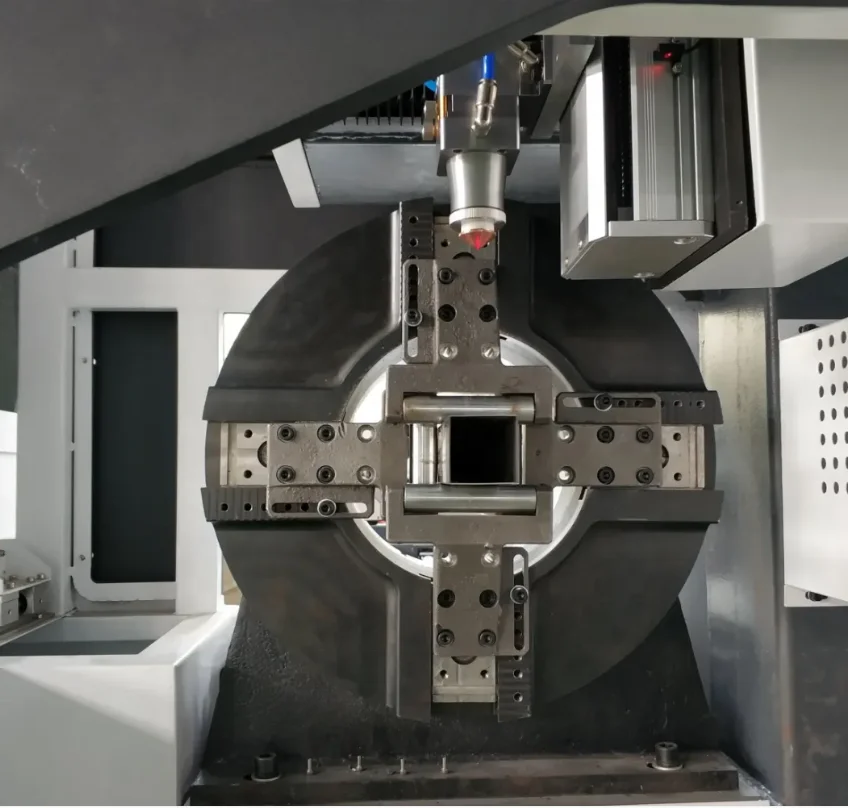

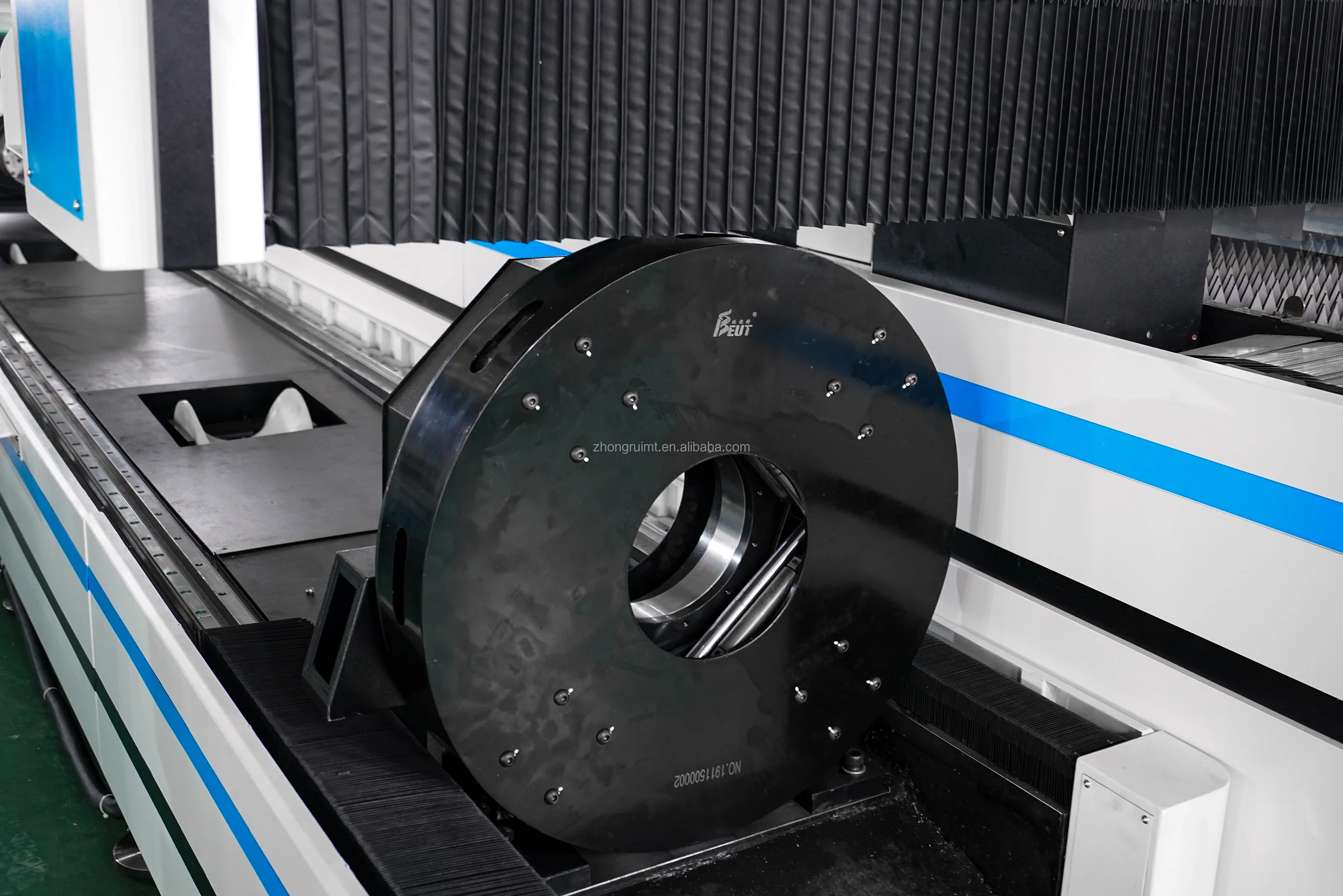

Rotary Axis
The rotary axis attachment is for cutting the pipes. We supply two types of rotary axis for option. The first one is with semi-automatic clamp, the second type is with full-automatic clamp.
The semi-automatic clamp need the worker use the hand to fix the pipe on the rotary axis. However, the full-automatic clamp can clamp the pipe automatically.
The semi-automatic clamp price is cheaper, but the full-automatic one is with higher efficiency and higher precision.
The rotary axis clamping diameter range is 20-200mm, the Max. clamping length is 3m.
The semi-automatic clamp need the worker use the hand to fix the pipe on the rotary axis. However, the full-automatic clamp can clamp the pipe automatically.
The semi-automatic clamp price is cheaper, but the full-automatic one is with higher efficiency and higher precision.
The rotary axis clamping diameter range is 20-200mm, the Max. clamping length is 3m.

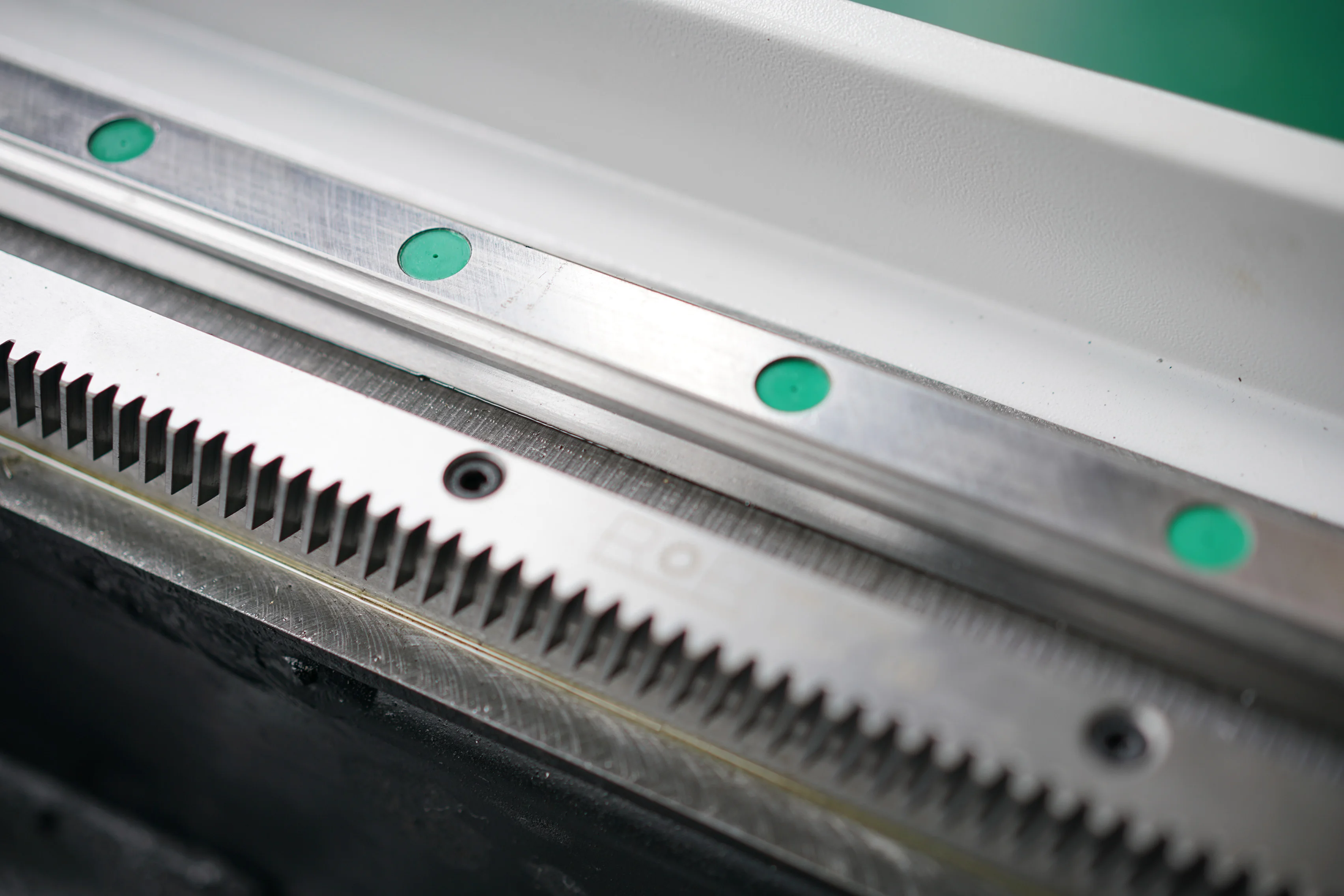

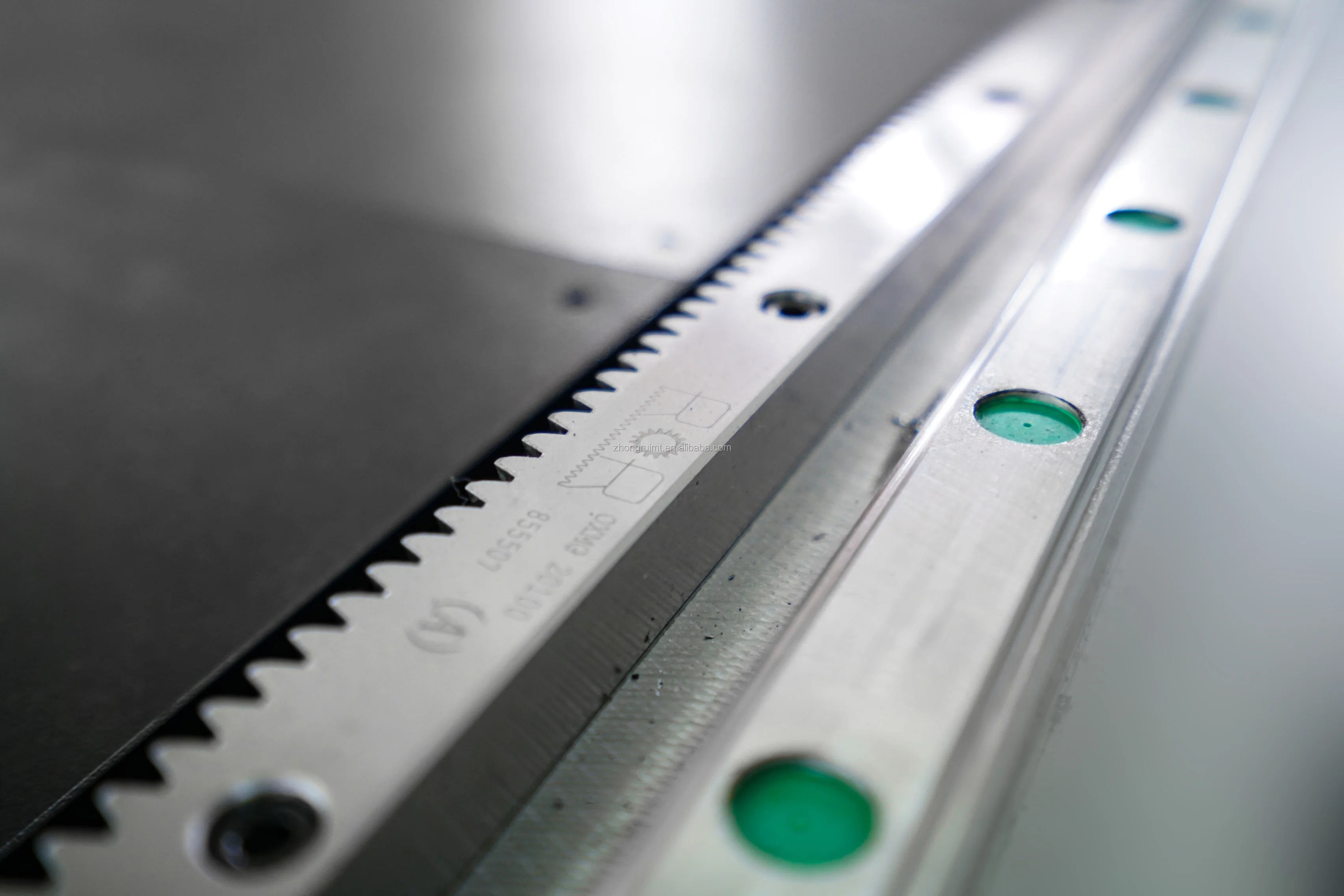

XY Axis Taiwan Hiwin squre rail
&Rack Transmission system
The machine adopts Taiwan Hiwin square rail, which is more durable. And the use of high quality helical rack pinion, makes it high precision.
The rack and pinion on XY axis is from German.The high hardness of the material makes the rack more wear resistant
The rack and pinion on XY axis is from German.The high hardness of the material makes the rack more wear resistant
Automatic lubrication system
The function of the automatic oil pump is mainly to perform regular quantitative oiling on the easily wearable guide rail, ballscrew and the rack gear. It is by the digital controller to control the lubrication pump working cycle; lubrication time and intermittent time.
Detailed Images
Applicable indusruies
Kitchen cabinets /Lighting hardware/ Advertising signs/Elevator manufacturing /Ventilation cooling
Related Products

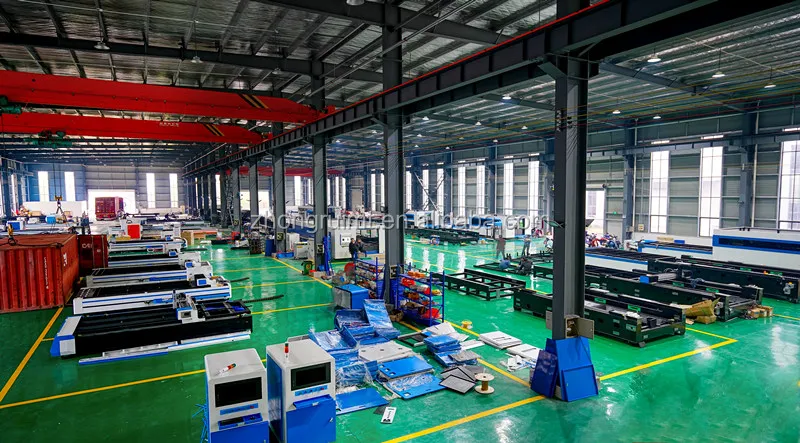

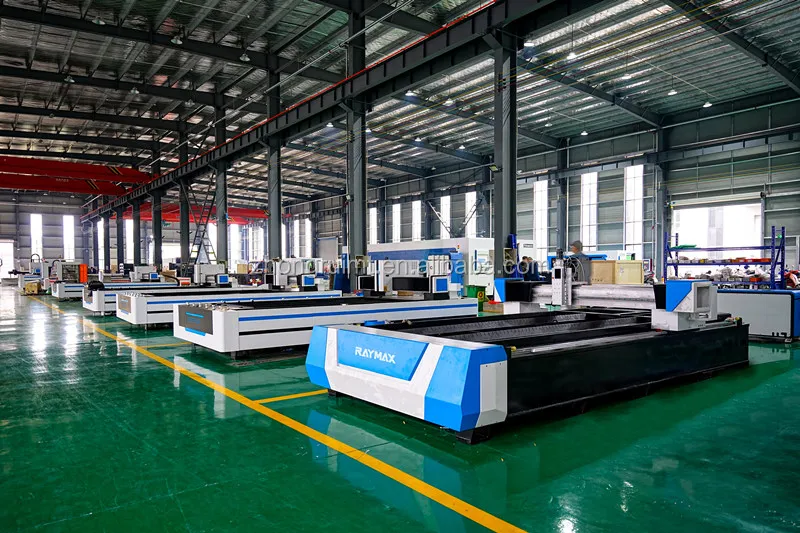

Company Introduction
After Sales Service
Pre-sales service:
Free sample making
After-sales service:
Training to install(3options):
A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and
trouble-shooting, and shall give technical guide by e-mail, fax,telephone/MSN/ICQ and so on, when you meet some problems of installation, using or adjusting.
B. You can come to zhongrui factory for training. We will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments, all sorts of tools and testing facility. Training Time: 3~5 days
C. Our engineer will do a door-to-door instruction training service at your local site. We need your help to deal with the visa
formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch.
It's better to arrange a translator for both of our engineers during the training period. Training Time: 7 days
Remark: The charge of visa application, round air ticket, accommodation expenses in your country will burden by your side.
Free sample making
After-sales service:
Training to install(3options):
A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and
trouble-shooting, and shall give technical guide by e-mail, fax,telephone/MSN/ICQ and so on, when you meet some problems of installation, using or adjusting.
B. You can come to zhongrui factory for training. We will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments, all sorts of tools and testing facility. Training Time: 3~5 days
C. Our engineer will do a door-to-door instruction training service at your local site. We need your help to deal with the visa
formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch.
It's better to arrange a translator for both of our engineers during the training period. Training Time: 7 days
Remark: The charge of visa application, round air ticket, accommodation expenses in your country will burden by your side.
FAQ
Q: When I got this machine, but I don’t know how to use it. What should I do?
A:We will send English manual and Operation Video and for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
A:We will send English manual and Operation Video and for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q: I know nothing about this machine, how can I choose the style of machine ?
A:Please share us the thickness and working size of the plate ,then we will recommend the suitable style machie for your reference
.Q: If some problems happen to this machine, what should I do?
We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts,just let us know, we will give you solutions.
Q: About accuracy, we have observed that after some time "Machine accuracy can increase gradually" and after long time, thedifference reach to its maximum level. How about your machine?
A:The frame of the machine is annealed, it can support shock resistance(the machine will deform if without annealing ). So theaccuracy of the machine can keep its original accuracy for 4-5years. The weight of the machine can reach 4.5t-5.0t. It also can let the machine have higher accuracy and higher stability.
A:Please share us the thickness and working size of the plate ,then we will recommend the suitable style machie for your reference
.Q: If some problems happen to this machine, what should I do?
We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts,just let us know, we will give you solutions.
Q: About accuracy, we have observed that after some time "Machine accuracy can increase gradually" and after long time, thedifference reach to its maximum level. How about your machine?
A:The frame of the machine is annealed, it can support shock resistance(the machine will deform if without annealing ). So theaccuracy of the machine can keep its original accuracy for 4-5years. The weight of the machine can reach 4.5t-5.0t. It also can let the machine have higher accuracy and higher stability.
