Specification

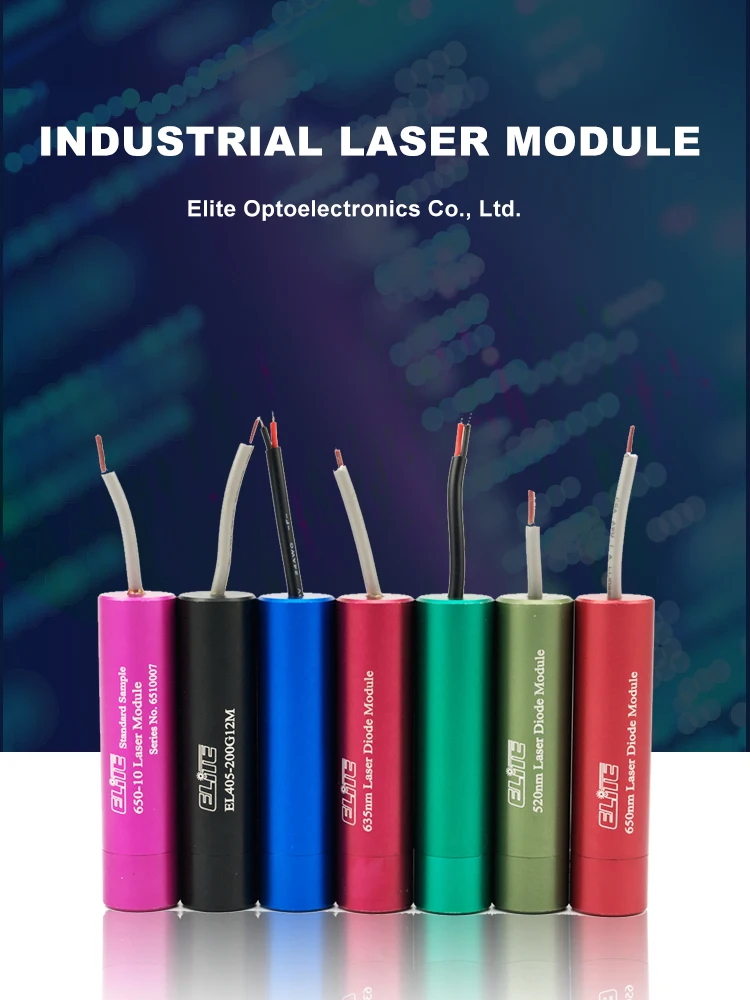

Industrial Diode Laser Module
Wavelength
405nm
450nm
488nm
520nm
635nm
650nm
808nm
830nm
850nm
905nm
940nm
980nm
660nm
670nm
685nm
705nm
730nm
780nm
Output Power
1, 5, 10, 20, 35, 50, 80, 100, 150 and 200mW（Custom）
CDRH Class
I, II, IIIa, IIIb
Aperture
Ø1.0mm, Ø1.5mm, Ø2.0mm, Ø2.4mm, Ø3.0mm, Ø5.0mm, Ø6.0mm
Divergence
0.1mrad, 0.2mrad, 0.3mrad, 0.5mrad, 0.8mrad, 1.0mrad
Circular Beam Size
Ø0.5mm(@0.5m), Ø1.0mm(@1m), Ø4.0mm(@5m), Ø5.0mm(@10m)
Elliptical Beam Size
1x2mm(@1m), 2x4mm(@2m), 3x6mm(@5mm), 5x10mm(@10m), 8x16mm(@20m）
Fan Angle
3°-120° （custom)
Line Width at 1/e²
0.1mm,0.3mm,0.5mm,1.0mm,2.0mm,3.0mm,5.0mm,6.0mm,8.0mm(custom)
Lens
Powell lens, special lens

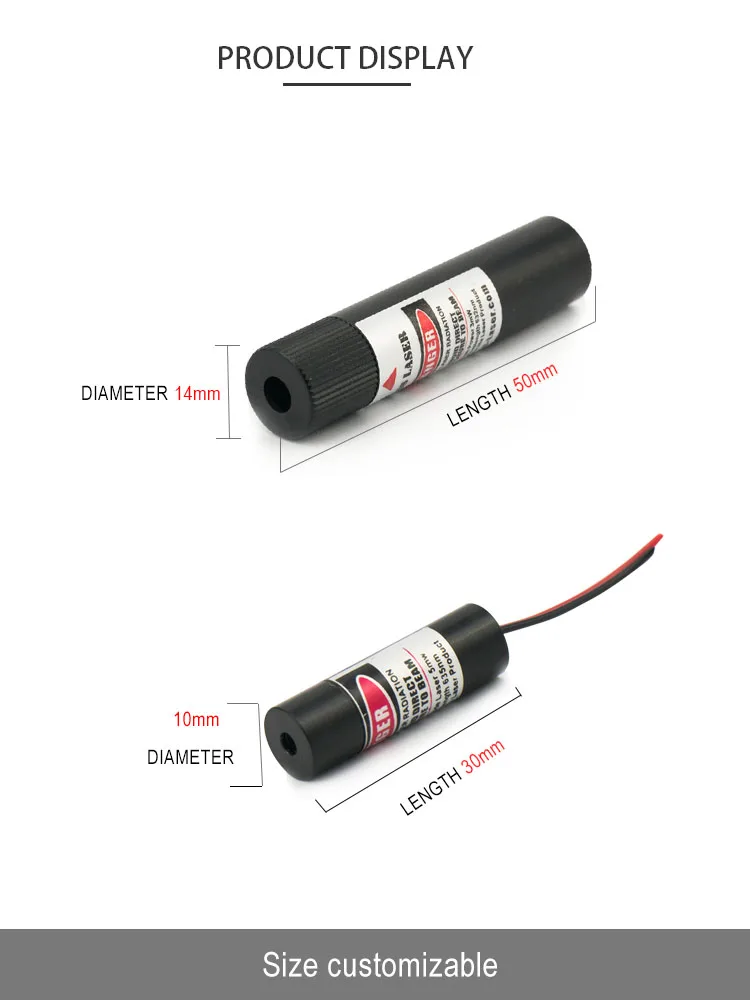

Dimension
Custom
Operaating Current
<300mA
Input Voltage
3.0V, 5.0V, 9.0V, 12.0V, 24.0V
Operating Temperature
-20℃~60℃
Storage Temperature
-40℃~85℃
MTBF
>10,000hours









3 High Features
1.High QualityElite industrial laser diode modules use high-quality laser diode.
2.High Stability
Specially designed collimating lens and high stable driven circuit.
3.High Reliability
More than 10000 hours of use.For high precision instrumrnt and equipment,widely used in precise positioning and high-precision detection.



APC Driving Circuit
The output optical power of LD is stabilized so that it does not change with the increase of temperature and service time.



Low Cost&Long Life
On the one hand, improve the service life, on the other hand, make the volume smaller.



water-resistant IP55~65
Protect the laser module from water and dust.
