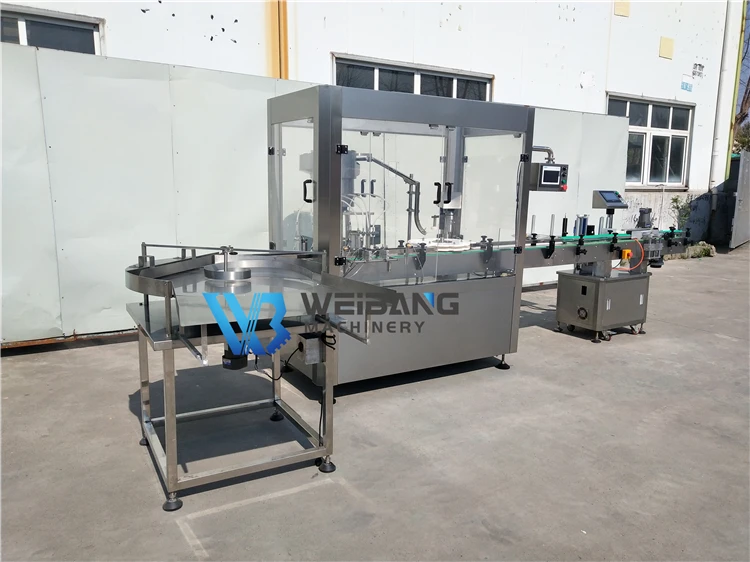

WB-YG4 automatic liquid filling and capping machine
This machine is mainly used for syrup, honey, juice, wine, drinks, cod liver oil, olive oil, essential oil, facial cleanser, shower gel, hair oil, ink, disinfectant, injection, laundry detergent and various medical liquid filling and capping.
Function and features:
1.machine use plunger type metering pump filling(when the filling volume difference is large,the corresponding pump body needs to be replaced),high precision.
2.The structure of pump adopts fast disassembled mechanism,easy to clean and disinfect.
3.PLC control system ,color touch screen display,machine has function of counting automatically.
4.The filling nozzle was equipped with drop-proof device.
5. When filling liquid, the filling nozzle dive into the bottom of bottle, rising slowly, it can effectively prevent the generation of bubbles.
6. Machine shell is made of 304 stainless steel,meets GMP standard.
Function and features:
1.machine use plunger type metering pump filling(when the filling volume difference is large,the corresponding pump body needs to be replaced),high precision.
2.The structure of pump adopts fast disassembled mechanism,easy to clean and disinfect.
3.PLC control system ,color touch screen display,machine has function of counting automatically.
4.The filling nozzle was equipped with drop-proof device.
5. When filling liquid, the filling nozzle dive into the bottom of bottle, rising slowly, it can effectively prevent the generation of bubbles.
6. Machine shell is made of 304 stainless steel,meets GMP standard.
Model | WB-YG4 Automatic liquid filling and capping machine |
Filing nozzle number | 4 (we can make 6/8/etc) |
Filling volume | 50-1000ml (can be customized) |
Filling speed | 20-50 bottles/min |
Filling accuracy | ≤ ±1% |
Capping rate | ≥ 98% |
Total power | 1.6 KW |
Power supply | 1 Ph. AC220V, 50/60Hz |
Machine size | L2200xW1200xH1800mm |
Net weight | 700kg |

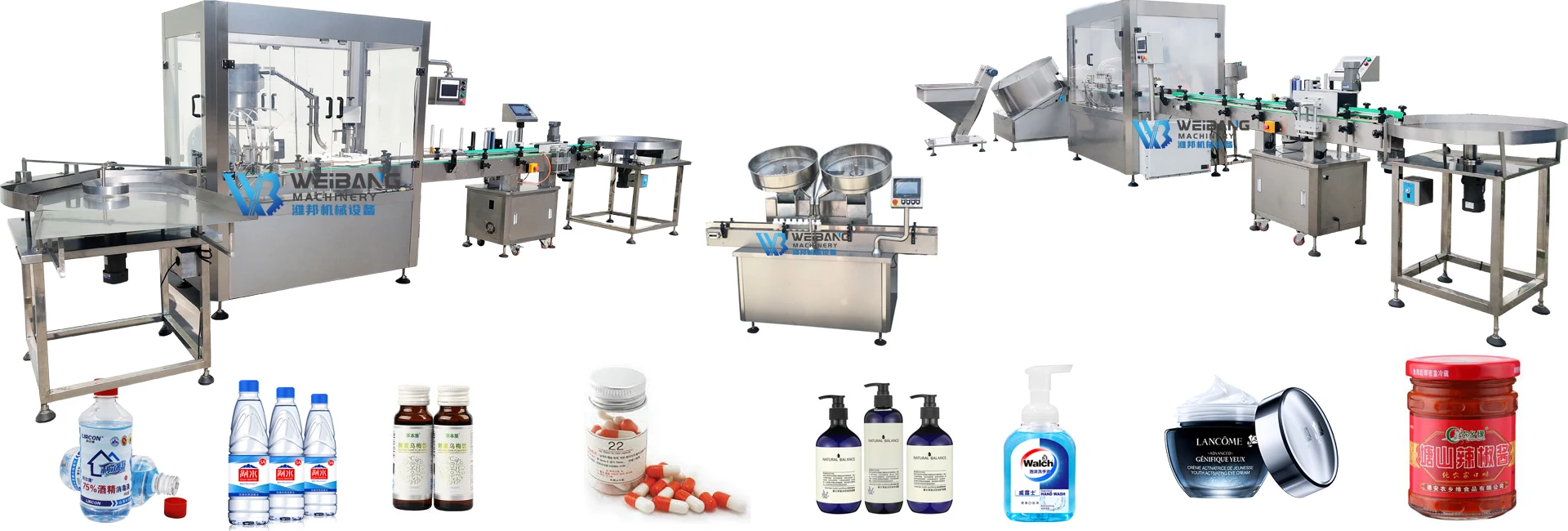

Sample
Machine details

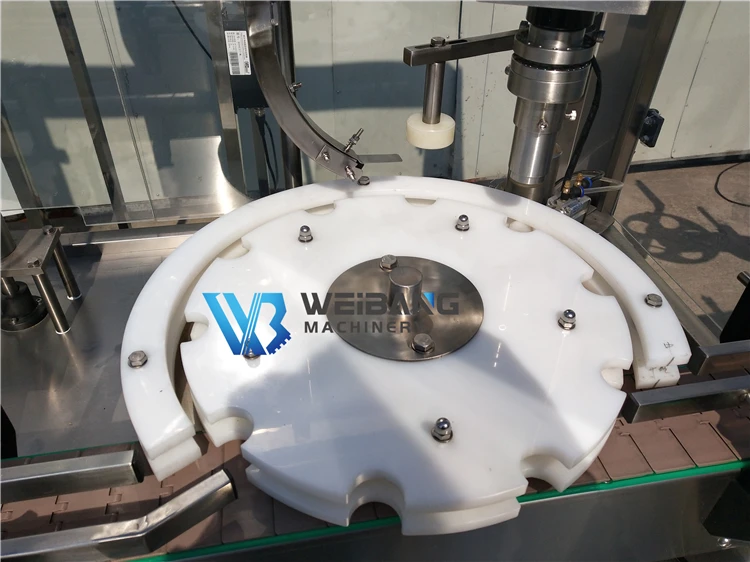

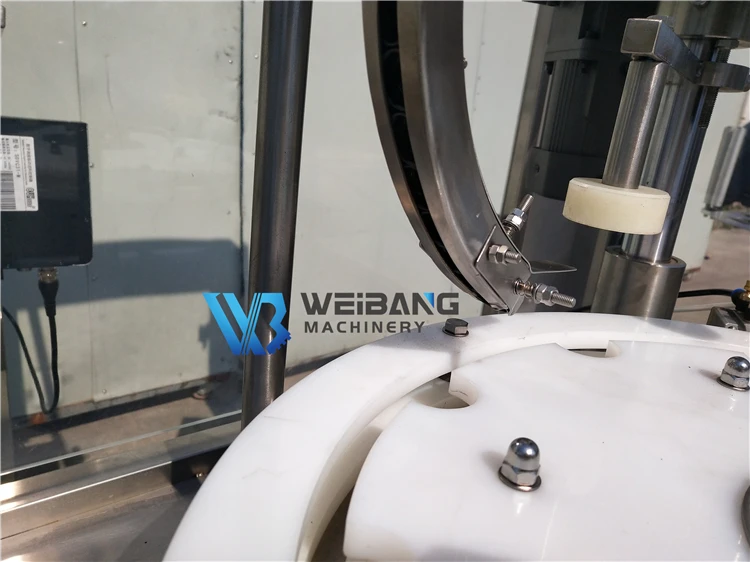

Rotary disk
Nylon material

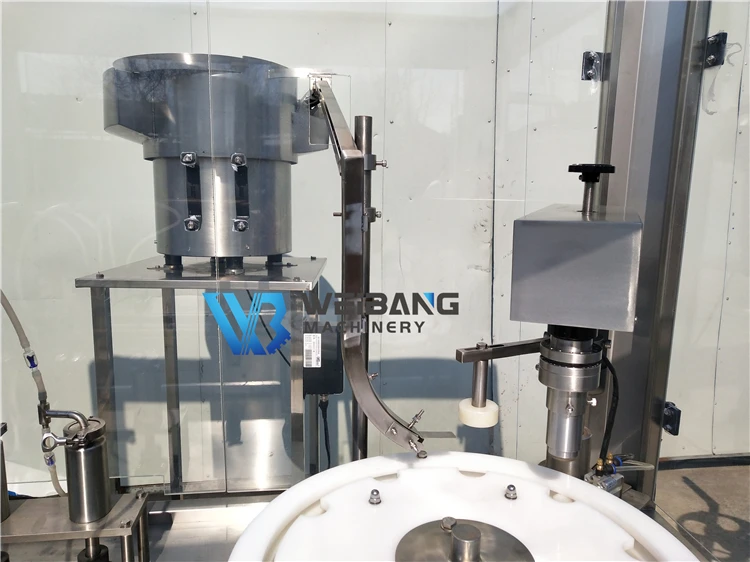

Cap feeder
Stainless steel

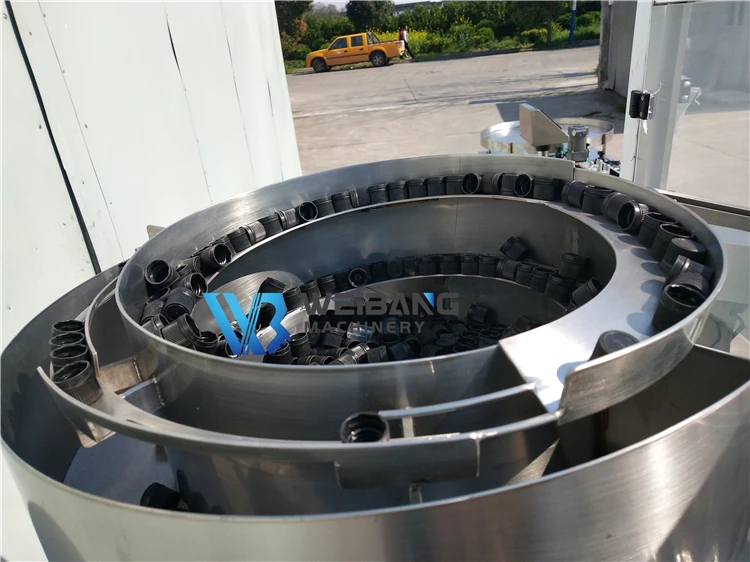

Add cap device
Automatic adding cap
capping part
Fully automatic add cap, screw cap

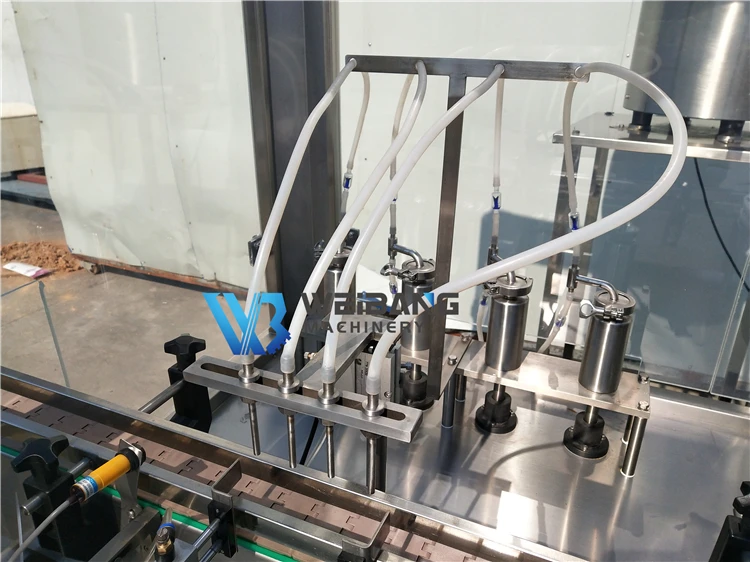

4 filling nozzles
316 stainless steel

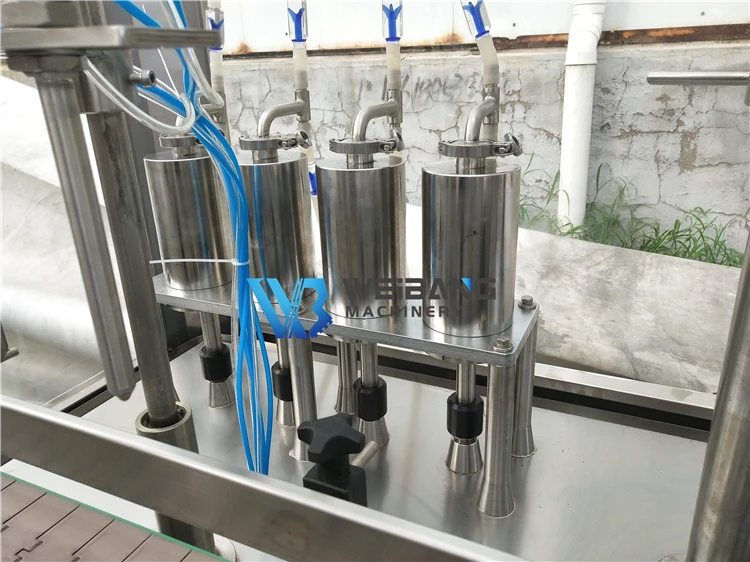

Piston pump
Servo motor control

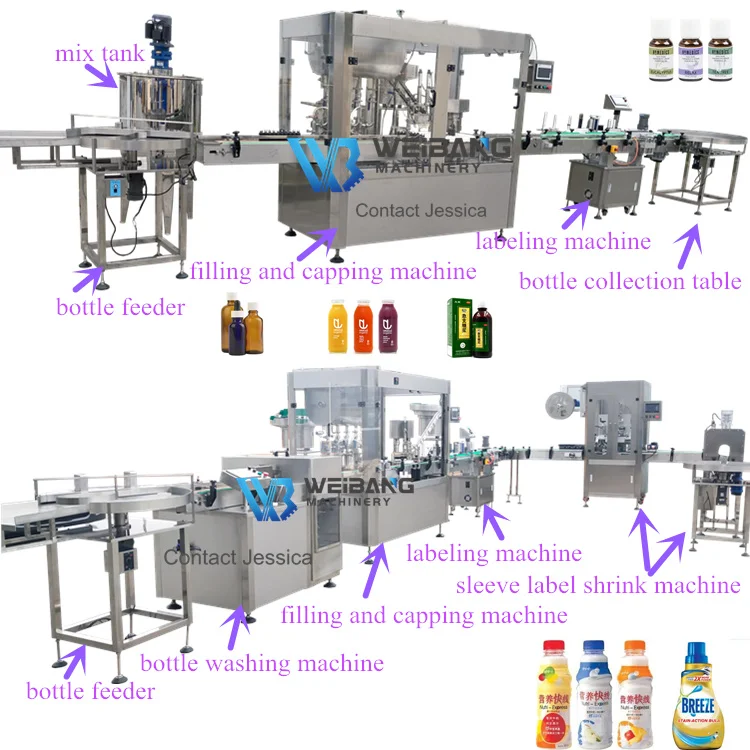

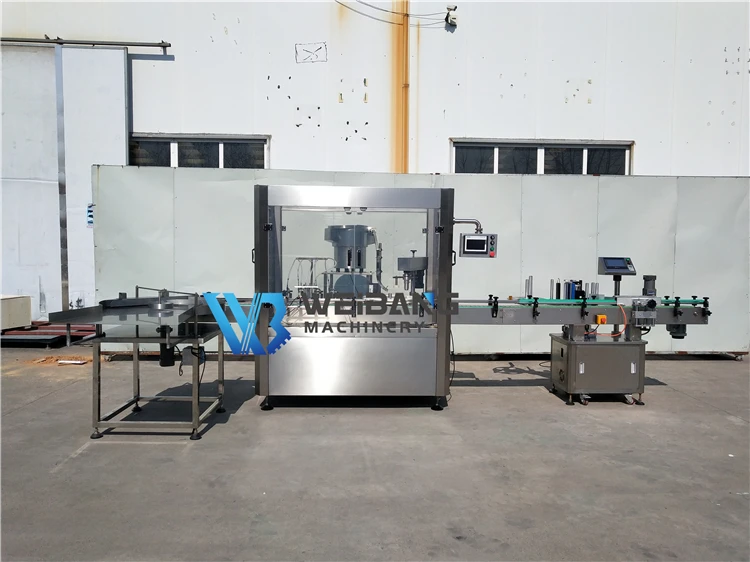

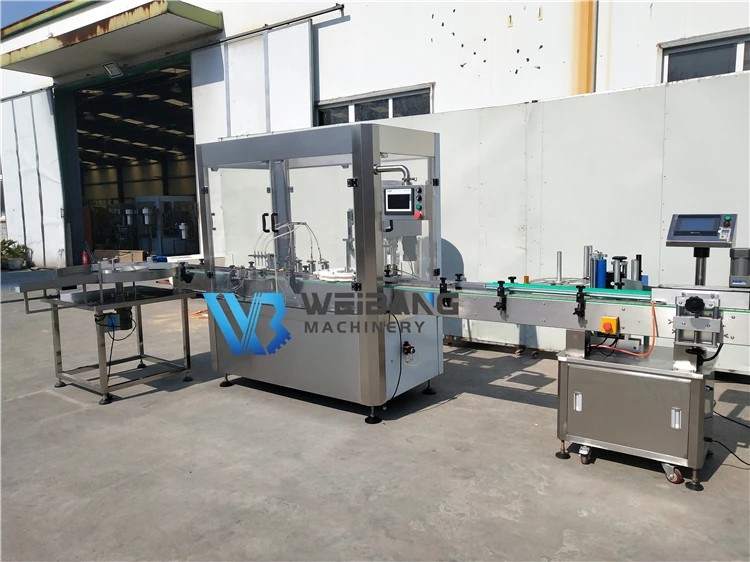

Automatic liquid filling line
Recommend Products
bottle feeder
Standard diameter 800mm, can customizable size
Customize according to bottle and requirement
Customize according to bottle and requirement
WB-LT100 automatic vertical labeling machine
Round bottle labeling
We also have double-sided labeling for bottles, tube labeling and flat labeling
bottle collection table
Standard diameter 800mm, can customizable size Customize according to bottle and requirement
WB-TB200 automatic sleeve label shrink machine
Steam shrinkage and electrothermal shrinkage are optional
