Стальной каркас C прогон машина для формования рулонов производства
- Категории: Steel Frame & Purlin Machines >>>
- Поставщик: Cangzhou,Zhongde,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Automatic c purlin machine roll forming machine,one machine can make c purlin and z purlin both.automatic changing sizes,PLC control,easzy operation
material thickness | 1.5-3.0mm |
suitable material: | galvanized strips |
sizes of product: | c purlin:80-300mm z purlin:120-300mm |
voltage of machine: | 380/220/410/440,it can be customized |
color of machine: | blue or as your request |
driving of machine: | by oil motor |

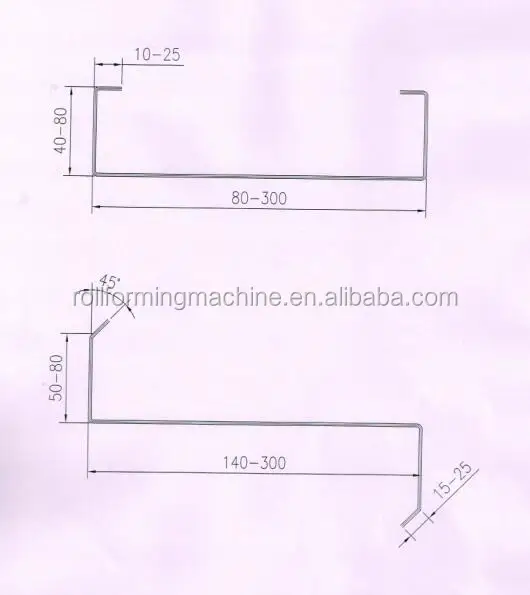

Sizes of profile
C purlin width:80-300
Z purlin width:140-300mm
flange height:40-80mm (c purlin)
50-80mm(z purlin)
lips:10-2500(c purlin)
15-25mm(z purlin)
Supplu Component of Comlete Line
Description | Quantity (set) |
6Tmanual decoiler | 1 |
Guiding device | 1 |
Hydraulic pre cutter | 1 |
Forming system | 1 |
Transmission system | 1 |
Hydraulic guillotine&punching | 1 |
Support table | 2 |
Hydraulic station | 1 |
Control box | 1 |
Spare parts and tools | 1 |
General Parameters of machine
No | Item | Parameter |
1 | Forming Speed | Max25m/min(depend on quantity of punching) 10-15METERS/MIN depends on the quantity of punching holes |
2 | Forming station | Around 18 groups |
3 | Total Power | About 22 KW |
\\4 | Total Weight | About 9500KGS |
5 | Voltage | 380v,50hz,3p |
6 | Diameter of shaft | 60mm &80mm |
5 | Installation Size | 21 * 1.0 M*1.5 |
Main parts Material
No | Item | Parameter |
1 | Forming Shaft | 40CR with grinding process and heat treatment HRC28-32,twice CNC |
2 | Forming Roller | CR12 with vacuum heat treatment with hard chrome coatingHRC50-52 |
3 | Cutting Blade | Cr12MoV with hard treatment |
4 | Control System | PANASONIC PLC, others are Schneider etc. |
5 | Electrical motor | China quality brand |
6 | Touch screen | Win view |
7 | PLC | Panasonic |
8 | Rely | Schneider |
9 | Encoder | Omron |
Related Products

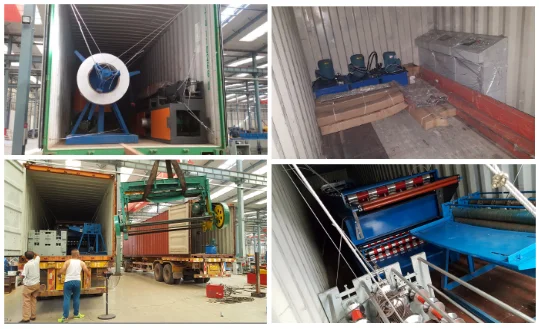

Packing&Shipping
all machines will be covered with plastic films,with steel wiring fixed in container.

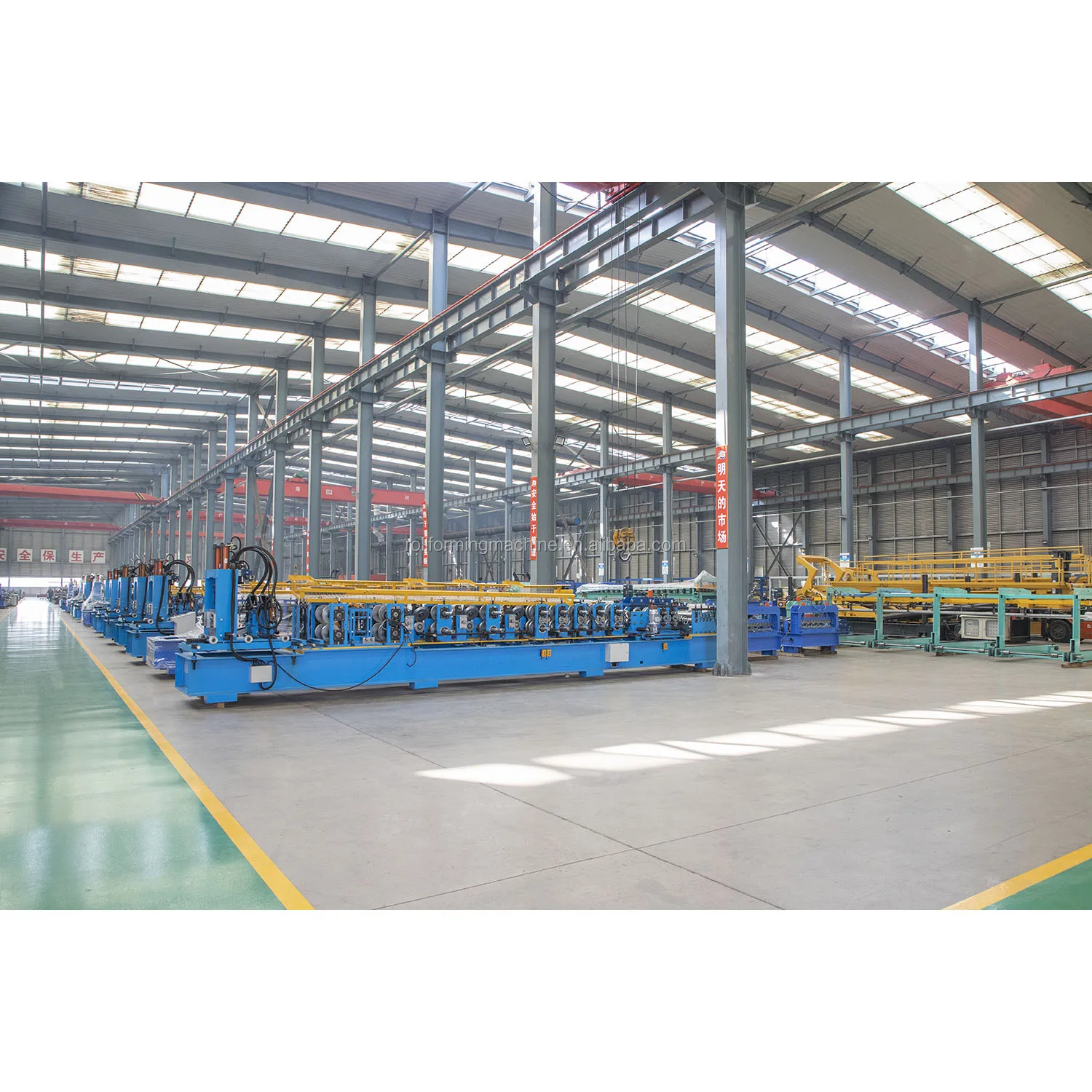

Company Introduction
specialized manufacturer of roll forming machine and exported to different countries.
FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
