Product Description
Grain silo corn poultry feed silo Steel grain storage silo For Paddy/Corn/Sorghum Storage
The Poultry Feeder silo has to be used for a long time, and it is placed outside, which has to bear 20-30 tons of feeding weight, Therefore the material must be resistant to high temperature, because low temperature is easier to guarantee feed quality .
It has to withstand hot and high-temperature weather, wind and rain for a long time. Therefore the Poultry Feeder silo must be highly resistant to corrosion and oxidation
Since it need bear the weight of 20-30 tons,Therefore tower material must be Hard and resilient.
Specification
Model | Diameter | Ton | Wall thickness | Height | Legs | Material |
4.1m³ | Φ1830 | 2.7T | 1.0mm | 3.8m | 4pcs | 275g hot dip galvanizing |
6.5m³ | Φ1830 | 4.2T | 1.0mm | 4.7m | 4pcs | 275g hot dip galvanizing |
8.9m³ | Φ1830 | 5.8T | 1.0mm | 5.6m | 4pcs | 275g hot dip galvanizing |
11.3m³ | Φ1830 | 7.3T | 1.0mm | 6.5m | 4pcs | 275g hot dip galvanizing |
11.6m³ | Φ2750 | 7.5T | 1.0mm | 4.9m | 6pcs | 275g hot dip galvanizing |
17m³ | Φ2750 | 11T | 1.0mm | 5.8m | 6pcs | 275g hot dip galvanizing |
22.4m³ | Φ2750 | 14T | 1.0mm | 6.7m | 6pcs | 275g hot dip galvanizing |
27.8m³ | Φ2750 | 18T | 1.0mm | 7.6m | 6pcs | 275g hot dip galvanizing |
23.5m³ | Φ3670 | 15T | 1.2mm | 5.8m | 8pcs | 275g hot dip galvanizing |
33m³ | Φ3670 | 21.5T | 1.2mm | 6.7m | 8pcs | 275g hot dip galvanizing |
42.5m³ | Φ3670 | 27.5T | 1.2mm | 7.6m | 8pcs | 275g hot dip galvanizing |
52m³ | Φ3670 | 33.5T | 1.2mm | 8.5m | 8pcs | 275g hot dip galvanizing |
Performance Characteristic

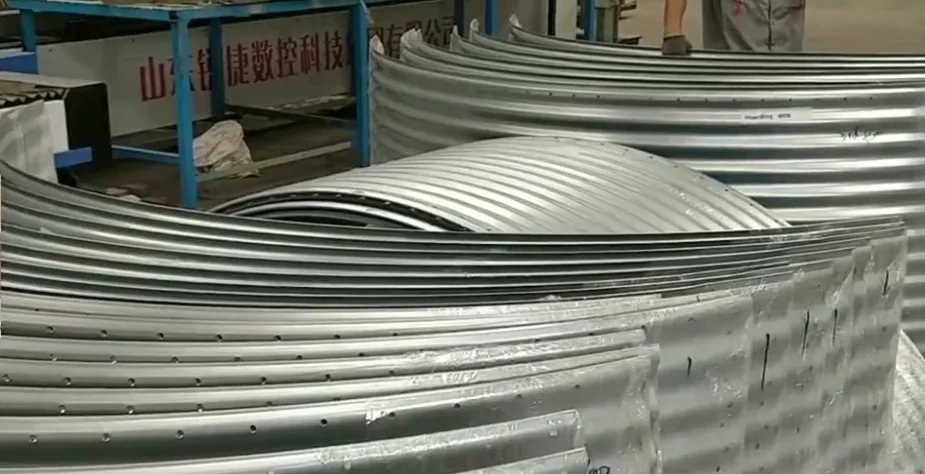

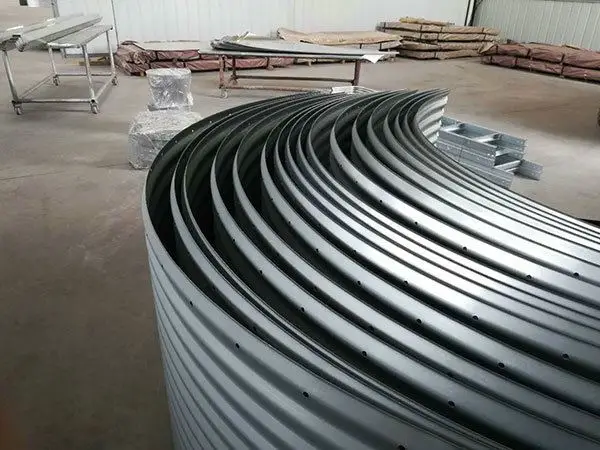

Wallboard for Poultry feeder silo
Grain silo corn poultry feed silo Steel grain storage silo For Paddy/Corn/Sorghum Storage
1.it is made of steel with tension up to 55000,With electroplating coating treatment,275g Zinc coating.which increase the strength and service life.
2.The corrugated steel can ensure accurate and consistent match during installation.
3.The weight and thickness of zinc coating have strict requirements, which meet the requirements of field use with good corrosion resistance, external main material line.
Grain silo corn poultry feed silo Steel grain storage silo For Paddy/Corn/Sorghum Storage

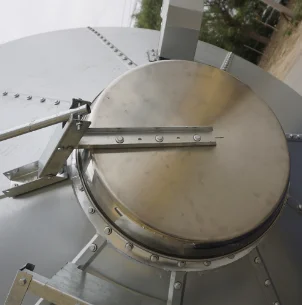

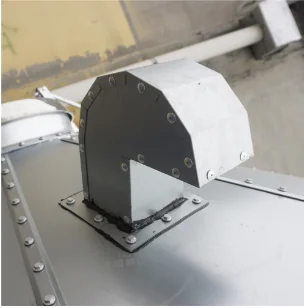

1.It adopts a Top movable Silo cover system, which can open, close and block the silo when workers stand on the ground.

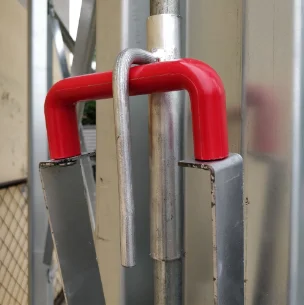

2.Limit bolts are used to ensure that the movable Silo cover can be opened freely within 180 degrees.

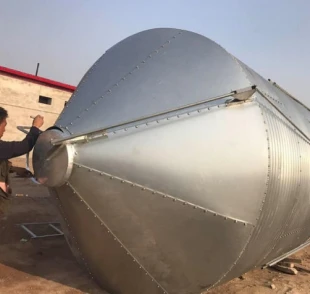

Edge of Poultry Silo top
Grain silo corn poultry feed silo Steel grain storage silo For Paddy/Corn/Sorghum Storage
1.According to the actual situation, the edge of the Silo top will be designed differently.
2.The edge of the Silo bottom is formed by curling,which can keep the rainwater away from the funnel and the lower discharge pipe area, which can provide all-weather protection without being affected..

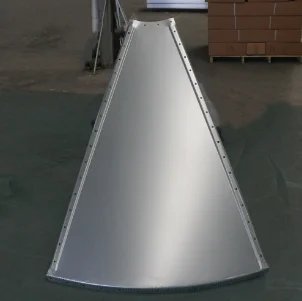

40 degree Poultry silo top
Grain silo corn poultry feed silo Steel grain storage silo For Paddy/Corn/Sorghum Storage
40 degree top provides greater strength and capacity.
Grain silo corn poultry feed silo Steel grain storage silo For Paddy/Corn/Sorghum Storage

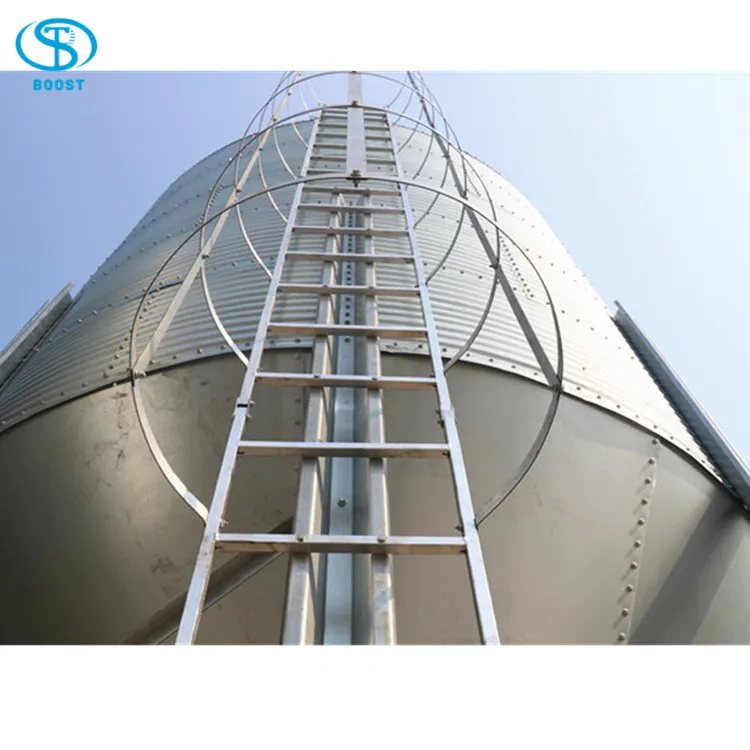

1.A strong ladder will be matched for each poultry silo.
2.Each ladder body is molded from a whole piece of galvanized steel plate, which has the advantages of high strength, good stability, and easy and fast installation.
3.There are small concave holes on the rungs of the ladder to prevent slipping.
3.There are small concave holes on the rungs of the ladder to prevent slipping.

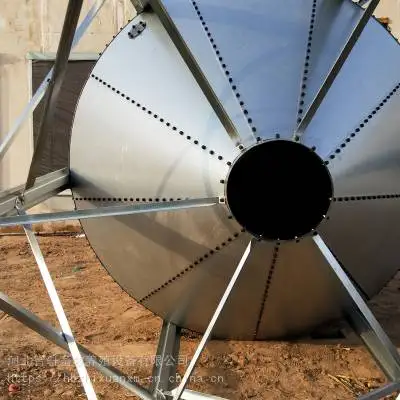

The hopper at the bottom of the Silo
Grain silo corn poultry feed silo Steel grain storage silo For Paddy/Corn/Sorghum Storage
According to the angle of inclination, the hopper at the bottom of the Silo can be divided into three types: 45 degrees for dry feed conveying, 60 degrees for smooth flowing grain conveying, and 4
Detail Images

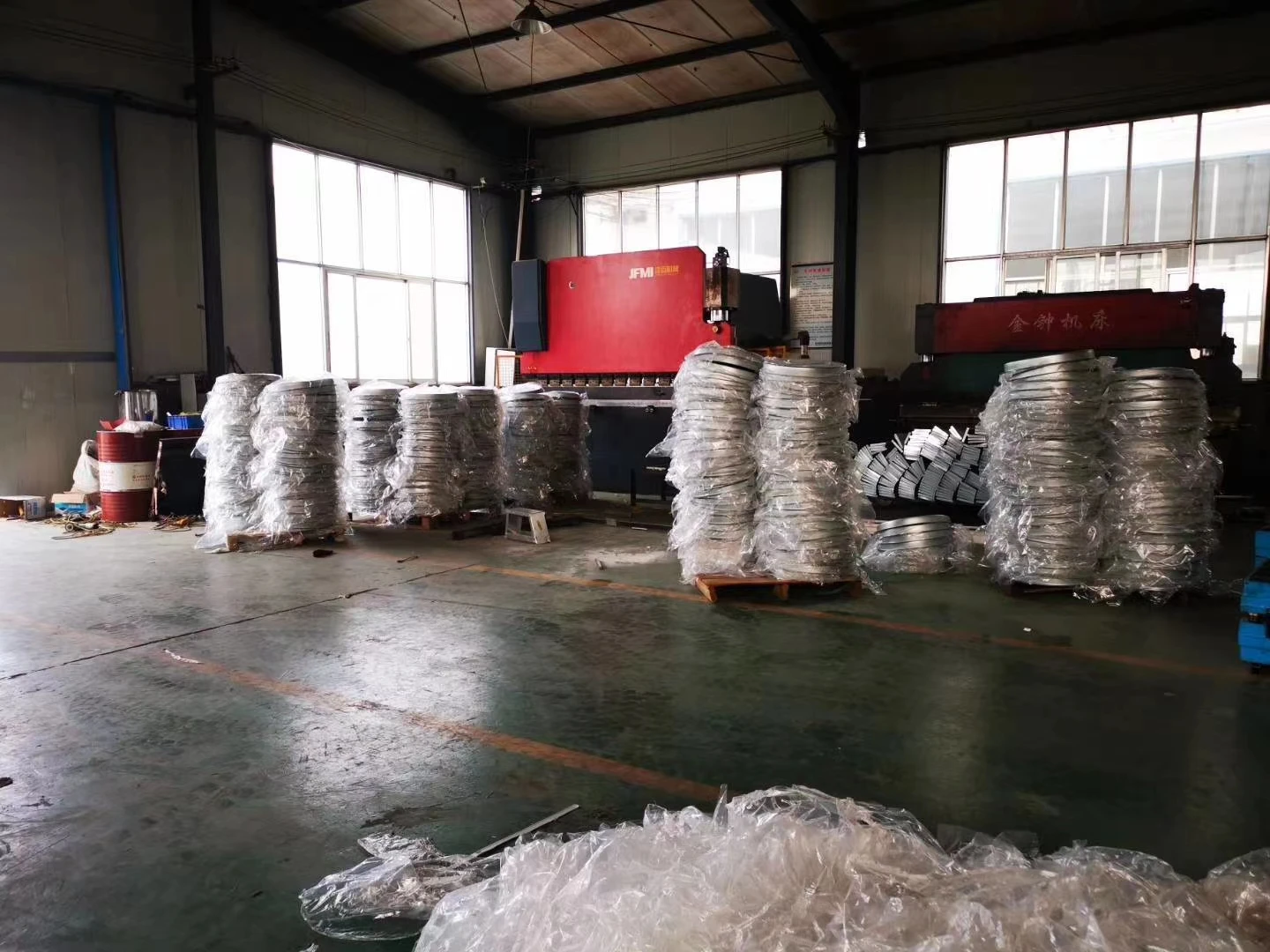

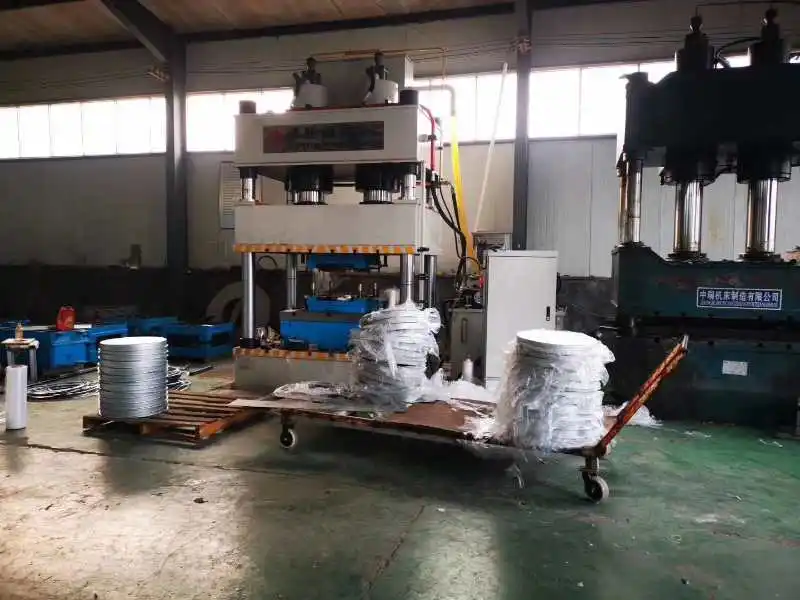

Factory&Workshop
WHY choose BOOST?
BOOST factory is equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry, in order to reduce the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.

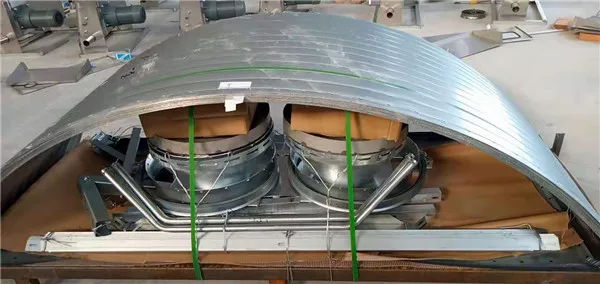

Packing & Delivery
Related Products
FAQ
Q:Is your company a manufacture or Trading company?
A:We are professional manufacture of Ventilation equipment,Cooling equipment ,Heating equipment ,Poultry farming equipment for poultry,workshop and greenhouse in China
Q:Can you open our own brand?
A:Yes,we can offer OEM/ODM service,put your logo for the produce.
Q:What is your minimum oreder quantity?
A:We accept small order quantity, but the freight cost will be very high
Q:Voltage your can offer?
A:Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q:How about the quality of your product?
A:All the products are produced strictly according to the international standard,which has been passed CE certification,CCC certificated and ISO9001:2008 international quality management system.
Q:Can you accept an inspection of a Third-party detection instituation?
A:Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before.and have got perfect inspection report.
Q:Can you open our own brand?
A:Yes,we can offer OEM/ODM service,put your logo for the produce.
Q:What is your minimum oreder quantity?
A:We accept small order quantity, but the freight cost will be very high
Q:Voltage your can offer?
A:Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q:How about the quality of your product?
A:All the products are produced strictly according to the international standard,which has been passed CE certification,CCC certificated and ISO9001:2008 international quality management system.
Q:Can you accept an inspection of a Third-party detection instituation?
A:Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before.and have got perfect inspection report.
