Широкий производственный диапазон от 1000 до 5000 тонн бункеры из стали для хранения
- Категории: Silos >>>
- Поставщик: Henan,Coban,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Coban grain silos are made of high quality 275g/m2, 300g/m2, 350g/m2 hot-dip galvanized steel plates which are rolled into corrugation and made into standard connecting holes. The vertical friction is support by the steel silo stiffeners which are evenly vertically applied in the silos. The connecting screw bolts are served with round galvanized steel washers, the connecting holes are served with age-resistant and water-proof daub belts that are for aviation special purpose.These plates and stiffeners are connected by high-strength screw bolts to keep the flat silo strong and durable. The hopper bottom silos are equipped with flat repairing doors, outside ladder and ladder guard rings.
Feature:
1. Assembly, easy to ship and save freight.
2. Hot-dip galvanized plates (275g/m2-600g/m2), very WATERPROOF &RUST-PROOF.
3. Hopper bottom has low cost price.
4. Silos can store grain safely and save labor cost and space.
Feature:
1. Assembly, easy to ship and save freight.
2. Hot-dip galvanized plates (275g/m2-600g/m2), very WATERPROOF &RUST-PROOF.
3. Hopper bottom has low cost price.
4. Silos can store grain safely and save labor cost and space.
Specification
Project | Layers | V (m3) | Capacity (t) | Dia.φ (mm) | H (mm) |
TCKZ03607 | 7 | 93 | 70 | 3667 | 11800 |
TCKZ04509 | 9 | 187 | 140 | 4584 | 14770 |
TCKZ05510 | 10 | 301 | 226 | 5500 | 16610 |
TCKZ06412 | 12 | 490 | 368 | 6417 | 19570 |
TCKZ07312 | 12 | 651 | 488 | 7334 | 20300 |
TCKZ08209 | 9 | 658 | 493 | 8250 | 17750 |

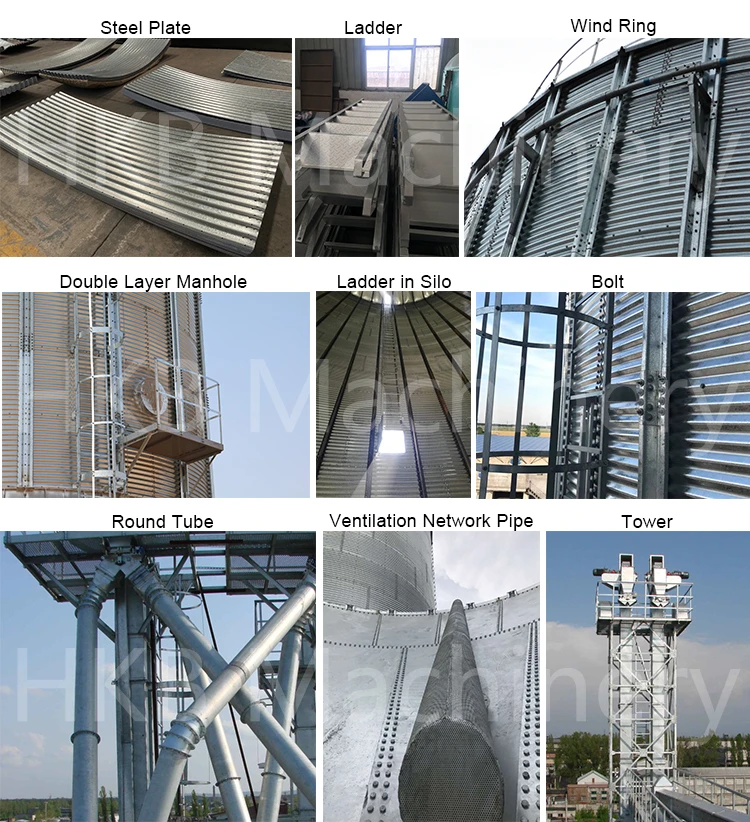

Details Images

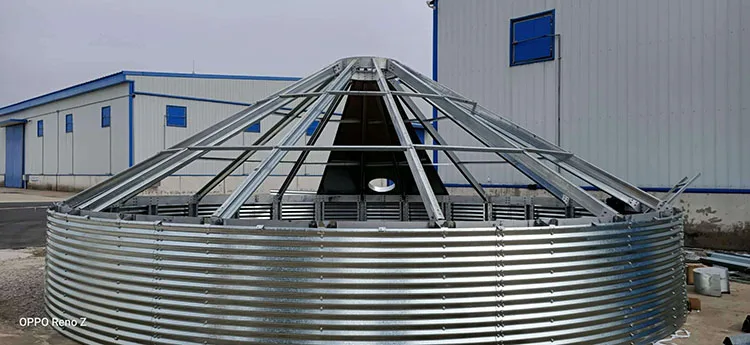

Silo Roof
The roof beam is made of C-shaped steel, the upper part is connected with the top ring of the silo, the lower part is connected with the pillar of the silo,and the beam is horizontally connected by angle steel to form the framework of the silo top.

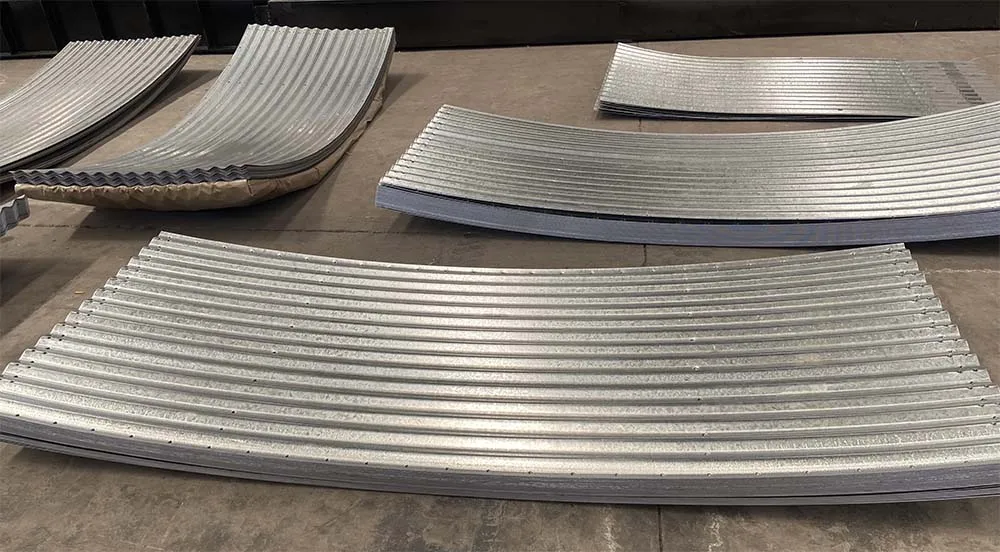

Silo Body

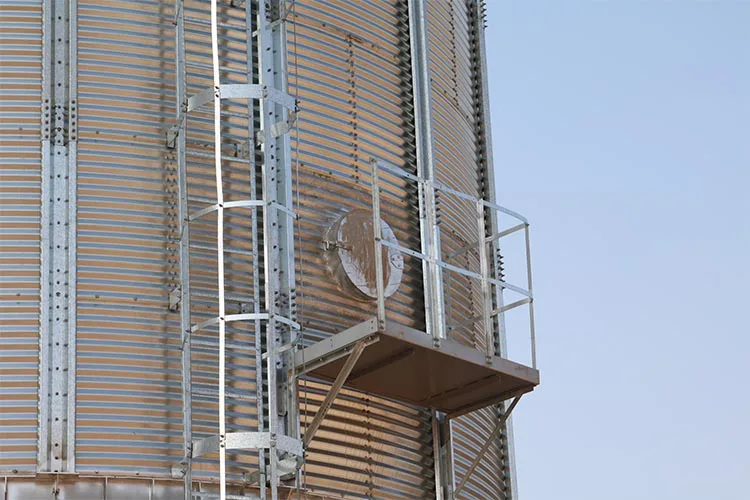

Access Ladder & Door
Recommend Products

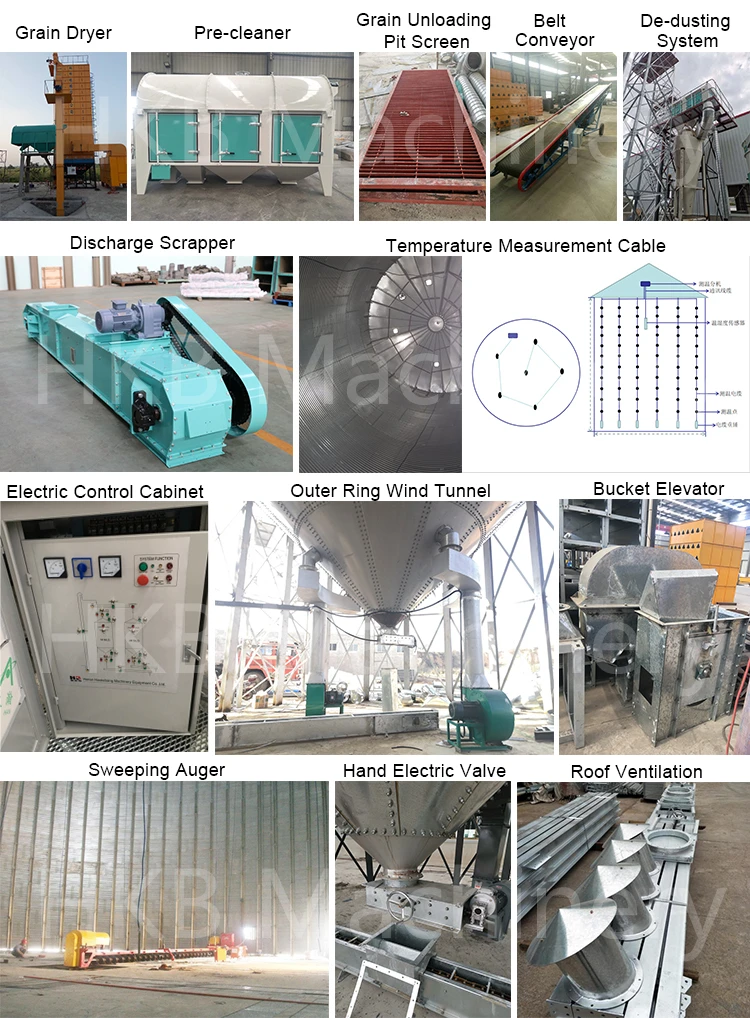

Henan Coban Machinery Equipment Co., Ltd. specializes in the production of 100-10,000 ton hopper bottom and flat bottom corrugated galvanized steel silos. According to various factors such as site, weather, and geology, we provide professional silo design, equipped with elevators, unloading pits, pre-cleaner, conveyors, sweeping auger, and other accessories to meet the diverse needs of customers.

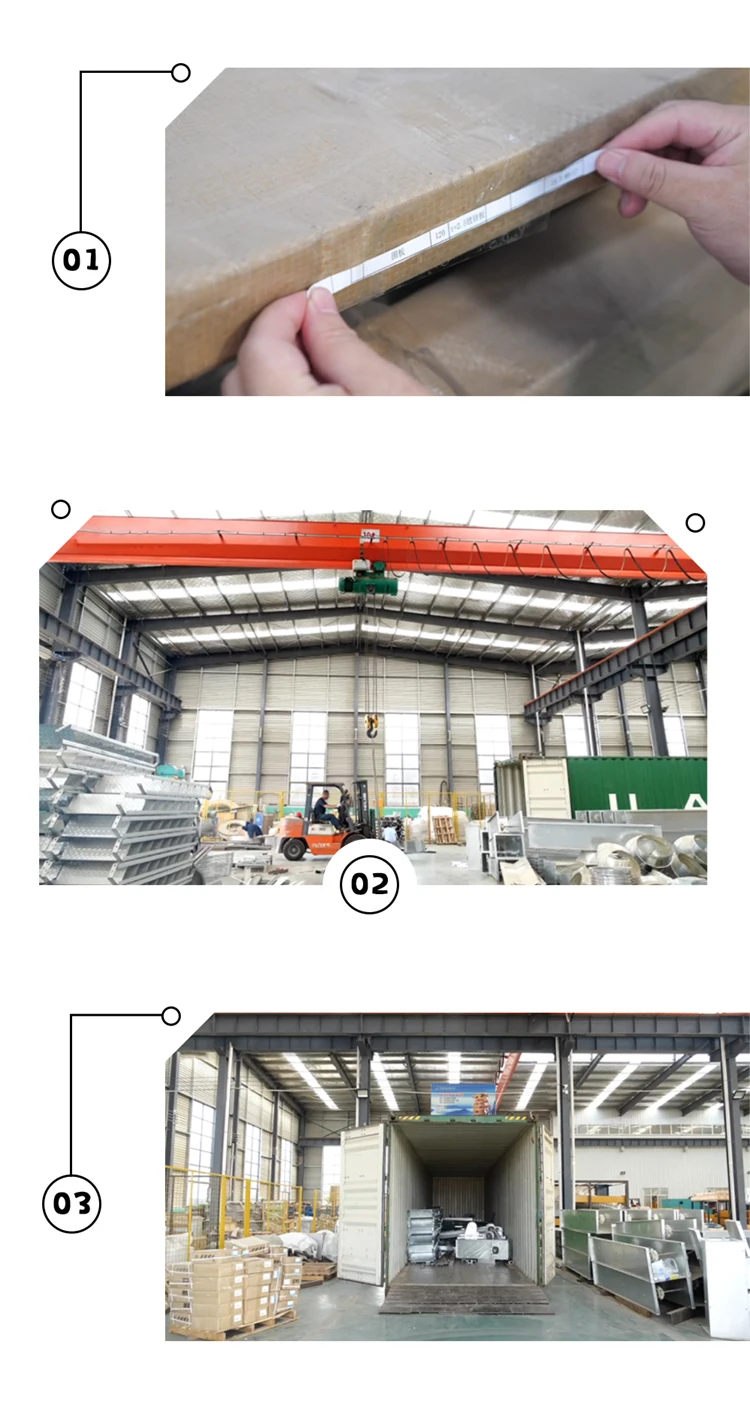

Product packaging

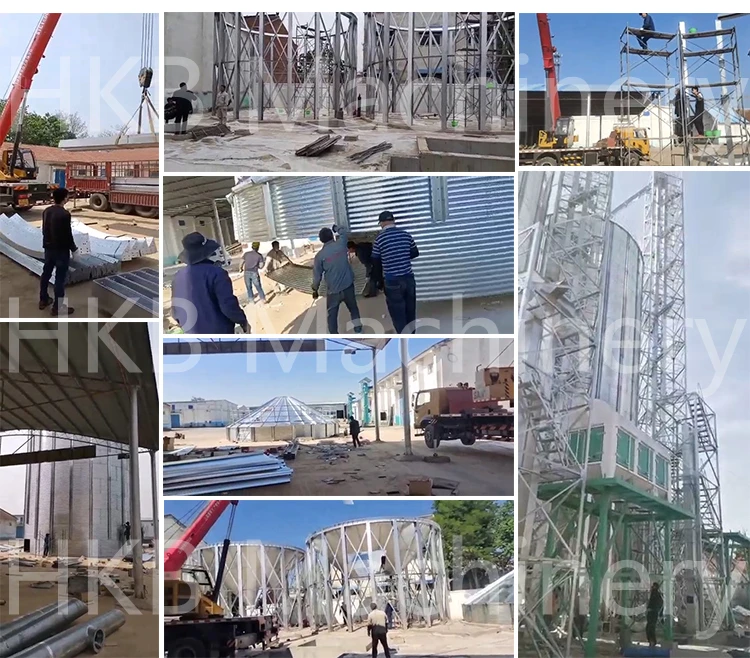

Coban’s own installation engineers team plays a respectable role in the success high-performance whole silo system. Our motivated team has rich installation experience for various types of silos, work under a strict and standardized installation management system, has thorough installation cross-checking rules, and promise one-time project acceptance.

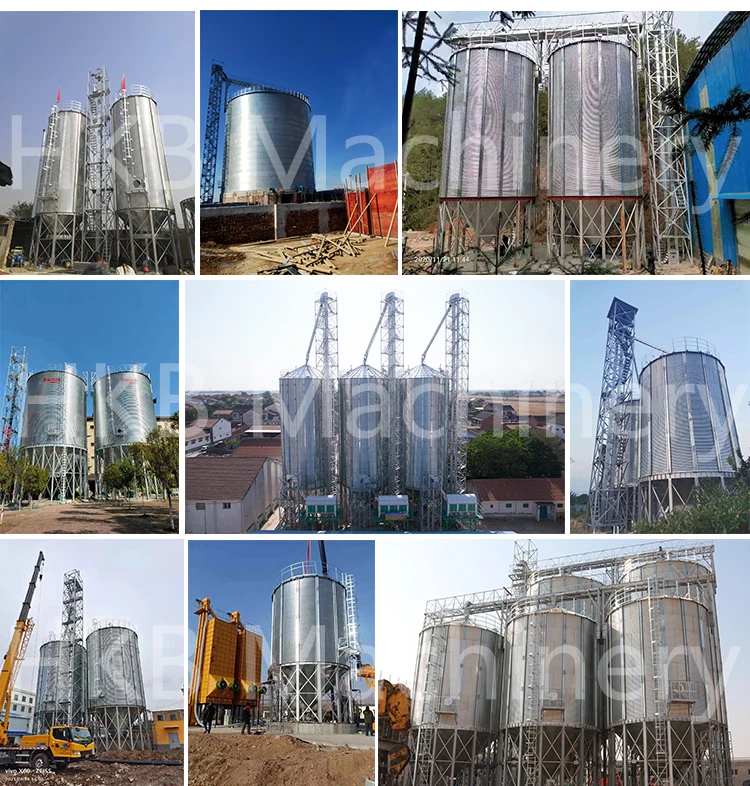

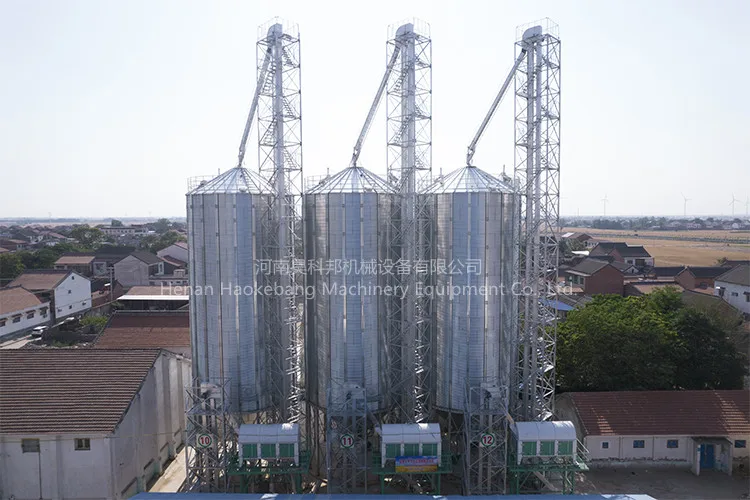

Customer site
Coban Grain Feed Silos have passed ISO, CE, and other certifications, attracting customers from all over the world with an efficient sales team and competitive price advantage, we have exported to more than 50 countries, including the United States, Russia, South Korea, Nigeria, Tanzania, Uganda, Colombia, Thailand, Philippines, Zimbabwe, Kenya, and other countries and regions.

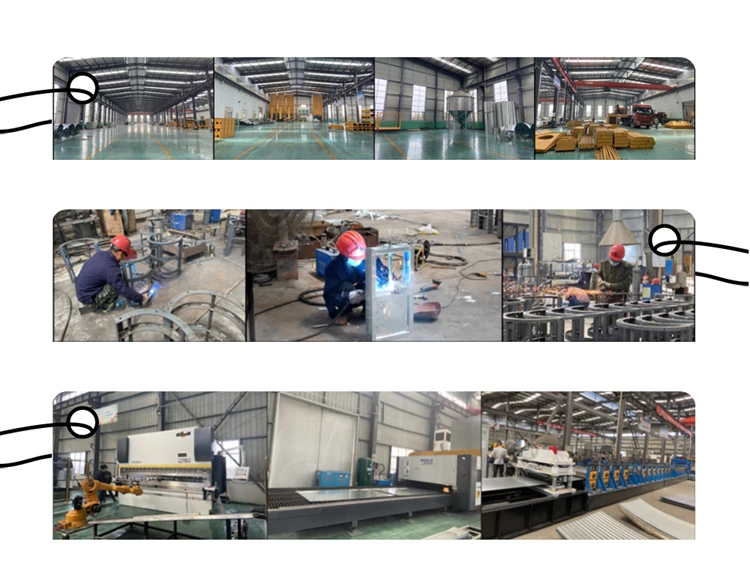

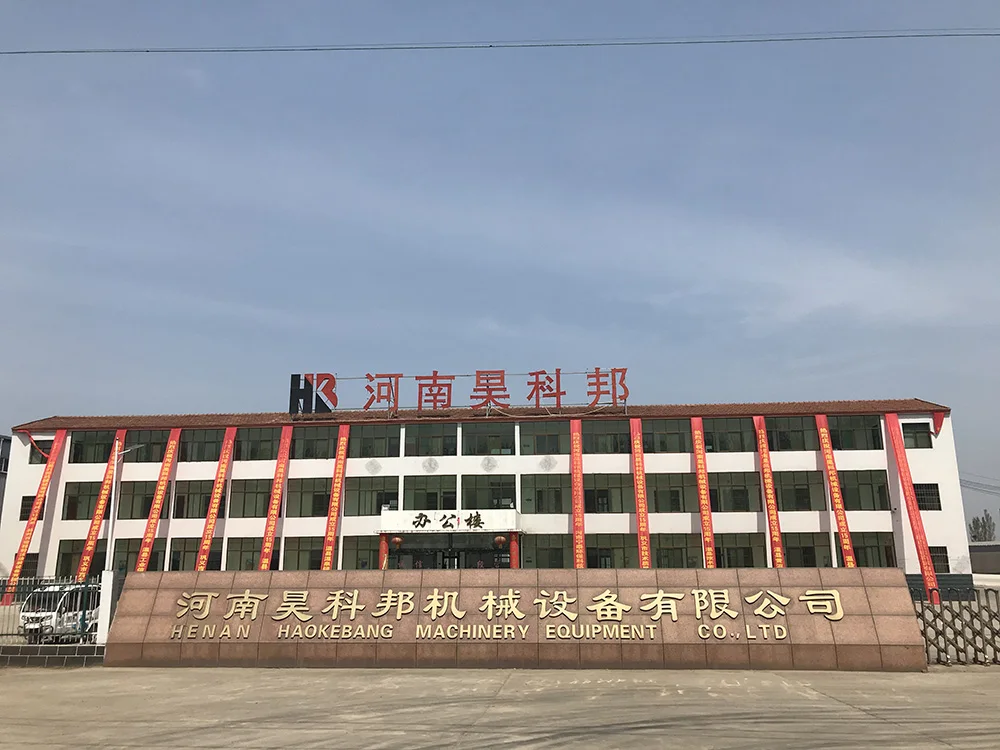

Company Profile
Henan Coban Machinery Equipment Co., Ltd. was founded in 2008, covers an area of 32,000 square meters, has 8,000 square meters of the standardized heavy industrial production room, specializing in the production of feed mill, feed silo, small harvester, thresher, grain dryers, and other agricultural grain processing equipment. From grain cleaning, and drying to storage, Coban Machinery creates a one-stop service for benefiting farmers!
FAQ
Q: Is your company a manufacturing or Trading company?
A: We are professional manufacture of Agricultural equipment, Grain silo in China
Q: Can you open our own brand?
A: Yes, we can offer OEM/ODM service, put your logo for the produce.
Q: What is your minimum order quantity?
A: We accept small order quantities, but the freight cost will be very high
Q: Voltage your can offer?
A: Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q: How about the quality of your product?
A: All the products are produced strictly according to the international standard, which has been passed CE certification, and ISO9001:2008 international quality management system.
Q: Can you accept an inspection of a Third-party detection institution?
A: Yes, sure. Our products have been inspected by some third-party detection institutions authorized by customs before. and have got a perfect inspection report.
A: We are professional manufacture of Agricultural equipment, Grain silo in China
Q: Can you open our own brand?
A: Yes, we can offer OEM/ODM service, put your logo for the produce.
Q: What is your minimum order quantity?
A: We accept small order quantities, but the freight cost will be very high
Q: Voltage your can offer?
A: Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q: How about the quality of your product?
A: All the products are produced strictly according to the international standard, which has been passed CE certification, and ISO9001:2008 international quality management system.
Q: Can you accept an inspection of a Third-party detection institution?
A: Yes, sure. Our products have been inspected by some third-party detection institutions authorized by customs before. and have got a perfect inspection report.
