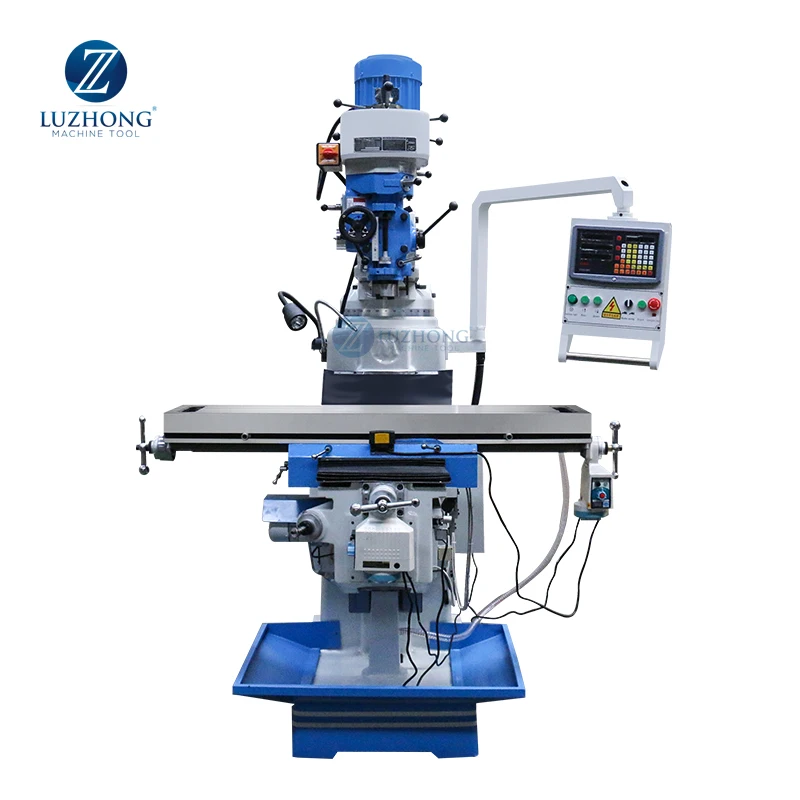

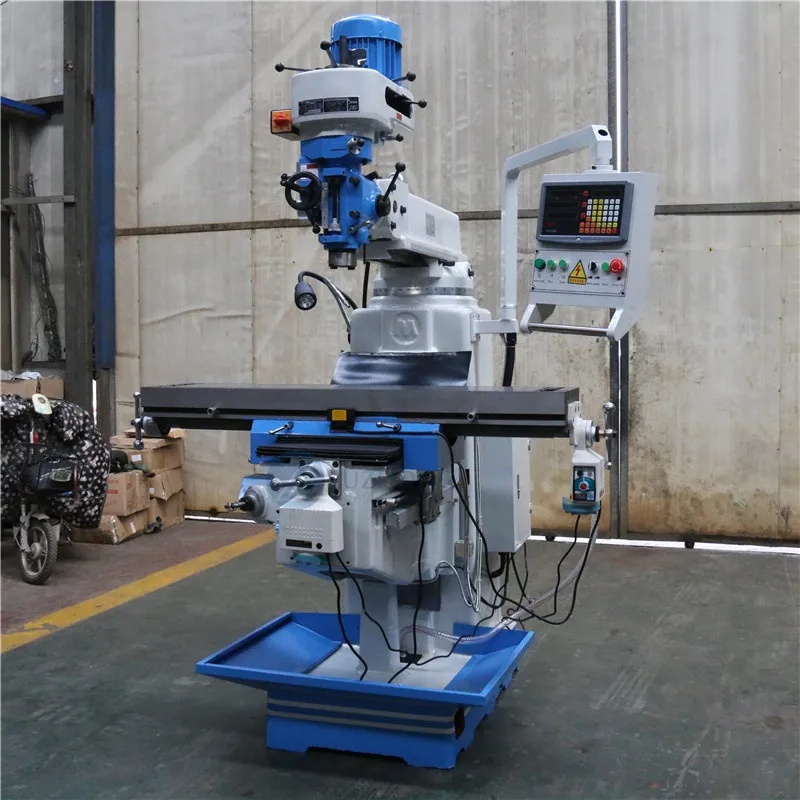

Ручной револьверный фрезерный станок X6330 с тайваньской головкой


Поделиться:

Цена:5 500,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description




Specification


Specifications
Units
X6325
X6330
Table size
mm
1270x254
1370x305
Table travel
mm
780/400/400
810/ 400 /400
T slot(number-width-pitch)
mm
3-16-50
3-16-65
Spindle taper

R8
(V)R8/ISO40
Spindle speed range
rpm
standard:16 steps
50HZ:65-4500 60HZ:80-5440
(V) 50HZ:65-4500 60HZ:80-5440 ‘16 steps
(H) 45-1350,12 steps
Optional:variable 65-4000
Optional:variable 65-4000
Spindle travel
mm
127
127
Spindle feed range
mm
0.04,0.08,0.15
(3 steps)
0.04,0.08,0.15
(3 steps)
Distance between spindle nose and table surface
mm
90-510
90-510
Distance between spindle axis and table surface
mm
-
120-520
Main motor power
kw
2.2
2.2(V)3(H)
Head rotation (left - right )
°
±90°
±90°
Head rotation (front - rear)
°
±45°
±45°
Weight
kg
1400
1850
Overall dimension
mm
1550x1650x2250
1550x1650x2250

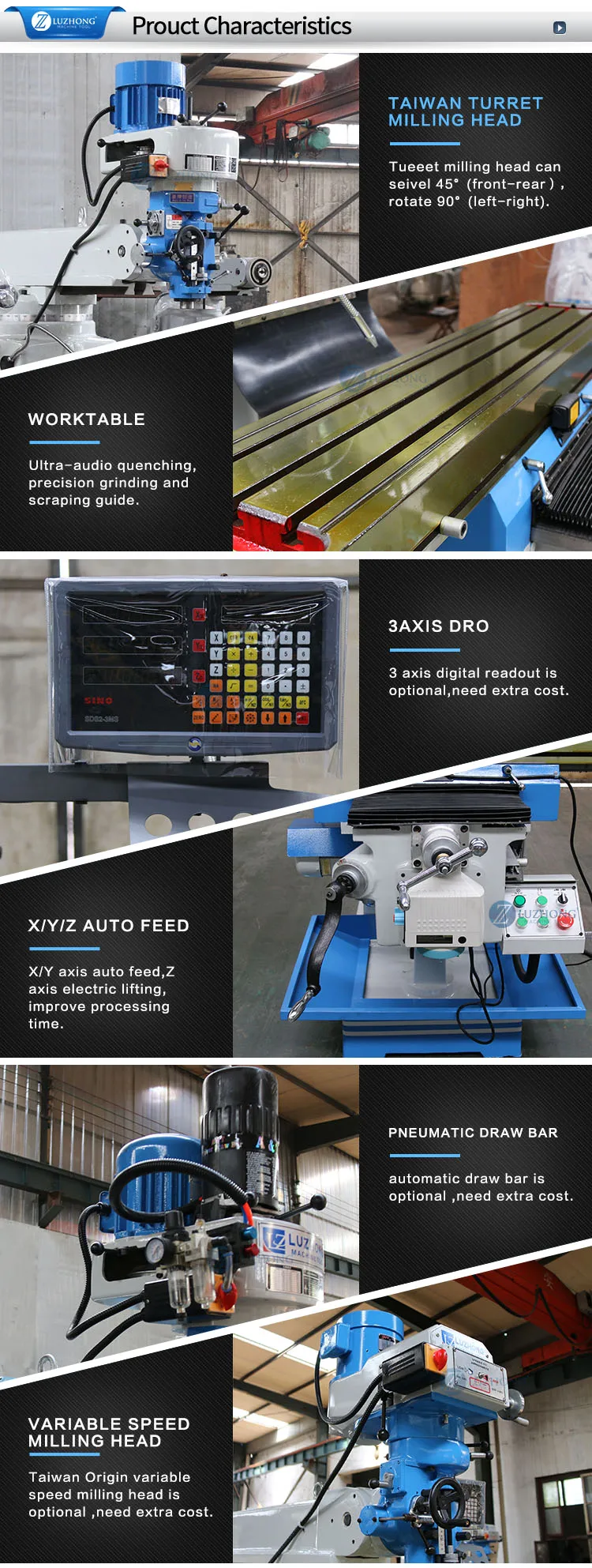

Details Display






Recommend Products




Company Profile






FAQ


1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
