HM6561 Ручка Тип тестер твердости Портативный

Описание и отзывы

Характеристики

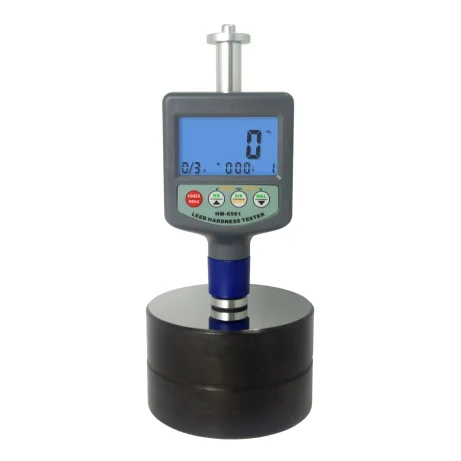

HM-6561 Leeb Hardness Tester

Application

Measure the hardness of metal workpiece. Applicable to Die cavity of molds, Inspection of bearing and other mass produced parts on a production line.



Features

* Palm size for narrow space.

* Test at any angle, even upside down.

* Direct display of hardness scales HRB, HRC, HV, HB, HS,HL.

* Large memory could store 50 groups including single measured value, impact direction, material and hardness scale etc.

* User recalibration function allowed.

* Manual or automatic shut down.

* Low battery indication.

* Use USB/RS-232 data output to connect with PC.

* Provide Bluetooth data output choice.

Material Selection

Material	Converting Ranges
	HL	HRC	HRB	HB		HS	HV
				30D²	100D²
Steel & Cast St.	300~900	20.0~68.0	38.4~99.5	80~647		32.5~99.5	80~940
C.W.Tool Steel	300~840	20.4~67.1					80~898
ST.Steel	300~800	19.6~62.4	46.5~101.7	85~655			80~802
Gray Cast Iron	360~650			93~334
Nodular Cast Iron	400~660			131~387
Cast Aluminum	174~560				20~159
Brass	200~550		13.5~95.3		40~173
Bronze	300~700				60~290
Copper	200~690				45~315

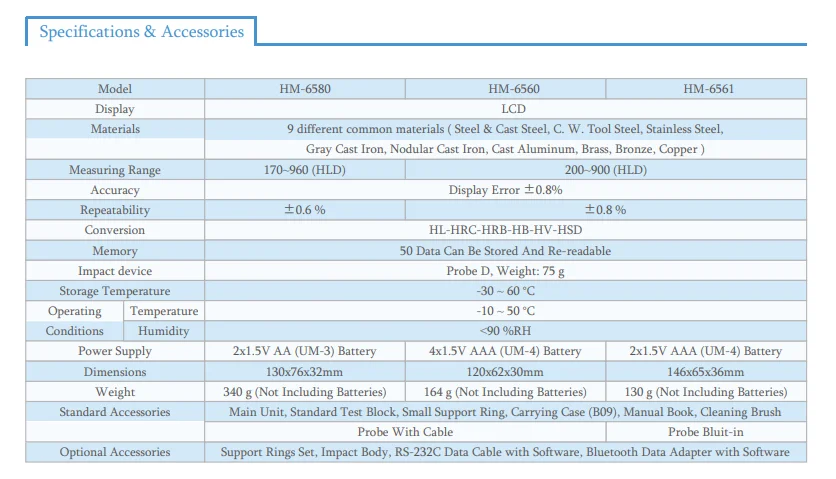

Specifications

Display	LCD
Materials	9 different common materials(Steel&Cast Steel,C.W.Tool Steel,Stainless Steel,Gray Cast Iron,Nodular Cast Iron,Cast Aluminum,Brass,Bronze,Copper)
Measuring Range	200~900(HLD)
Accuracy	Display Error±0.8%
Repeatability	±0.8%
Conversion	HL-HRC-HRB-HB-HV-HSD
Memory	50Data Can Be Stored And Re-readable
Impact device	Probe D,Weight:75g
Storage Temperature	-30~60ºC
Operating Conditions	Temperature	-10~50ºC
	Humidity	<90%RH
Power Supply	2X1.5V AAA(UM-4)Battery
Dimensions	146x65x36mm
Weight	130g(Not Including Batteries)





    Beijing Hantai Technology Development Co., Ltd. is a high-tech enterprise with import and export rights. The company mainly specializes in industrial ultrasonic flow meters, Leeb hardness testers, digital ultrasonic thickness gauges, coating thickness gauges, digital ultrasonic flaw detectors, etc. Sales and after-sales service of a number of non-destructive testing products, gas testing equipment and safety protection, environmental protection equipment, construction testing equipment, steel structure and other equipment. The company is headquartered in Beijing and has offices in Hangzhou.

   We will, as always, adjust our work direction according to market changes and user needs, and always adhere to work with manufacturers to provide users with professional pre-sales technical support and timely and accurate after-sales technical services, adhere to the principle of customer first, and implement " Seamless service".

   Based on the business philosophy of "Wisdom, Integrity, Professionalism, Innovation", the company warmly welcomes new and old customers and people of insight at home and abroad to sincerely cooperate and create a brilliant future!
